SDC IPRW Series Wiegand Proximity Readers
Compact HID-Compatible Readers for Access Control Systems
The SDC IPRW Series Wiegand Proximity Readers provide reliable credential-based access control in a sleek, compact design suitable for both indoor and outdoor installations. Designed as the ideal companion to SDC's IPPro® Single Door Controller, the IPRW Series can also interface with most standard access control systems using 26-bit Wiegand output.
Each reader combines a 125 kHz HID-compatible proximity reader with flexible mounting options, making the series an excellent choice for commercial, institutional, industrial, and controlled-access applications. An IP67-rated housing provides protection against dust and water, allowing the readers to be installed in demanding environments.
The IPRW Series features an externally controlled LED indicator that displays red for power and green for authorized access. An integrated audible annunciator provides audible feedback when a credential is presented and can also be controlled externally by the host access-control system.
Key Features
- 125 kHz HID-compatible proximity reader
- Standard 26-bit Wiegand output
- Compatible with most access control systems
- Designed for use with SDC IPPro® Controllers
-
IP67-rated housing for indoor or outdoor installations
- Compact, sleek design
- Externally controlled red/green LED indicator
- Audible annunciator for credential presentation
- Annunciator can be controlled externally by the host

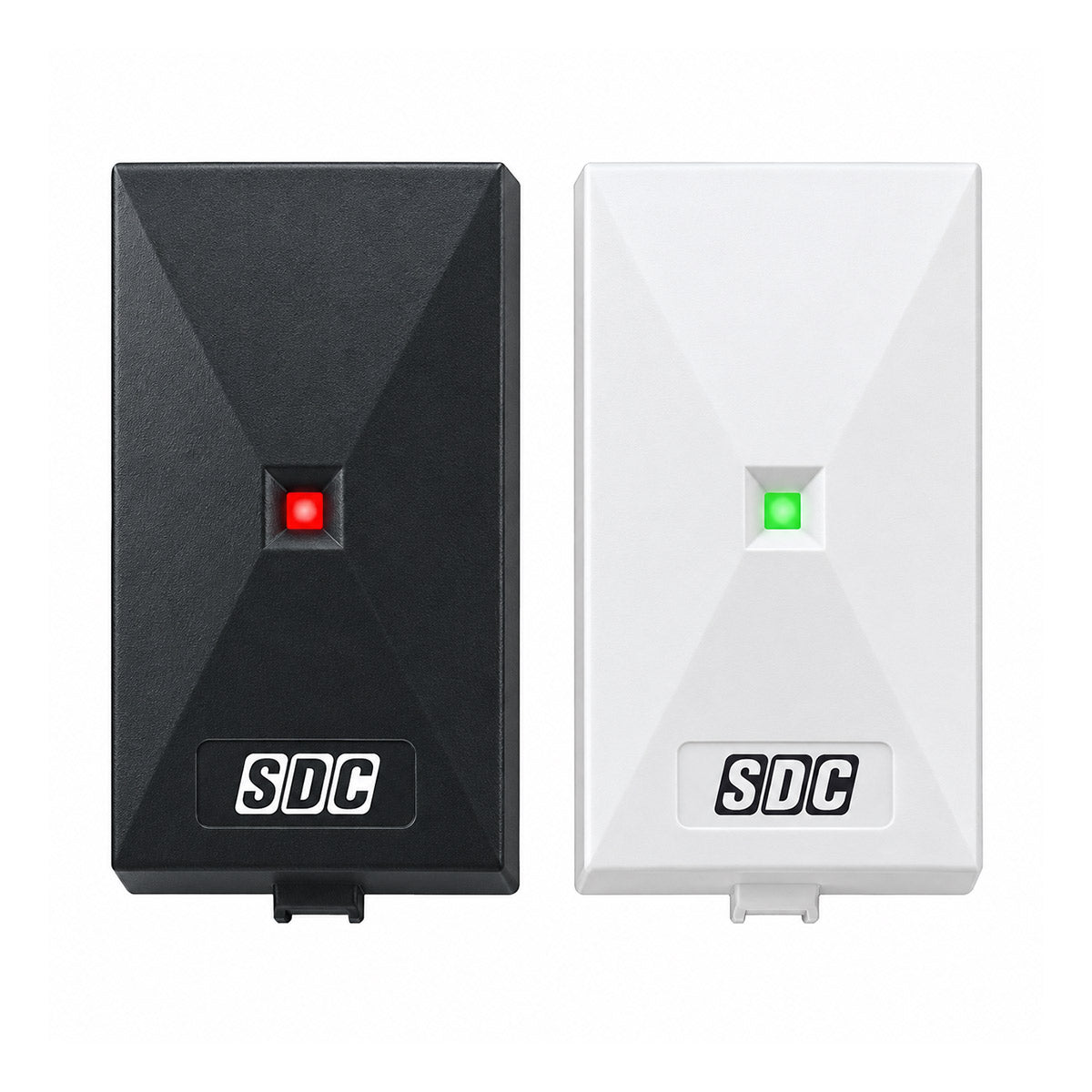

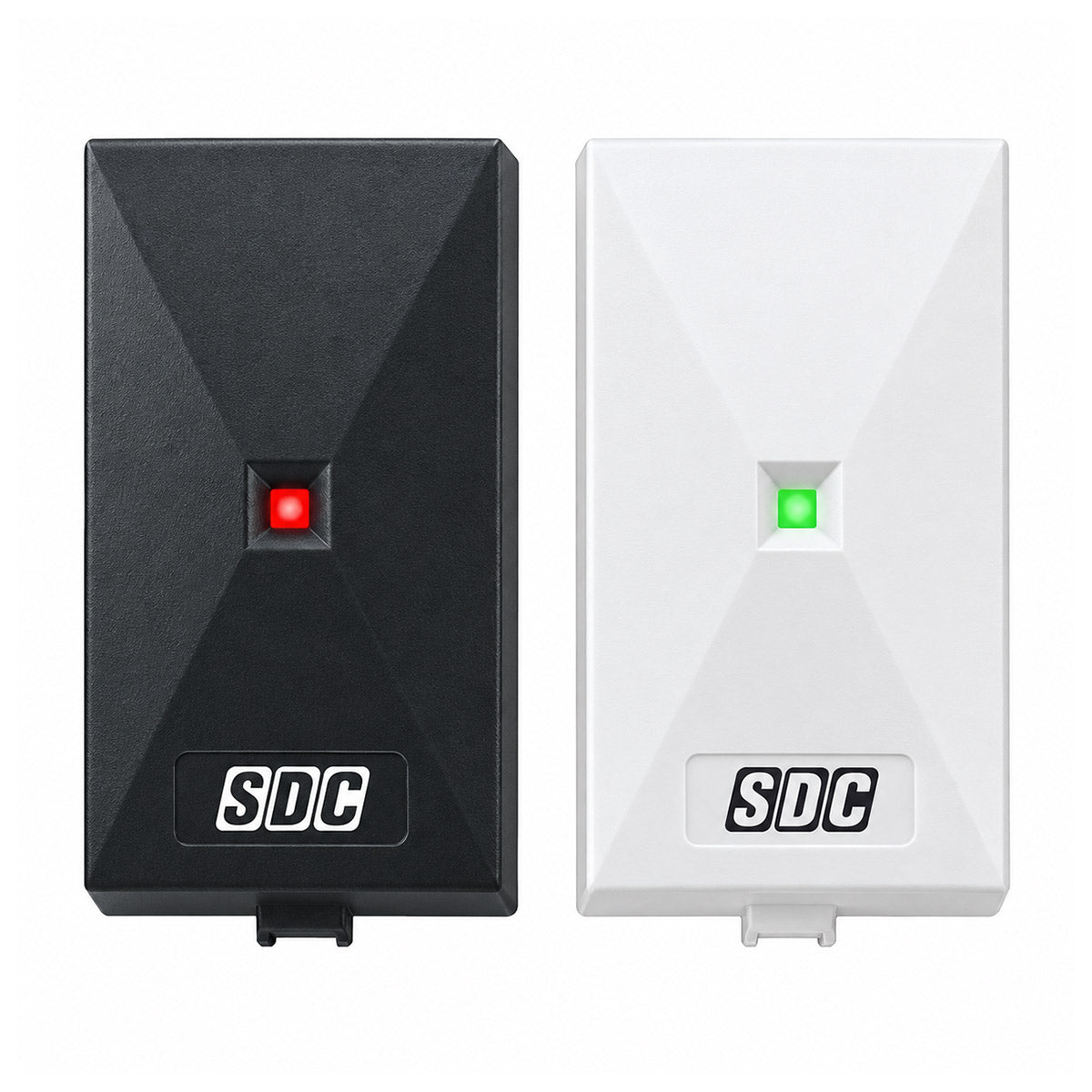

- Black and white snap-on covers included
- Available in mullion or single-gang mounting configurations
- Supports entry/exit reader applications with IPPro controllers

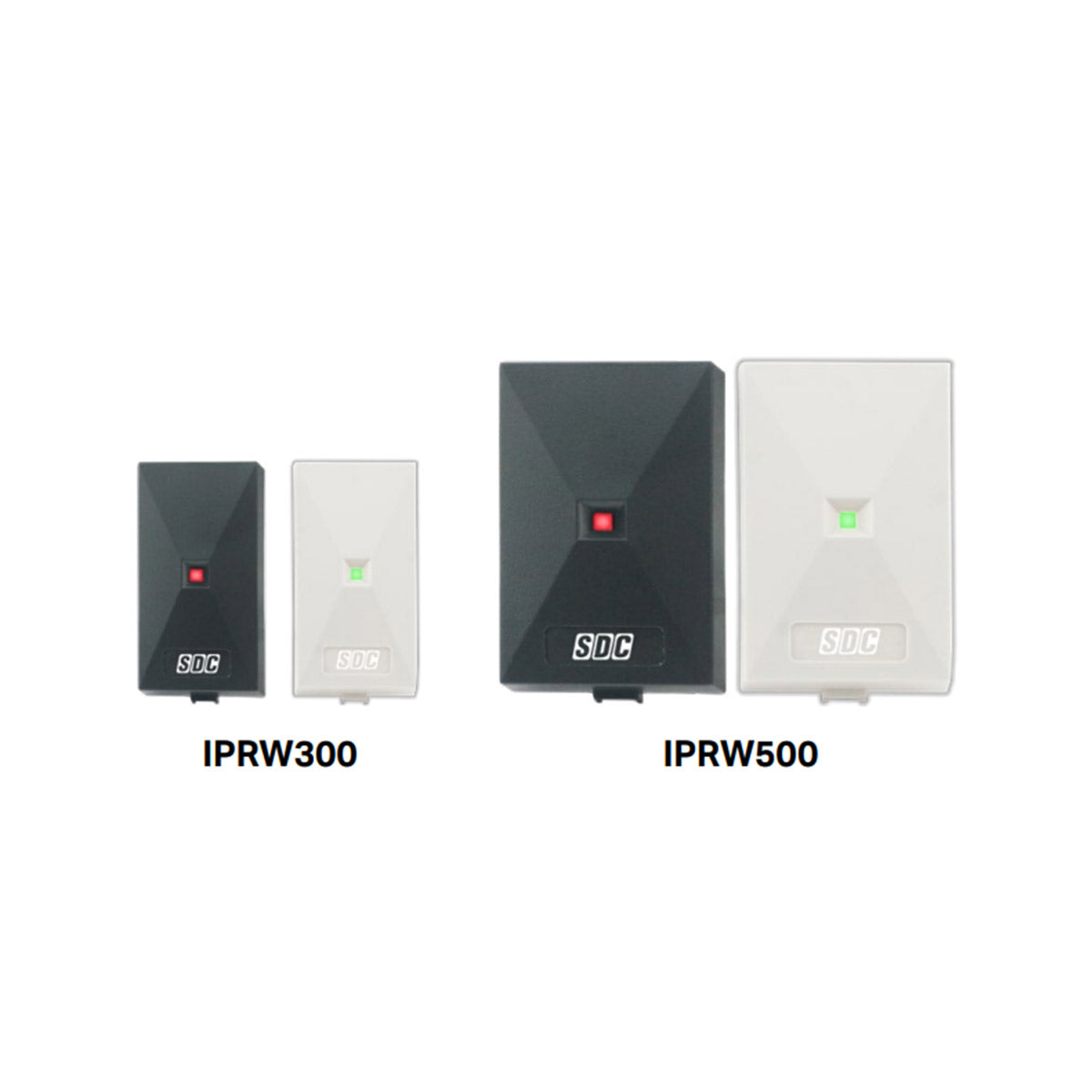

Available Models
| Model |
Description |
Mounting |
| IPRW300 |
Wiegand Proximity Reader |
Mullion Mount |
| IPRW500 |
Wiegand Proximity Reader |
Single-Gang Mount |
Flexible Mounting Options
The IPRW Series is available in two configurations to accommodate different door and access-control installations:
IPRW300 – Mullion Mount
Designed for narrow mounting locations and door-frame mullions where space is limited.
IPRW500 – Single-Gang Mount
Designed for standard single-gang mounting applications and convenient integration into common electrical box configurations.
IP67-Rated Outdoor Construction
The IP67-rated housing helps protect the reader from dust and water exposure, making the IPRW Series suitable for both interior and exterior access points. This makes it a practical choice for building entrances, controlled perimeter doors, commercial facilities, and other applications where environmental protection is important.
Ideal Applications
SDC IPRW Series readers are well suited for:
- Commercial buildings
- Office entrances
- Institutional facilities
- Industrial facilities
- Access-controlled doors
- Indoor and outdoor entry points
- IPPro® access control systems
- Entry/exit reader applications
- Mullion-mounted access points
- Single-gang reader installations
SDC IPPro® Compatibility
When paired with an SDC IPPro® Single Door Controller, the IPRW Series provides a fully compatible reader solution for controlled access applications. Its standard 26-bit Wiegand output also allows integration with a wide range of third-party access control systems.
Reliable, Compact Proximity Access Control
The SDC IPRW Series Wiegand Readers combine HID-compatible 125 kHz proximity technology, 26-bit Wiegand output, IP67-rated protection, flexible mounting options, and clear visual and audible feedback in a compact reader platform. Choose the IPRW300 mullion-mount or IPRW500 single-gang model to match your installation requirements.
