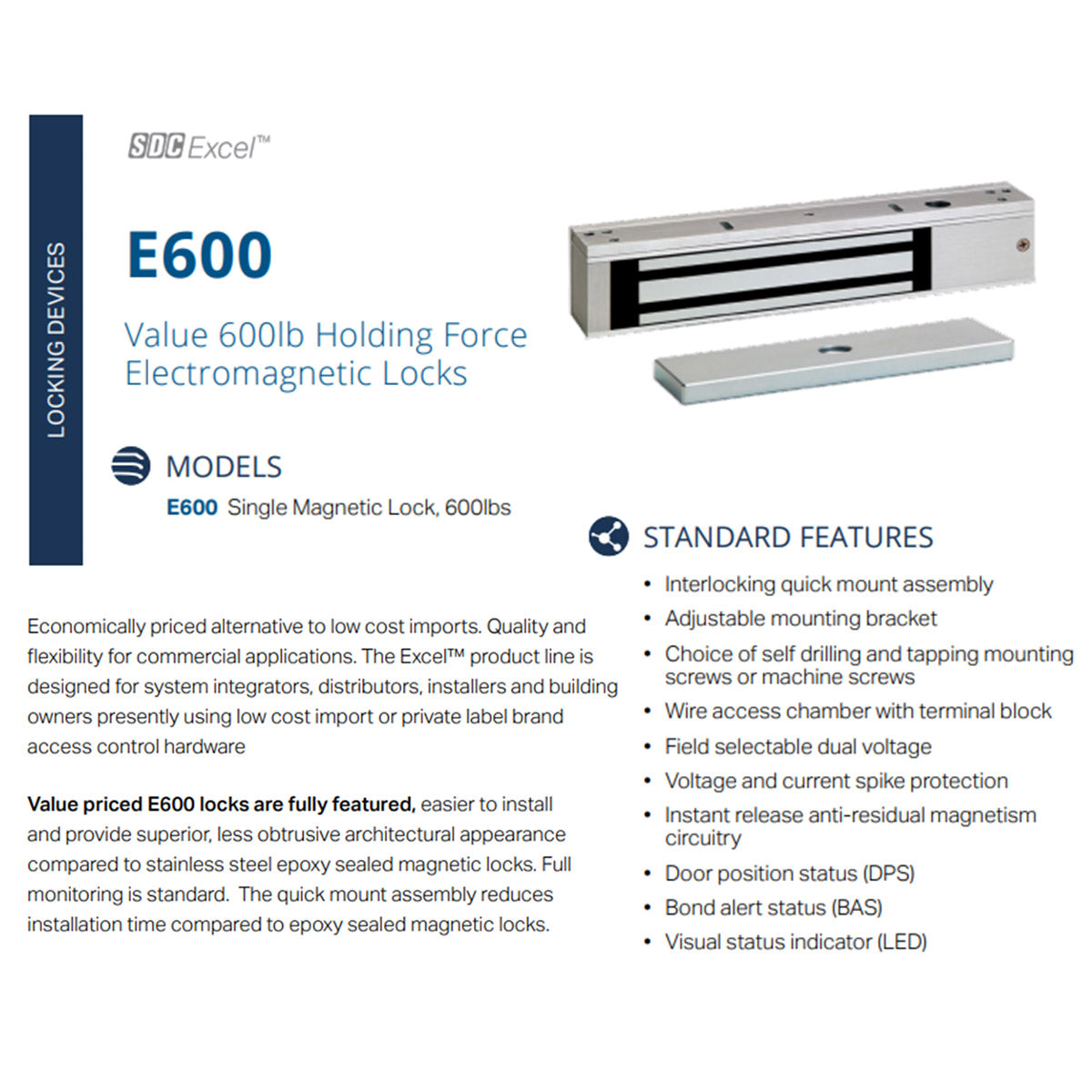

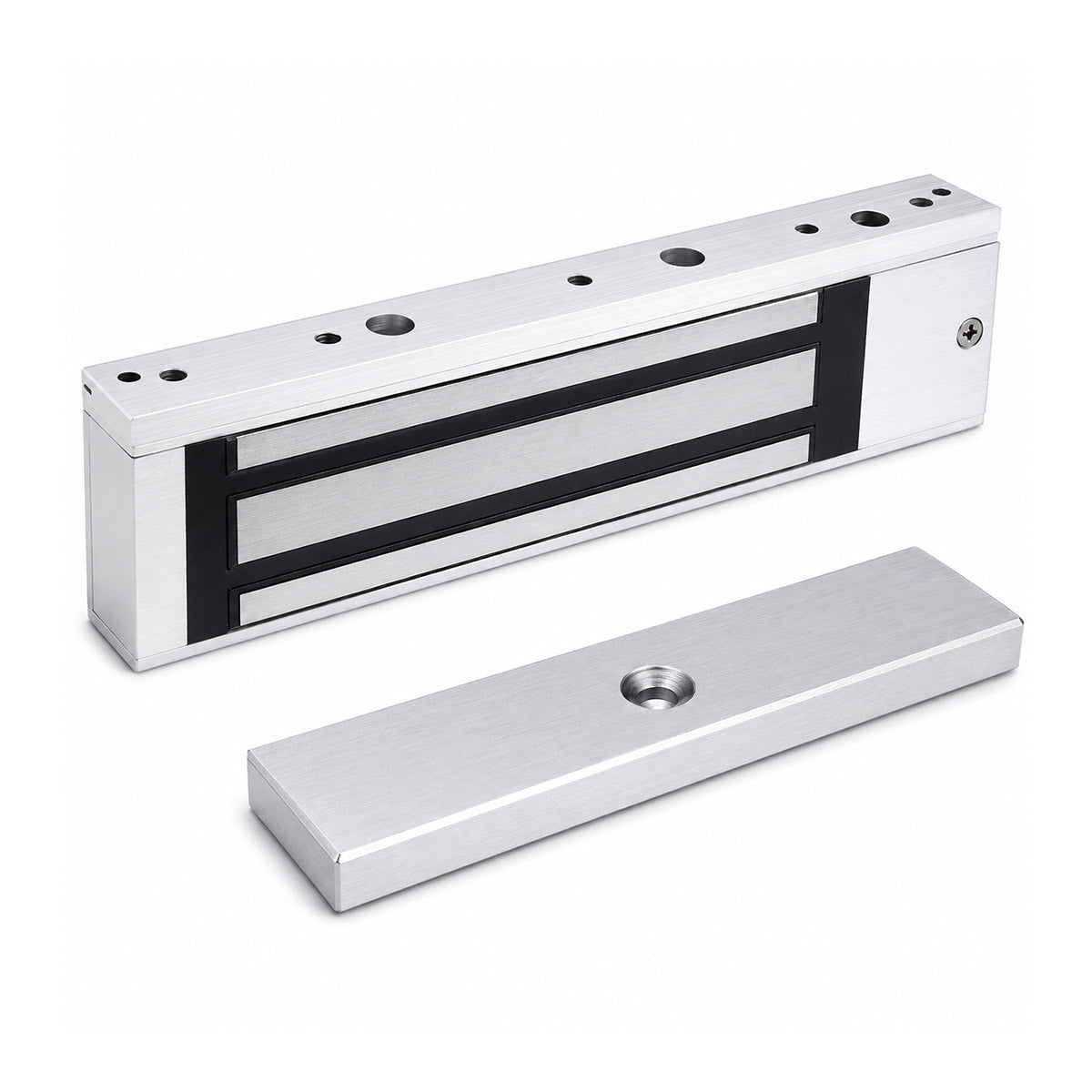

SDC E600 600 lb Holding Force Electromagnetic Lock
The SDC E600 Excel™ Series Electromagnetic Lock delivers dependable access control performance at an economical price. Designed as a quality alternative to low-cost imported and private-label magnetic locks, the E600 provides the features, flexibility, and professional appearance required for commercial security applications.
With a 600 lb holding force, the E600 is well suited for a wide range of commercial access control installations. Its fully featured design includes standard door position and bond monitoring, while the interlocking quick-mount assembly helps simplify installation and reduce labor time compared to traditional stainless steel epoxy-sealed magnetic locks.
The E600 also features an adjustable mounting bracket, field-selectable dual voltage, convenient terminal block wiring, and built-in protection against voltage and current spikes. Its clean, low-profile architectural appearance makes it an excellent choice where both security and aesthetics are important.
Key Features
- 600 lb holding force for commercial access control applications
- Economically priced alternative to low-cost imported magnetic locks
- Part of the SDC Excel™ product line
- Interlocking quick-mount assembly for faster installation
- Adjustable mounting bracket for installation flexibility
- Choice of self-drilling/tapping mounting screws or machine screws
- Wire access chamber with terminal block
- Field-selectable dual voltage
- Voltage and current spike protection
- Instant-release anti-residual magnetism circuitry
- Door Position Status (DPS) monitoring
- Bond Alert Status (BAS) monitoring
- Visual status indicator with LED
- Less obtrusive architectural appearance than traditional epoxy-sealed magnetic locks
- Designed for system integrators, distributors, installers, and building owners

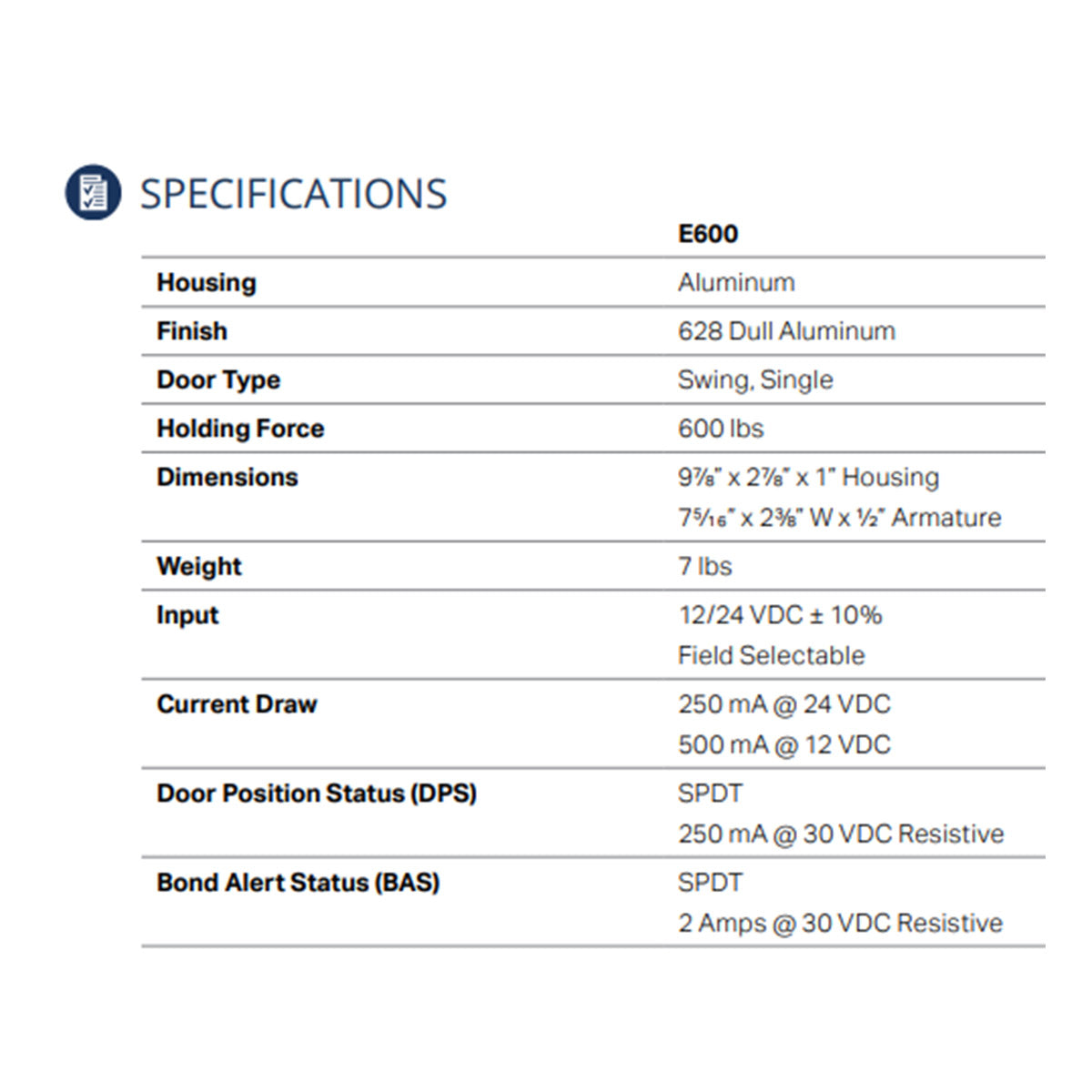

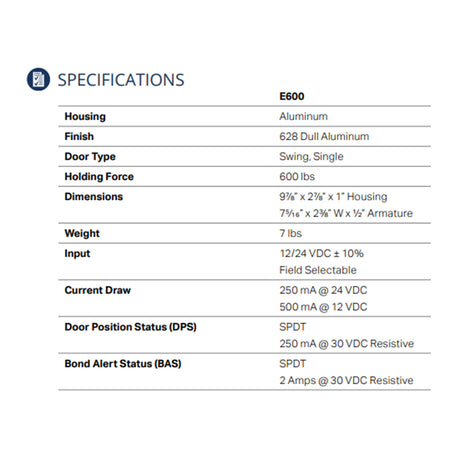

Specifications
| Specification | Details |
|---|---|
| Model | SDC E600 |
| Product Type | Single Electromagnetic Lock |
| Holding Force | 600 lb |
| Voltage | Field-selectable dual voltage |
| Monitoring | DPS & BAS standard |
| Status Indicator | LED |
| Mounting | Interlocking quick-mount assembly |
| Application | Commercial access control |
Reliable Security. Easy Installation. Exceptional Value.
The SDC E600 combines dependable 600 lb holding force with full monitoring and installer-friendly features in a value-priced electromagnetic lock. Its quick-mount design and flexible installation options make it an ideal solution for commercial doors, access-controlled entrances, and security applications.
Ideal for: Commercial offices, retail facilities, institutional buildings, controlled-access doors, and other commercial security applications.
