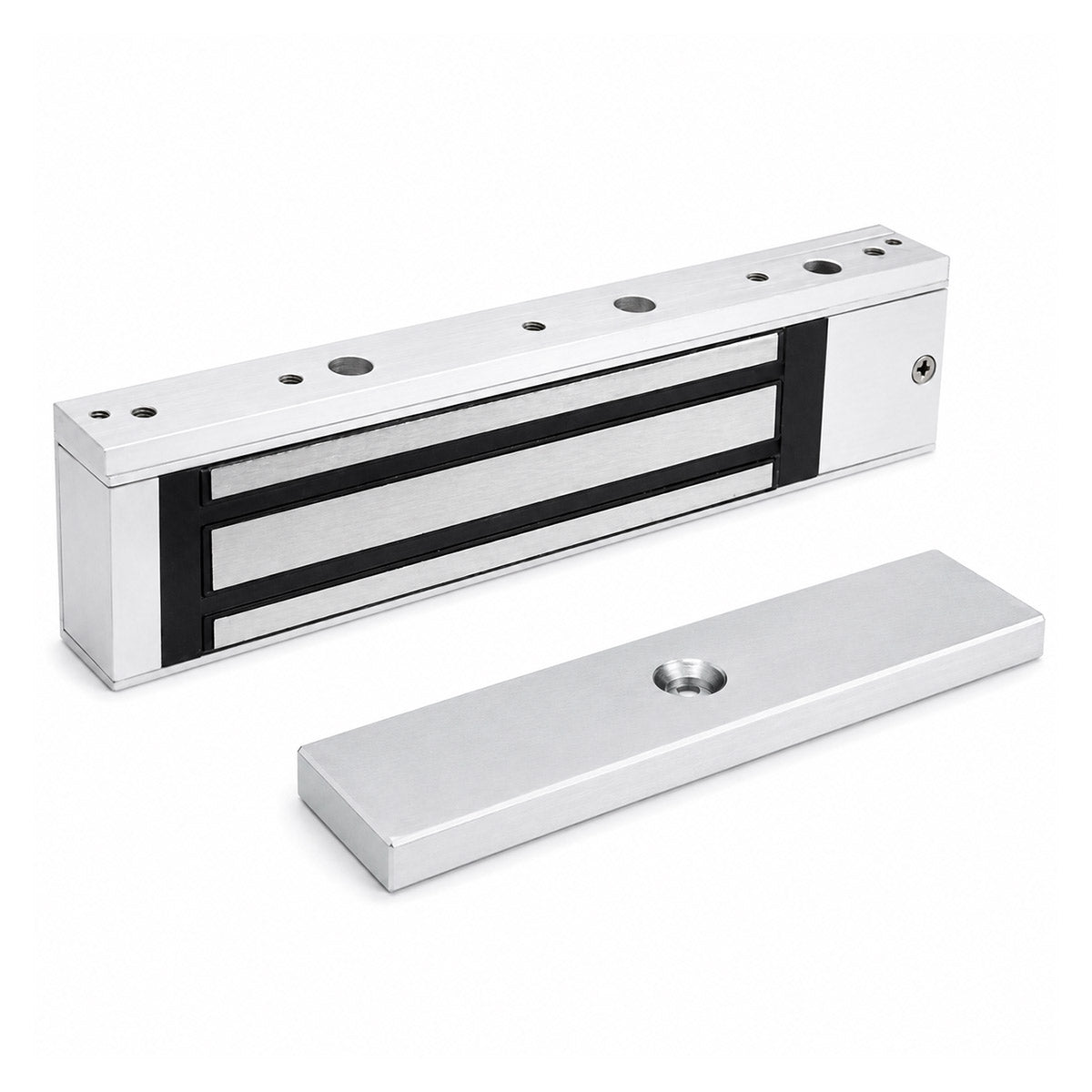

The SDC E1200 Excel™ Series Electromagnetic Lock provides a cost-effective, high-quality access control solution for commercial applications requiring reliable 1200 lb holding force. Designed as an economical alternative to low-cost imported magnetic locks, the E1200 combines professional-grade construction, flexible installation options, and comprehensive monitoring in a streamlined architectural design.
The E1200 features an interlocking quick-mount assembly that helps reduce installation time compared to traditional epoxy-sealed magnetic locks. Its adjustable mounting bracket, accessible wiring chamber, and field-selectable dual-voltage operation make it well suited for system integrators, distributors, installers, and building owners.
Door Position Status (DPS) and Bond Alert Status (BAS) are included as standard, providing valuable monitoring capabilities for access control systems. Built-in voltage and current spike protection, along with instant-release anti-residual magnetism circuitry, further enhance reliable operation.

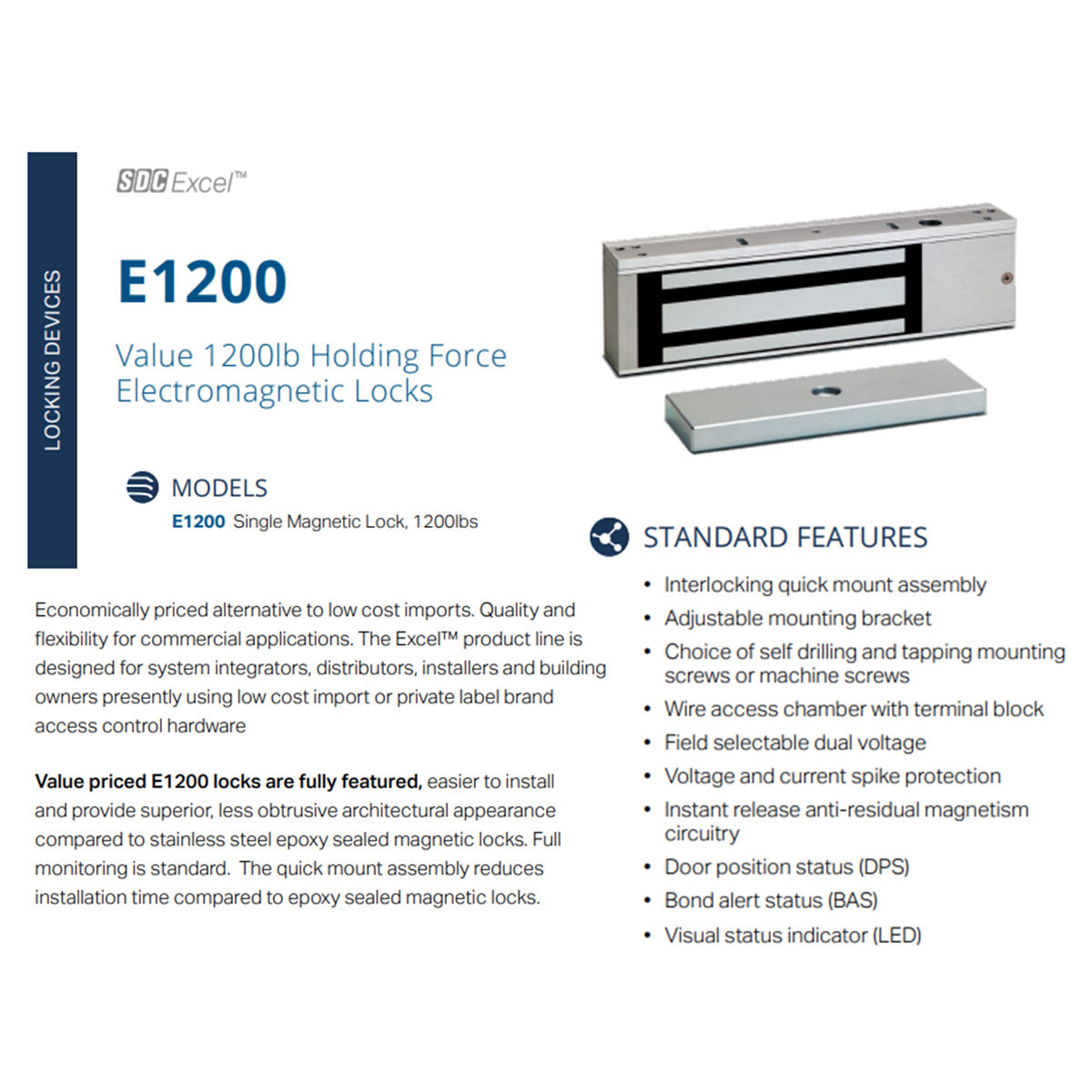

Key Features
- 1200 lb holding force for commercial access control applications
- Economically priced alternative to low-cost imported magnetic locks
- Interlocking quick-mount assembly for faster installation
- Adjustable mounting bracket for installation flexibility
- Choice of self-drilling/tapping screws or machine screws
- Wire access chamber with convenient terminal block
- Field-selectable dual voltage
- Voltage and current spike protection
- Instant-release anti-residual magnetism circuitry
- Door Position Status (DPS) monitoring included
- Bond Alert Status (BAS) monitoring included
- Visual status indicator with LED
- Designed for a cleaner, less obtrusive architectural appearance
- Suitable for commercial access control and security applications

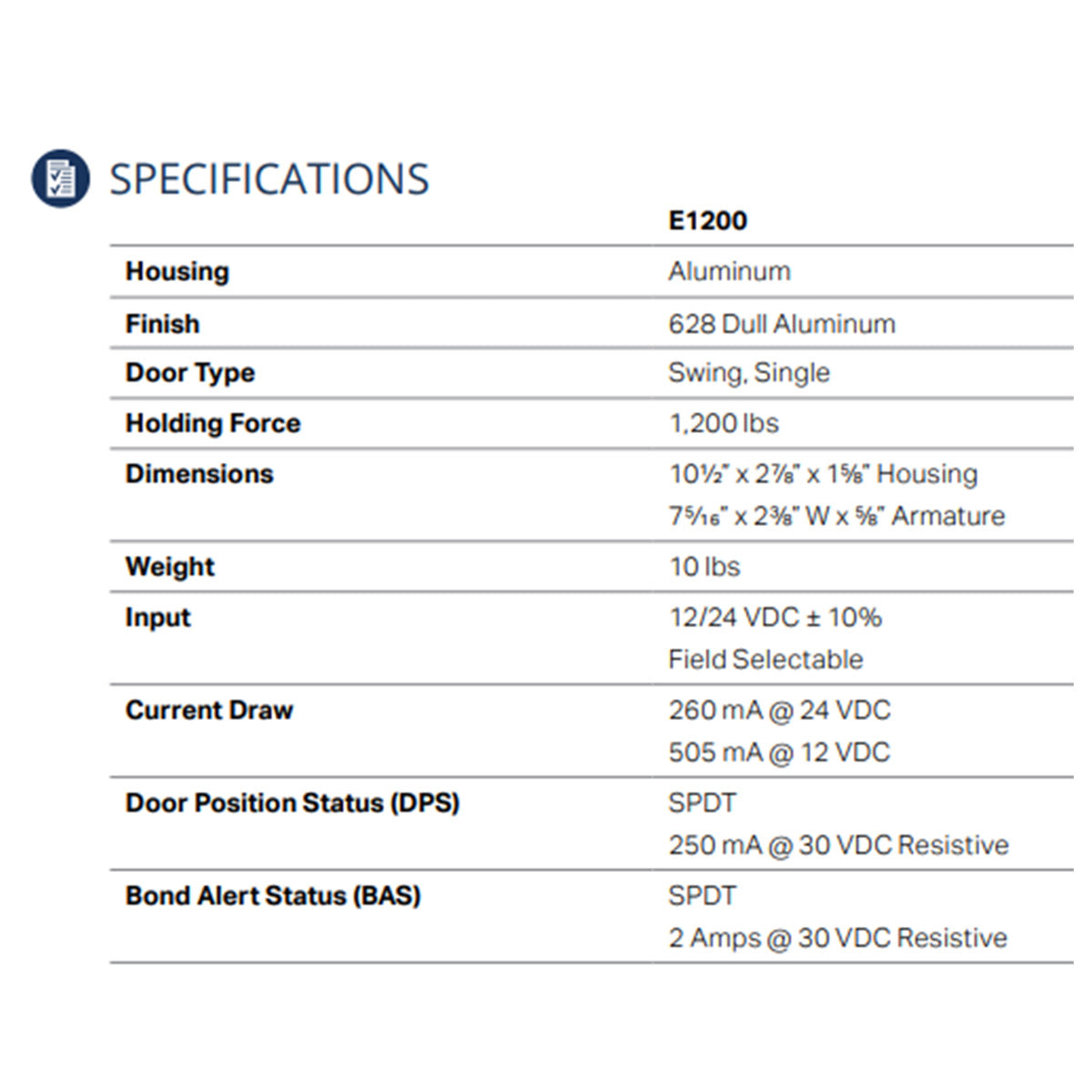

Specifications
| Specification | Details |
|---|---|
| Model | SDC E1200 |
| Product Type | Single Electromagnetic Lock |
| Holding Force | 1,200 lb |
| Voltage | Field-selectable dual voltage |
| Monitoring | DPS & BAS standard |
| Status Indicator | LED |
| Mounting | Interlocking quick-mount assembly |
| Application | Commercial access control |
Built for Commercial Access Control
The SDC E1200 delivers the combination of holding strength, monitoring, installation flexibility, and value needed for commercial security installations. Its fully featured design makes it an excellent choice for upgrading from basic imported magnetic locks while maintaining an economical project budget.
Ideal for: Commercial buildings, offices, retail facilities, institutional applications, and other controlled-access environments.
