SDC 926 Series Outdoor Digital Keypads

Heavy-Duty Outdoor Access Control for Doors and Gates

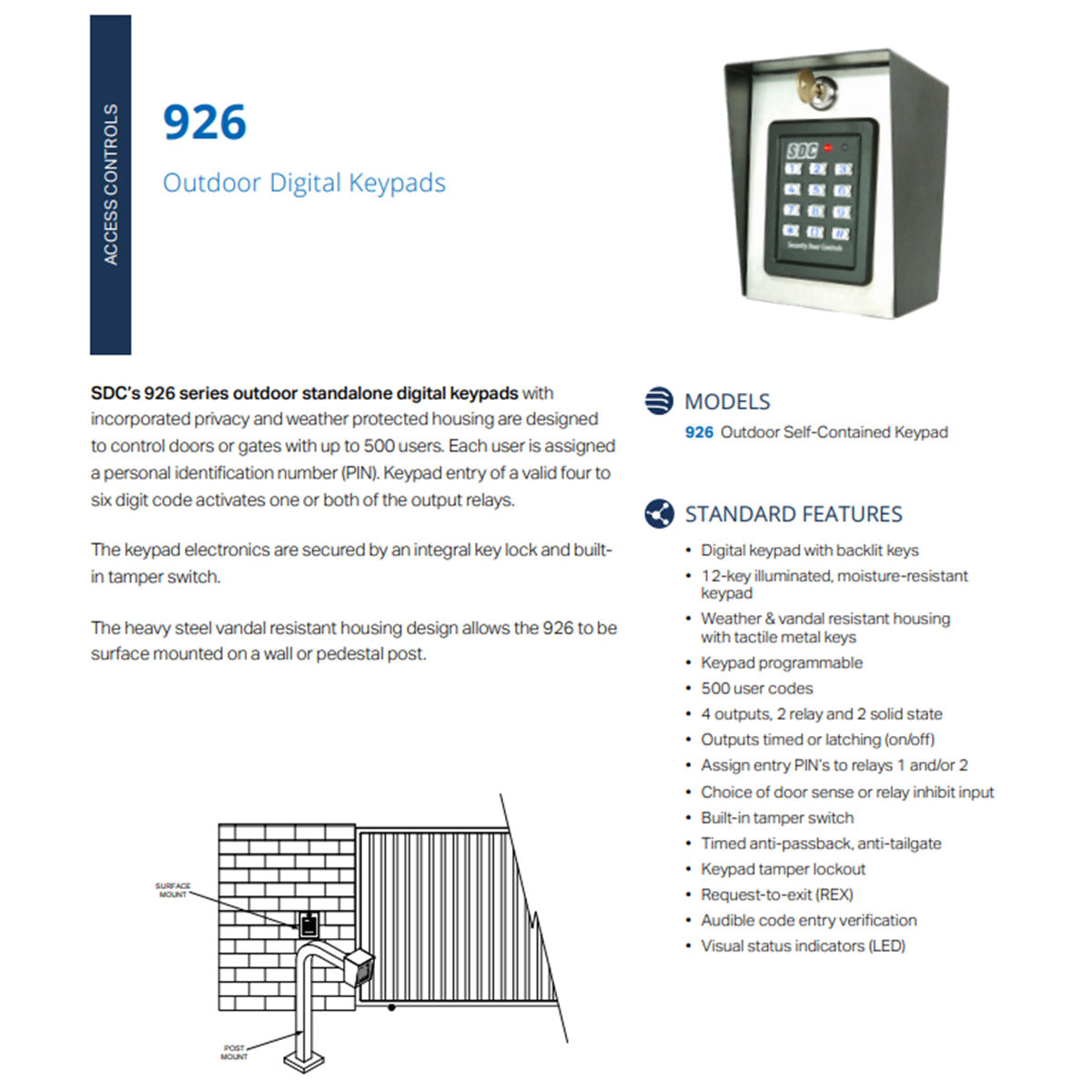

The SDC 926 Series Outdoor Digital Keypads provide reliable, secure, and convenient standalone access control for commercial, industrial, and institutional facilities. Designed for outdoor environments, these keypads control access to doors and gates using programmable personal identification numbers (PINs) and support up to 500 users.

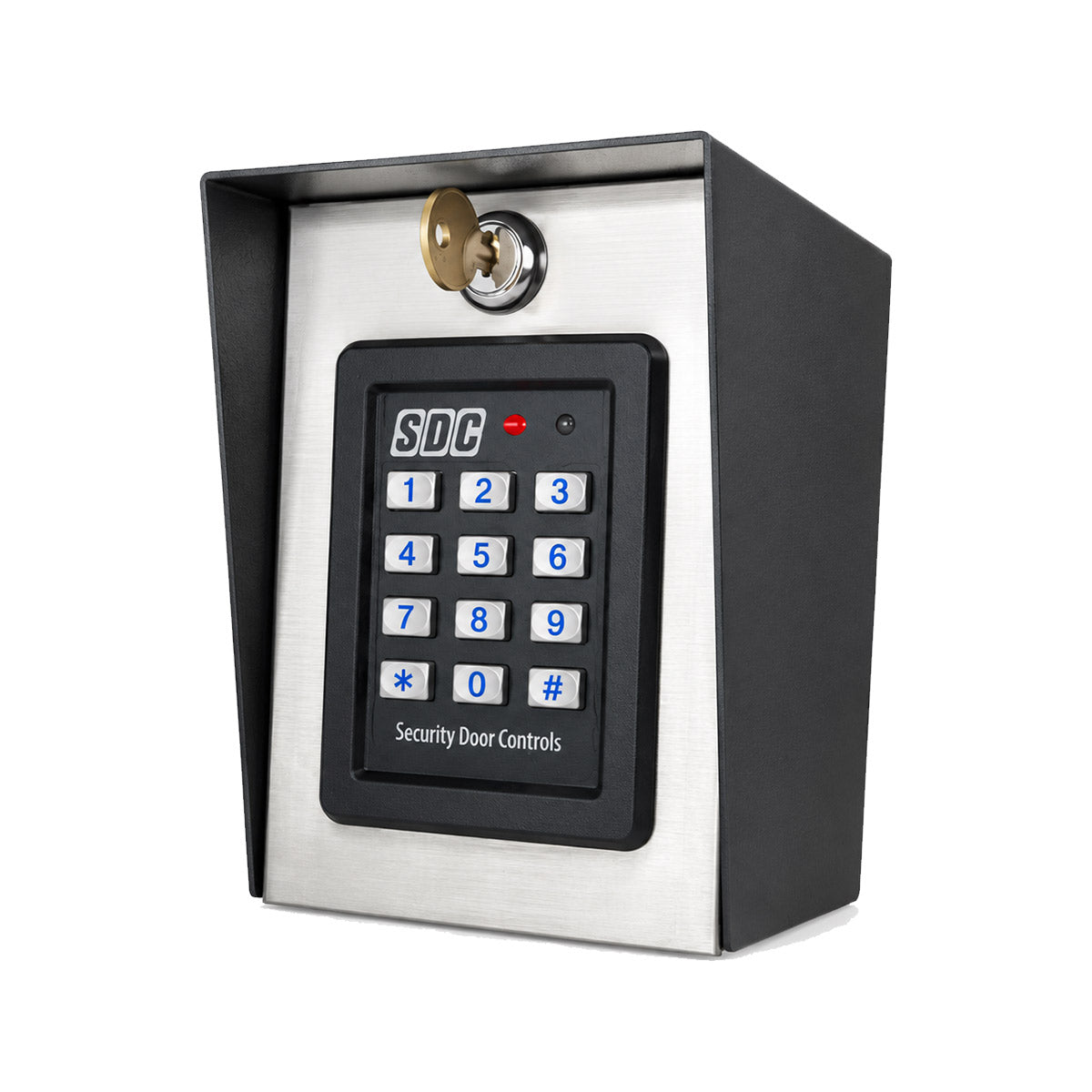

Built with a heavy-duty steel, weather-resistant, and vandal-resistant housing, the SDC 926 Series is engineered for demanding installations. Its privacy-protected design, illuminated 12-key metal keypad, and integral key lock help protect the keypad electronics against unauthorized access and tampering. Suitable for surface mounting on walls or pedestal posts, the 926 Series offers a durable access control solution for exterior entry points.

With four programmable outputs, flexible relay operation, request-to-exit (REX) functionality, and integrated security features, the SDC 926 Series delivers versatile access management for facilities requiring dependable outdoor door and gate control.

Key Features & Benefits

• 500 User Codes: Supports up to 500 individual users with programmable PIN credentials.

• Outdoor-Rated Design: Weather-protected housing designed for exterior access control applications.

• Heavy-Duty Steel Construction: Vandal-resistant housing with tactile metal keys for durability in demanding environments.

• Illuminated Keypad: Backlit, moisture-resistant 12-key keypad for convenient code entry.

• Four Programmable Outputs: Includes two relay outputs and two solid-state outputs.

• Flexible Relay Control: Configure outputs for timed or latching (ON/OFF) operation.

• PIN-to-Relay Assignment: Assign entry codes to activate relay 1, relay 2, or both.

• Enhanced Tamper Protection: Built-in tamper switch, integral key lock, and keypad tamper lockout.

• Anti-Passback and Anti-Tailgate: Timed security functions help support controlled entry procedures.

• Door Monitoring Options: Selectable door sense or relay inhibit input for flexible system configuration.

• Request-to-Exit (REX): Supports connection to an exit switch for authorized egress.

• Audible Code Verification: Provides audible feedback during code entry.

• Visual Status Indicators: LED indicators provide convenient access and operating status feedback.

• Flexible Installation: Surface-mount design accommodates walls and pedestal posts.

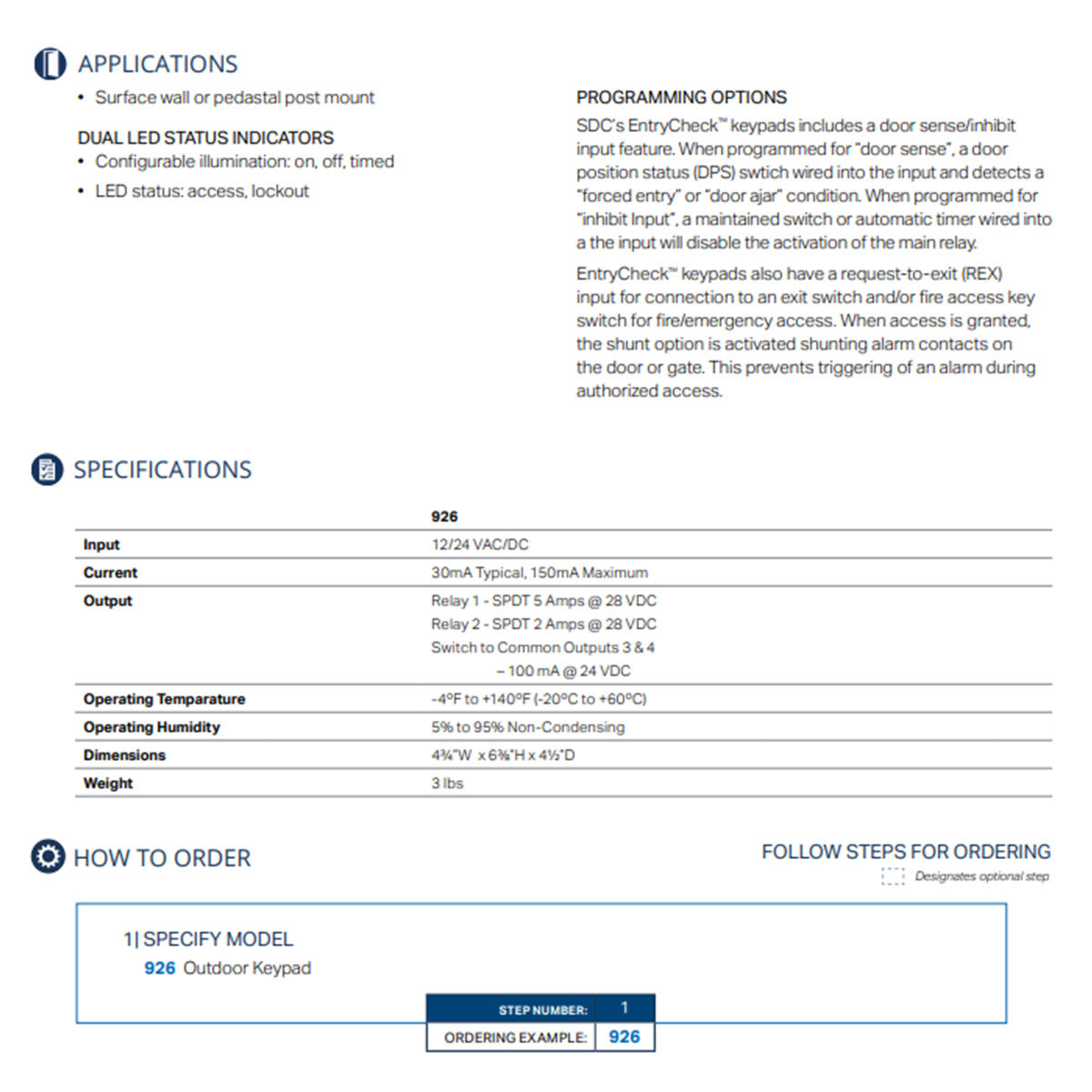

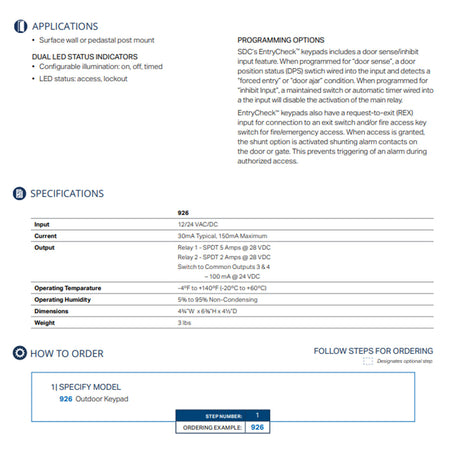

Technical Specifications

• Product Series: SDC 926 Series

• Product Type: Outdoor standalone digital keypad

• User Capacity: Up to 500 user codes

• Access Credential: Four- to six-digit PIN code

• Keypad: Illuminated, moisture-resistant 12-key metal keypad

• Outputs: Four total — two relays and two solid-state outputs

• Output Operation: Timed or latching (ON/OFF)

• Input Configuration: Selectable door sense or relay inhibit

• Security Features: Integral key lock, built-in tamper switch, and keypad tamper lockout

• Additional Functions: Timed anti-passback, anti-tailgate, and request-to-exit

• Status Feedback: Audible code entry verification and visual LED indicators

• Mounting: Surface mount on a wall or pedestal post

• Housing: Heavy-duty steel, weather-protected, vandal-resistant construction

Applications

The SDC 926 Series is ideal for access control installations requiring durable outdoor keypads, including:

• Commercial building entrances

• Industrial facilities and warehouses

• Parking facilities and controlled-access gates

• Pedestrian and perimeter gates

• Service entrances and loading areas

• Office buildings and institutional facilities

• Outdoor restricted-access doors

• Wall-mounted and pedestal-mounted entry points

Why Choose the SDC 926 Series?

The SDC 926 Series combines heavy-duty steel construction, programmable PIN access, and flexible output control in a rugged outdoor keypad. Its weather-protected housing and built-in security features make it a dependable choice for managing access to exterior doors and gates in commercial and industrial environments.

Choose the SDC 926 Series Outdoor Digital Keypad for durable construction, flexible access programming, and reliable standalone door and gate control.
