SDC 923 Series EntryCheck™ Indoor/Outdoor Narrow Digital Keypads
Reliable Access Control for Narrow Door Frames and Mullion Applications
The SDC EntryCheck™ 923 Series Narrow Digital Keypads provide secure, convenient access control for commercial, industrial, and institutional facilities. Designed for indoor and outdoor installations, these standalone keypads control a single entry point using programmable personal identification numbers (PINs) and support up to 500 user codes.
Featuring a narrow-profile, weather-resistant, and vandal-resistant housing, the 923 Series is ideal for mullion mounting, narrow door frames, and other space-constrained entry points. The illuminated 12-key keypad, tactile buttons, dual LED status indicators, and built-in tamper switch provide dependable operation and convenient user feedback.
Available models include standalone keypad access, integrated HID proximity card reader capability, and Wiegand output for integration with compatible access control systems. With flexible relay programming, request-to-exit functionality, and configurable door monitoring inputs, the SDC 923 Series is a versatile solution for modern electronic access control.
Key Features & Benefits
-
500 User Codes: Supports up to 500 users on self-contained keypad models.
-
Indoor/Outdoor Design: Weather-resistant and vandal-resistant housing for demanding environments.
-
Narrow-Profile Housing: Ideal for mullion, narrow surface, and door frame mounting.
-
Illuminated Keypad: Backlit, moisture-resistant 12-key keypad with tactile buttons.
-
Integrated Proximity Reader Options: Select models support HID proximity credentials for flexible access methods.
-
Flexible Relay Control: Two relay outputs and two solid-state outputs on self-contained keypad models.
-
Programmable Outputs: Configure outputs for timed or latching operation.
-
Dual LED Indicators: Configurable illumination and visual status indications for access and lockout conditions.
-
Enhanced Security: Built-in tamper switch, keypad tamper lockout, and timed anti-passback and anti-tailgate features.
-
Request-to-Exit (REX): Supports connection to an exit switch or fire access key switch.
-
Door Monitoring: Door sense or relay inhibit input supports flexible access control configurations.
-
Access Control Integration: The 923PW model provides standard 26-bit Wiegand output for compatible access control systems, including SDC IPPro®.

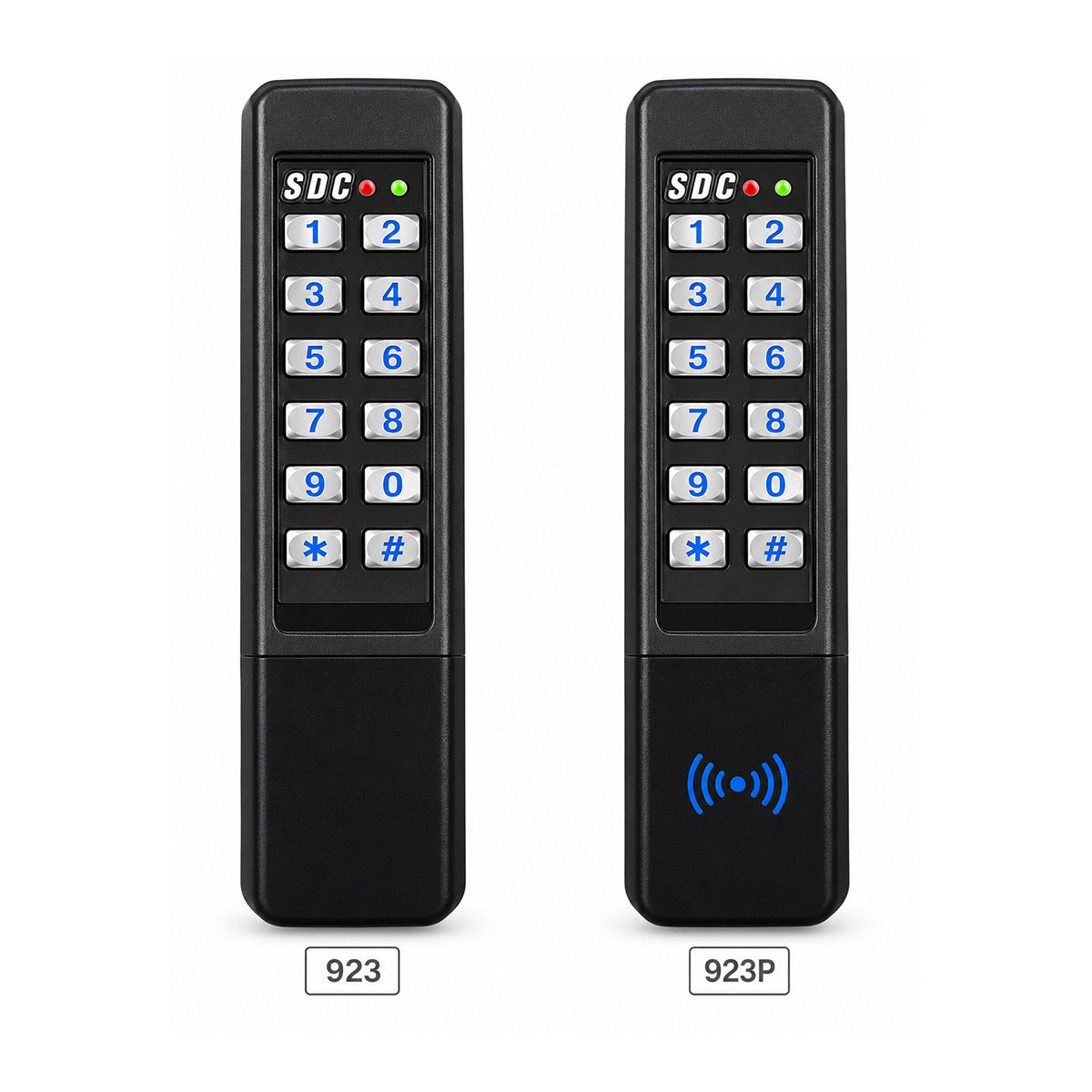

Available Models

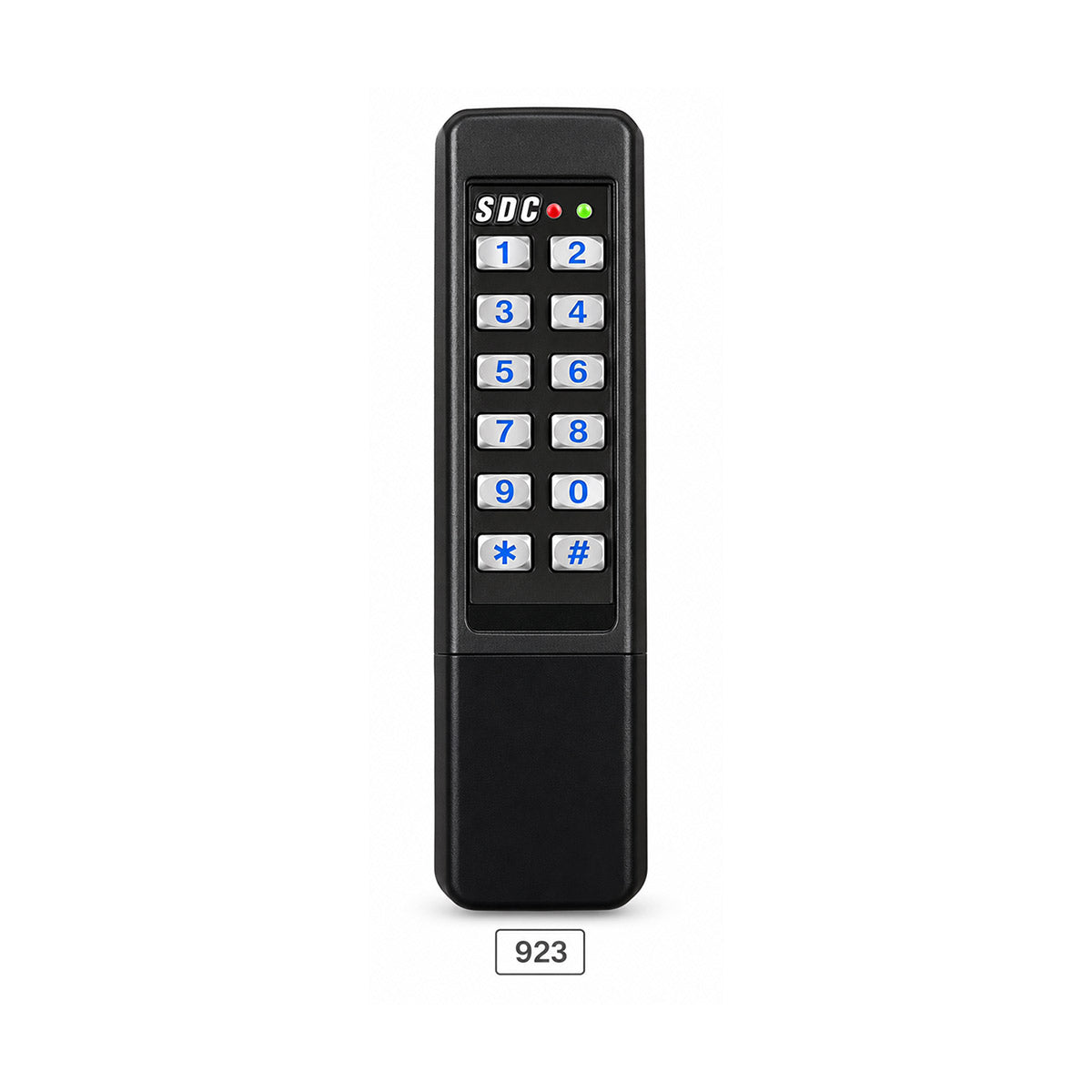

923 – Indoor/Outdoor Narrow Self-Contained Keypad
Standalone digital keypad for PIN-based access control, with programmable user codes and output relays.

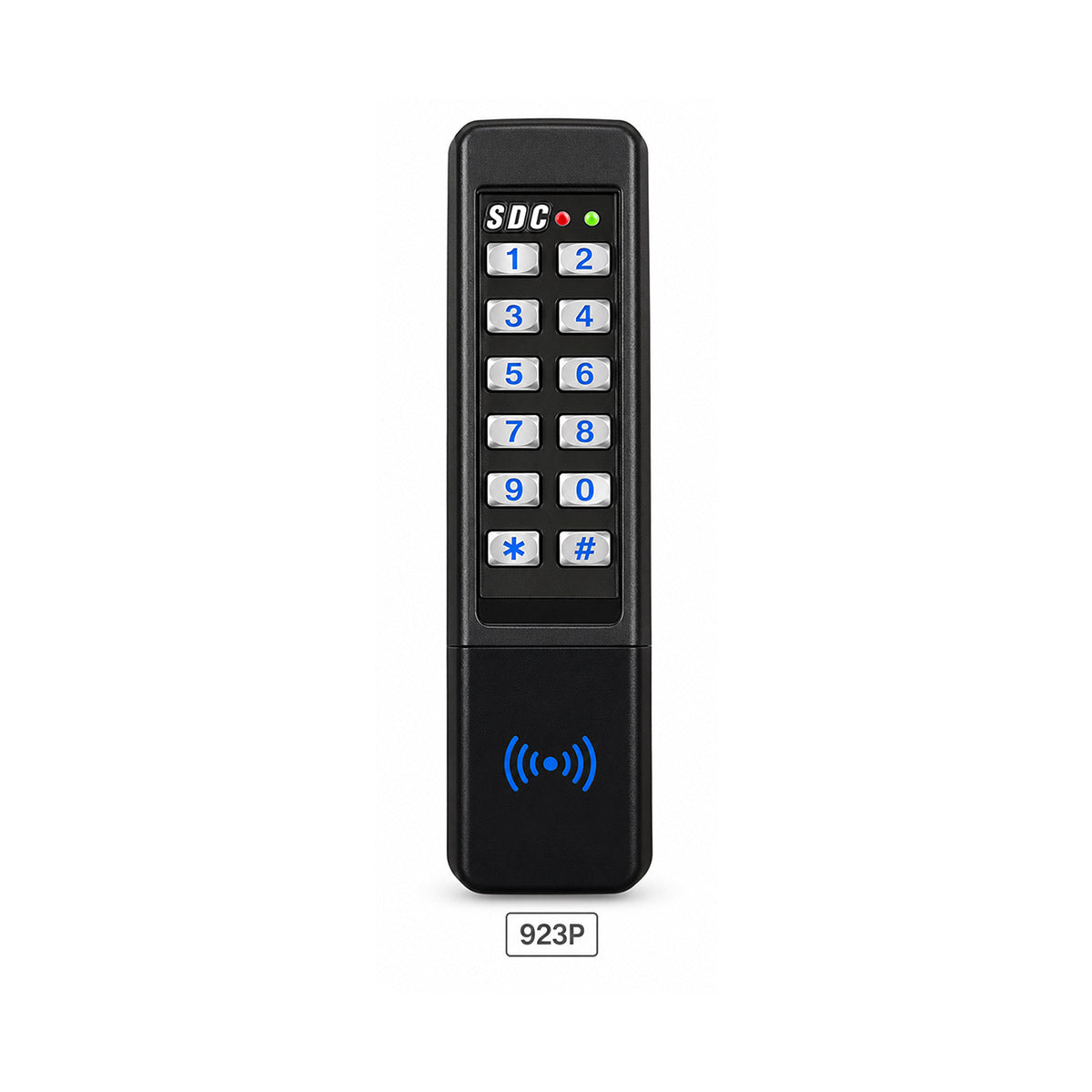

923P – Indoor/Outdoor Narrow Self-Contained Keypad with Integrated Proximity Reader
Combines PIN keypad functionality with an integrated HID proximity reader. Supports PIN or card, card-only, and card-and-PIN operating modes.
923PW – Indoor/Outdoor Narrow Wiegand Output Keypad with Integrated Proximity Reader
Combines an integrated proximity reader and keypad with standard 26-bit Wiegand output for connection to compatible external access control systems.
Technical Features
Self-Contained Keypad Models
-
Up to 500 user codes
-
Four outputs: two relays and two solid-state outputs
-
Timed or latching output operation
-
Assign PINs to relay 1, relay 2, or both
-
Selectable door sense or relay inhibit input
-
Timed anti-passback and anti-tailgate functions
-
Keypad tamper lockout
-
Request-to-exit input
-
Programmable keypad settings
Integrated Proximity Reader Models
-
HID proximity reader capability
-
Three selectable user modes:
-
PIN or card
-
Card only
-
Card and PIN
-
Door Monitoring and Programming
The SDC EntryCheck™ 923 Series includes a configurable door sense/inhibit input to accommodate different security requirements.
-
Door Sense Mode: Connect a door position switch (DPS) to monitor door status and detect forced-entry or door-ajar conditions.
-
Relay Inhibit Mode: Connect a maintained switch or automatic timer to disable activation of the main relay when required.
-
Request-to-Exit Input: Connect an exit switch or fire access key switch to support authorized egress and emergency access.
-
Alarm Shunt Function: When access is granted, the shunt option can bypass door or gate alarm contacts to help prevent false alarms during authorized entry.
Applications
The SDC 923 Series is suitable for a wide range of access control installations, including:
-
Commercial offices and business facilities
-
Retail stores and service entrances
-
Industrial and warehouse facilities
-
Schools and institutional buildings
-
Controlled-access doors and gates
-
Narrow door frames and mullion installations
-
Indoor and outdoor perimeter access points
-
Standalone PIN access or integrated proximity access systems
Why Choose the SDC EntryCheck™ 923 Series?
The SDC 923 Series combines compact installation flexibility, programmable access control, and durable construction in a narrow-profile keypad. Whether you need a standalone PIN-controlled entry, a keypad with integrated HID proximity credentials, or a Wiegand-compatible reader for a larger access control system, the 923 Series offers a flexible solution for commercial security applications.
Choose the SDC 923, 923P, or 923PW to match your entry requirements and access control configuration.
