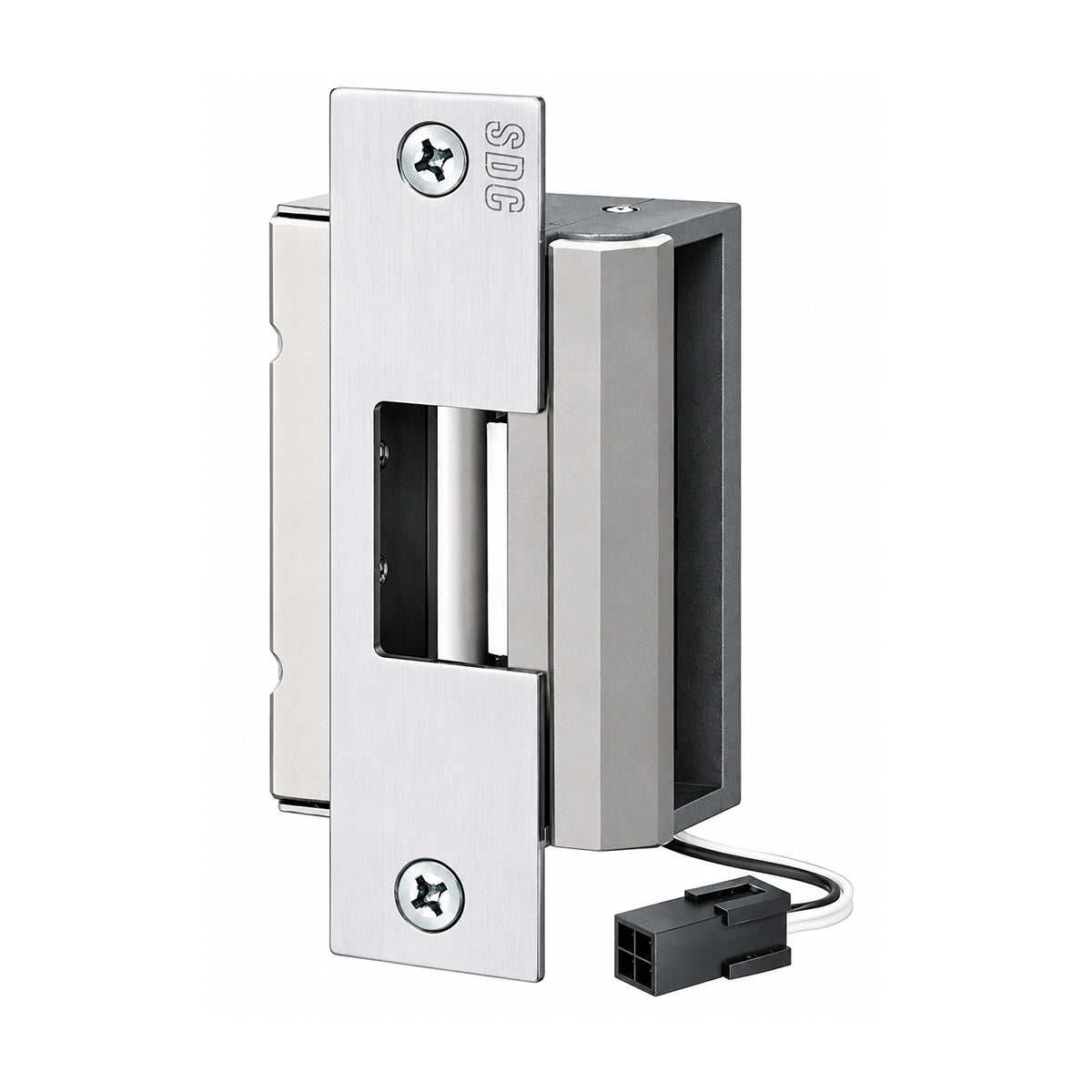

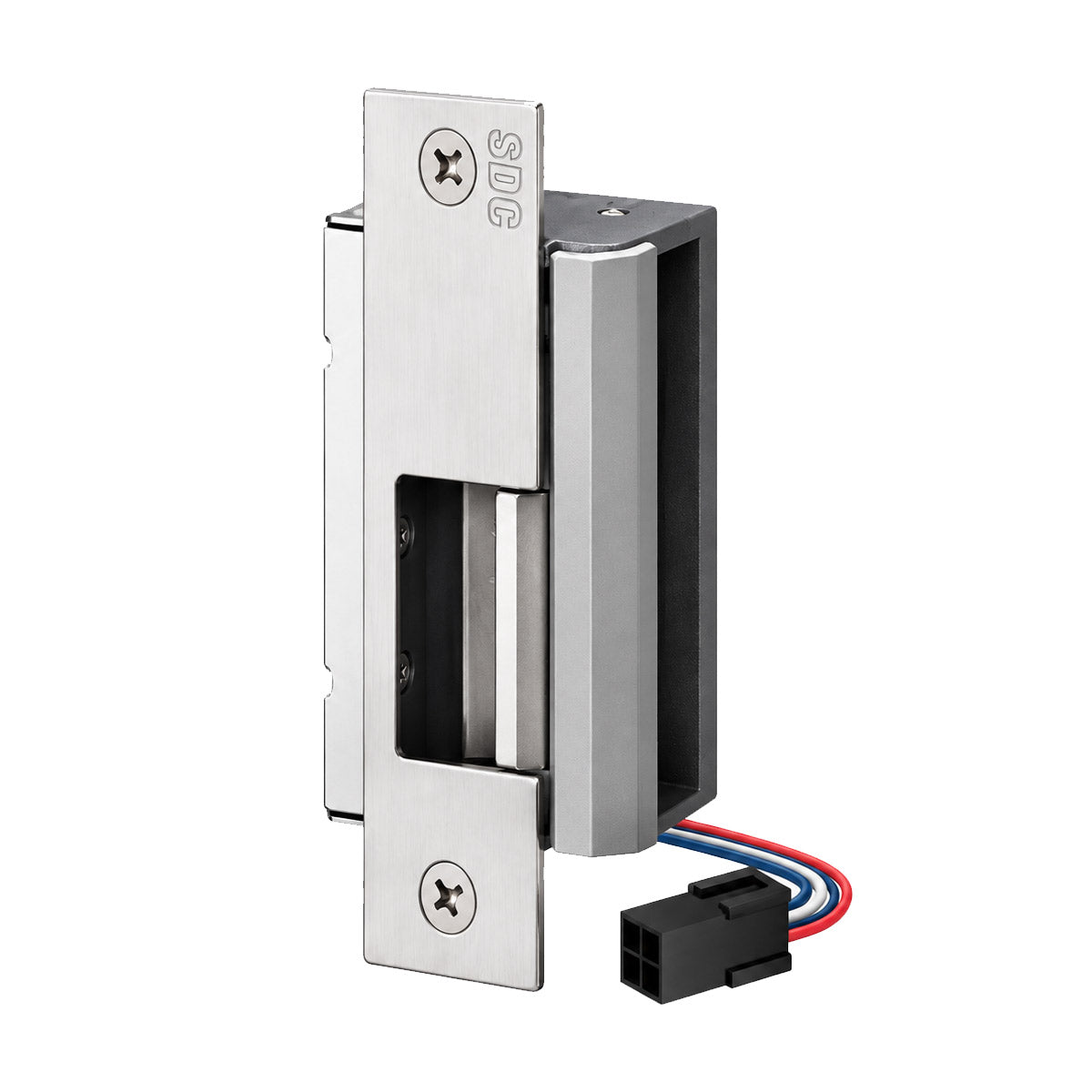

SDC 55 Series 3/4" Latchbolt Electric Strikes
SDC’s 55 Series 3/4" Latchbolt Electric Strikes are heavy-duty access control strikes engineered for hollow metal door frames in demanding commercial, institutional, and high-security applications. They are designed to control access for cylindrical locksets, mortise locksets with or without deadbolts, and mortise exit devices.
The 55 Series accepts 3/4" throw latchbolts and accommodates deadbolts with up to 1" throw, providing a versatile solution for both new installations and retrofit applications.
Designed for Easy Retrofit Installation

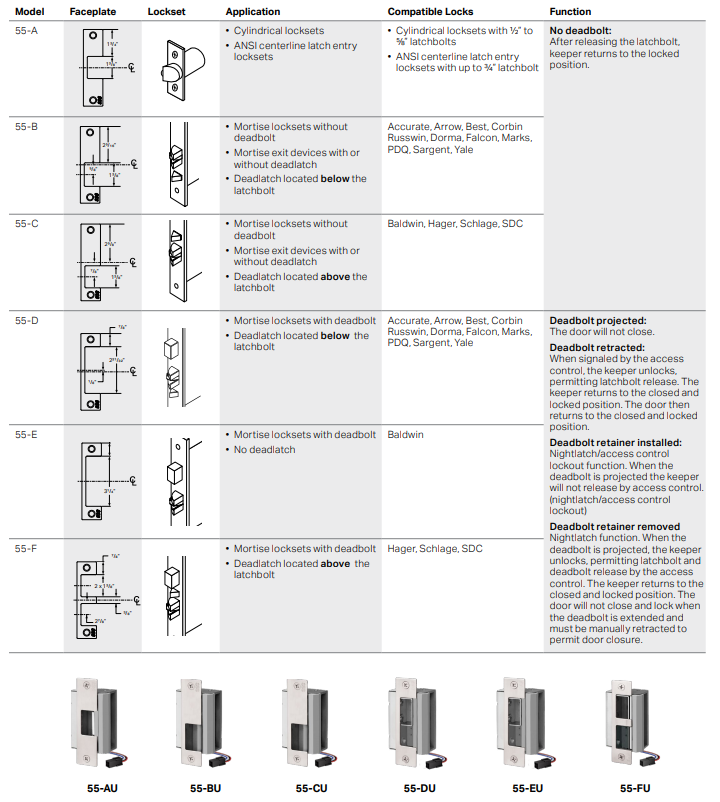

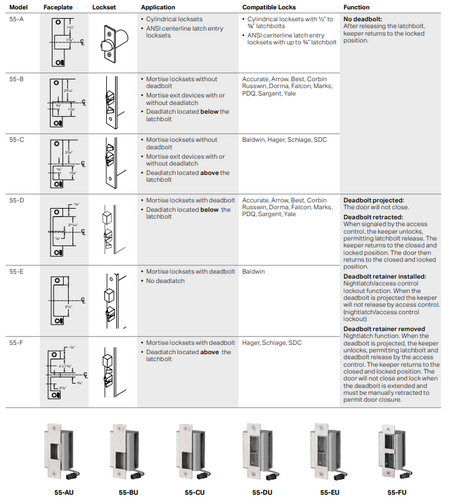

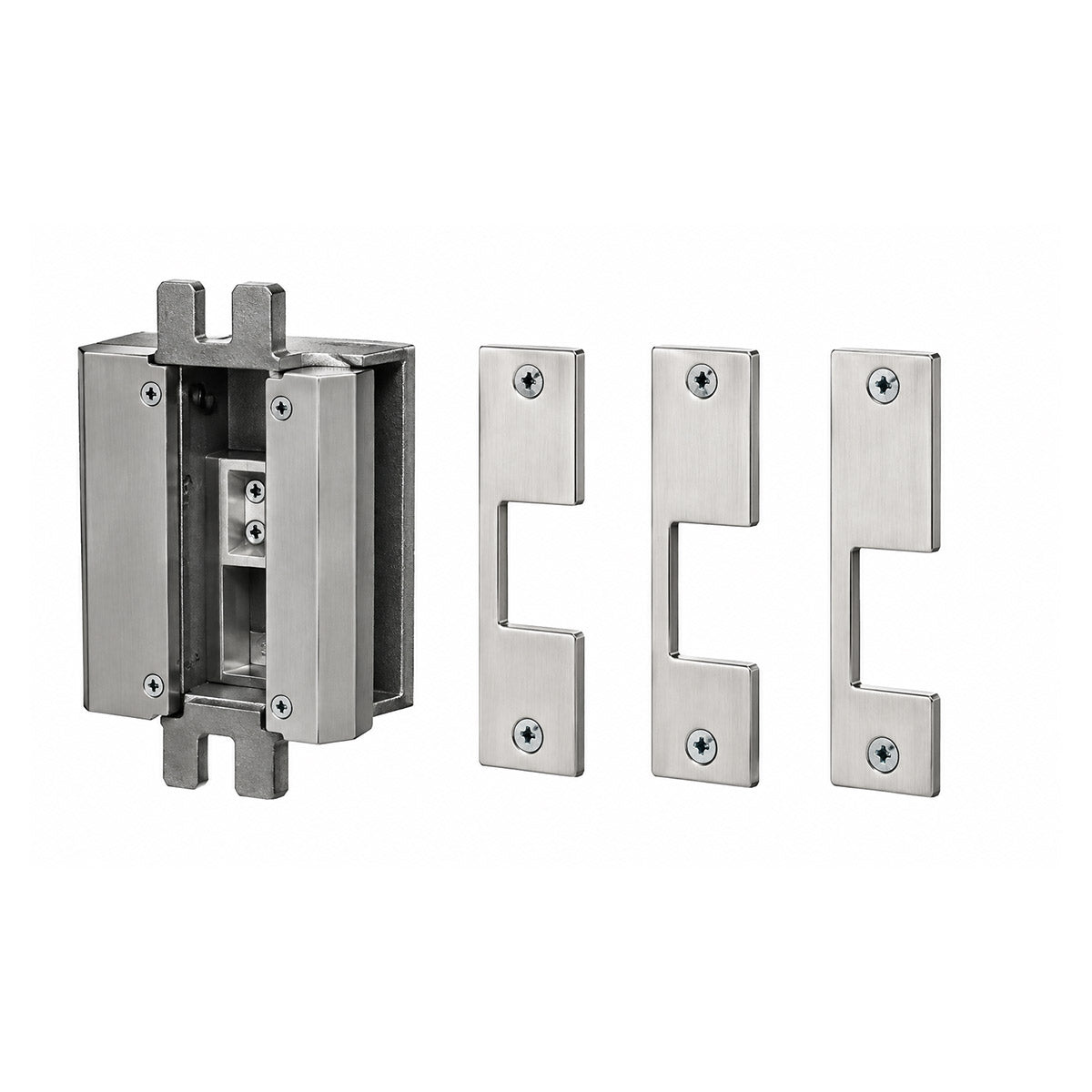

With six interchangeable application faceplates, the 55 Series eliminates the need for centerline relocation and is designed to retrofit existing ANSI 4-7/8" strike preparations. This makes the series well suited for upgrading existing openings to electronic access control without extensive frame modifications.
Key Features
- Heavy-duty construction for demanding commercial applications
- Accepts 3/4" throw latchbolts
- Accommodates deadbolts up to 1" throw
- Designed for hollow metal frames
- Retrofit compatible with existing ANSI 4-7/8" strike preparation

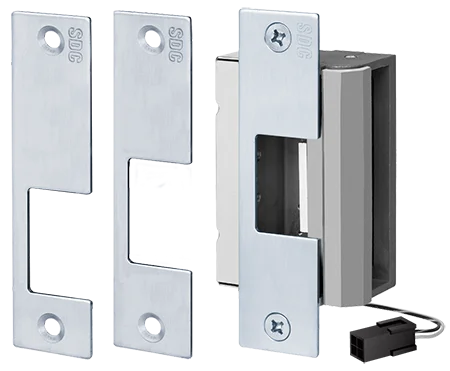

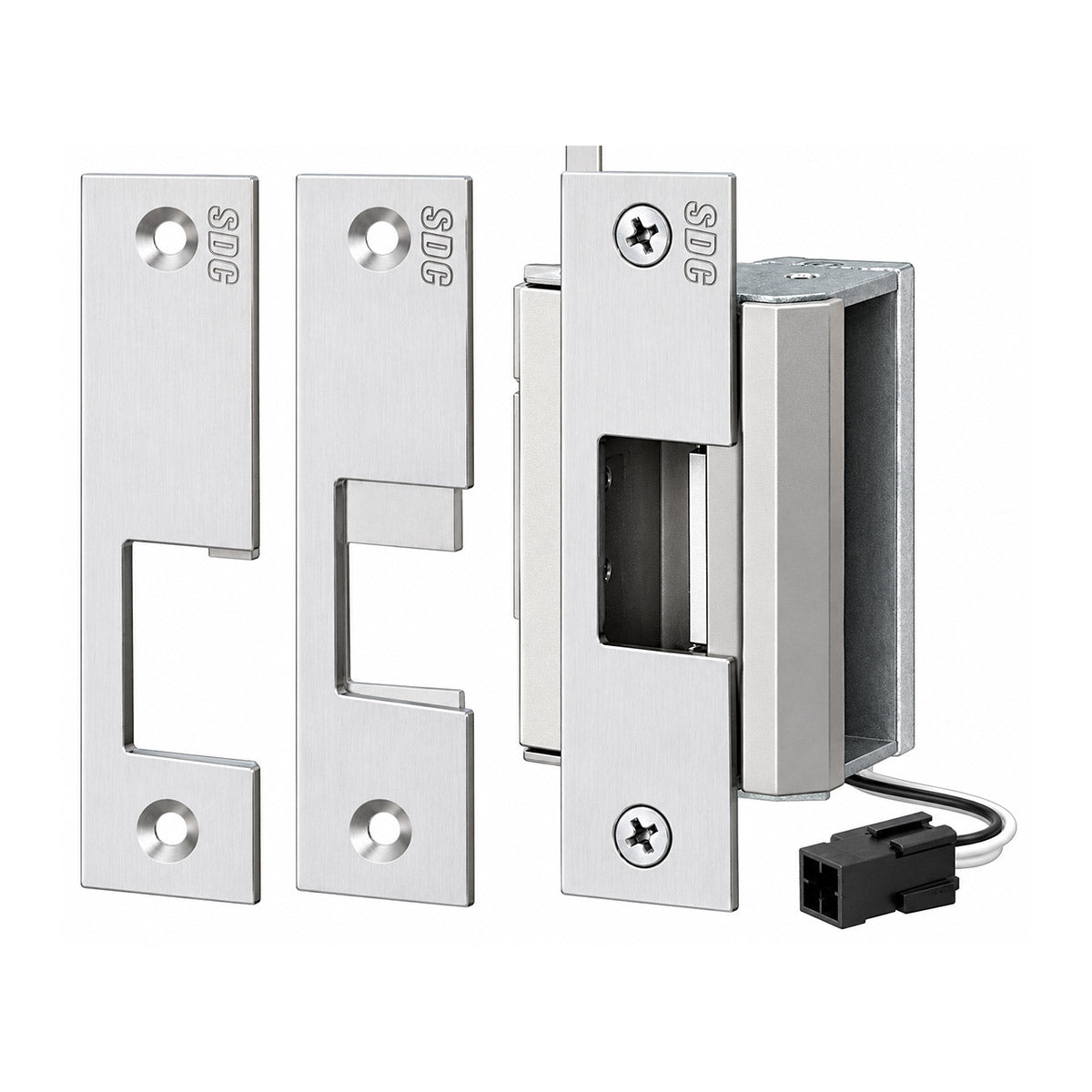

- Six interchangeable faceplate options eliminate centerline relocation
- Stainless steel internal components
- Stainless steel square-corner faceplate
- Heavy cast housing and keeper
- Corrosion- and tamper-resistant construction
- Horizontal alignment adjustment
- Non-handed design
- Internally mounted solenoid
- Field-selectable operation
- Field-selectable dual voltage
- Voltage and current spike protection
- Pigtail connectors for simplified wiring
Monitoring & Status Options
The 55 Series can provide valuable door and locking status information for integration with access control and security systems, including:
- Latch Status (LS)
- Latch & Keeper Deadlocked Status
- Deadbolt Status
Certifications & Standards
The SDC 55 Series is designed to meet demanding commercial security and life-safety requirements:
- UL 1034 – Burglary-Resistant Electric Locking Mechanisms
- UL 10C – Positive Pressure Fire Tests of Door Assemblies*
- ANSI/BHMA A156.31 Grade 1
Applications
The SDC 55 Series is suitable for:
- Commercial buildings
- Office buildings
- Institutional facilities
- Hollow metal doors and frames
- Access-controlled entrances
- High-security applications
- New construction
- Retrofit access control installations
- Cylindrical locksets
- Mortise locksets
- Mortise exit devices
Upgrade existing ANSI 4-7/8" strike preparations to electronic access control with the heavy-duty SDC 55 Series electric strike—without requiring centerline relocation.
*Fire-rated applications must be installed in accordance with applicable building, fire, and life-safety codes.
