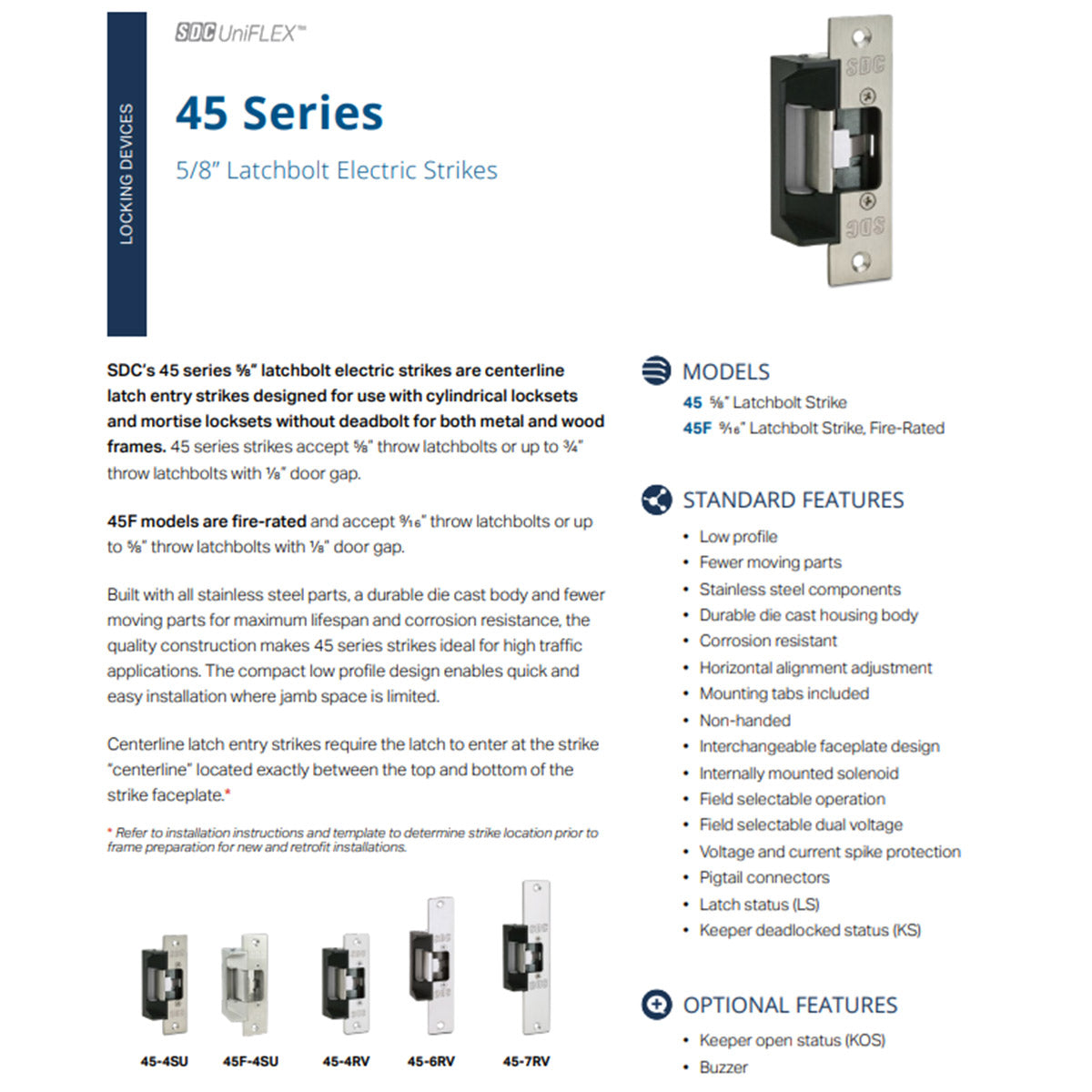

SDC 45 Series 5/8" Latchbolt Electric Strikes

SDC’s 45 Series 5/8" Latchbolt Electric Strikes are compact, centerline latch-entry electric strikes designed for cylindrical locksets and mortise locksets without deadbolts. Suitable for both metal and wood frames, the 45 Series provides reliable electronic access control for commercial, institutional, and high-traffic applications.

The standard 45 Series accepts 5/8" throw latchbolts, or latchbolts up to 3/4" throw when used with a 1/8" door gap. For fire-rated applications, the 45F Series accepts 9/16" throw latchbolts, or up to 5/8" throw with a 1/8" door gap.

Compact, Durable Construction

Built with stainless steel components, a durable die-cast housing, and fewer moving parts, the 45 Series is engineered for long service life and corrosion resistance. Its low-profile design makes installation easier in applications where jamb space is limited.

The centerline latch-entry design positions the latch at the strike's centerline—exactly between the top and bottom of the faceplate. For new and retrofit installations, always use the manufacturer's installation instructions and template to determine the correct strike location before preparing the frame.

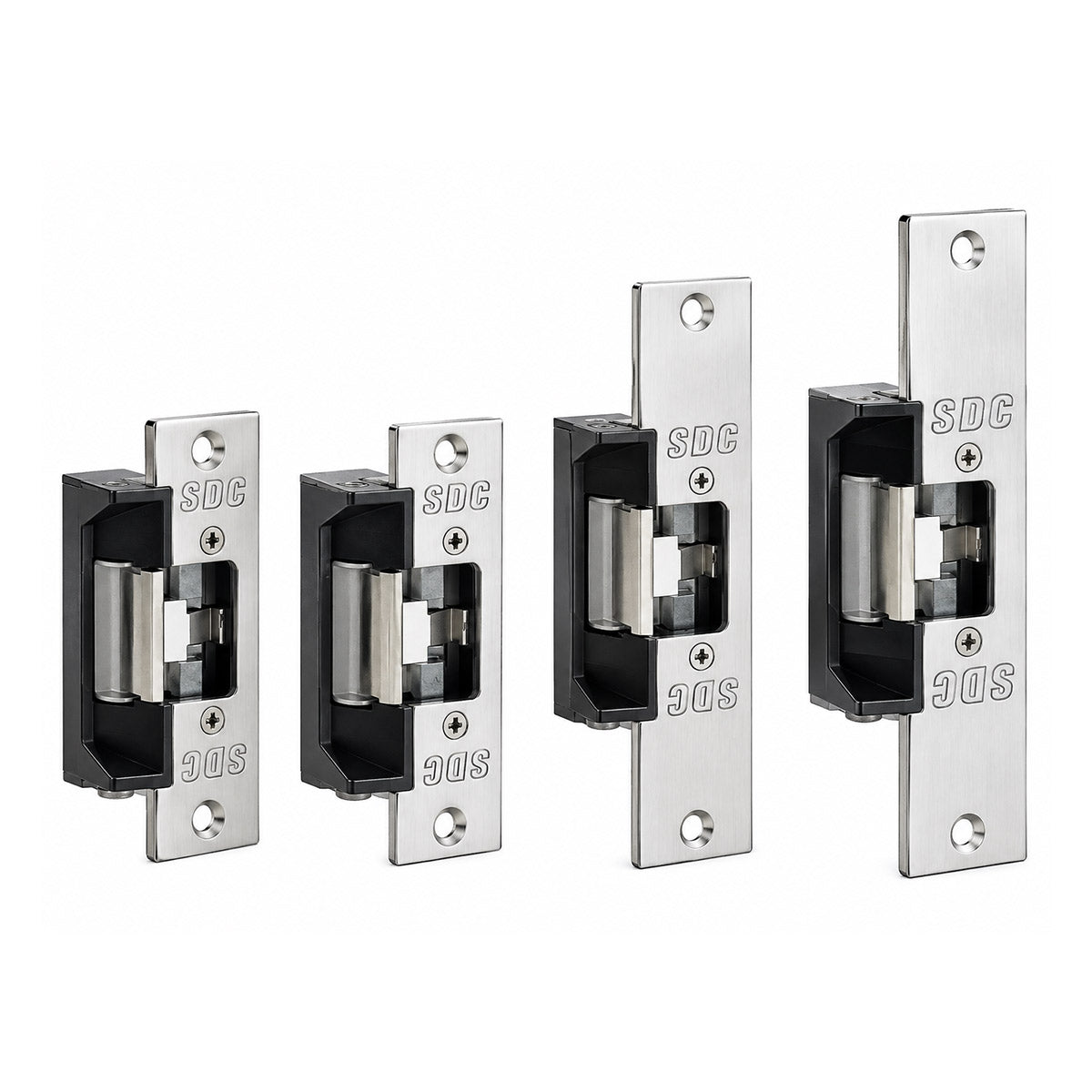

Models & Configurations

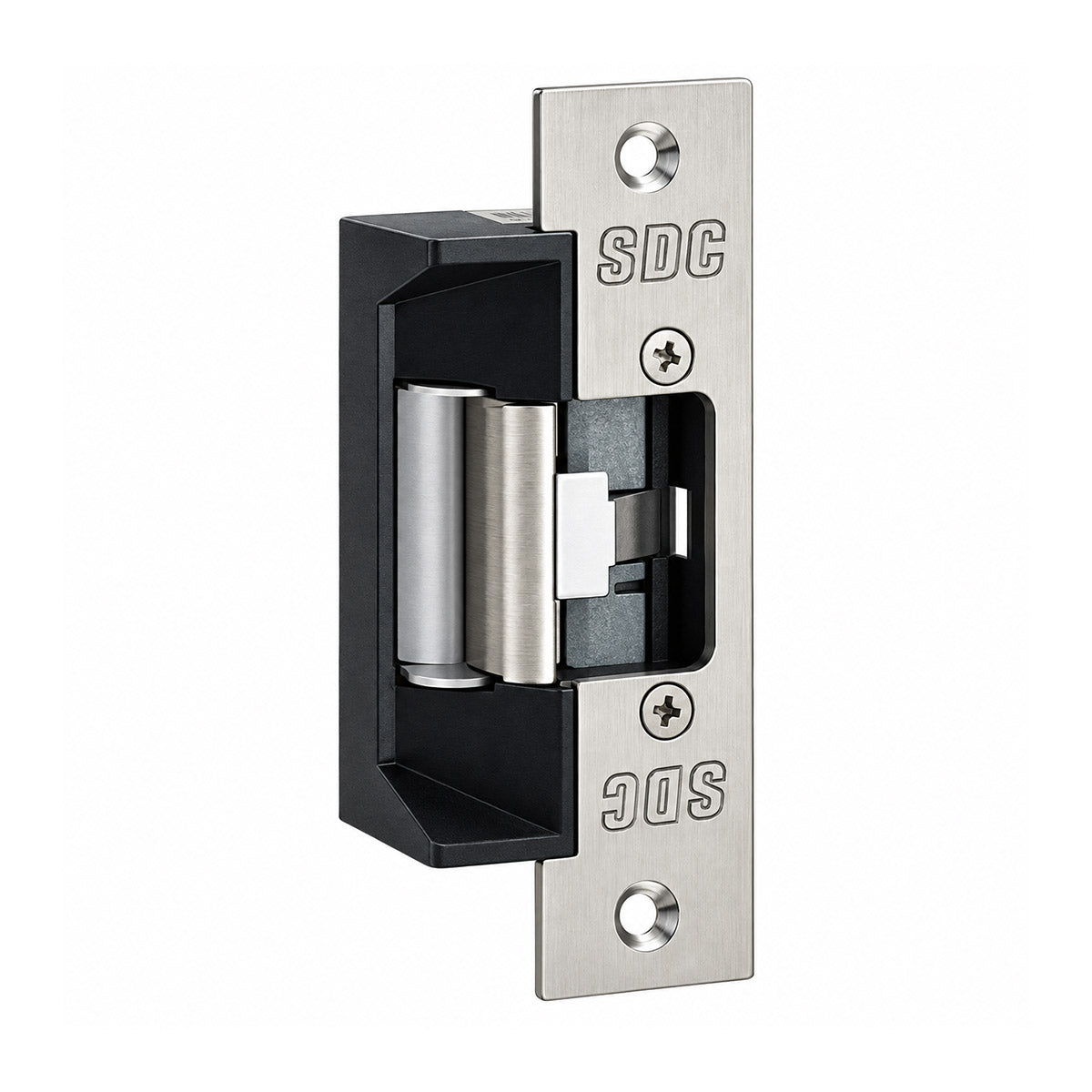

• 45 Series – 5/8" latchbolt electric strike

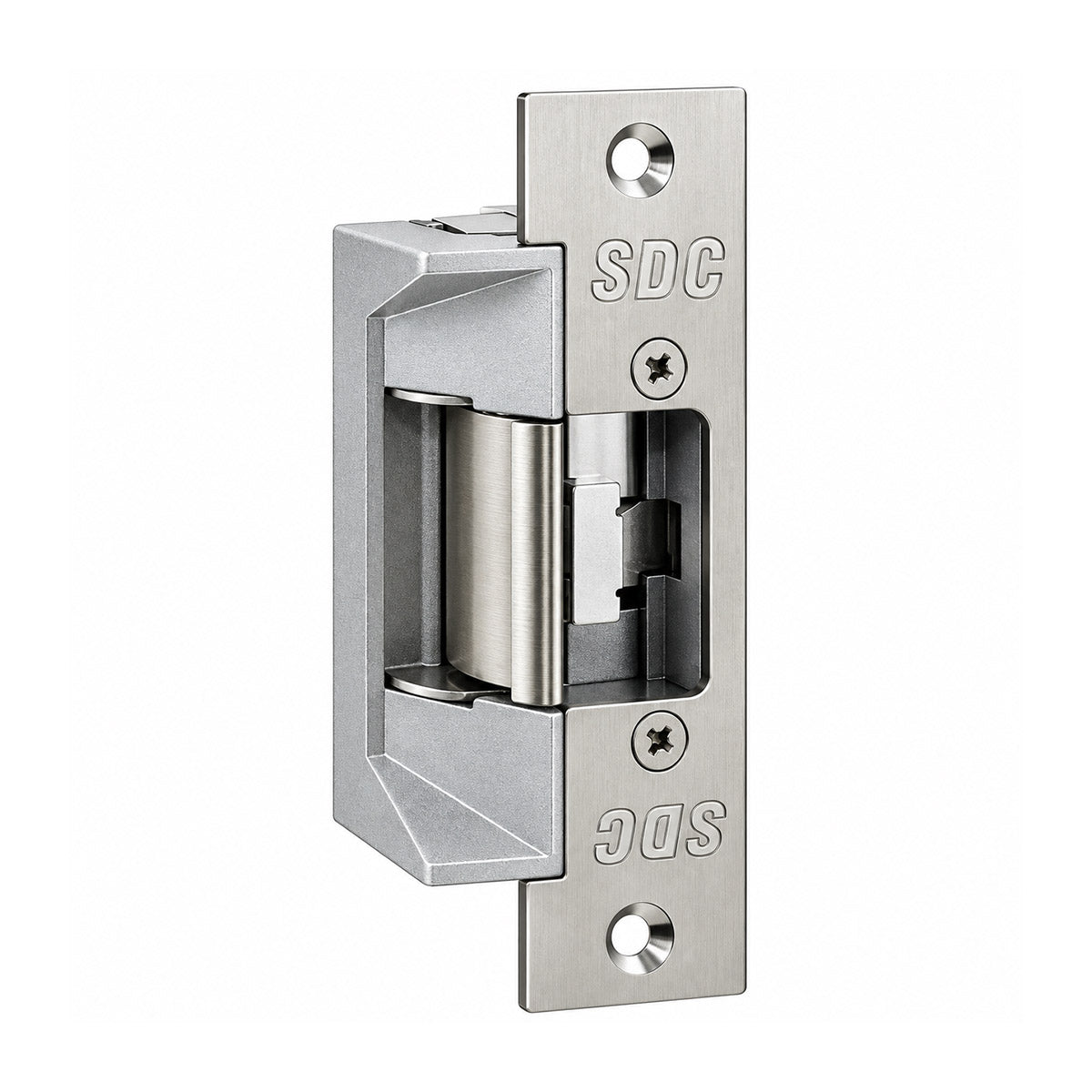

• 45F Series – 9/16" latchbolt, fire-rated electric strike

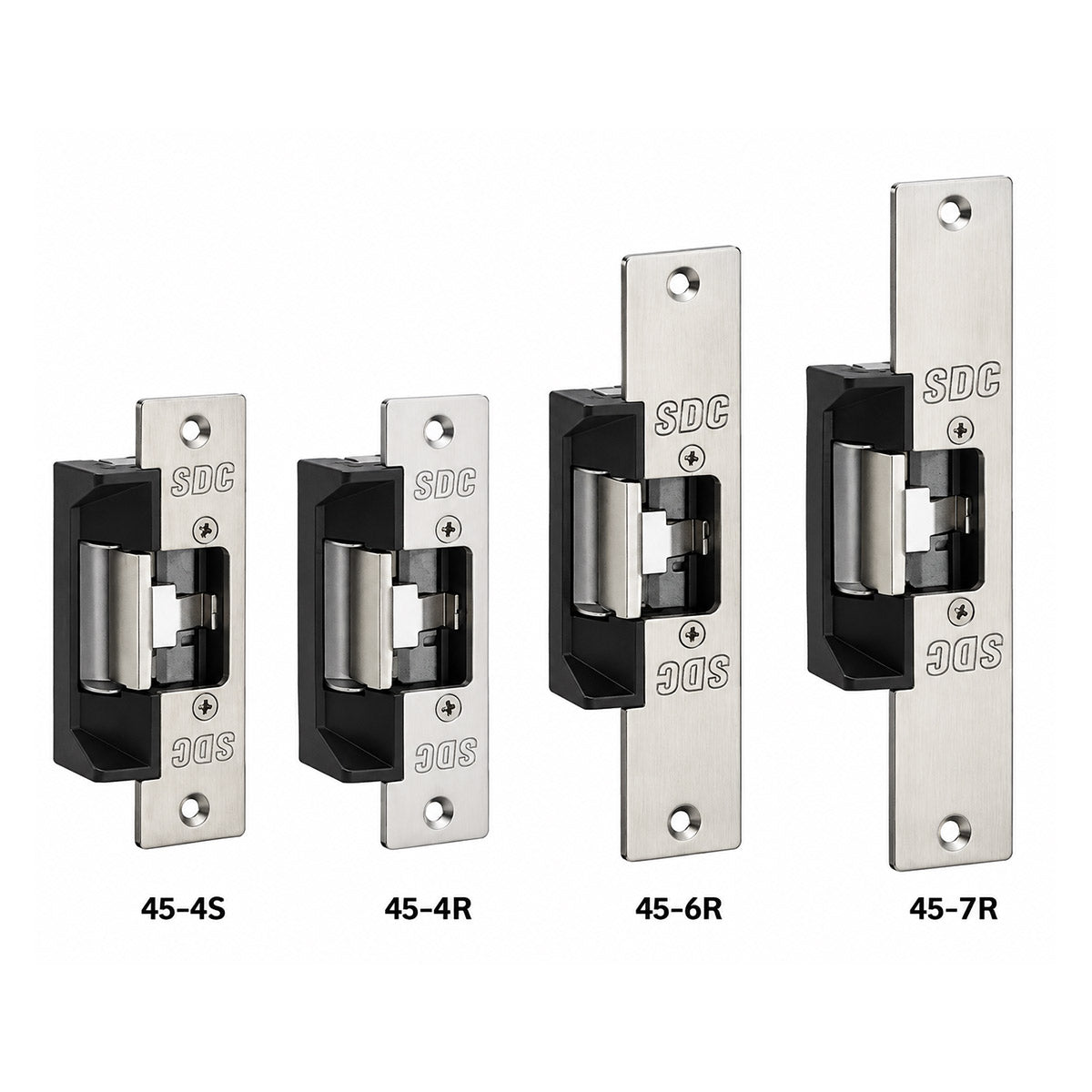

• 45-4R
• 45-6R
• 45-7R

Key Features

• Compact low-profile design
• Designed for cylindrical and mortise locksets without deadbolts
• Compatible with metal and wood frames
• Fewer moving parts for extended service life
• Stainless steel components
• Durable die-cast housing
• Corrosion-resistant construction
• Horizontal alignment adjustment
• Mounting tabs included
• Non-handed design

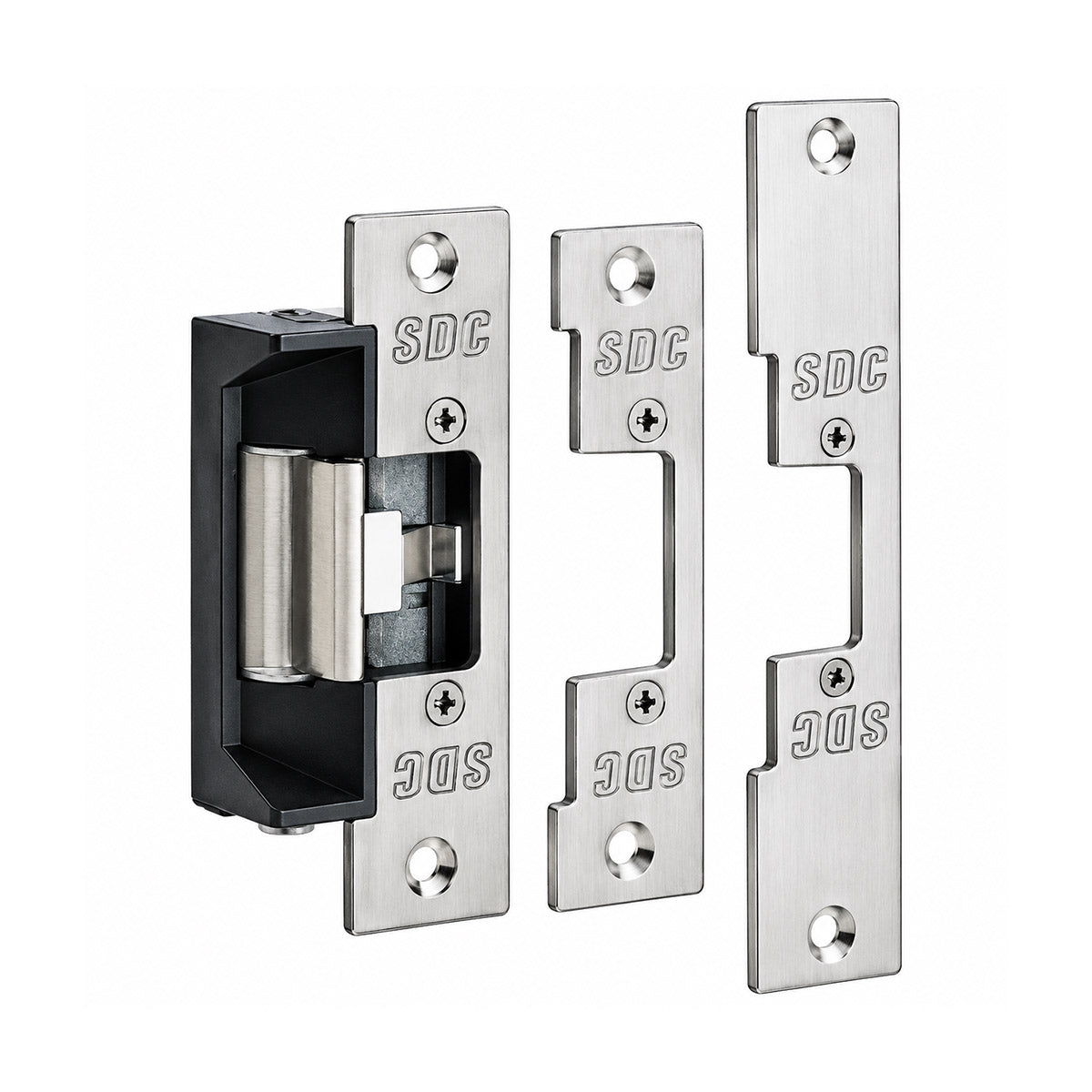

• Interchangeable faceplate design
• Internally mounted solenoid

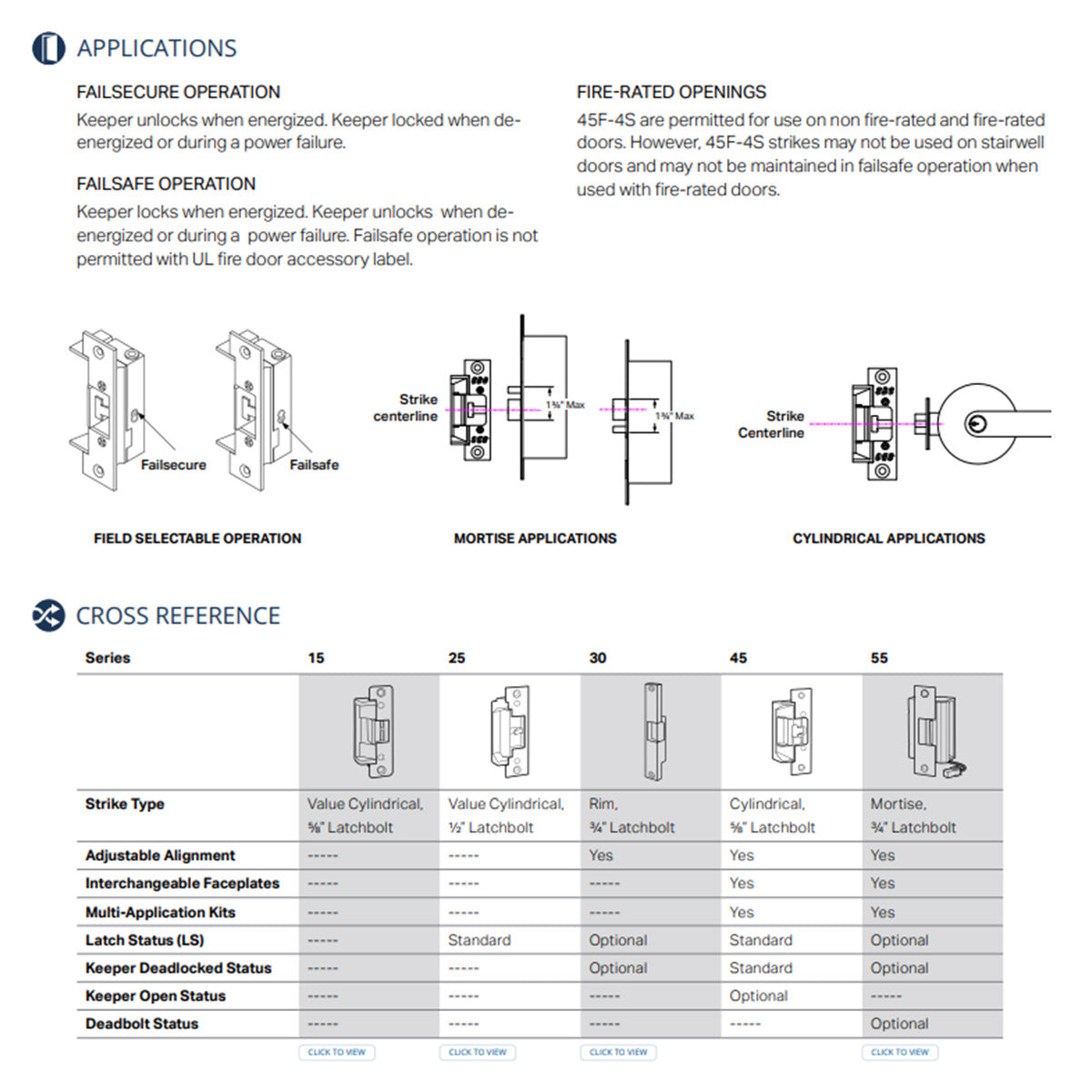

• Field-selectable operation
• Field-selectable dual voltage
• Voltage and current spike protection
• Pigtail connectors
• Ideal for high-traffic applications

Monitoring & Security Options

The 45 Series can provide additional door and locking status information for access control and security system integration, including:

• Latch Status (LS)
• Keeper Deadlocked Status
• Keeper Open Status
• Buzzer

Fire-Rated Option

The 45F Series provides a fire-rated configuration for compatible applications and accepts 9/16" throw latchbolts, or up to 5/8" throw latchbolts with a 1/8" door gap.

Applications

The SDC 45 Series is well suited for:

• Commercial buildings
• Office doors
• Retail facilities
• Institutional buildings
• High-traffic entrances
• Access-controlled interior doors
• Cylindrical locksets
• Mortise locksets without deadbolts
• Metal and wood door frames
• New construction and retrofit installations

Choose the SDC 45 Series for dependable electric access control in a compact, low-profile package designed for demanding commercial applications.
