SDC 350 Series Narrow Electromagnetic Locks – 1200 lb Holding Force
The SDC 350 Series Narrow Electromagnetic Locks provide reliable, failsafe access control with 1,200 lbs of holding force for perimeter and interior doors. Designed specifically for high-profile architectural openings, the 350 Series delivers the security and functionality of a surface-mounted magnetic lock while minimizing its projection into the opening.
With a narrow housing that projects only 2-11/16" into the opening, the 350 Series blends cleanly with narrow door frames and provides a significantly less obtrusive appearance than conventional surface-mounted electromagnetic locks.
Available in single-door and double-door configurations, the 350 Series is designed for straightforward integration with electronic access control systems, automatic door operators, peripheral equipment, and fire/life-safety systems.
Key Features & Benefits
- 1,200 lb holding force for dependable door security
- Narrow-profile housing designed for narrow door frames
- Projects only 2-11/16" into the opening
- Failsafe operation supports emergency release requirements
- Field-selectable dual voltage for flexible installation
- Door Position Status (DPS) included as standard
- Bond Alert Status (BAS) included as standard
- LED visual status indicator for easy lock monitoring
- Wire access chamber with PC board-mounted terminal blocks
- Interlocking quick-mount assembly makes installation faster and easier
- Captive mounting screws help prevent lost hardware during installation
- Voltage and current spike protection helps protect electronic components
- Armature housing helps prevent sagging and provides quieter operation
- Designed for reliable interface with access control and fire/life-safety systems
- Retrofits existing Locknetics 350+ installations without additional modifications
- One standard lock configuration can accommodate BAS, DPS, and LED monitoring without special-order configurations
Easy Installation
The 350 Series is engineered with installers in mind. An internal wire chamber and terminal blocks allow wiring to be completed before or after the lock is mounted. The interlocking quick-mount brackets keep the lock securely positioned while leaving both hands free for fastening and wiring. Captive mounting screws further simplify installation and help reduce installation time.
Architectural Design
Unlike typical surface-mounted magnetic locks that can project approximately 3" to 3-1/2" into the opening, the SDC 350 Series projects just 2-11/16". This narrow design provides a cleaner, more discreet installation that complements modern architectural door entrances and narrow frames.
Models
| Model | Description | Holding Force |
|---|---|---|

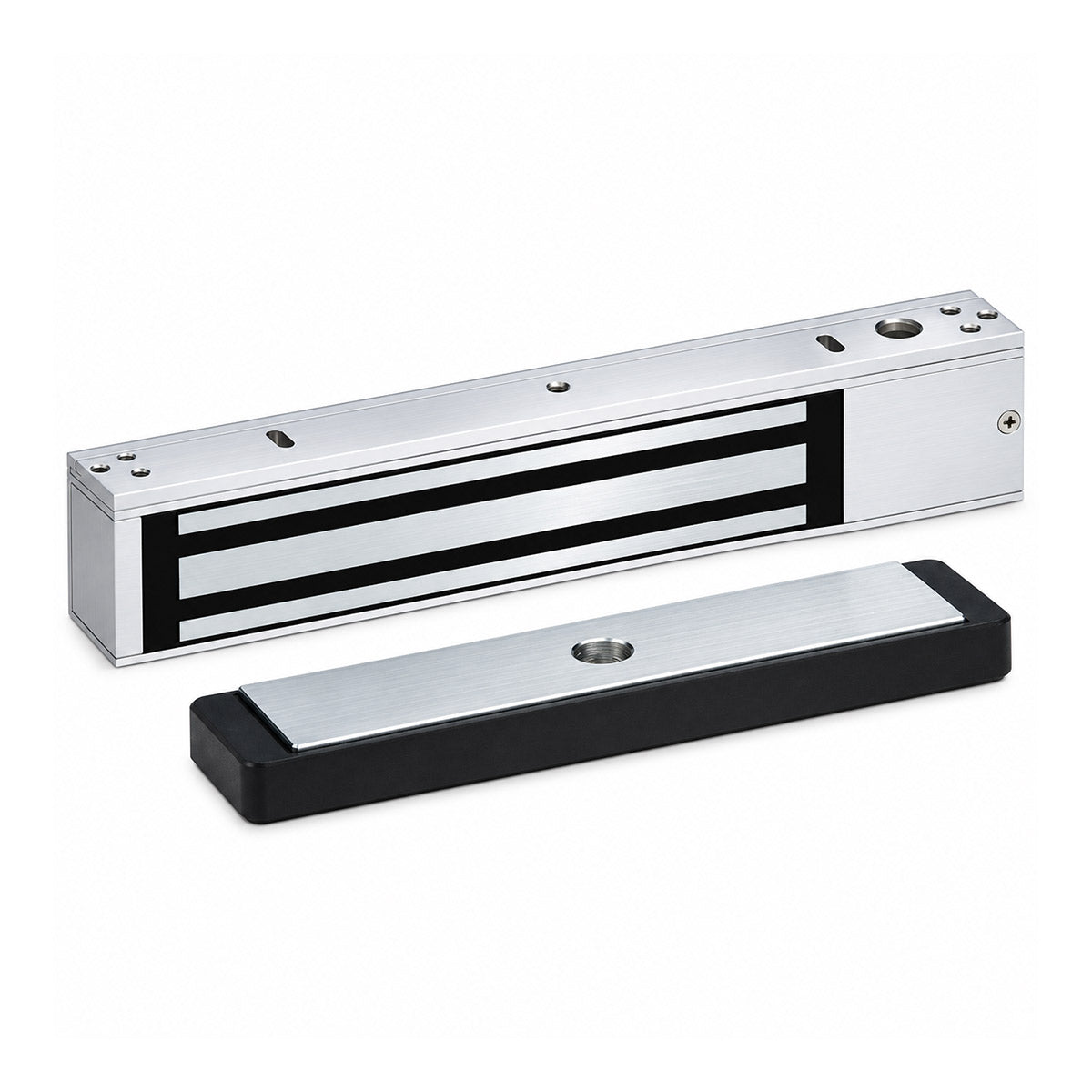

| SDC 350 | Single Narrow Electromagnetic Lock | 1,200 lbs |

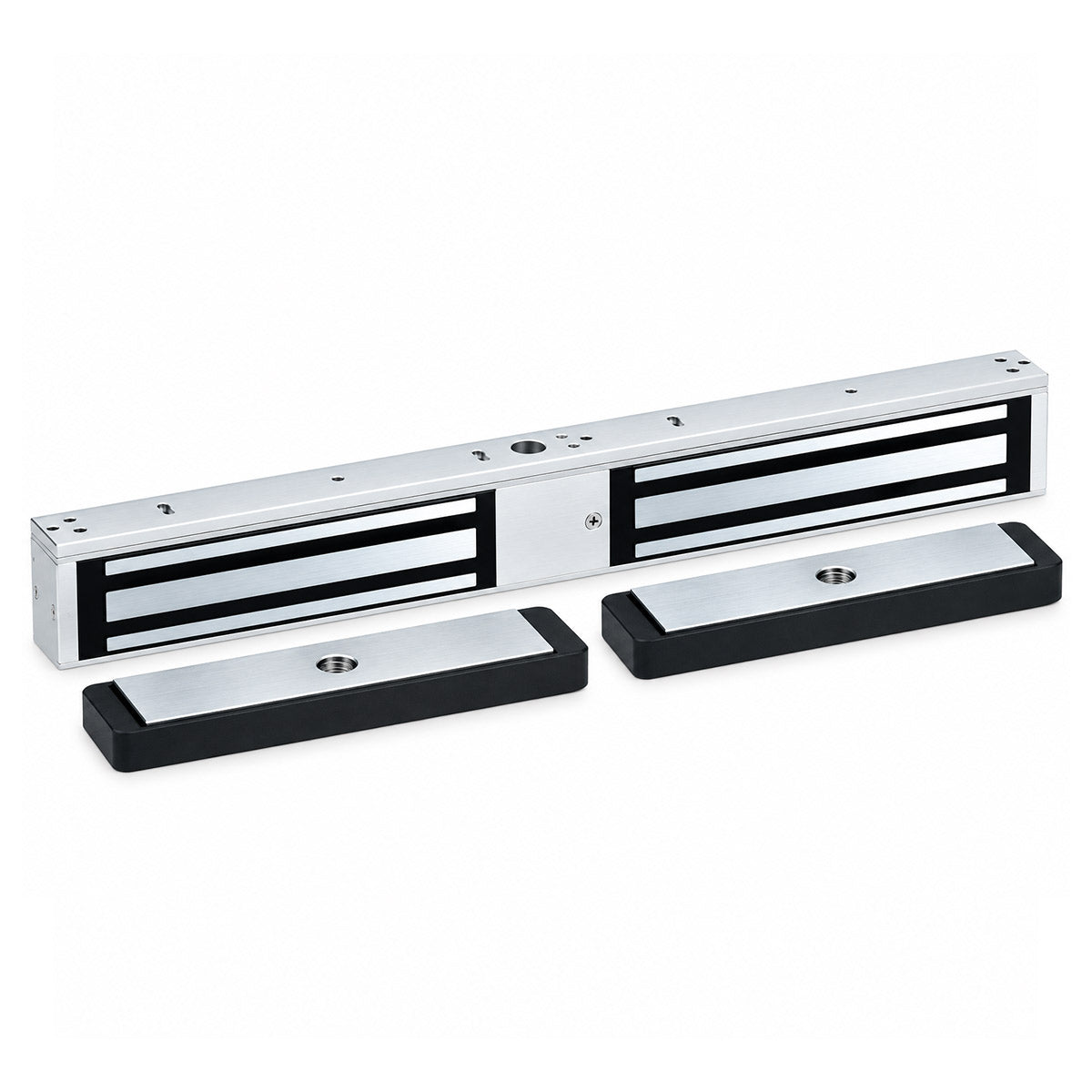

| SDC 352 | Double Narrow Electromagnetic Lock | 1,200 lbs |
Standard Features
- 1,200 lb holding force
- Narrow housing for narrow frames
- Retrofits existing Locknetics 350+ installations
- Wire access chamber with terminal block
- Interlocking quick-mount assembly
- Field-selectable dual voltage
- Voltage and current spike protection
- Captive lock mounting screws
- Door Position Status (DPS)
- Bond Alert Status (BAS)
- LED visual status indicator
- Armature housing for improved alignment and quieter operation
The SDC 350 Series is an excellent choice for commercial entrances, high-profile architectural openings, interior doors, and other applications requiring dependable electromagnetic locking without the bulky appearance of conventional magnetic locks.
