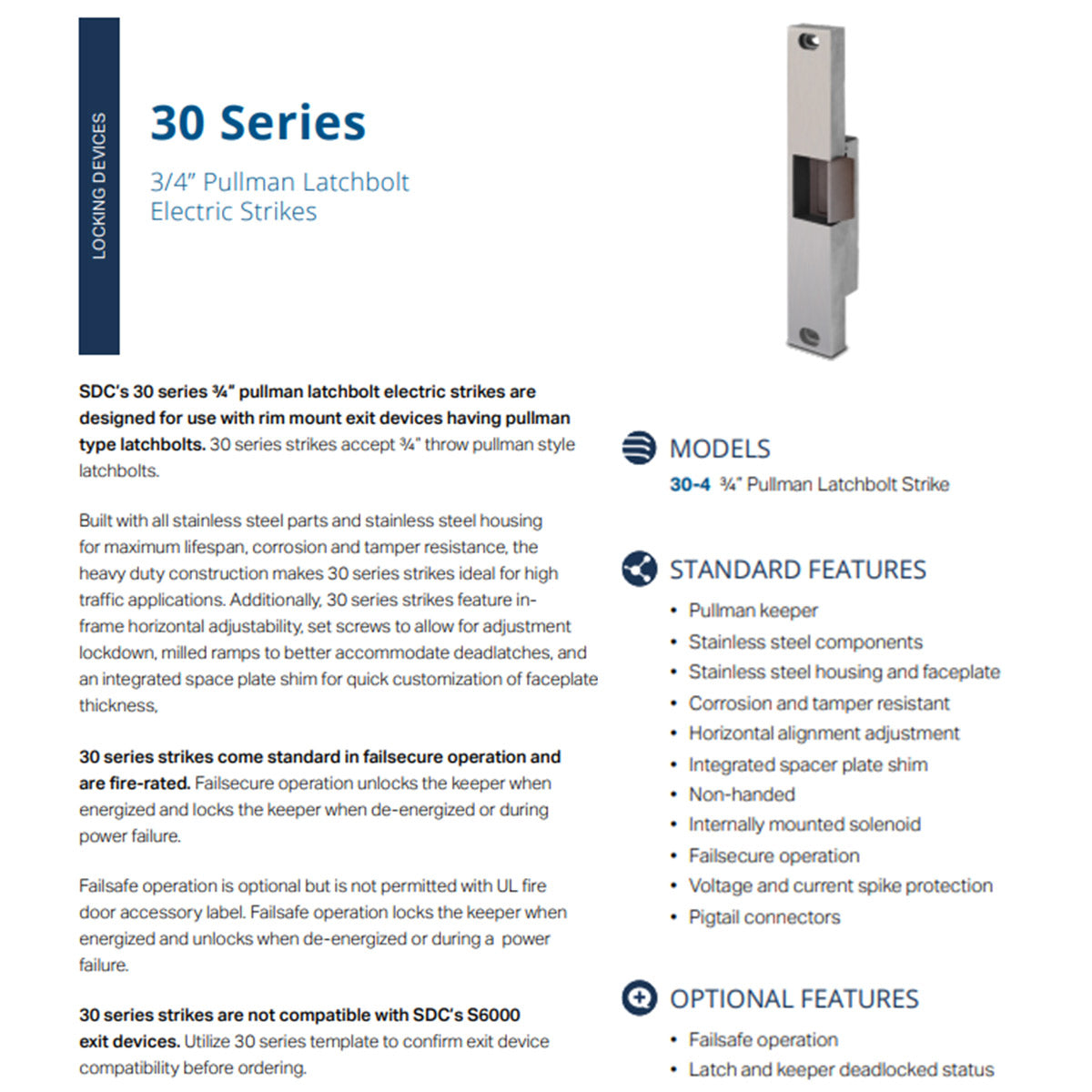

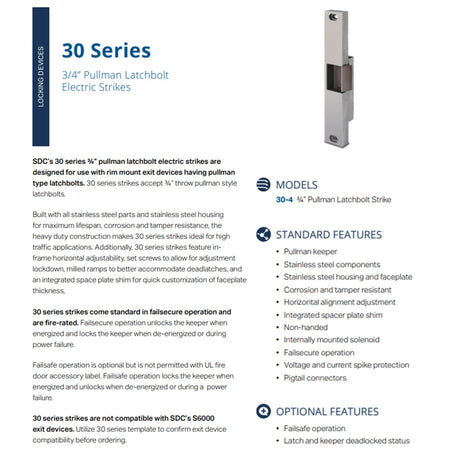

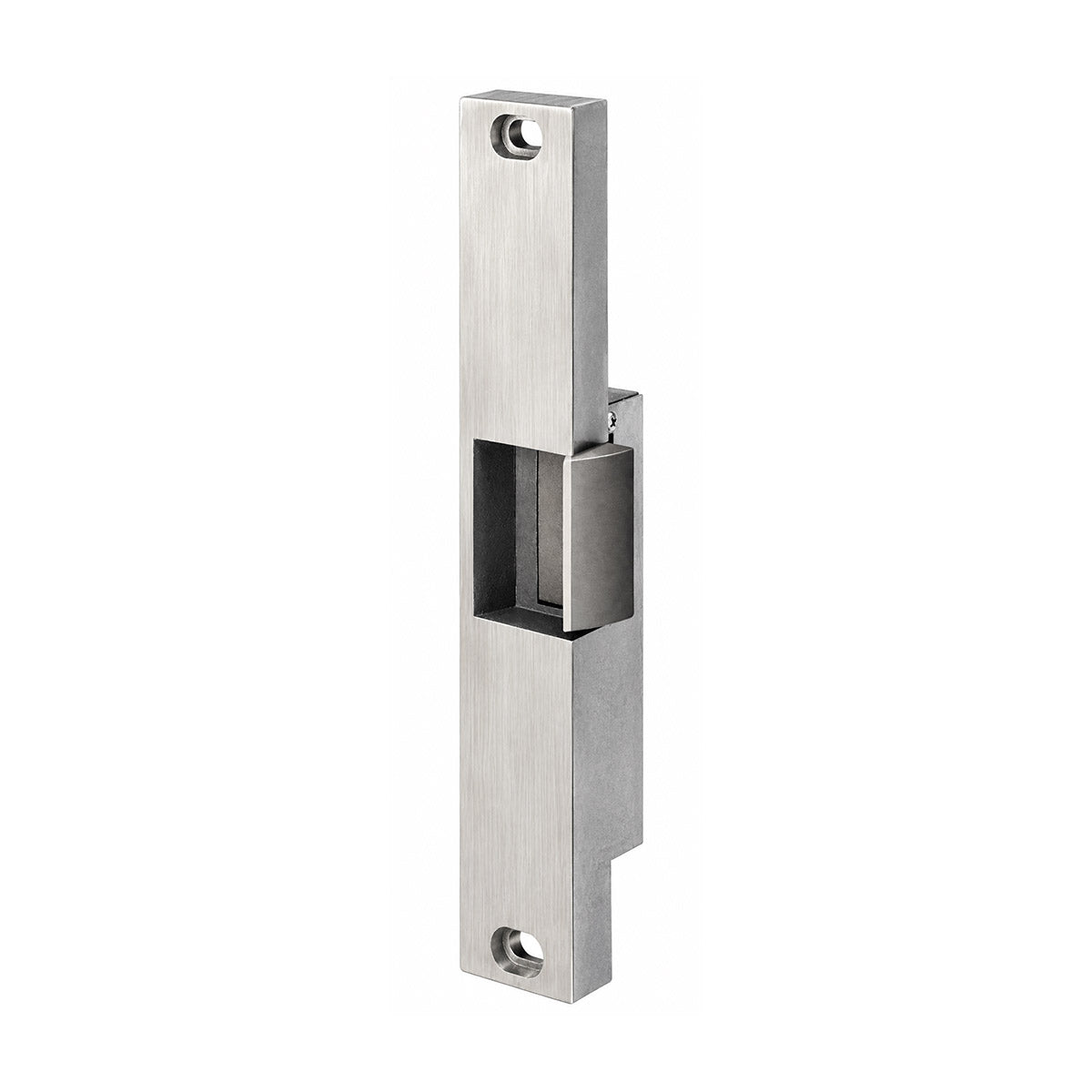

SDC 30 Series 3/4" Pullman Latchbolt Electric Strikes

SKU: 30-4-12U
$ 819.00

SDC 30 Series 3/4" Pullman Latchbolt Electric Strikes

SDC’s 30 Series 3/4" Pullman Latchbolt Electric Strikes are heavy-duty electric strikes designed for rim-mounted exit devices with Pullman-style latchbolts. Built with stainless steel components, housing, and faceplate, the 30 Series provides excellent durability, corrosion resistance, and tamper resistance for demanding, high-traffic commercial applications.

Designed to accept 3/4" throw Pullman latchbolts, these electric strikes feature convenient horizontal adjustment for precise installation and alignment. Milled ramps help accommodate deadlatches, while the integrated spacer plate shim allows for quick customization of faceplate thickness.

The 30 Series comes standard with fail-secure operation, which keeps the keeper locked when power is removed and unlocks the keeper when energized. Fail-safe operation is available as an option, allowing the keeper to unlock during a power failure. Fail-safe operation is not permitted when the strike is being used with a UL fire door accessory label.

With a non-handed design, internally mounted solenoid, spike protection, and pigtail connectors, SDC 30 Series electric strikes provide a reliable solution for integrating rim exit devices with electronic access control systems.

Key Features

  • Designed for rim-mounted exit devices with Pullman-style latchbolts
  • Accepts 3/4" throw Pullman latchbolts
  • Heavy-duty stainless steel construction
  • Stainless steel housing and faceplate
  • Corrosion and tamper resistant
  • Horizontal in-frame alignment adjustment
  • Set screws provide adjustment lockdown
  • Milled ramps accommodate deadlatches
  • Integrated spacer plate shim for quick faceplate customization
  • Non-handed design for flexible installation
  • Internally mounted solenoid
  • Standard fail-secure operation
  • Voltage and current spike protection
  • Pigtail connectors
  • Fire-rated
  • Optional fail-safe operation
  • Optional latch and keeper deadlocked status

Fail-Secure vs. Fail-Safe

Fail-Secure (Standard): The keeper unlocks when the strike is energized and remains locked when power is removed or during a power failure.

Fail-Safe (Optional): The keeper locks when energized and unlocks when power is removed or during a power failure. Fail-safe operation is not permitted with a UL fire door accessory label.

Compatibility

The SDC 30 Series is intended for use with compatible rim-mounted Pullman latchbolt exit devices. These strikes are not compatible with SDC S6000 Series exit devices. Use the appropriate 30 Series template to verify exit device compatibility before ordering.

Applications

Ideal for high-traffic commercial and institutional openings requiring electronic access control with rim exit devices, including:

  • Commercial buildings
  • Office facilities
  • Schools and universities
  • Healthcare facilities
  • Retail stores
  • Industrial facilities
  • Government buildings
  • High-traffic entry and exit doors

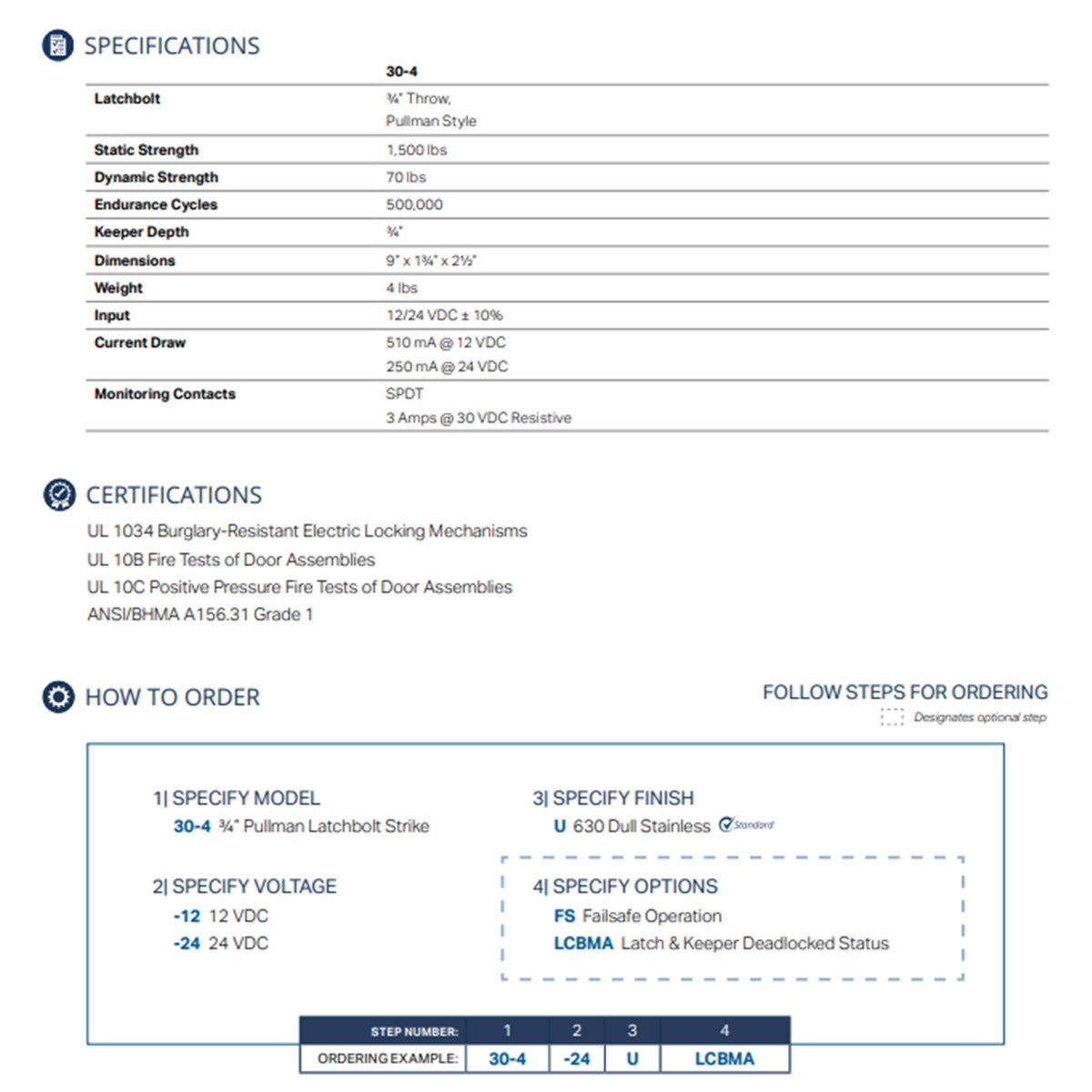

Product Highlights

Application: Rim-Mounted Exit Devices
Latchbolt Type: Pullman
Latchbolt Throw: 3/4"
Construction: Stainless Steel
Operation: Fail-Secure Standard / Fail-Safe Optional
Design: Non-Handed
Adjustment: Horizontal Alignment
Fire Rated: Yes
Access Control: Compatible with electronic access control systems
Compatibility: Verify using SDC 30 Series template before ordering
DESCRIPTION TAG: The SDC 30 Series is intended for use with compatible rim-mounted Pullman latchbolt exit devices. These strikes are not compatible with SDC S6000 Series exit devices. Use the appropriate 30 Series template to verify exit device compatibility before ordering.
