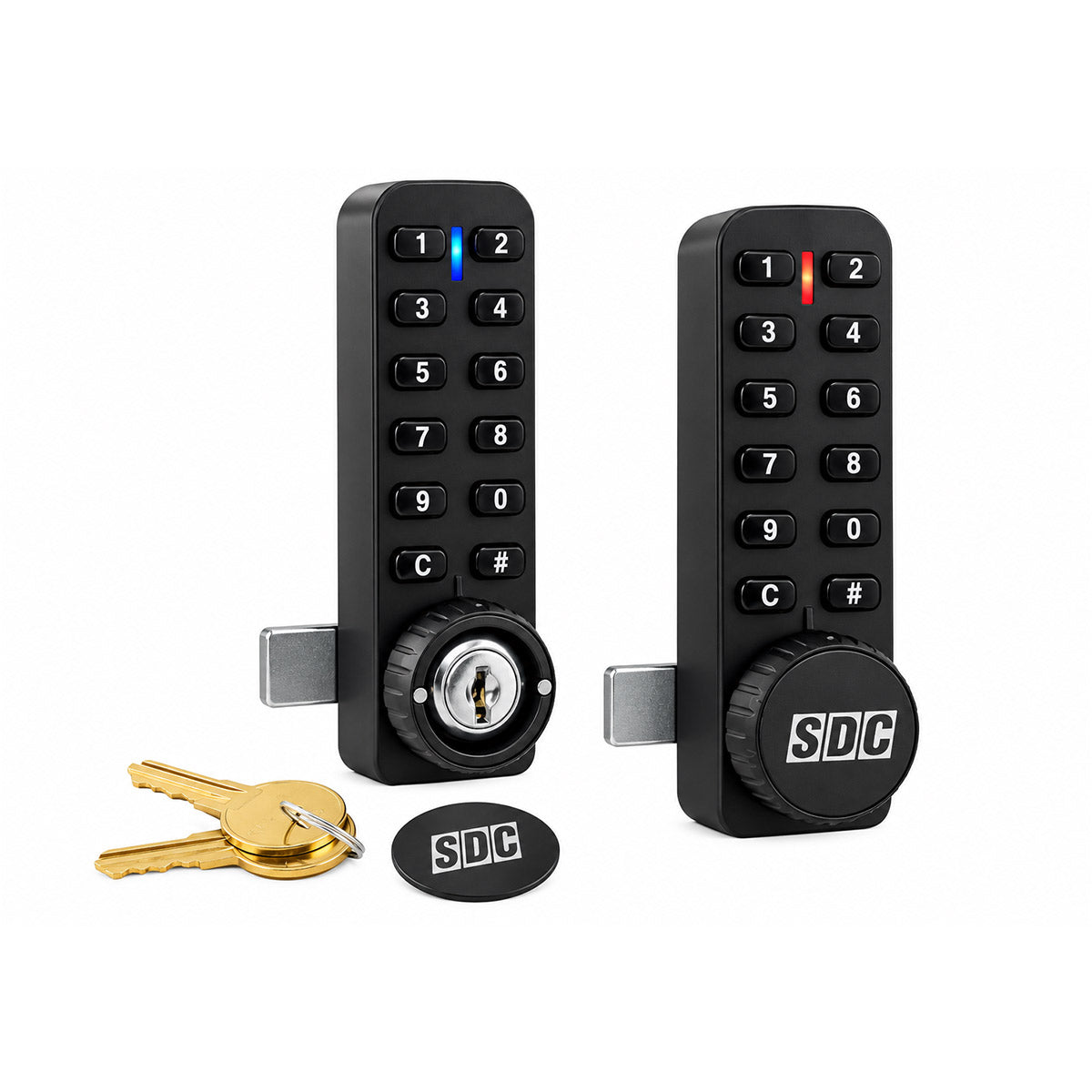

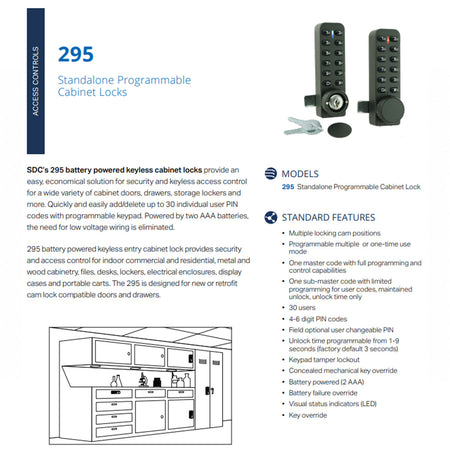

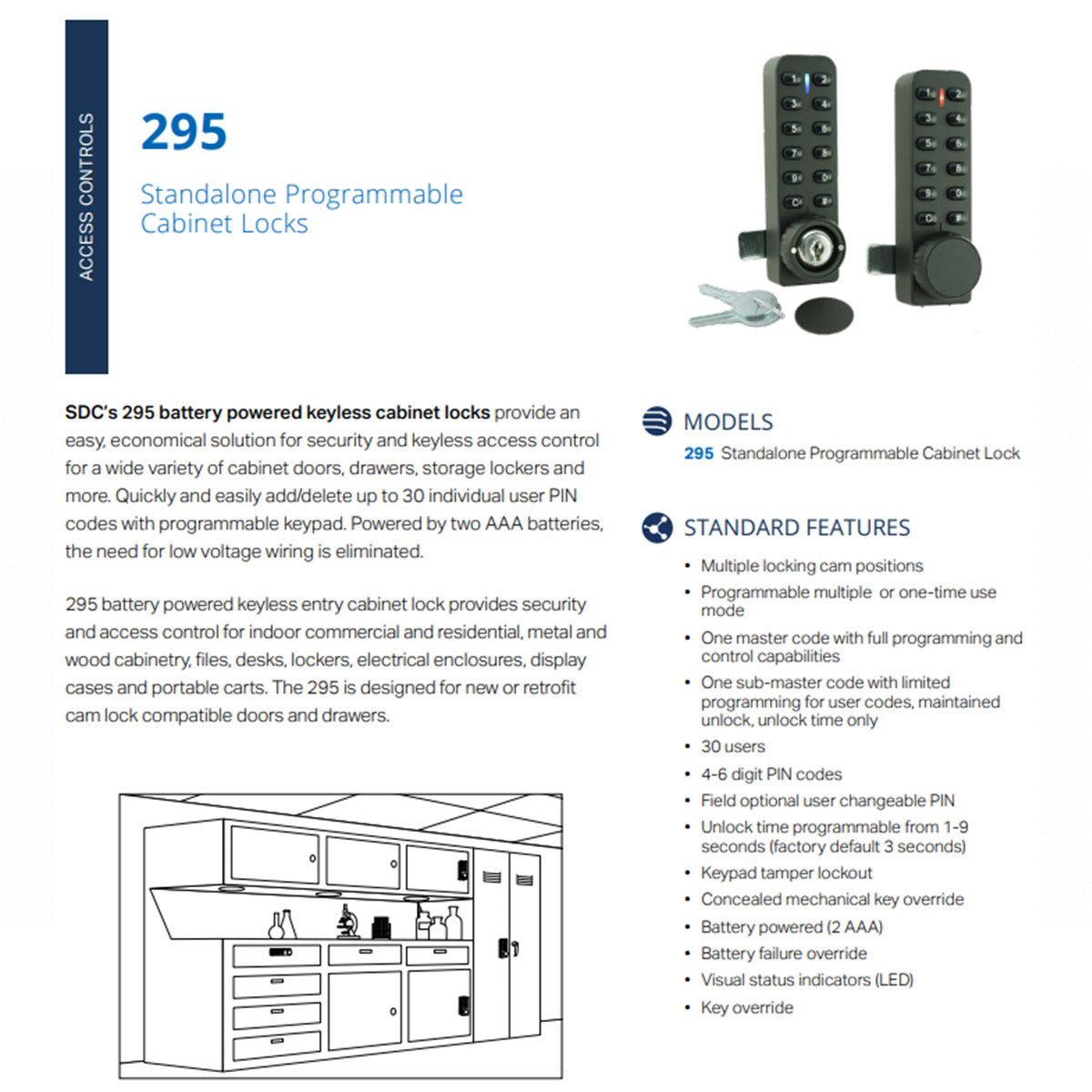

SDC 295 Standalone Programmable Cabinet Lock

The SDC 295 Standalone Programmable Cabinet Lock provides convenient, economical keyless access control for commercial and residential cabinets, drawers, lockers, and storage enclosures. Designed for both new installations and retrofits of cam lock-compatible doors and drawers, the SDC 295 offers reliable electronic security without the need for low-voltage wiring.

Powered by two AAA batteries, this standalone cabinet lock features a programmable keypad that supports up to 30 individual user PIN codes. Flexible programming options include multiple-use and one-time-use access modes, adjustable unlock timing, and master and sub-master codes for simplified access management. A concealed mechanical key override and battery failure override provide additional access options when needed.

Ideal for offices, commercial facilities, residential storage, and other applications requiring convenient keyless security, the SDC 295 combines straightforward installation with versatile access control features.

Key Features

• Standalone Keyless Access: Battery-powered electronic locking eliminates the need for low-voltage wiring.

• Up to 30 Users: Program up to 30 individual user PIN codes.

• Flexible PIN Codes: Supports 4–6 digit user codes, with field-selectable user PIN changes.

• Multiple Access Modes: Programmable multiple-use or one-time-use operation.

• Master and Sub-Master Codes: Master code provides full programming control, while the sub-master code offers limited programming capabilities.

• Adjustable Unlock Time: Programmable from 1 to 9 seconds, with a factory default of 3 seconds.

• Tamper Protection: Keypad tamper lockout helps protect against unauthorized access attempts.

• Mechanical Key Override: Concealed key override provides an alternative access method.

• Battery Failure Override: Provides an additional means of access in the event of battery failure.

• Visual Status Indicators: Integrated LED indicators provide lock status feedback.

• Flexible Installation: Multiple locking cam positions support a variety of cabinet and drawer configurations.

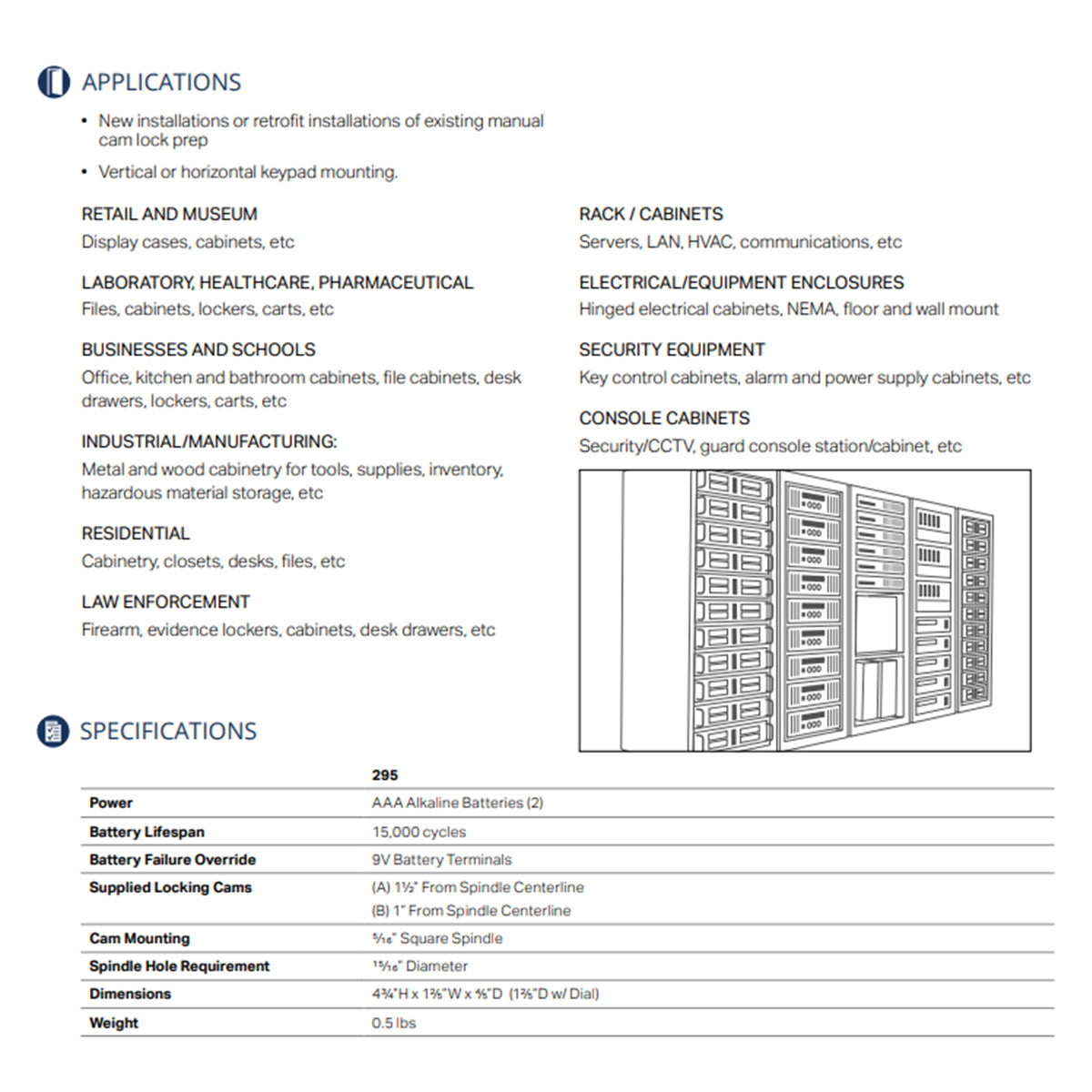

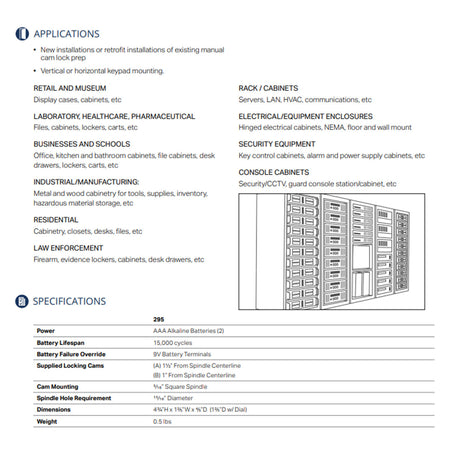

Applications

The SDC 295 is suitable for a wide range of indoor commercial and residential applications, including:

• Cabinets and storage cupboards

• File cabinets and office desks

• Storage lockers and drawers

• Electrical enclosures

• Display cases

• Portable carts

• Metal and wood cabinetry

Technical Specifications

• Product Type: Standalone programmable cabinet lock

• Power Supply: Two AAA batteries

• User Capacity: Up to 30 users

• PIN Length: 4–6 digits

• Unlock Time: 1–9 seconds, factory default 3 seconds

• Access Modes: Multiple-use or one-time-use

• Programming Levels: Master and sub-master codes

• Status Indication: LED visual indicators

• Override Options: Concealed mechanical key override and battery failure override

• Installation Type: New installation or retrofit for cam lock-compatible doors and drawers

• Intended Environment: Indoor commercial and residential applications

Secure Your Storage with SDC

Choose the SDC 295 Standalone Programmable Cabinet Lock for convenient keyless entry, flexible user management, and dependable battery-powered access control. Its simple installation and versatile programming make it a practical solution for securing cabinets, drawers, lockers, and other storage applications without complicated wiring.
