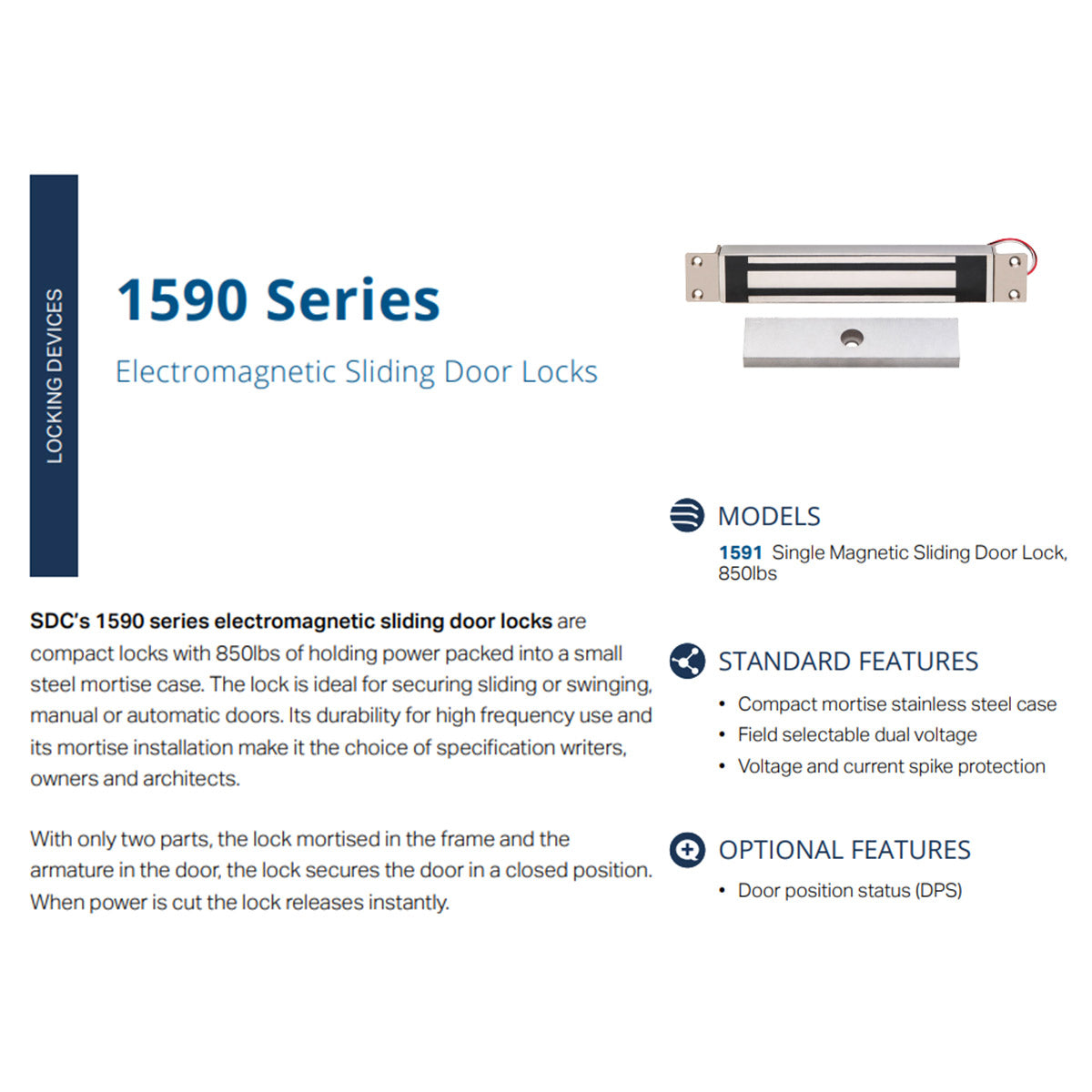

SDC 1590 Series Electromagnetic Sliding Door Locks
The SDC 1590 Series Electromagnetic Sliding Door Locks provide a compact, high-performance locking solution for sliding and swinging doors, including both manual and automatic door applications. With 850 lbs. of holding force housed in a compact stainless steel mortise case, the 1590 Series delivers dependable security while maintaining a clean, concealed appearance.

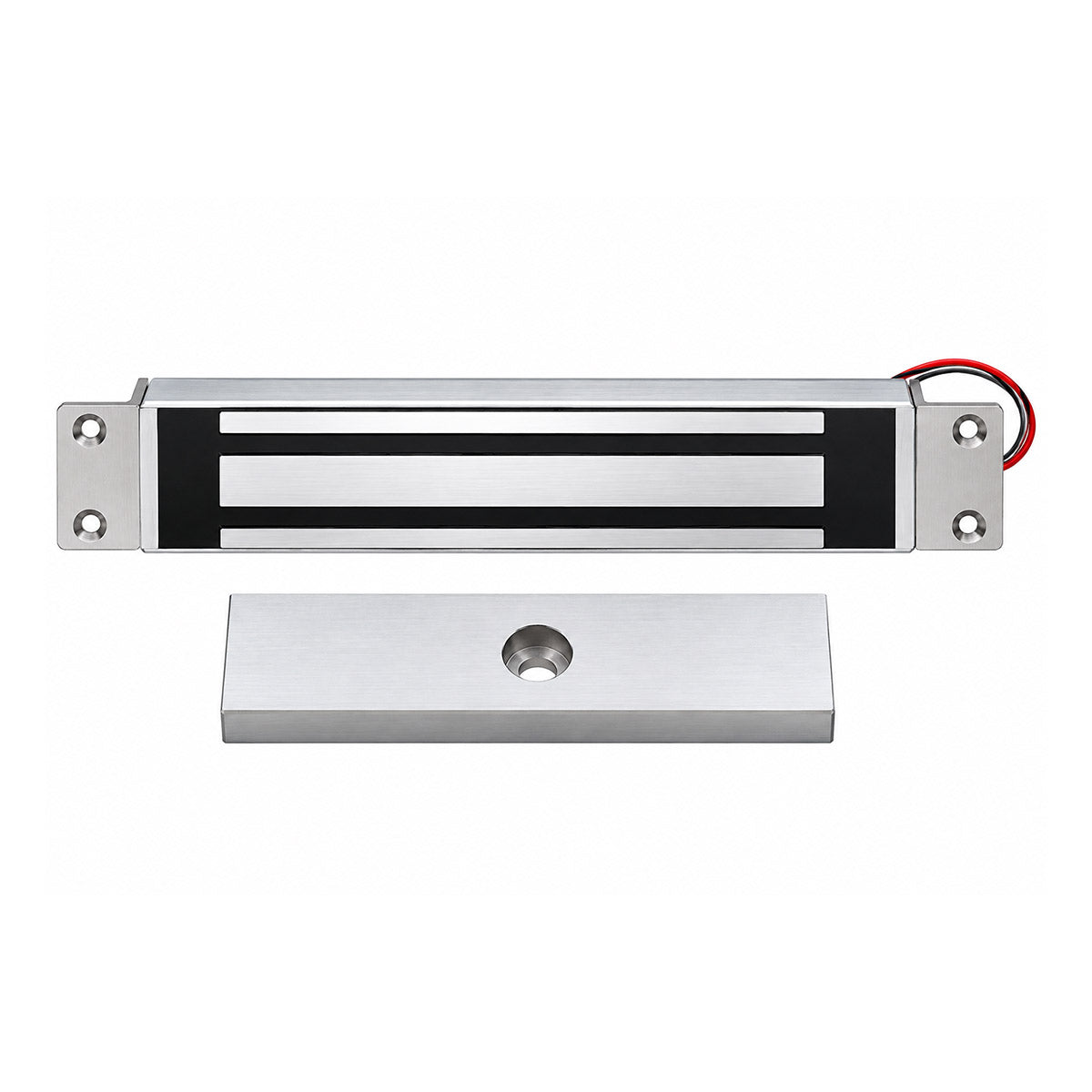

Designed for high-frequency use, the 1590 Series is ideal for commercial and architectural applications where durability, space efficiency, and reliable access control are essential. The simple two-piece design consists of a lock mortised into the door frame and an armature mounted to the door, providing secure locking when the door is closed.
When power is interrupted, the electromagnetic lock releases instantly, making it well suited for applications requiring fail-safe operation.
Key Features
- 850 lbs. holding force for dependable door security
- Compact mortise-mounted stainless steel lock case
- Designed for sliding or swinging doors
- Suitable for manual or automatic doors
- Built for high-frequency use
- Field-selectable dual voltage for installation flexibility
- Voltage and current spike protection helps protect the lock and access control system
- Simple two-piece design: mortised lock and door-mounted armature
- Releases instantly when power is removed
- Clean, space-saving installation for commercial and architectural applications
Available Model
SDC 1591 – Single Magnetic Sliding Door Lock, 850 lbs. Holding Force
Optional Feature
DPS – Door Position Status
Provides monitoring of the door position for integration with access control and security systems.
Applications
The SDC 1590 Series is ideal for securing:
- Sliding doors
- Swinging doors
- Manual doors
- Automatic doors
- Commercial entrances
- High-traffic access points
- Architectural and specialty door applications
Specifications
| Specification | Details |
|---|---|
| Series | SDC 1590 Series |
| Model | 1591 |
| Lock Type | Electromagnetic Sliding Door Lock |
| Holding Force | 850 lbs. |
| Installation | Mortise |
| Lock Case | Stainless Steel |
| Voltage | Field-Selectable Dual Voltage |
| Door Types | Sliding & Swinging |
| Operation | Manual & Automatic |
| Monitoring Option | Door Position Status (DPS) |
| Protection | Voltage & Current Spike Protection |
Reliable Electromagnetic Security for Sliding Doors
The SDC 1591 Electromagnetic Sliding Door Lock combines a compact mortise design with 850 lbs. of holding force, making it an excellent choice for demanding commercial access control applications. Its durable construction, dual-voltage capability, and high-frequency performance provide a reliable locking solution for modern sliding and swinging door systems.
