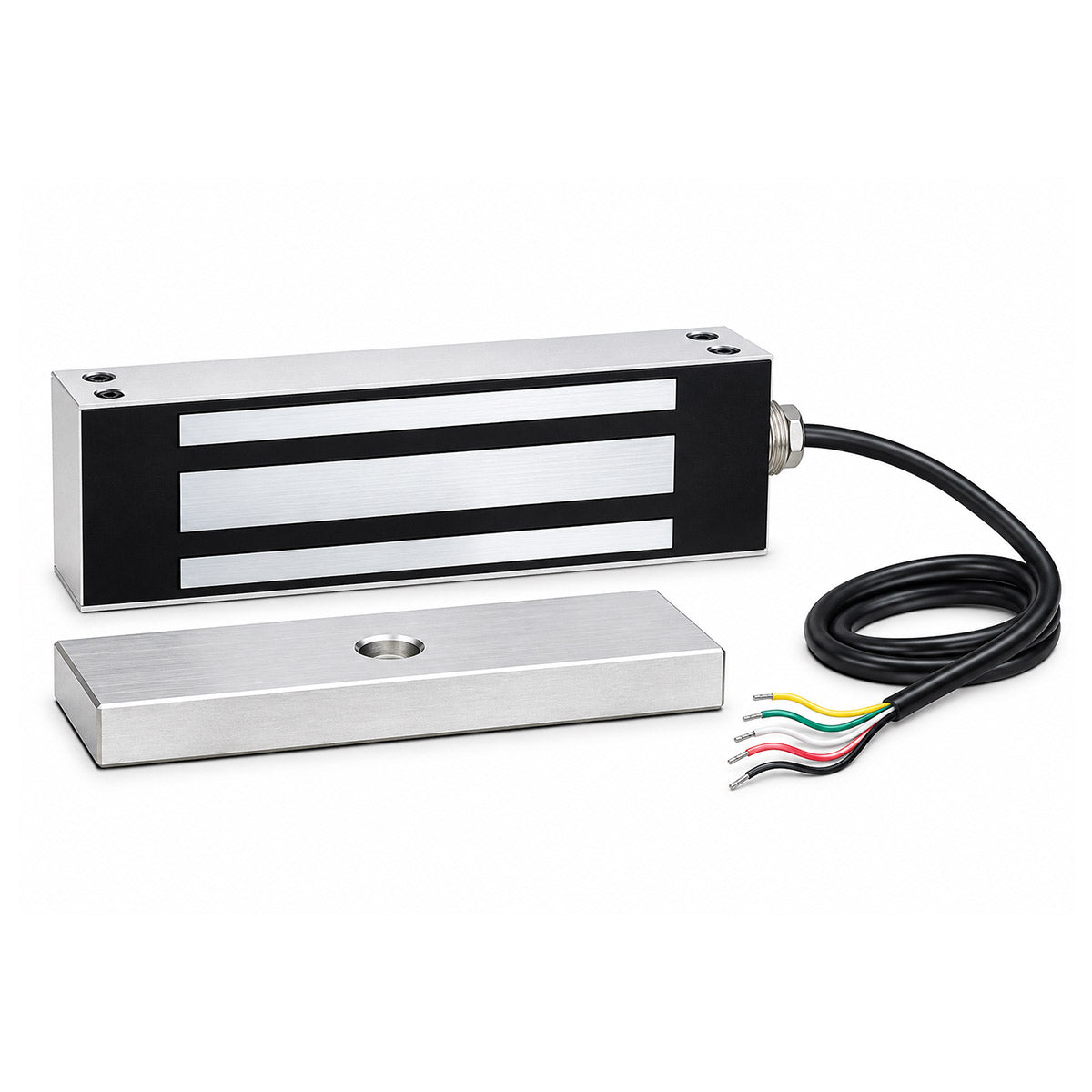

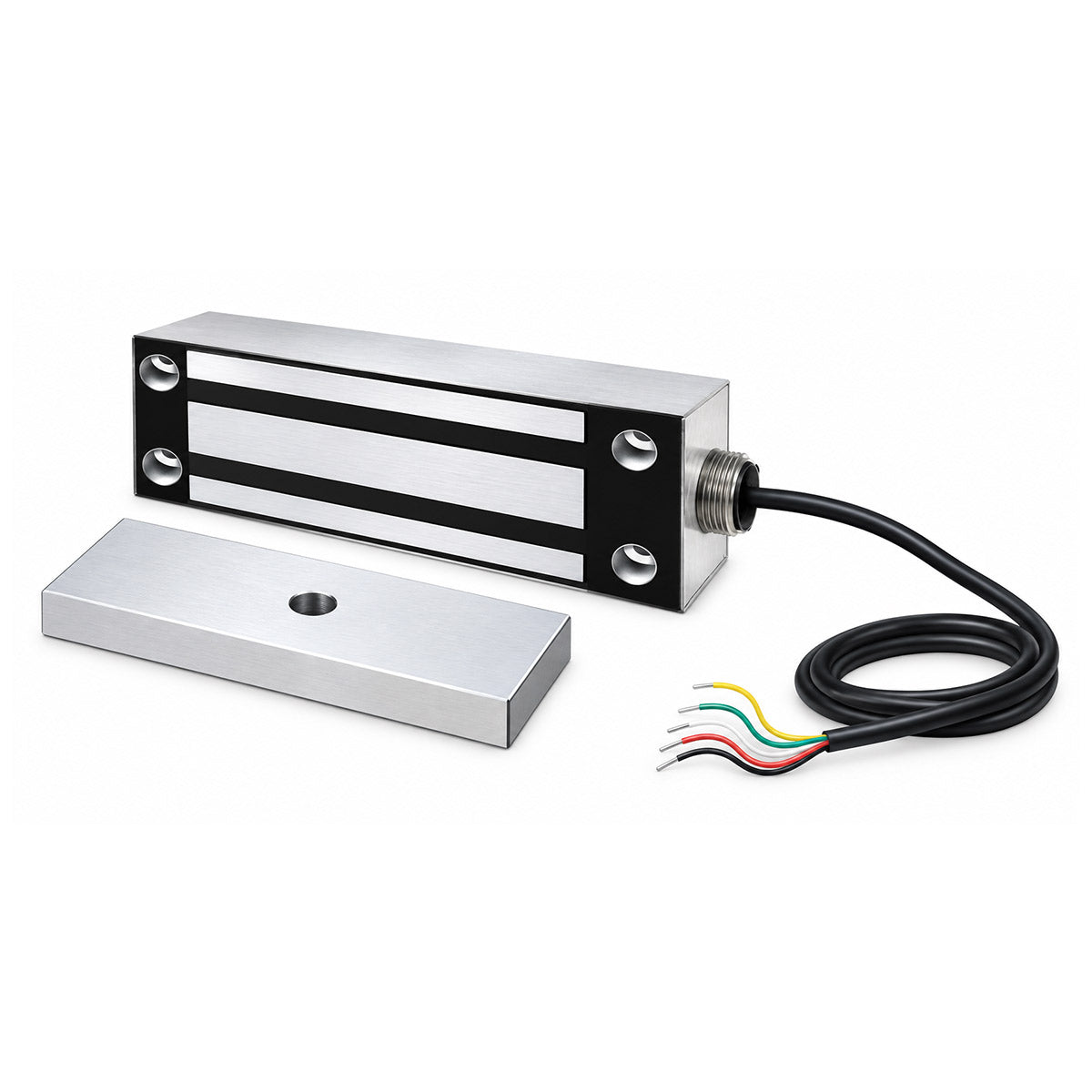

SDC 1575 / 1576 Electromagnetic Gate Locks – 1,200 lb Holding Force

The SDC 1575 and 1576 Electromagnetic Gate Locks provide dependable access and egress control for pedestrian and vehicle gates. Delivering 1,200 lbs of holding force, these weatherized magnetic gate locks are designed for demanding outdoor applications and integrate easily with card readers, digital keypads, remote control stations, and other electronic access control systems.

The SDC gate locks are compatible with a wide range of gate configurations, including manual or automatic, swinging or sliding, tubular or iron gates. A floating armature design helps compensate for gate misalignment, maintaining reliable magnetic contact even when the gate does not align perfectly with the lock.

For added protection in outdoor environments, the electronics are completely sealed in an epoxy-filled stainless steel housing, while a threaded conduit fitting provides weather-resistant protection for the wiring. Low power consumption and built-in electrical protection make the 1575/1576 a reliable solution for commercial, industrial, residential, and perimeter gate applications.

Key Features & Benefits

• 1,200 lb holding force for reliable gate security
• Designed for pedestrian and vehicle gates
• Suitable for manual and automatic gates
• Compatible with swinging and sliding gates
• Works with tubular and iron gate constructions
• Floating armature design compensates for gate misalignment
• Weatherized construction for outdoor applications
• Epoxy-sealed electronics provide protection from moisture and environmental exposure
• Durable stainless steel housing
• Threaded conduit fitting protects wiring from the elements
• Field-selectable dual voltage for installation flexibility
• Voltage and current spike protection
• Low power consumption
• Door Position Status (DPS) for monitoring gate position
• Bond Alert Status (BAS) for monitoring magnetic lock engagement
• Includes 3-foot wire leads
• Integrates with card readers, digital keypads, remote control stations, and access control systems

Floating Armature Design

The floating armature design allows the armature to accommodate minor gate movement and misalignment with the electromagnet. This helps maintain dependable locking performance on gates that may shift or move during normal operation.

Weather-Resistant Construction

Built for outdoor gate applications, SDC magnetic gate locks feature an epoxy-filled stainless steel case that protects the electronics from moisture and environmental conditions. A threaded conduit fitting further enhances protection around the wiring connection.

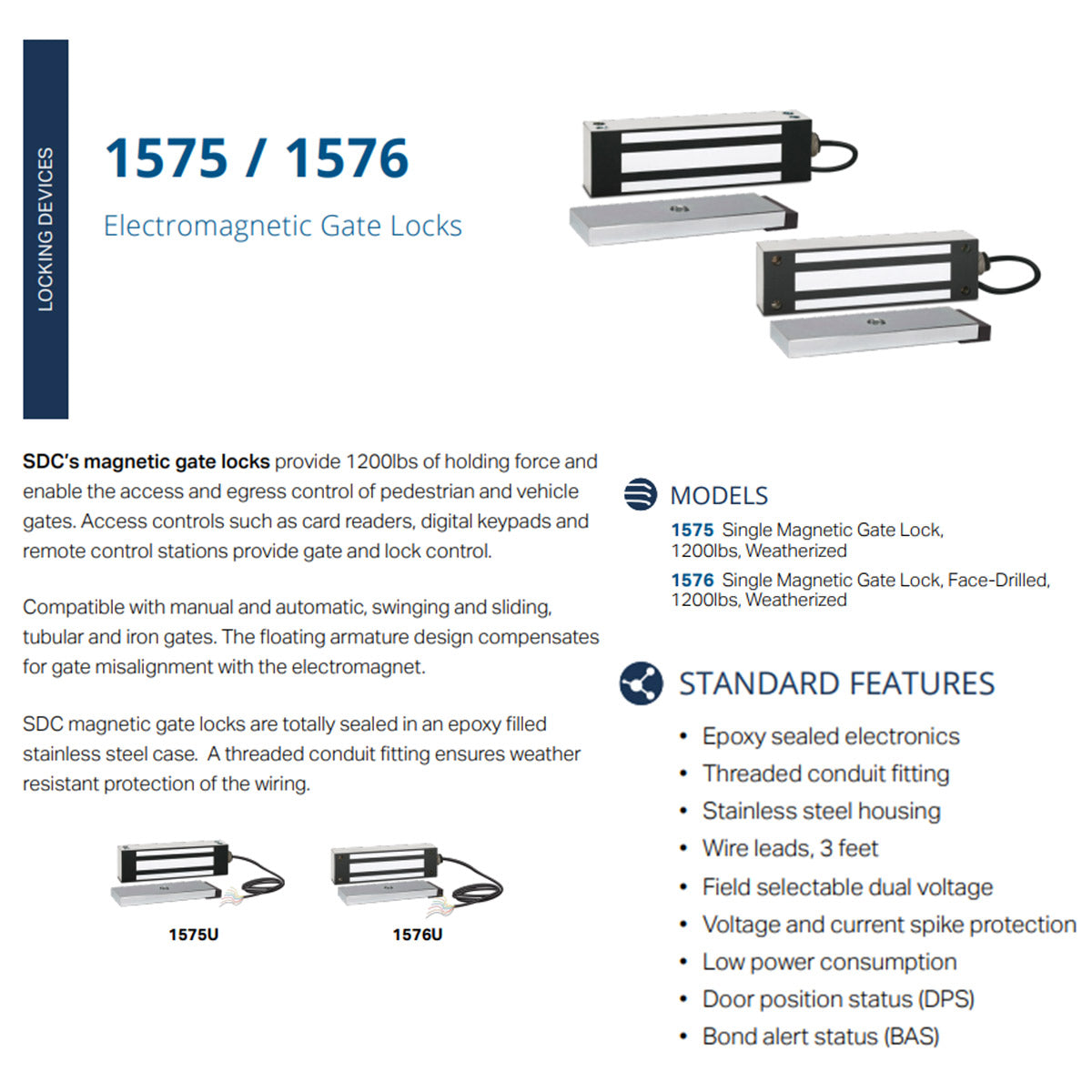

Models

Standard Features

• 1,200 lb holding force
• Epoxy-sealed electronics
• Threaded conduit fitting
• Stainless steel housing
• 3-foot wire leads
• Field-selectable dual voltage
• Voltage and current spike protection
• Low power consumption
• Door Position Status (DPS)
• Bond Alert Status (BAS)
• Floating armature design
• Weatherized construction

Applications

The SDC 1575/1576 is ideal for commercial gates, vehicle gates, pedestrian gates, perimeter entrances, industrial facilities, apartment communities, commercial properties, and other controlled-access outdoor gates.

Choose the SDC 1575 or 1576 for a durable, weatherized electromagnetic gate locking solution with 1,200 lbs of holding force and reliable integration with modern access control systems.
