SDC’s electromagnetic locks are suited for interior doors, perimeter exit doors and entrances that require failsafe emergency release capability. The patented EMLock® design represents the pinnacle of magnetic lock evolution with modular assembly that makes them easy to stock, install, upgrade and maintain. The housing design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws.
EMLocks® are UL listed and ANSI grade 1 compliant. EMLocks® are compatible with any access control system and covered by a lifetime limited warranty.

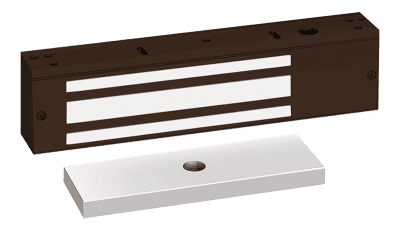

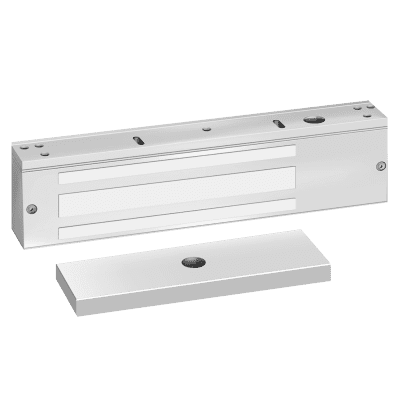

SDC’s 1570 series locks provide 1,200 lbs of holding force and are adaptable to virtually any application when used in conjunction with SDC’s vast offering of mounting brackets, kits and hardware.
Uniform design and installation
Wire access chamber with terminal block
Interlocking quick mount assembly
Auto-sensing dual voltage
Voltage and current spike protection
Instant release anti-residual magnetism
circuitry
Captive lock mounting screws
Self-drilling and tapping sheet metal screws
10/32” machine screws included
Field upgradeable without removing
from the frame*
STANDARD FEATURES
Door position status (DPS)
Bond alert status (BAS)
Anti-tamper status (ATS)
Relock time delay (RTD)
Visual status indicator (LED)*
OPTIONAL FEATURES
* Requires field installation and additional wiring.
* See related products for EZ field upgrade kits.
