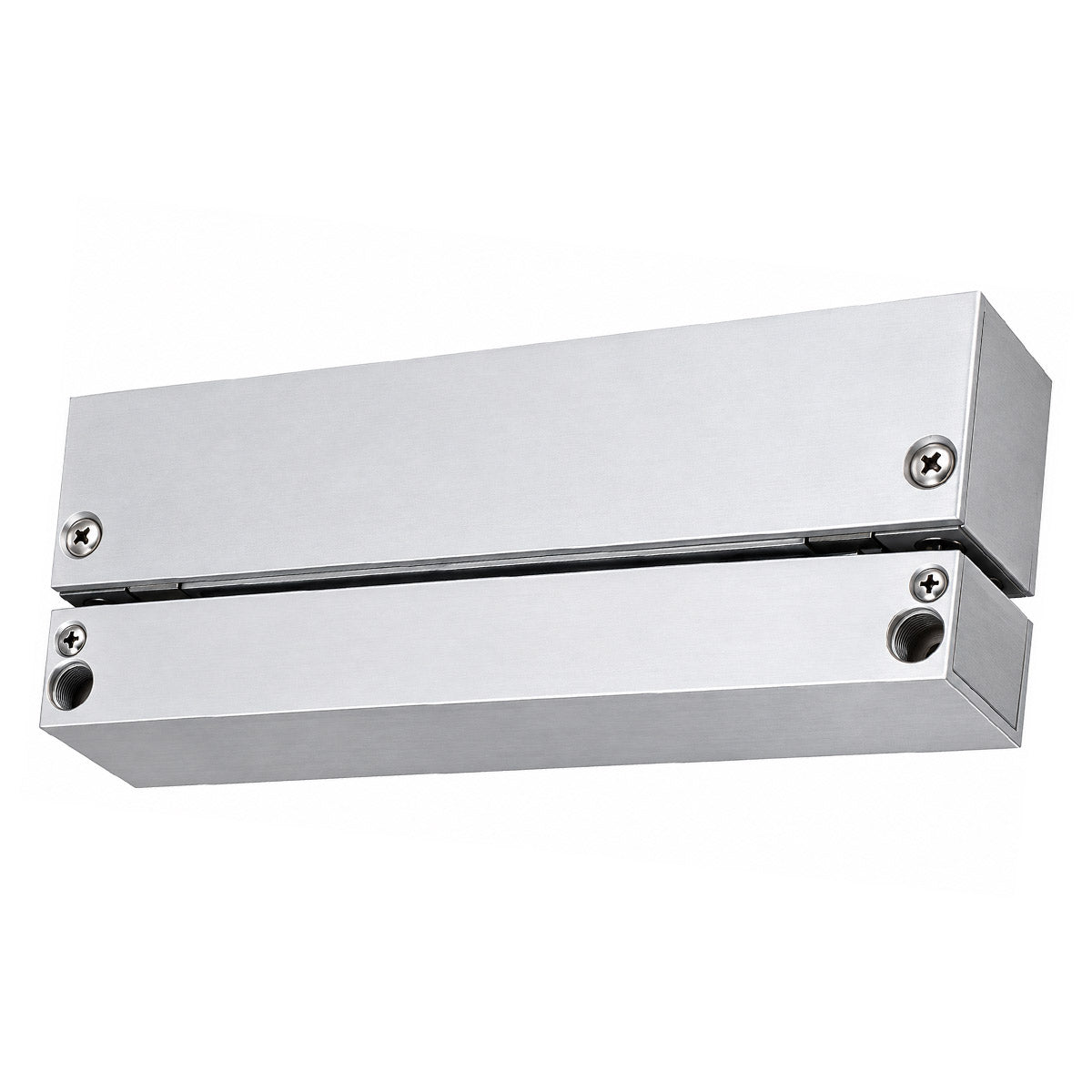

SDC 1561S Series Surface Electromagnetic Shear Locks
The SDC 1561S Series HiShear® Surface Electromagnetic Shear Locks provide high-security, architecturally attractive locking for commercial door applications where reliable performance and a clean appearance are essential. Designed, engineered, and built in America, the 1561S combines advanced electromagnetic locking technology with a patented floating armature design that accommodates door gaps and alignment variations.
The 1561S is surface mounted on the push side of an outswing door, making it an excellent choice for commercial-grade hollow metal and wood doors with metal frames, as well as Herculite doors with top rails.
Advanced HiShear® Locking Technology
The patented HiShear® design incorporates a floating armature assembly and specially engineered alloy steel locking tabs in both the lock and armature assemblies. The locking tabs can be adjusted vertically and laterally, helping compensate for wide door gaps, warped doors, and minor door misalignment.
Advanced electronic circuitry includes a door alignment relock sensor that helps ensure the lock properly engages when the door is correctly aligned. Automatic dual-voltage sensing simplifies installation by allowing the lock to accommodate either 12 or 24 VDC power without requiring manual voltage selection.
Integrated noise dampeners reduce the sound produced during locking and unlocking, providing quieter operation than conventional shear lock designs.
Key Features
- Surface-mounted design for outswing doors
- Patented HiShear® technology for reliable electromagnetic locking
- Floating armature assembly accommodates door alignment variations
- Special alloy steel shear tabs provide durable locking engagement
- Adjustable vertical and lateral alignment for easier installation
- Automatic sensing dual-voltage input simplifies power connection
- Door alignment relock sensor helps verify proper locking engagement
- Integrated noise dampeners reduce locking and unlocking noise
- Failsafe locking mechanism for emergency release applications
- Designed for commercial-grade door applications
- Suitable for hollow metal and wood doors with metal frames
- Compatible with Herculite doors with top rails
- Designed, engineered, and built in the USA
Optional Monitoring & Status Features
The SDC 1561S Series can be configured with optional monitoring and visual status features for integration with access control and security systems:
- DPS – Door Position Status: Provides door position monitoring.
- BAS – Bond Alert Status: Provides indication of proper lock engagement.
- LED Visual Status Indicator: Provides convenient visual indication of lock status.
Ideal Applications
The SDC 1561S is well suited for commercial and architectural applications requiring a discreet, high-performance electromagnetic locking solution, including:
- Commercial office buildings
- Retail facilities
- Schools and educational facilities
- Healthcare facilities
- Government buildings
- Access-controlled entrances
- Interior commercial openings
- Herculite glass door applications
Why Choose the SDC 1561S?
The SDC 1561S HiShear® Surface Electromagnetic Shear Lock combines high-security locking, flexible alignment adjustment, quiet operation, and advanced monitoring capabilities in a compact surface-mounted design. Its floating armature and adjustable shear tabs help accommodate real-world door installation conditions while maintaining dependable locking performance and an architecturally clean appearance.
The SDC 1561S is an excellent choice for commercial access control applications requiring reliable electromagnetic security without compromising door aesthetics.
