SDC 1560 Concealed Shear Lock

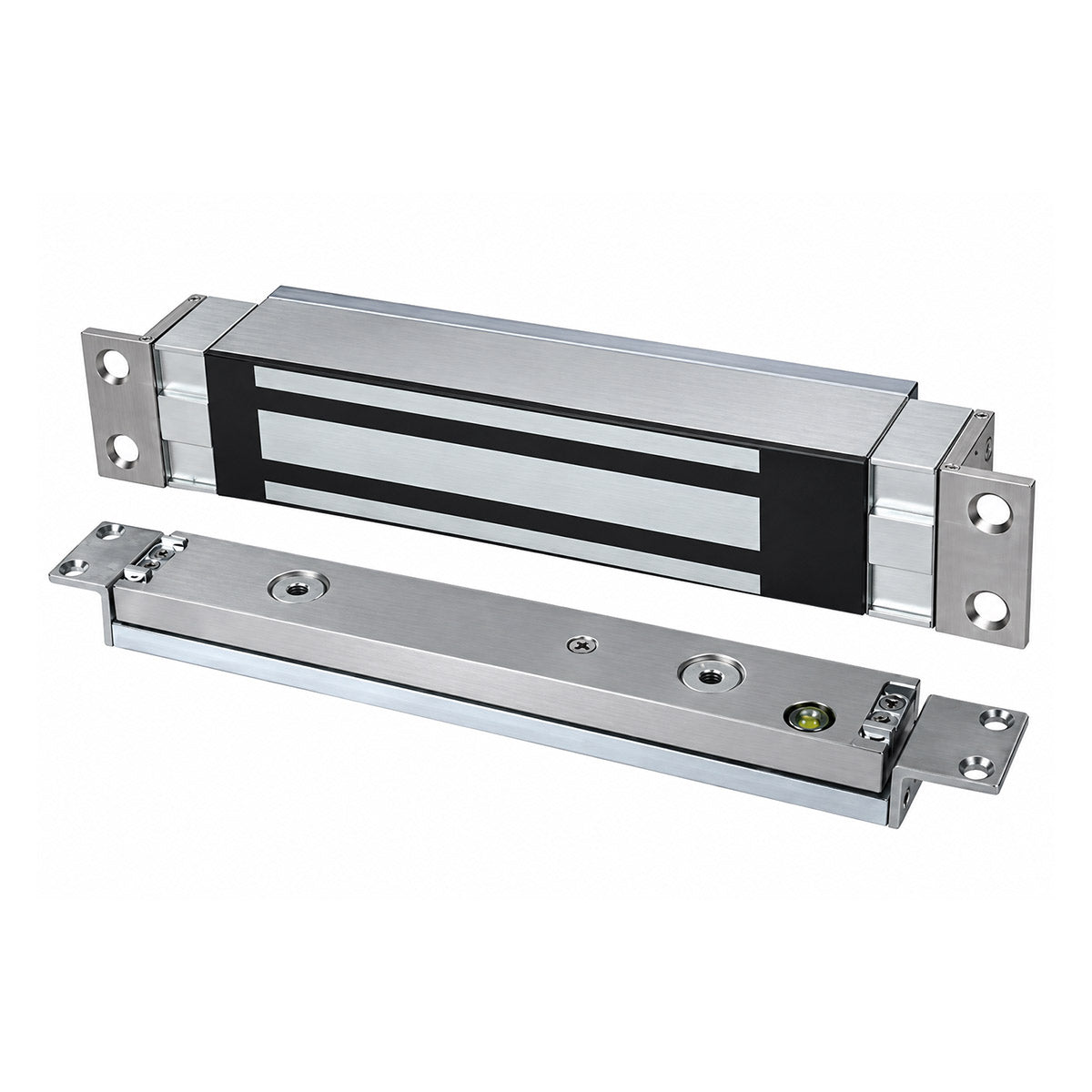

SDC 1560 Series Concealed Electromagnetic Shear Locks

The SDC 1560 Series HiShear® Concealed Electromagnetic Shear Locks deliver high-security access control with a clean, architecturally superior appearance. Designed, engineered, and built in America, these concealed shear locks are ideal for commercial openings where reliable electromagnetic locking performance and minimal visual impact are essential.

With holding force options up to 2,700 lbs, the 1560 Series is engineered for commercial-grade hollow metal and wood doors with metal frames, as well as Herculite glass doors with top rails. The fully concealed mortise design keeps the locking hardware discreet while providing dependable failsafe operation.

Advanced HiShear® Technology

The patented HiShear® design incorporates a floating armature assembly and special alloy steel shear tabs in both the lock and armature assemblies. The locking components can be adjusted vertically and laterally to compensate for wide door gaps, warped doors, and door misalignment, helping maintain reliable locking performance.

Advanced electronic circuitry includes a door alignment relock sensor and automatic sensing dual-voltage input. Integrated noise dampeners also significantly reduce the sound produced during locking and unlocking compared with conventional shear locks.

Key Features

• Fully concealed mortise design for a clean architectural appearance
• Available with 2,000 lbs or 2,700 lbs holding force
• Floating armature assembly compensates for door alignment variations
• Special alloy steel shear tabs provide high-security locking
• Adjustable vertical and lateral alignment
• Compensates for wide door gaps and warped or misaligned doors
• Auto-sensing dual voltage input
• Door alignment relock sensor helps ensure proper locking
• Noise dampeners reduce locking and unlocking noise
• Failsafe electromagnetic locking
• Designed for commercial-grade hollow metal and wood doors
• Suitable for Herculite doors with top rails
• Available with integrated or external electronics depending on frame requirements
• Designed, engineered, and built in America

Model Options

Frame Compatibility

The 1560 Series is available for different frame configurations:

• 1-3/4" to 2" frames: Integrated electronics
• 1-1/4" to 1-1/2" narrow frames: External electronics

Optional Features

Customize the 1560 Series for advanced access control and monitoring applications with optional:

• DPS — Door Position Status
• BAS — Bond Alert Status
• Visual Status Indicator (LED)

Ideal Applications

The SDC 1560 Series is well suited for:

• Commercial office buildings
• High-security entrances
• Institutional facilities
• Retail and commercial spaces
• Hollow metal doors and frames
• Wood doors with metal frames
• Herculite glass doors with top rails
• Architecturally sensitive installations
• Access-controlled interior and perimeter openings

Why Choose SDC HiShear®?

The SDC 1560 Series combines concealed installation, high holding force, intelligent sensing, and adjustable locking components into a compact electromagnetic shear lock. Its floating armature and adjustable shear tabs help accommodate real-world door alignment issues, while the concealed design provides the sleek appearance demanded by modern commercial architecture.

Choose the SDC 1560 Series when you need high-security electromagnetic locking without compromising the appearance of the opening.
