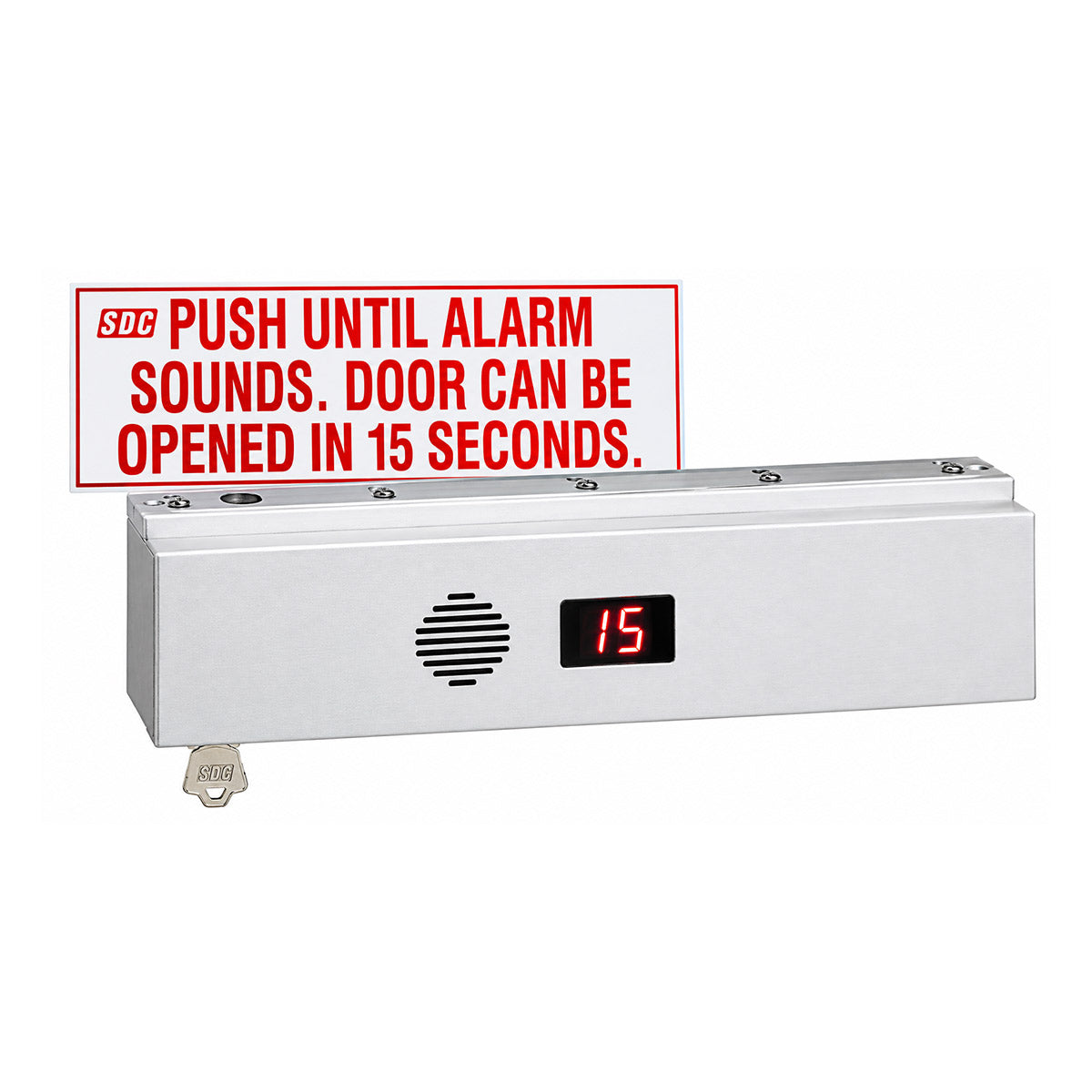

SDC 1511T Series Tandem Integrated Delayed Egress Locks
SKU: 1511T-NA-V
$ 1,679.30
SDC 1511T Series Tandem Integrated Delayed Egress Locks
The SDC 1511T Series ExitCheck® Tandem Integrated Delayed Egress Locks provide an advanced delayed egress solution for double-door and pair-of-door applications where controlled egress, security, and life safety are critical. Combining electromagnetic locking with integrated delayed egress electronics, audible/visual occupant notification, and flexible programming, the 1511T helps prevent unauthorized egress while providing immediate emergency release.
Designed to provide a selectable 15- or 30-second egress delay, the 1511T uses a large digital countdown display, door release indicator, alternating verbal message, verbal countdown, and alarm tone to clearly communicate the exit condition. These features help ensure that occupants understand the door operation even without prior knowledge, including individuals who are blind or hearing impaired.
The tandem configuration is specifically designed for pairs of doors. A slave lock output allows two 1511T units to work together so that pushing either door leaf causes both doors to release, providing coordinated delayed egress operation across the entire opening.
The SDC 1511T is compatible with access-control systems, patient wandering systems, and patient or infant tracking applications. Field-selectable operating modes provide flexibility for local code requirements while supporting national and regional fire and life-safety requirements, including NFPA 101 Special Locking Arrangements.

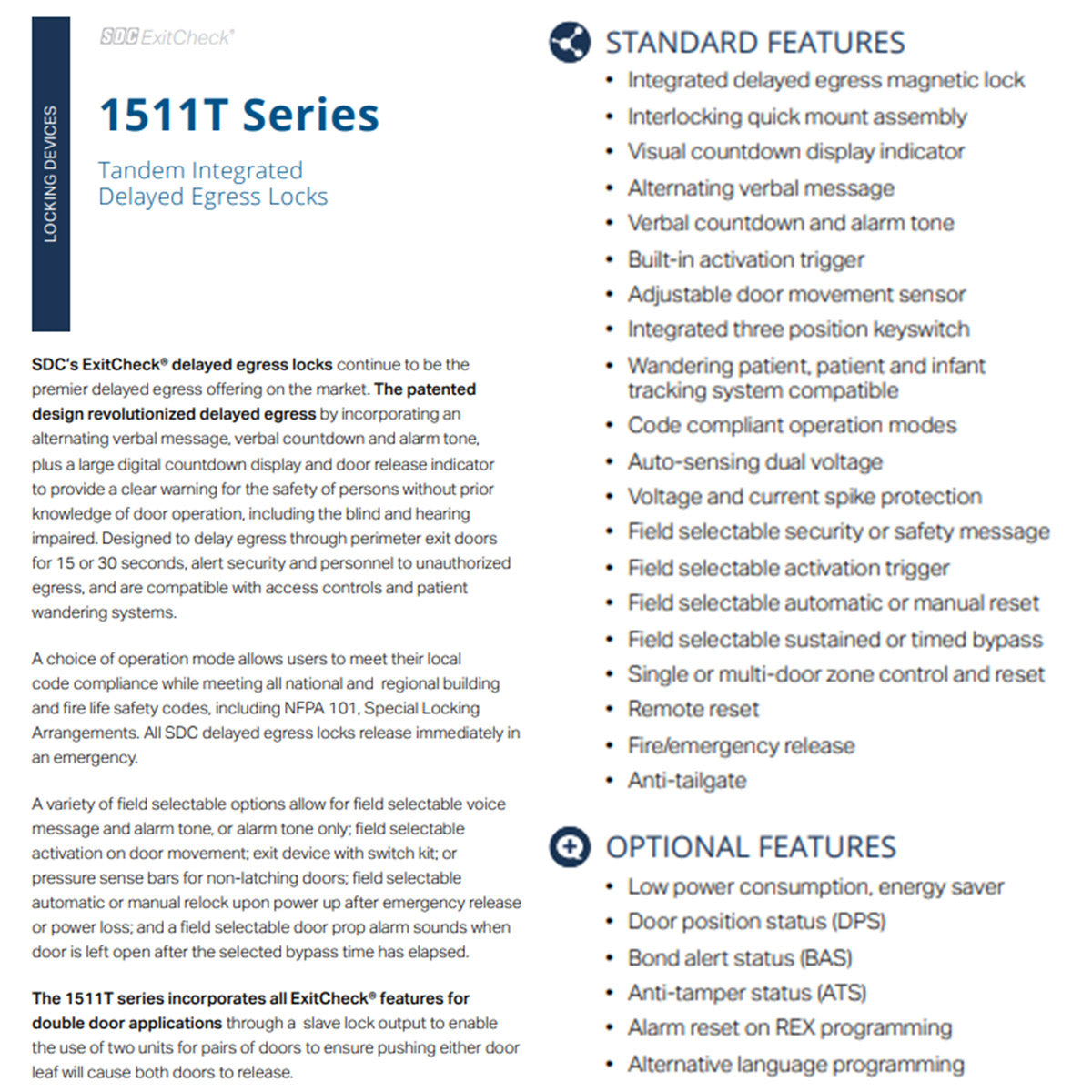

Key Features
15- or 30-second selectable delayed egress
Designed for double doors and door pairs
Integrated delayed egress electromagnetic lock
Tandem operation with slave lock output
Pushing either door leaf releases both locks
Large digital countdown display
Visual door release indicator
Alternating verbal message
Verbal countdown and alarm tone
Built-in activation trigger
Adjustable door movement sensor
Integrated three-position key switch
Access-control system compatible
Compatible with patient wandering and tracking systems
Compatible with infant tracking systems
Field-selectable security or safety message
Field-selectable activation trigger
Field-selectable automatic or manual reset
Sustained or timed bypass selection
Single- or multi-door zone control and reset
Remote reset capability
Fire/emergency release
Anti-tailgate functionality
Auto-sensing dual-voltage operation
Voltage and current spike protection
Interlocking quick-mount assembly
Tandem Double-Door Operation
The SDC 1511T Series is engineered specifically for openings with two door leaves. The tandem configuration uses a slave lock output to coordinate two units, ensuring that activation at either door leaf causes both locks to release together.
This coordinated operation provides consistent delayed egress control across double-door openings and helps prevent one door from being released while the other remains secured.
Flexible Delayed Egress Operation
The 1511T provides multiple field-selectable options to accommodate different security and life-safety requirements. Installers can configure the lock for:
Voice message with alarm tone or alarm tone only
Activation upon door movement
Exit device activation with switch kit
Pressure-sensing bars for non-latching doors
Automatic or manual relock following power restoration
Automatic or manual relock following emergency release or power loss
Sustained or timed bypass
Door prop alarm after the selected bypass period
Security or safety messaging
Single- or multi-door zone control
All SDC delayed egress locks are designed to release immediately during an emergency, helping maintain safe egress while providing controlled access during normal operation.
Optional Monitoring & Energy-Saving Features
The SDC 1511T can be configured with additional monitoring and programming options, including:
Energy Saver / Low-Power Operation
Door Position Status (DPS)
Bond Alert Status (BAS)
Anti-Tamper Status (ATS)
Alarm reset on REX programming
Alternative language programming
Ideal Applications
The SDC 1511T delayed egress lock is well suited for:
Hospitals and healthcare facilities
Patient wandering protection
Infant security areas
Commercial buildings
Schools and educational facilities
Government facilities
Security-sensitive buildings
Perimeter exit doors
Double-door and paired-door openings
Access-controlled egress applications
Why Choose the SDC 1511T?
The SDC 1511T ExitCheck® Tandem Integrated Delayed Egress Lock combines coordinated double-door locking, delayed egress technology, occupant notification, and access-control compatibility in a streamlined solution. Its tandem slave-lock operation ensures both door leaves release together, while the visual countdown, verbal messaging, alarm functions, and emergency release capability provide enhanced security without compromising life safety.

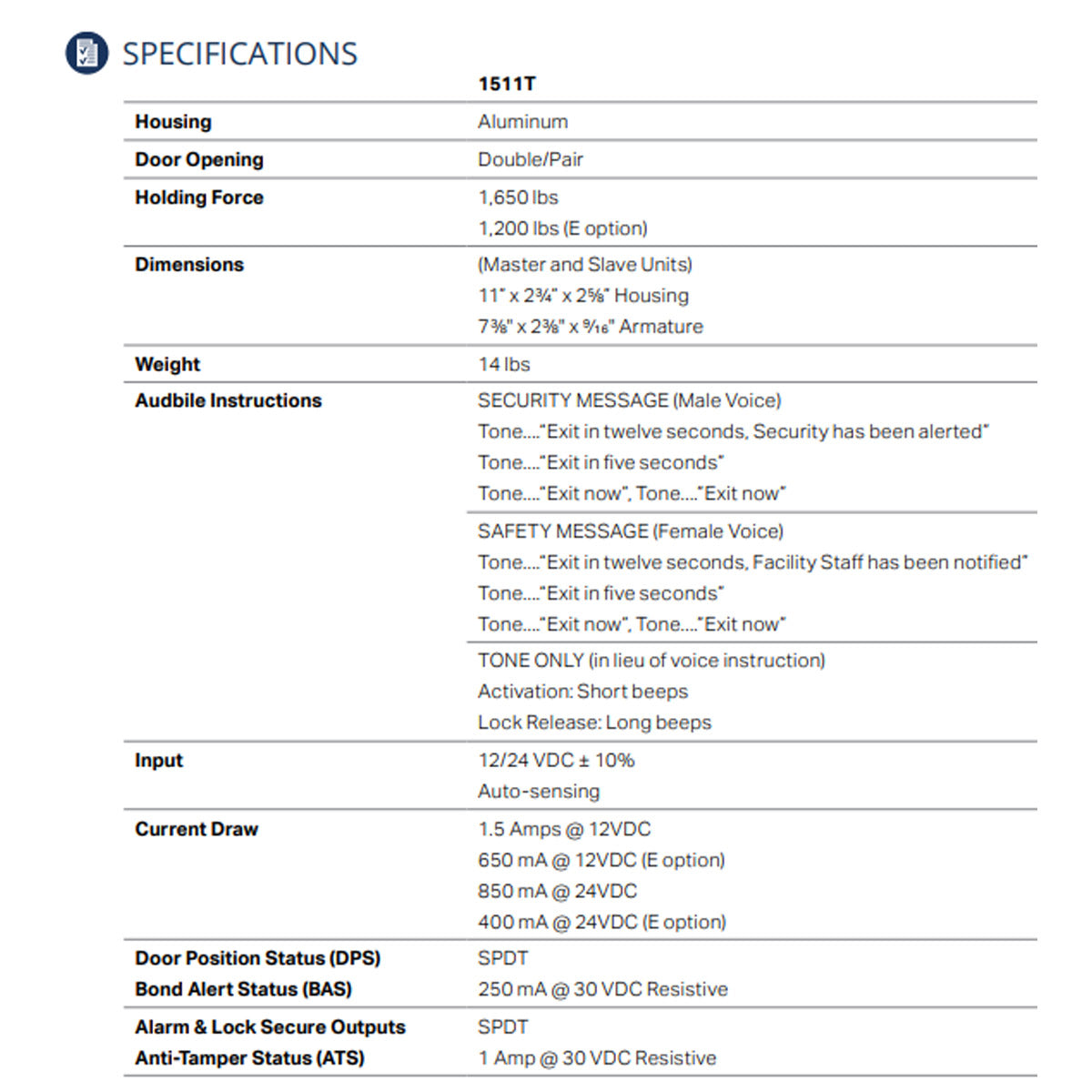

Product Specifications
Brand: SDC Series: 1511T Product Family: ExitCheck® Type: Tandem Integrated Delayed Egress Lock Application: Double doors / door pairs Locking Type: Electromagnetic Delayed Egress: 15 or 30 seconds Operation: Tandem / coordinated double-door release Access Control: Compatible Patient Tracking: Compatible Emergency Release: Yes Monitoring Options: DPS, BAS, ATS available
