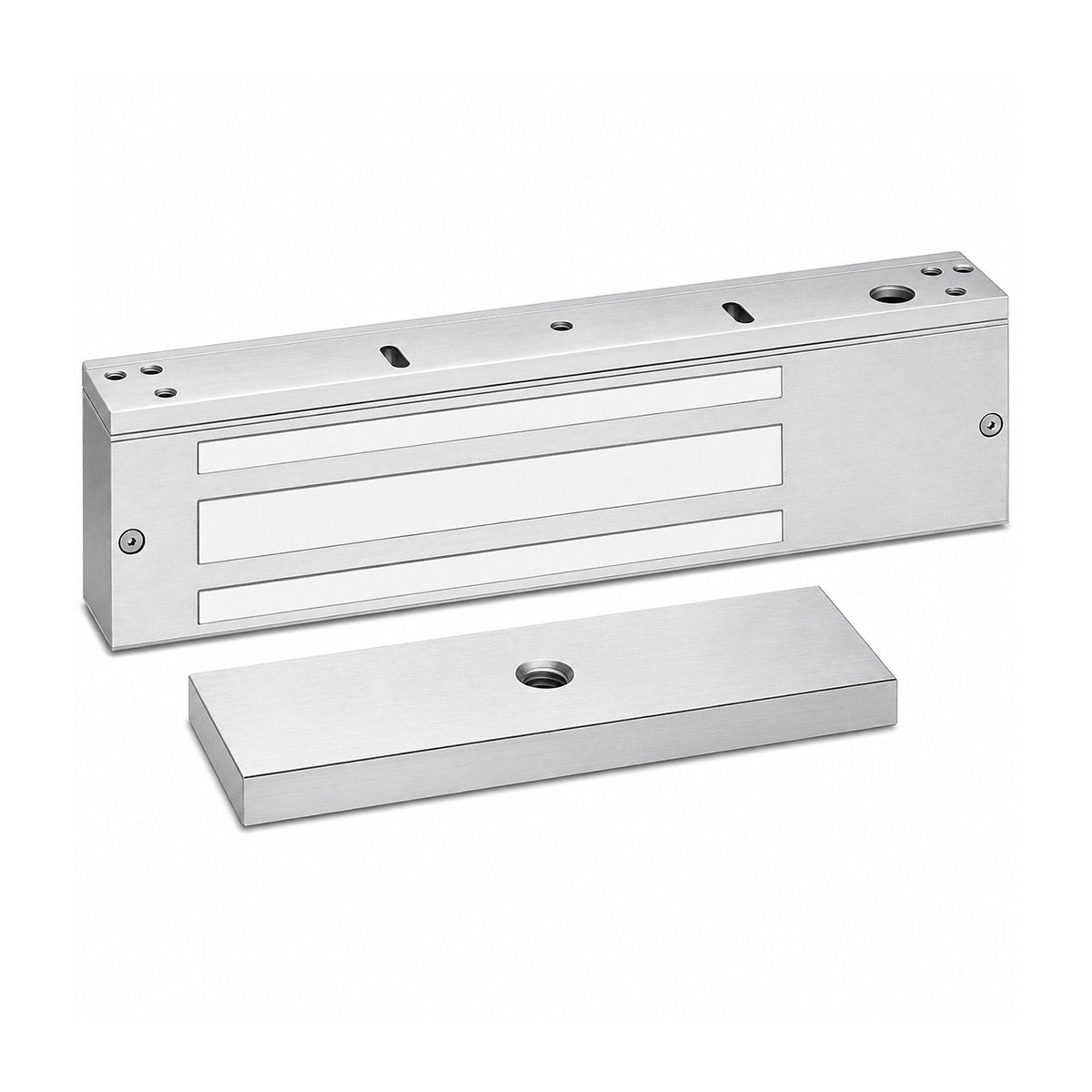

SDC 1510 Series EMLock® Electromagnetic Lock – 1,650 lbs Holding Force
The SDC 1510 Series EMLock® Electromagnetic Lock delivers powerful, reliable access control for high-security applications. With 1,650 lbs of holding force, the 1510 Series is designed for interior doors, perimeter exit doors, and entrances requiring failsafe emergency release capability.
Featuring SDC’s patented EMLock® modular design, the 1510 Series simplifies stocking, installation, upgrades, and maintenance. The interlocking EZ Mount assembly provides a secure installation while leaving both hands free for wiring and fastening mounting screws. A plated or anodized finish on all sides gives the lock a clean, professional appearance.
Product Highlights
- 1,650 lbs holding force for enhanced security
- Patented EMLock® modular design
- Interlocking EZ Mount assembly for fast, simplified installation
- Suitable for interior doors, perimeter exit doors, and entrances
- Failsafe operation for emergency release
- Compatible with virtually any access control system
- Auto-sensing dual voltage
- Voltage and current spike protection
- Instant release with anti-residual magnetism circuitry
- Wire access chamber with terminal block
- Captive lock mounting screws
- Self-drilling and tapping sheet metal screws included
- 10-32 machine screws included
- Field upgradeable without removing the lock from the frame*
- Plated or anodized finish on all sides
- UL Listed and ANSI/BHMA Grade 1 compliant
- Backed by a lifetime limited warranty
Advanced Monitoring & Control Options
The SDC 1510 Series can be configured with optional monitoring and status features to provide additional visibility and control:
- Door Position Status (DPS)
- Bond Alert Status (BAS)
- Anti-Tamper Status (ATS)
- Relock Time Delay (RTD)
- Visual Status Indicator (LED)
These options make the EMLock® suitable for applications where security monitoring, door status, and system feedback are important.
Easy Installation & Maintenance
The uniform design of the 1510 Series helps simplify installation across a wide range of applications. The EZ Mount interlocking assembly securely supports the lock while providing convenient access for wiring and mounting hardware. Its modular construction also allows field upgrades without removing the lock from the frame.*
Reliable Access Control Performance
The SDC 1510 Series is designed to integrate with virtually any access control system, including card readers, keypads, request-to-exit devices, and other electronic access control equipment. Its dual-voltage operation and built-in spike protection help provide dependable performance in demanding commercial security applications.
Certifications & Compliance
The SDC 1510 Series meets the following standards and listings:
- UL 294 – Access Control System Units
- UL 1034 – Burglary-Resistant Electric Locking Mechanisms
- UL 10B – Fire Tests of Door Assemblies
- UL 10C – Positive Pressure Fire Tests of Door Assemblies
- ULC-S104 – Standard Method for Fire Tests of Door Assemblies
- ULC-S533 – Egress Door Securing and Releasing Devices
- Uniform Building Code Standard 7-2 – Fire Test of Door Assemblies (1997)
- ANSI/BHMA A156.23 – Grade 1
- CSFM Listed 3774-0324:100
- MEA City of New York 61-95-E
Why Choose the SDC 1510 Series?
With 1,650 lbs of holding force, modular construction, easy installation, advanced monitoring options, and Grade 1 compliance, the SDC 1510 Series EMLock® is an excellent choice for commercial, institutional, and high-security access control applications.
*Field upgradeability and available monitoring features may vary by configuration. See the manufacturer datasheet for complete details.
