SDC 15 Series 5/8" Latchbolt Electric Strikes

SDC 15 Series Value 5/8” Latchbolt Electric Strikes

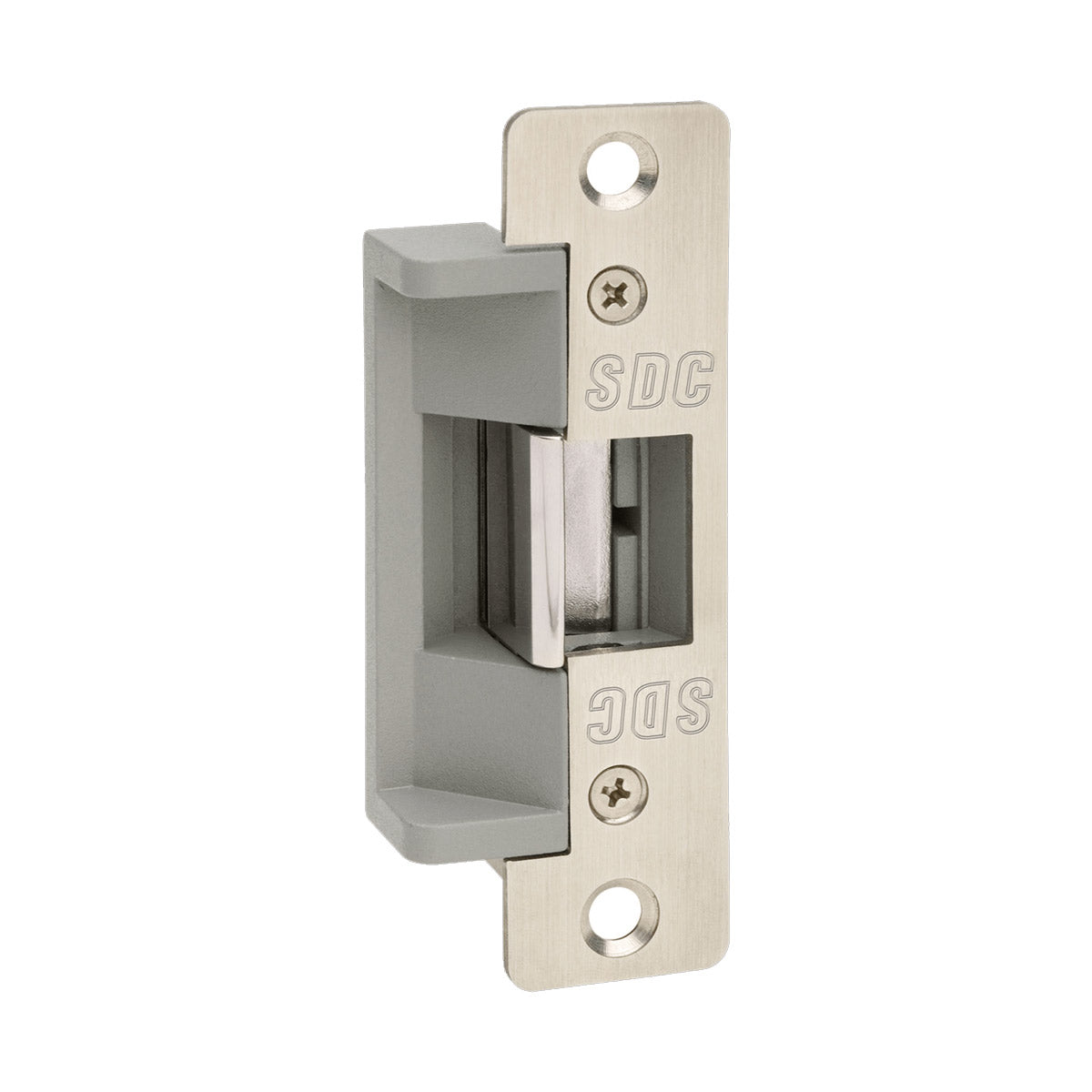

The SDC 15 Series Value 5/8” Latchbolt Electric Strikes are compact, low-profile electric strikes designed for use with cylindrical locksets and metal door frames. Featuring a centerline latch entry design, the 15 Series accepts 5/8” throw latchbolts or latchbolts with up to 3/4” throw when a 1/8” door gap is present.

Built for reliable access control applications, the 15 Series incorporates a stainless steel deadlocking mechanism, internally mounted solenoid, and durable die-cast housing. Its compact profile makes installation easier in applications where jamb space is limited, while stainless steel components provide enhanced corrosion resistance and long-term durability.

Available in failsafe and failsecure configurations, the SDC 15 Series provides a practical solution for integrating electric locking into commercial access control systems.

Key Features

• 5/8” latchbolt capacity for cylindrical locksets
• Accepts up to 3/4” throw latchbolts with 1/8” door gap
• Centerline latch entry design
• Compact, low-profile housing for limited jamb space
• Stainless steel deadlocking mechanism
• Stainless steel internal components
• Internally mounted solenoid
• Durable die-cast housing body
• Stainless steel radius corner faceplate
• Corrosion-resistant construction
• Fewer moving parts for simplified operation
• Non-handed design for flexible installation
• Mounting tabs included
• Voltage and current spike protection
• Screw terminals for electrical connections
• Optional buzzer available

Available Models

Centerline Latch Entry

The SDC 15 Series uses a centerline latch entry configuration, meaning the latch enters the electric strike at the strike's centerline, positioned exactly between the top and bottom of the faceplate. Proper strike positioning is important for both new installations and retrofit applications.

Always refer to the manufacturer's installation instructions and template before preparing the door frame.

Applications

The SDC 15 Series is suitable for commercial and institutional access control applications where a compact electric strike for cylindrical locksets and metal frames is required. Its low-profile construction is particularly useful where available space within the door jamb is restricted.

Failsafe vs. Failsecure

• 15-4F Failsafe: Unlocks when power is removed.
• 15-4S Failsecure: Remains locked when power is removed.

Select the appropriate configuration based on your access control system and application requirements.

Why Choose the SDC 15 Series?

The SDC 15 Series Value Electric Strike combines a compact installation footprint with stainless steel components, reliable solenoid operation, and built-in electrical protection. Its non-handed design and mounting tabs help simplify installation, making it a versatile choice for commercial door access control projects.

Shop SDC 15 Series electric strikes for dependable, space-saving electric locking solutions.
