SDC 1091 / 1291 Series Right Angle Electric Bolt Locks
Concealed Electric Bolt Locks for Commercial Access Control

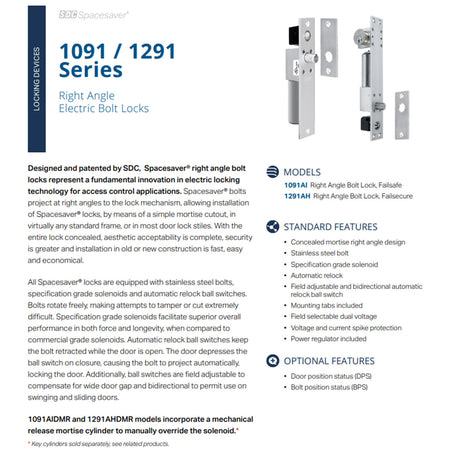

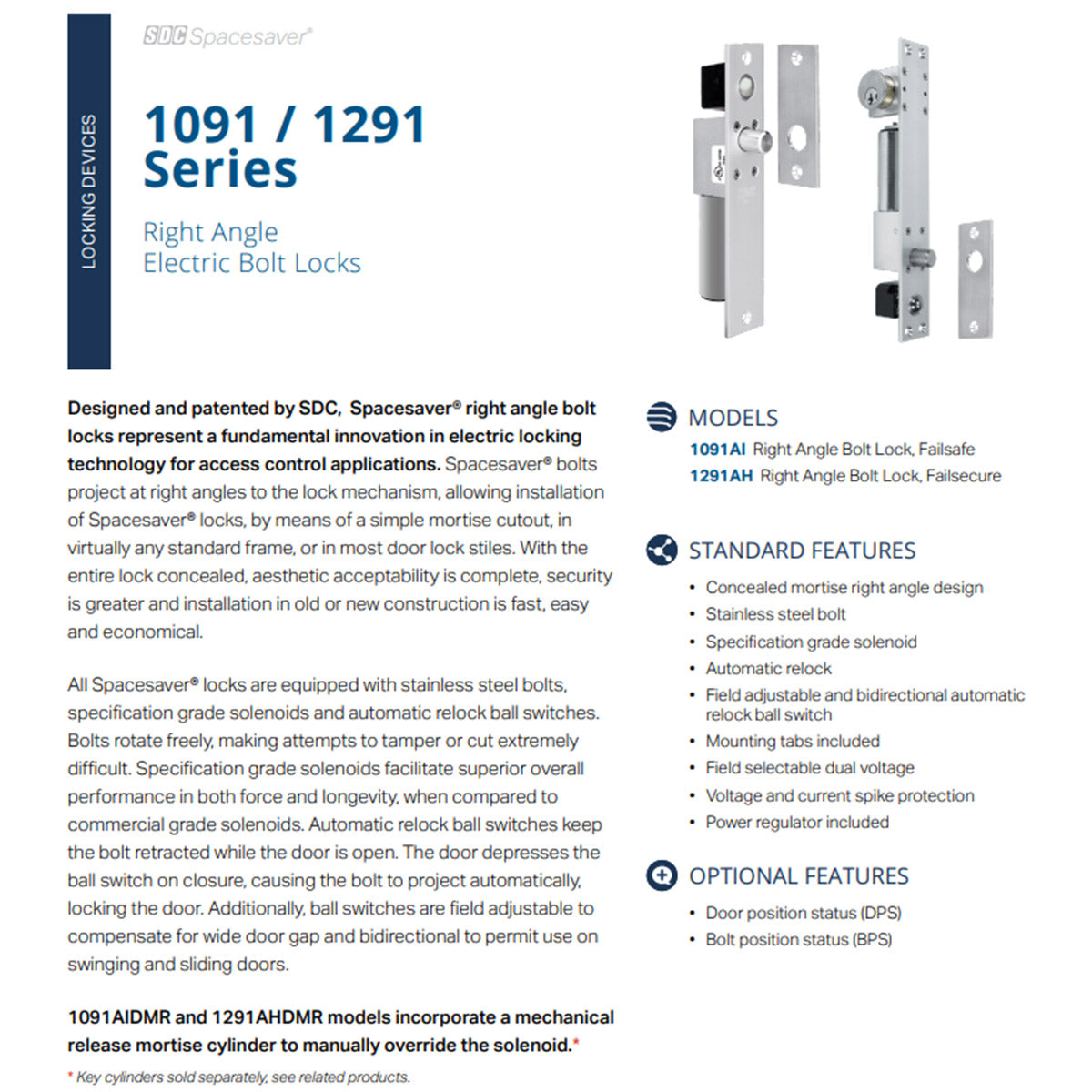

SDC 1091 and 1291 Series Spacesaver® Right Angle Electric Bolt Locks provide a compact, concealed locking solution for commercial, institutional, and industrial access control applications. Designed and patented by SDC, the Spacesaver® right-angle bolt design allows the lock to be installed with a simple mortise cutout in virtually any standard frame or most door lock stiles.
With the locking mechanism concealed within the frame or door, these electric bolt locks provide a clean architectural appearance while improving security and simplifying installation. The right-angle stainless steel bolt projects perpendicular to the lock body and rotates freely, making it significantly more difficult to tamper with or cut.
Reliable Electric Locking & Automatic Relocking
Both models feature specification-grade solenoids engineered for dependable operation, strength, and long service life. An automatic relock ball switch keeps the bolt retracted while the door is open. When the door closes, it depresses the ball switch and automatically triggers the bolt to project and secure the opening.
The field-adjustable, bidirectional ball switch accommodates varying door gaps and allows the 1091 / 1291 Series to be used with both swinging and sliding doors.

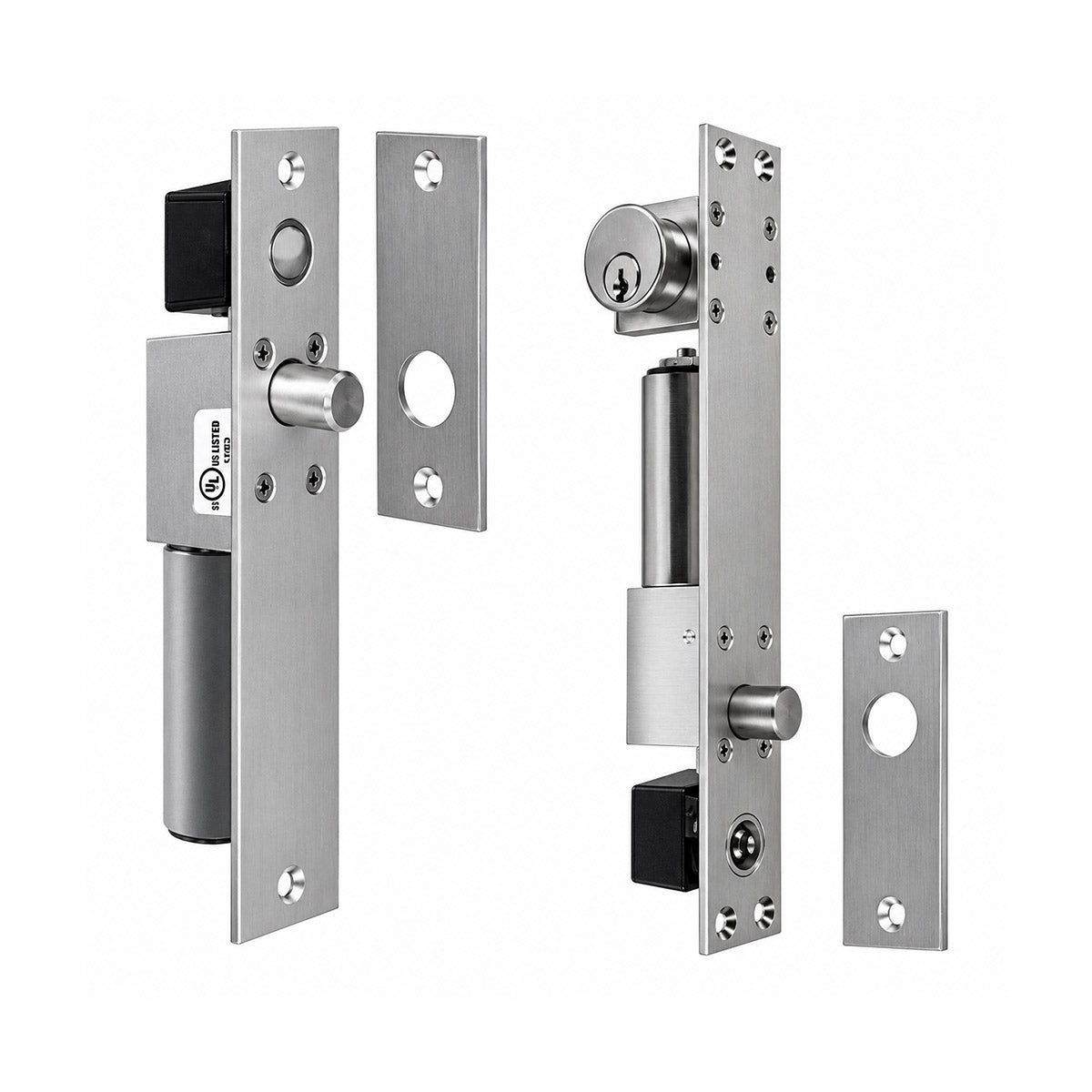

Models
- 1091AI – Right Angle Electric Bolt Lock, Failsafe
- 1291AH – Right Angle Electric Bolt Lock, Failsecure
- 1091AIDMR – Failsafe model with mechanical release mortise cylinder override
- 1291AHDMR – Failsecure model with mechanical release mortise cylinder override
Mechanical release mortise cylinders are sold separately.
Key Features
- Concealed mortise right-angle locking design
- Stainless steel electric bolt
- Specification-grade solenoid for dependable performance
- Automatic relocking when the door closes
- Field-adjustable automatic relock ball switch
- Bidirectional ball switch for swinging and sliding doors
- Freely rotating bolt helps resist tampering and cutting
- Mounting tabs included for simplified installation
- Field-selectable dual voltage
- Voltage and current spike protection
- Integrated power regulator
- Optional Door Position Status (DPS)
- Optional Bolt Position Status (BPS)
Concealed Security for New or Existing Openings
The Spacesaver® design eliminates the need for exposed electric strikes or surface-mounted locking hardware, making the SDC 1091 / 1291 Series an excellent choice when appearance, security, and installation flexibility are important. The concealed design works well for both new construction and retrofit applications where space is limited or a clean finished appearance is desired.
These electric bolt locks are well suited for access-controlled doors, commercial facilities, institutional buildings, industrial openings, sliding doors, and other applications requiring reliable concealed electric locking.

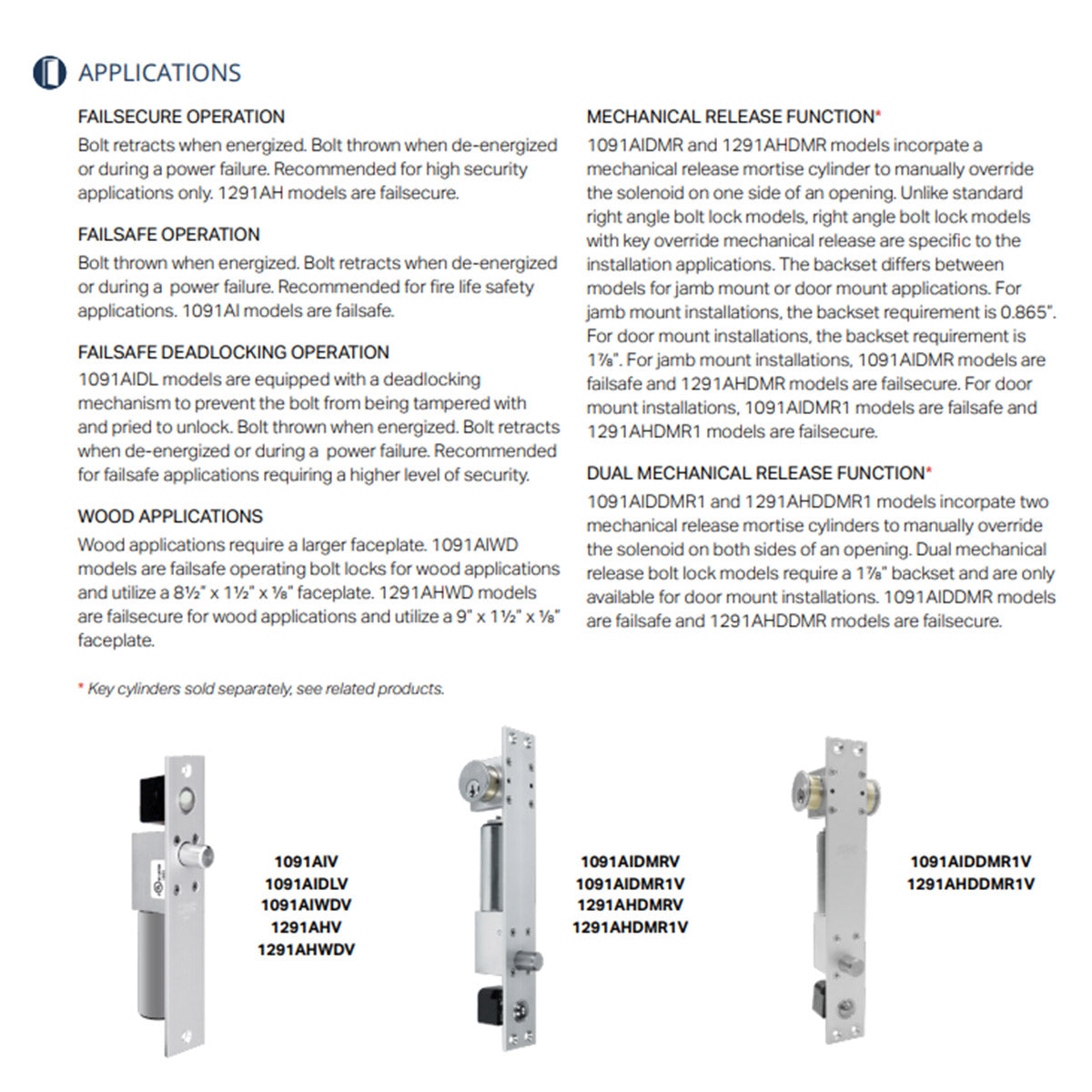

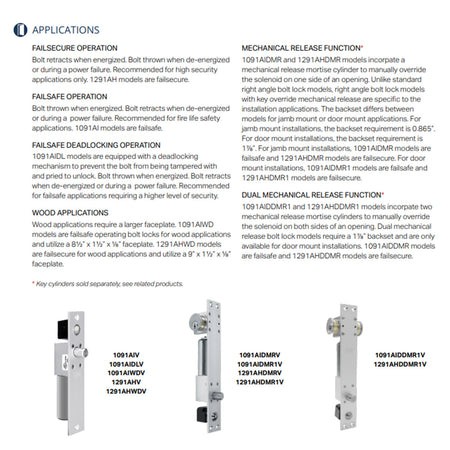

1091AI vs. 1291AH
| Model | Locking Function |
|---|---|
| 1091AI | Failsafe – unlocks when power is removed |
| 1291AH | Failsecure – remains locked when power is removed |
Applications
- Commercial access control systems
- Institutional and industrial facilities
- New construction and retrofit installations
- Standard door frames and door lock stiles
- Swinging doors
- Sliding doors
- Concealed locking applications
- Doors requiring a clean architectural appearance
SDC Spacesaver® 1091 / 1291 Series Electric Bolt Locks deliver concealed, reliable, and versatile electric locking in a compact right-angle design. With stainless steel construction, specification-grade solenoids, automatic relocking, dual-voltage operation, and optional door and bolt position monitoring, these locks are engineered for demanding access control applications.
