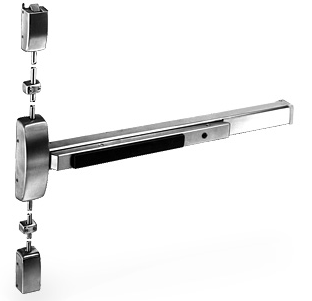

Sargent 8700 Surface Vertical Rod Exit Device 32D With 12-Fire Option

by Sargent
$ 1,315.00

Sargent 8700 Surface Vertical Rod Exit Device 32D With 12-Fire Option

US Lock Supply Stocks Sargent hardware.

Sargent 8700 Catalog

Finish:

32D-Satin Stainless Steel

Features

  • Two point latching (top and bottom of door)
  • Top & bottom latchbolt projection adjustable through center case
  • Standard bottom latch compatible with latch track thresholds (by others)
  • Single and double door applications
  • Devices exceed ANSI A156.3 - Grade 1; tested to over 16 million cycles
  • UL Fire and Panic listed

Specifications

  • Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- prefix.  4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
  • Door Widths:
    E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door;
    F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door
  • G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
  • Strikes: 646 Top Strike (Panic and Fire Rated), 624 Bottom Strike; 655 Fire Rated Bottom Strike
  • Dogging Feature: Hex key dogging standard; Cylinder dogging available (16-)
  • Mounting Fasteners: Supplied standard with wood and machine screws; Available with through-bolts and mortise (sex) nuts
  • Top and bottom bolt: Brass, Stainless Steel
  • Device Centerline from Finished Floor: 41” (1041 mm) for standard applications: 38" (965mm) for elementary schools and to meet local accessibility standards when a 300 series auxiliary control is used
  • Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
  • Projection: Pushbar Neutral – 3" (76 mm); Pushbar Depressed – 2-1/8" (54 mm)
  • Door opening/height: must be specified (102" max door opening)
