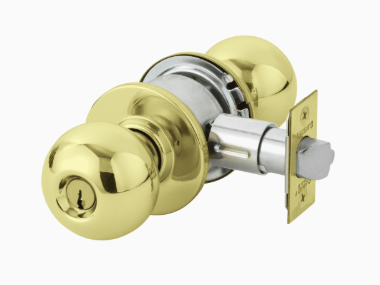

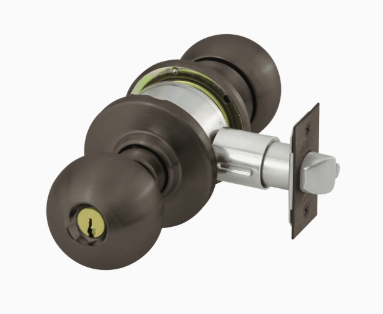

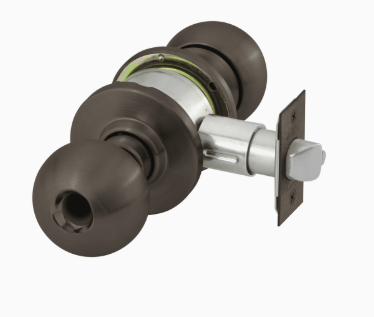

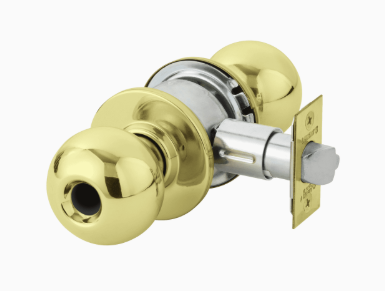

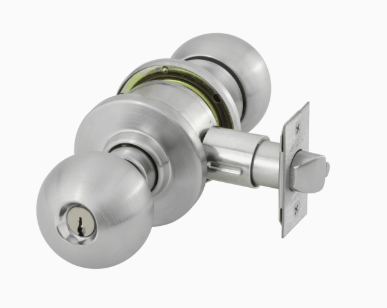

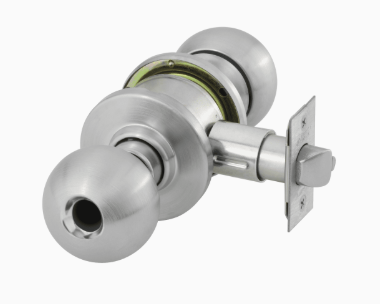

The 6 Line is a standard duty, ANSI/BHMA Grade 2 knob lock that incorporates a broad spectrum of functions, designs and finishes for a truly customized feel. Installs with just two lockbody screws for easy installation and maintenance.
Features
- Multiple latches and strike options available
- Large selection of functions and trim combinations to choose from
- Available with optional MicroShield® antimicrobial coating
Benefits
- Complements and blends with trim designs of other SARGENT locks for unified appearance
- Installs easily with just two lockbody screws
- Multiple combinations of functions, trim, latches and other options make this lock extremely versatile and ideal as a stock item
Specifications
- ANSI/BHMA Code: A156.2
- ANSI/BHMA Series: Series 4000
- Backset Depth (Standard): 2 3/8"
- Cylinder Format: Conventional
- Cylinder Pins: 6 pin
- Door Thickness (Standard): 1 3/4"
- Grade: Grade 2
- Handing: Non-handed
- Latchbolt Throw: 1/2"
- Maximum Backset: 2 3/4"
- Minimum Backset: 2 3/8"
- Maximum Door Thickness: 1 3/4"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type (Standard): ANSI Curved Lip
- UL Listed: Yes
- ULC Listed: Yes
- Warranty: 1-year limited warranty
Certifications
- UL-cUL Fire-Rated Up to 3 Hours
- ANSI/BHMA A156.2, Series 4000, Grade 2
Function
- Deadlocking latch.
- Latch retracted by either knob unless outside knob is locked by key.
- Key in outside knob locks or unlocks outside knob.
