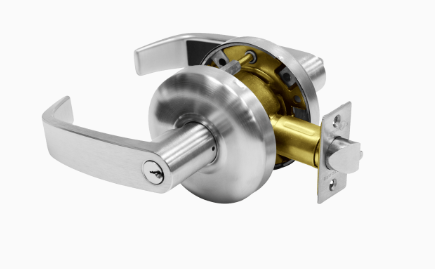

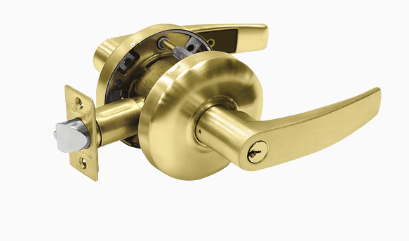

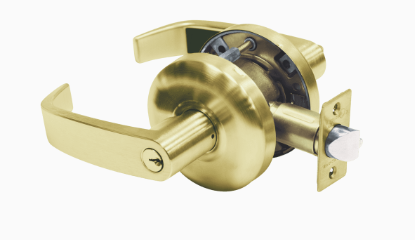

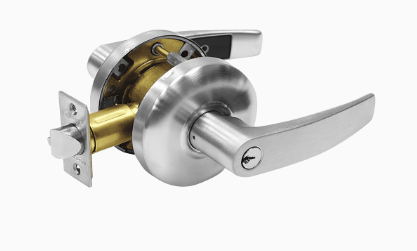

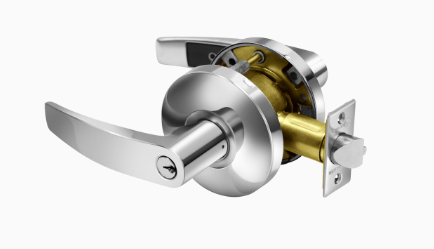

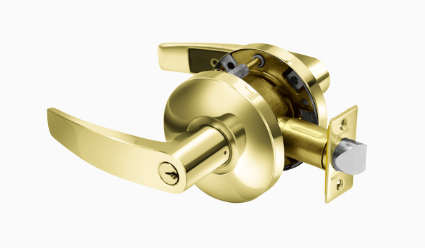

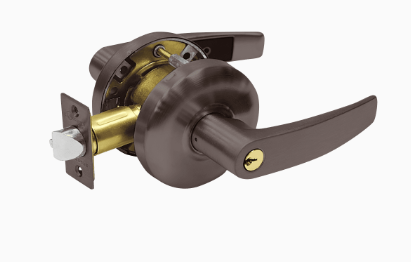

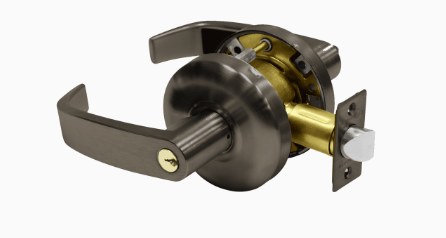

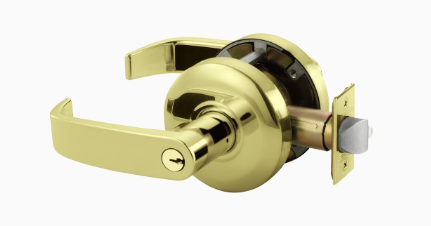

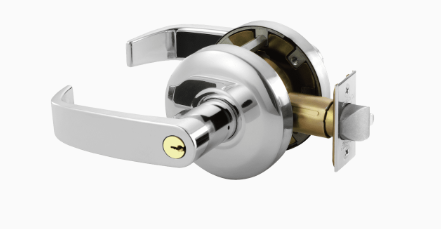

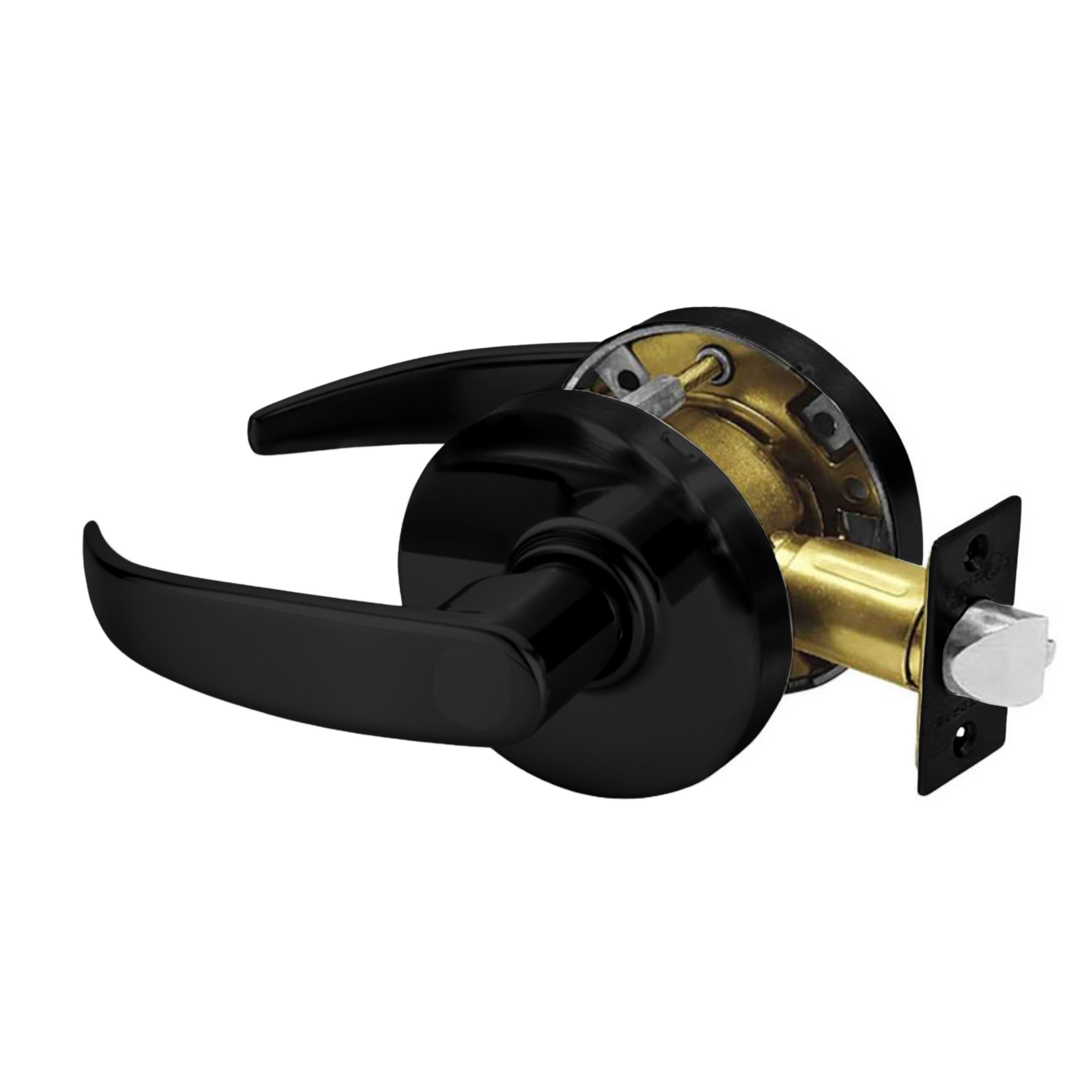

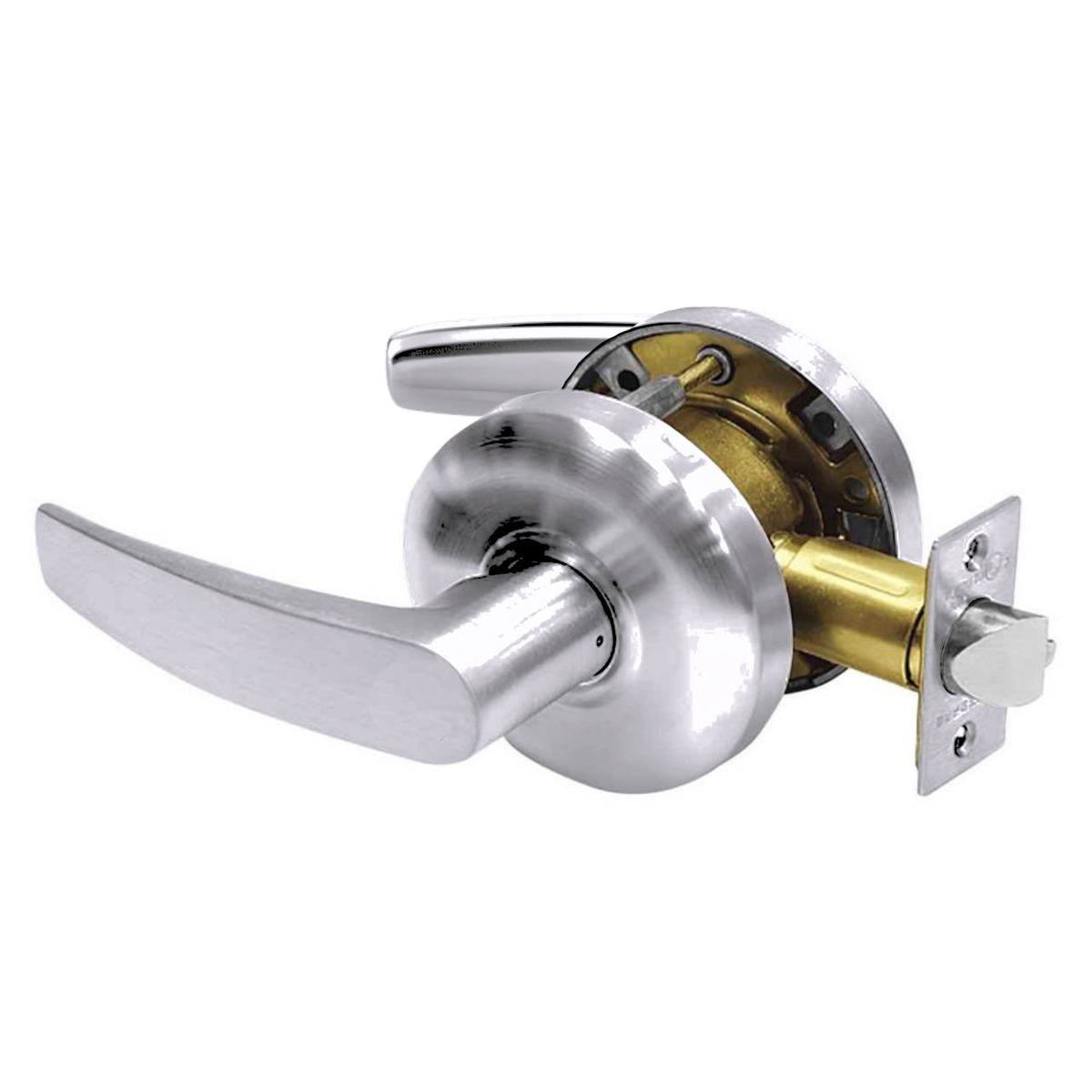

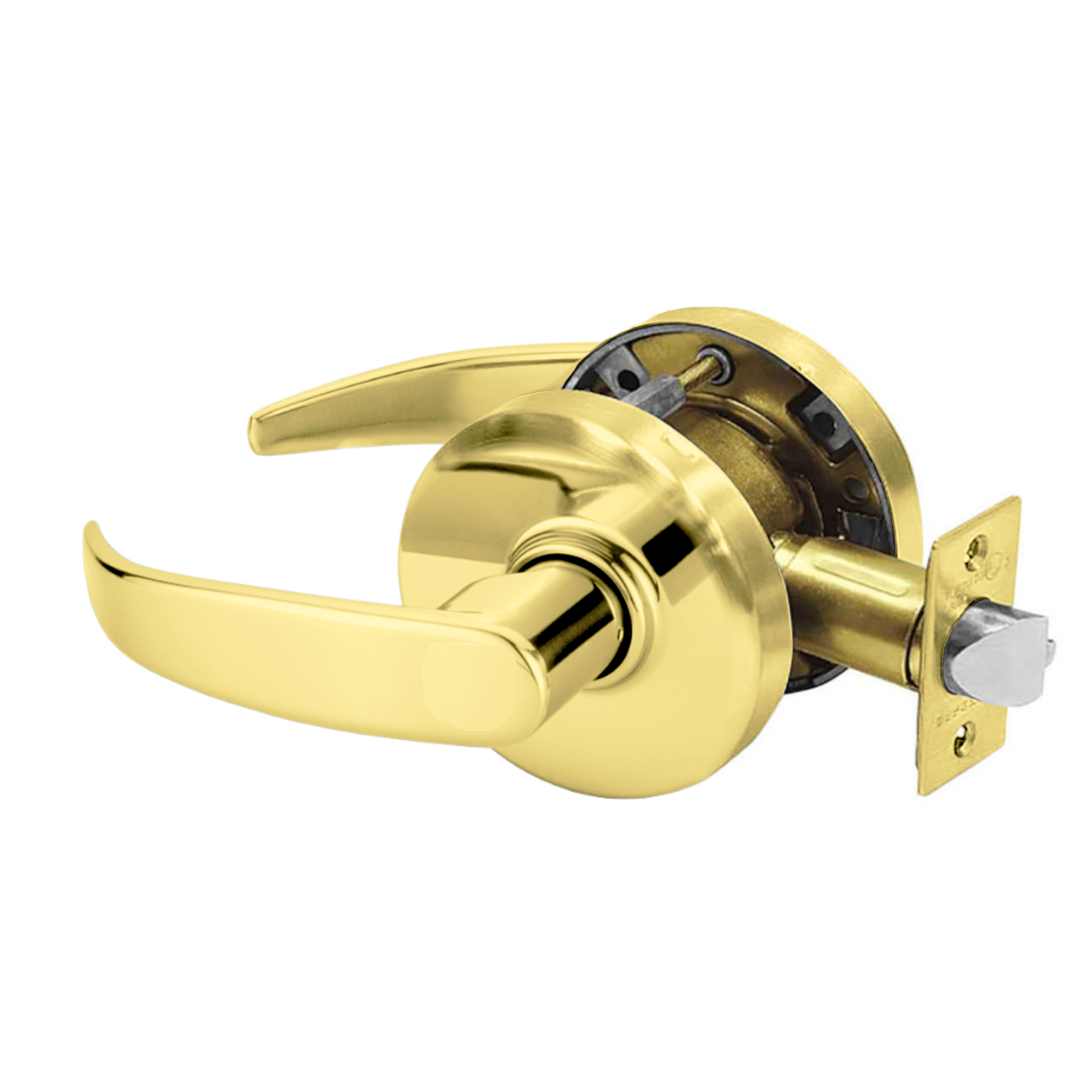

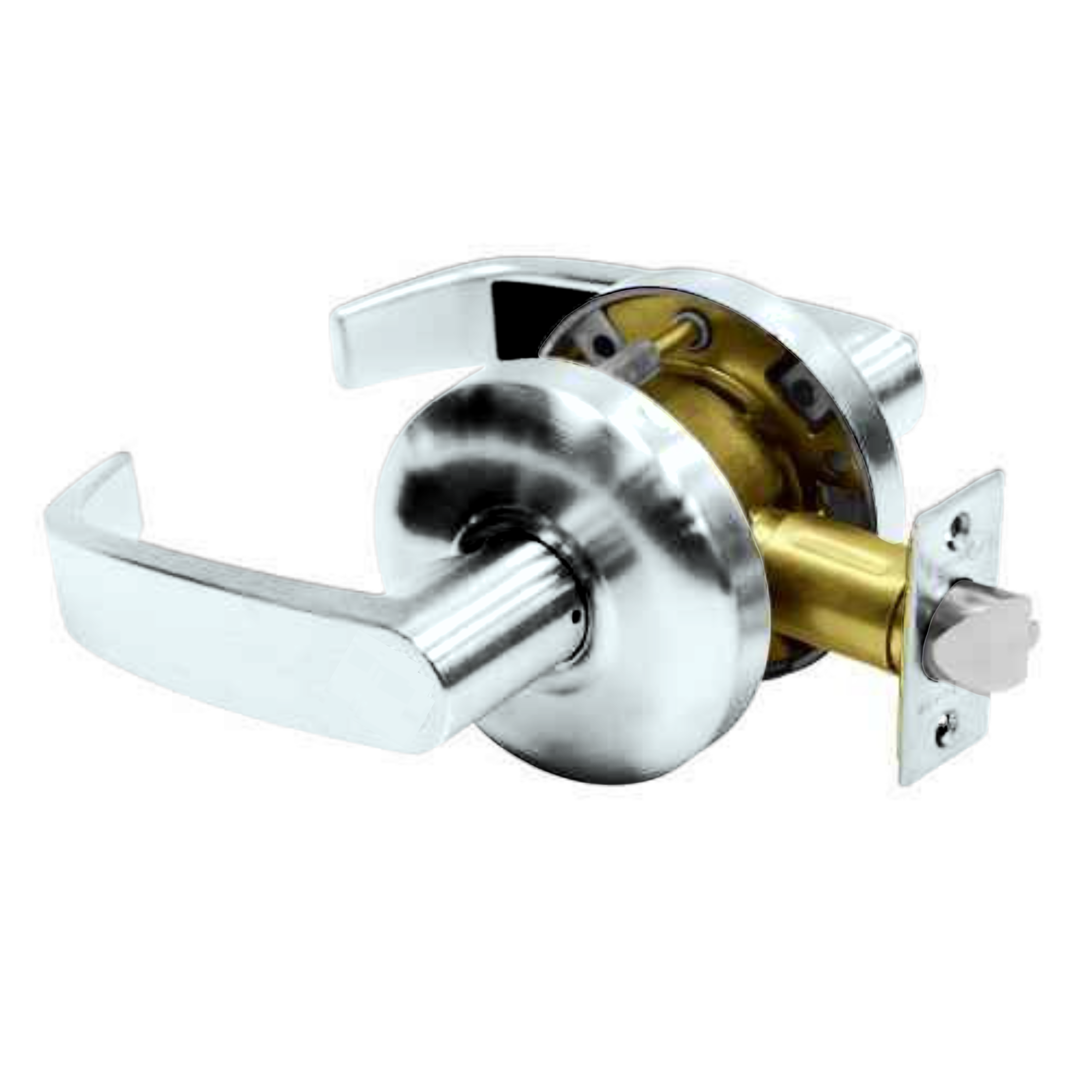

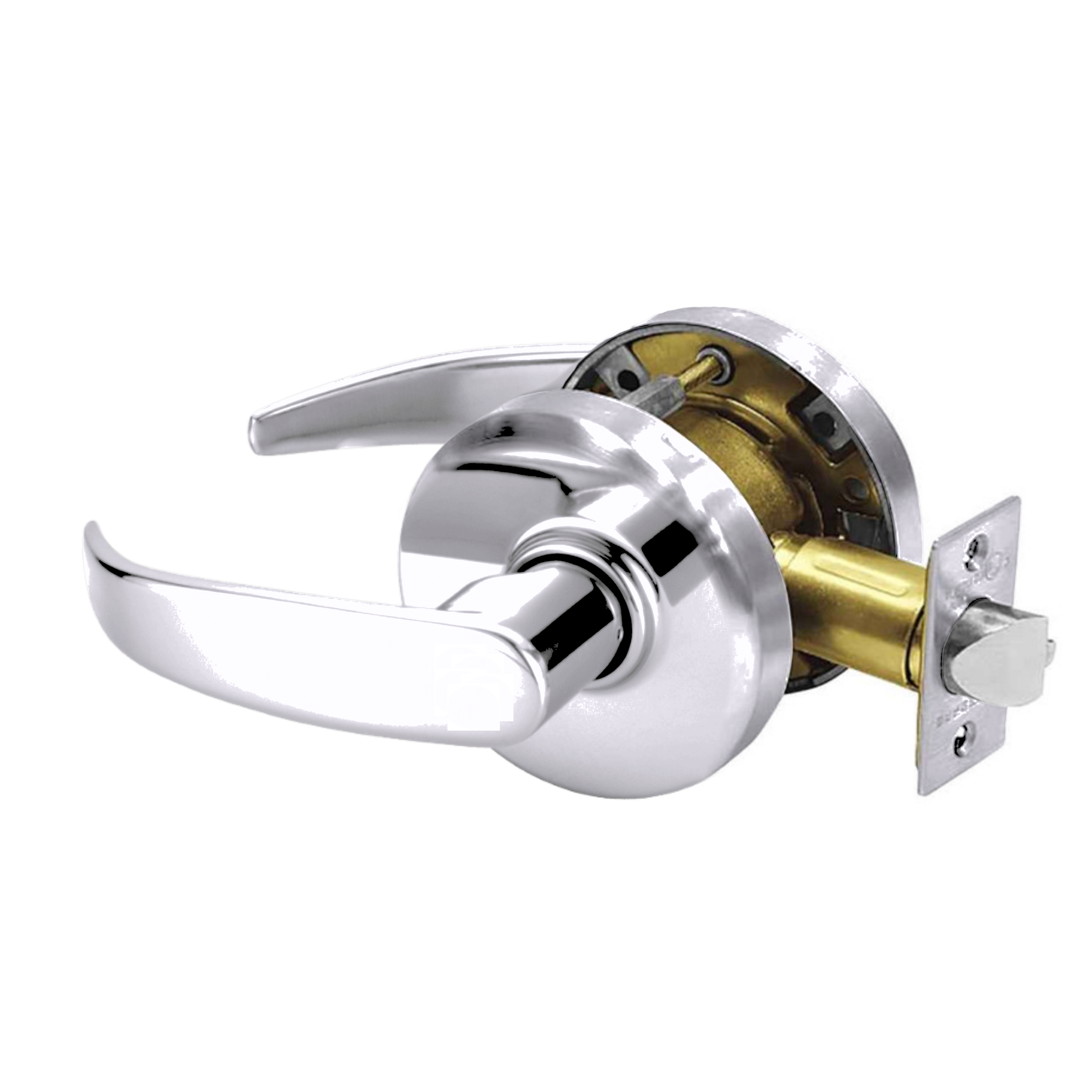

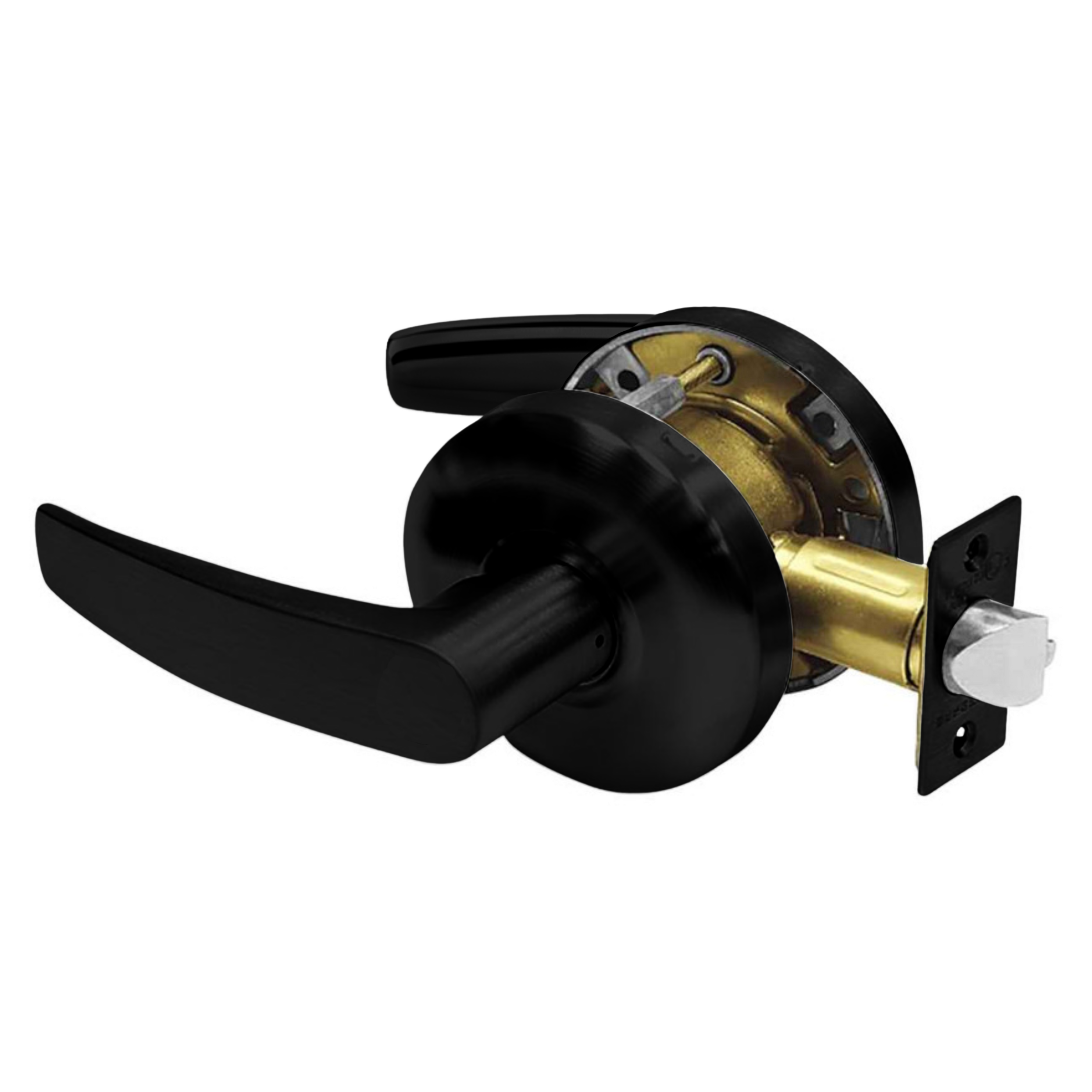

Sargent 65U65 Privacy/Bathroom Lever Locks

by Sargent
$ 179.00

Sargent 65U65 Privacy/Bathroom Lever Lock. The SARGENT 6500 Line is a standard duty key-in-lever lock designed to exceed the requirements of ANSI A156.2 Series 4000 Grade 2.

Sargent 65U65 Privacy/Bathroom Lever-

• Latch by either lever unless outside lever is locked by push button in inside lever

• Turning inside lever or closing door releases button

• Emergency button in outside lever unlocks, with use of a blade screwdriver outside lever and releases inside button

• Bathroom key supplied only when ordered separately (Part #14-0300)

• ANSI F76

                Suited For:

  • Light to Medium commercial
  • Offices
  • Apartments
  • Hotels / Motels    Commercial

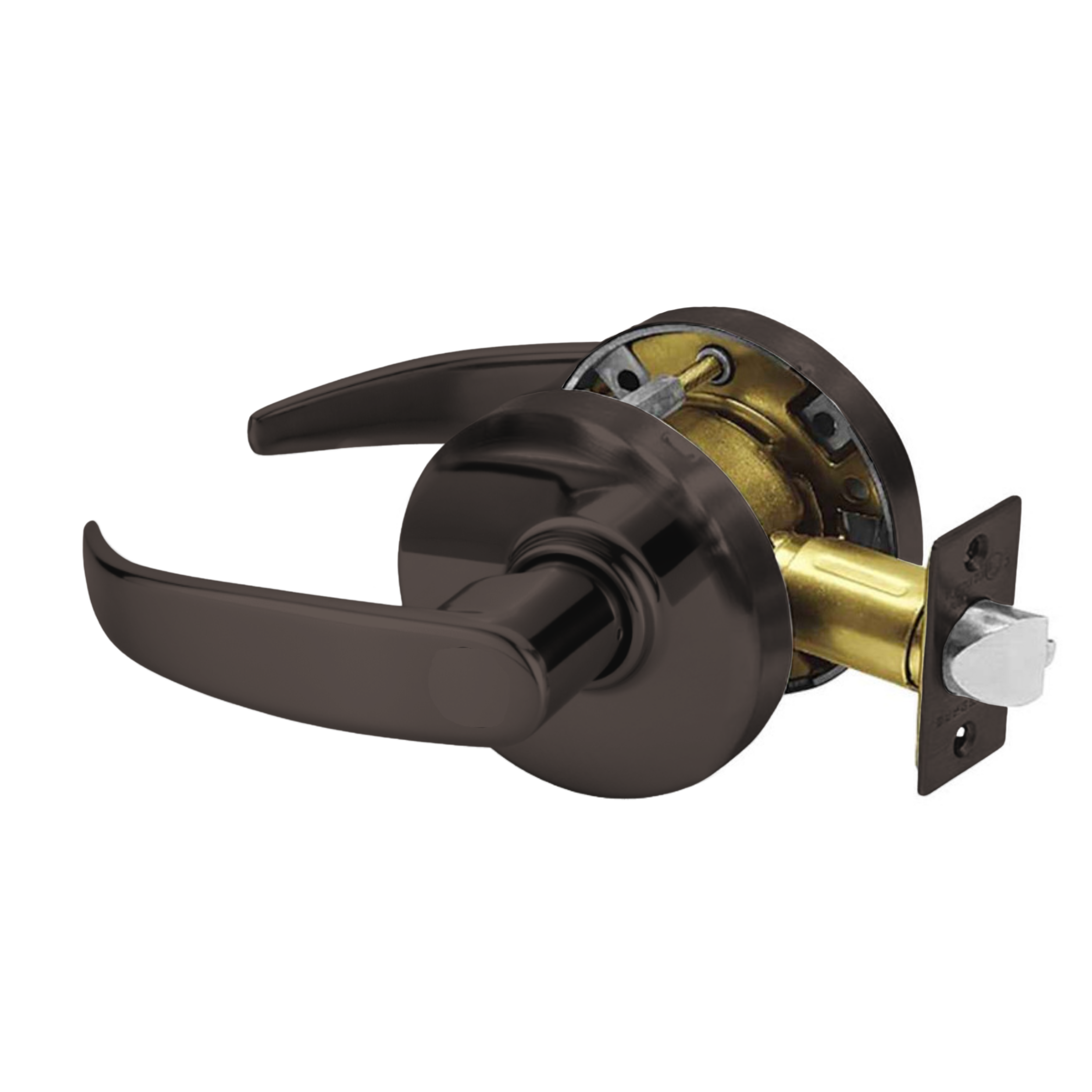

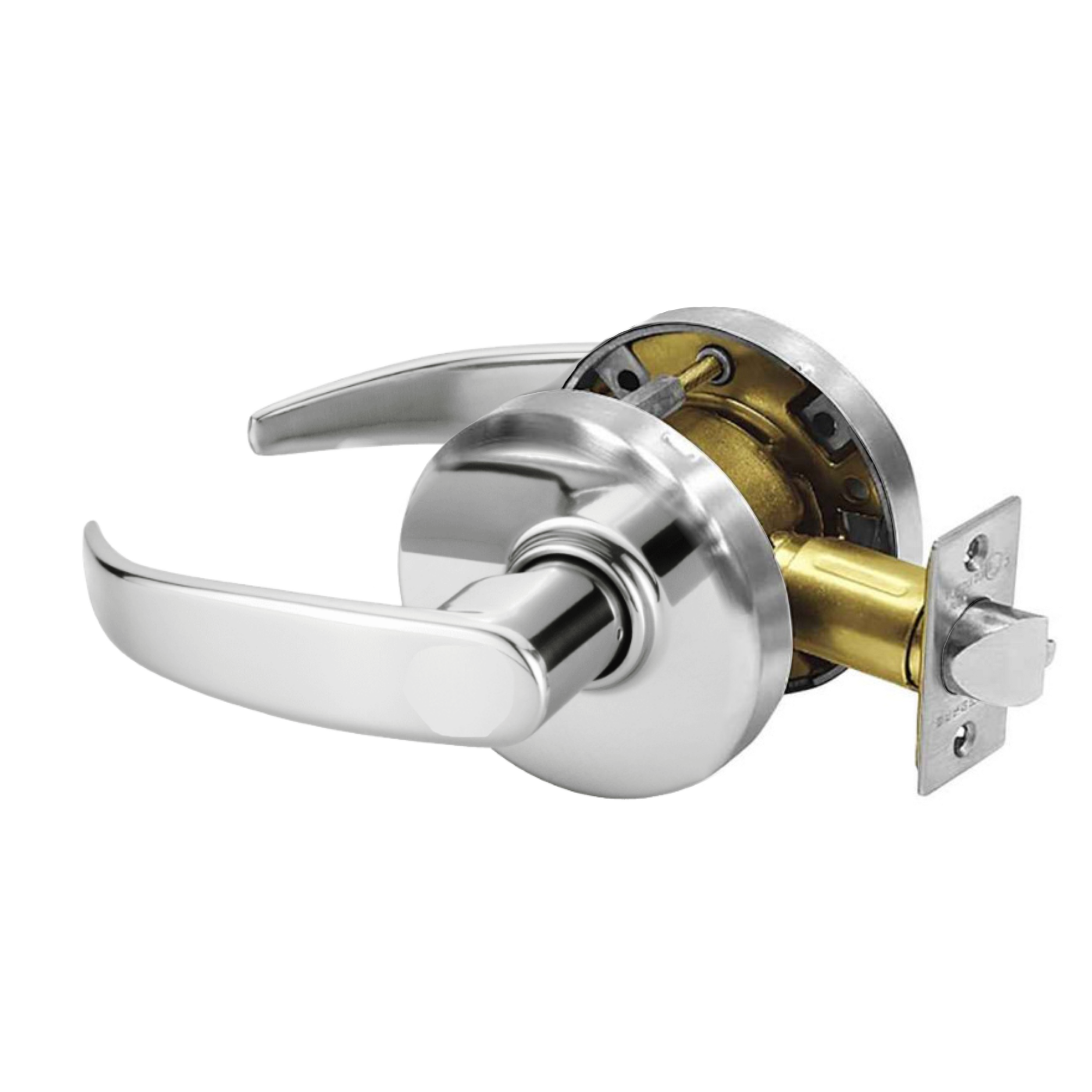

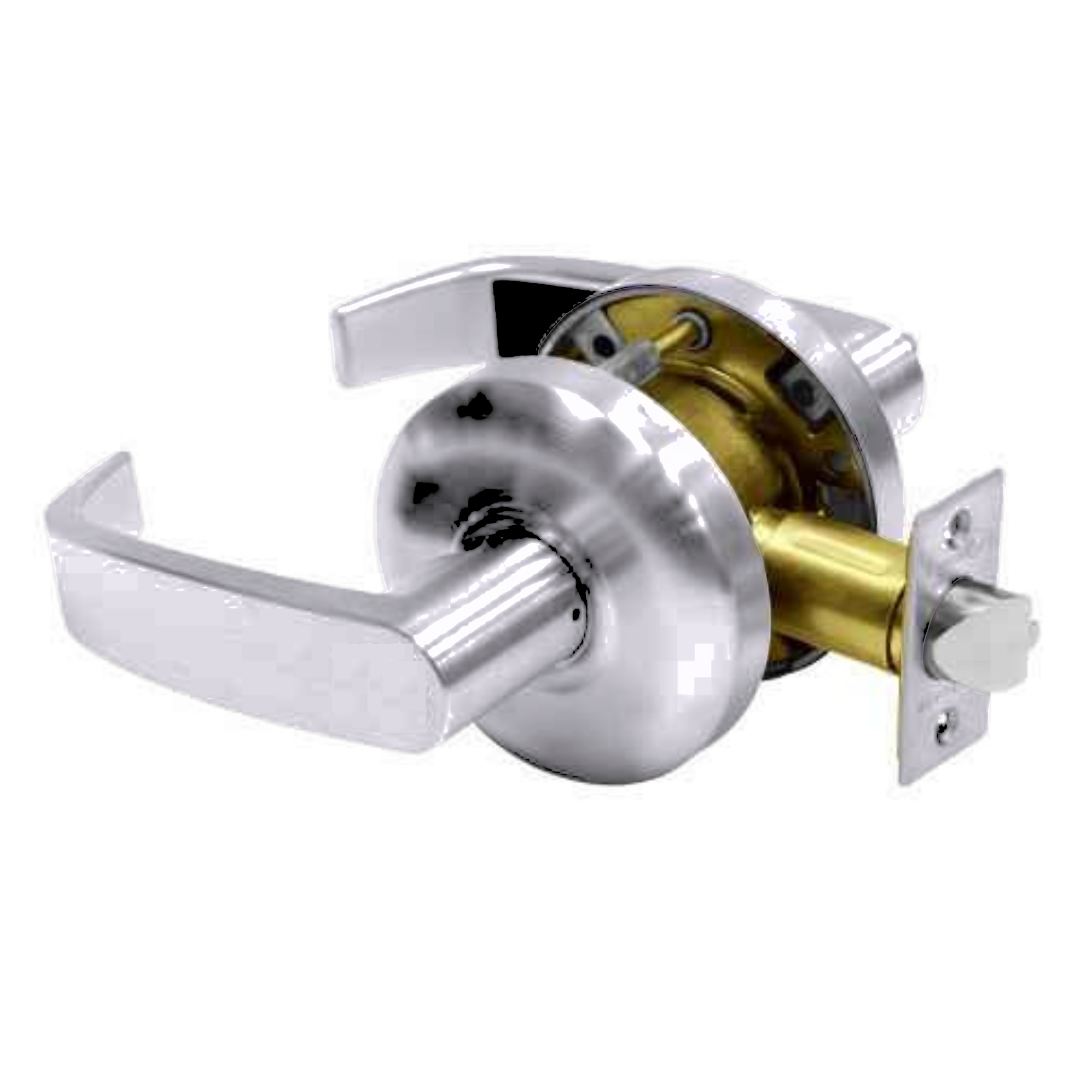

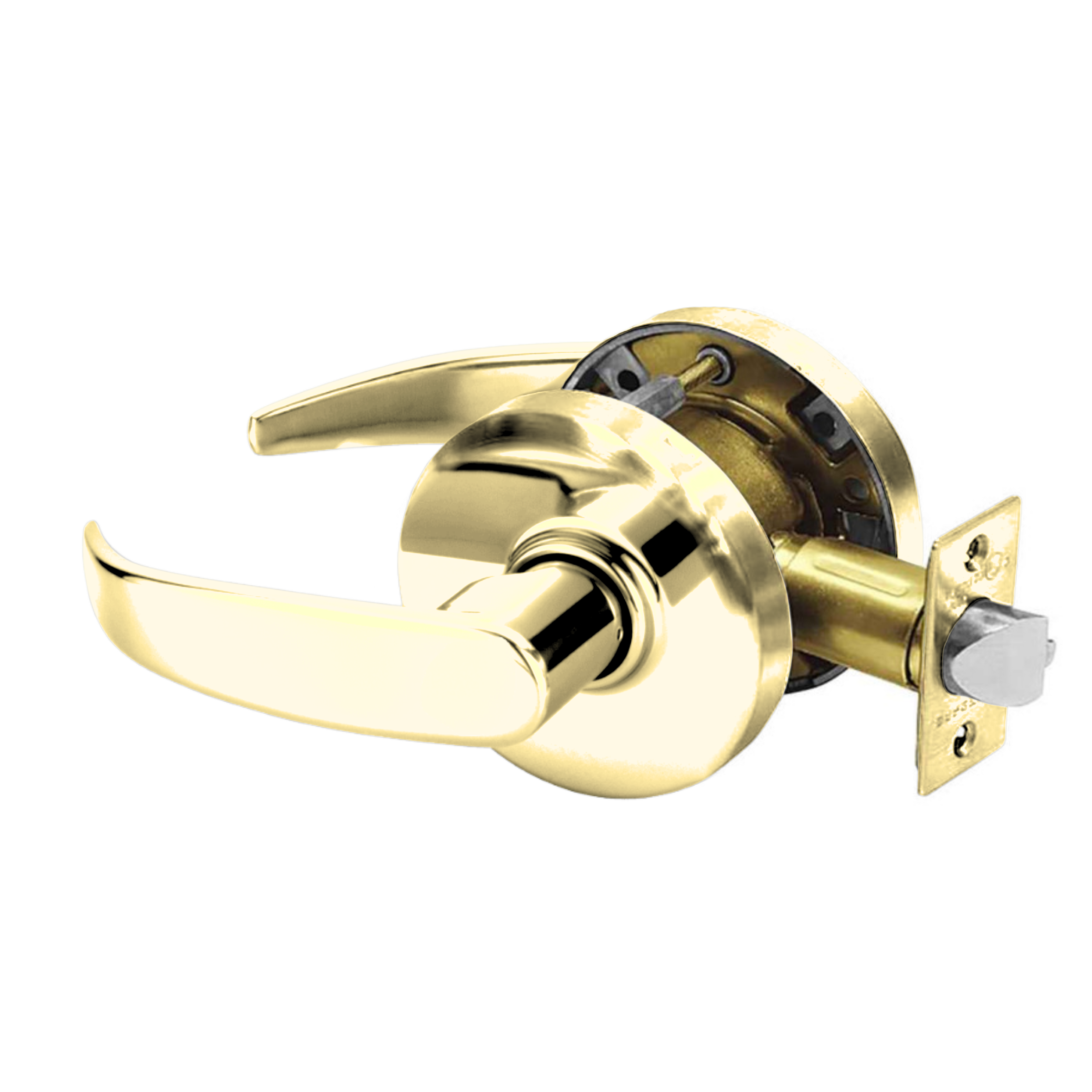

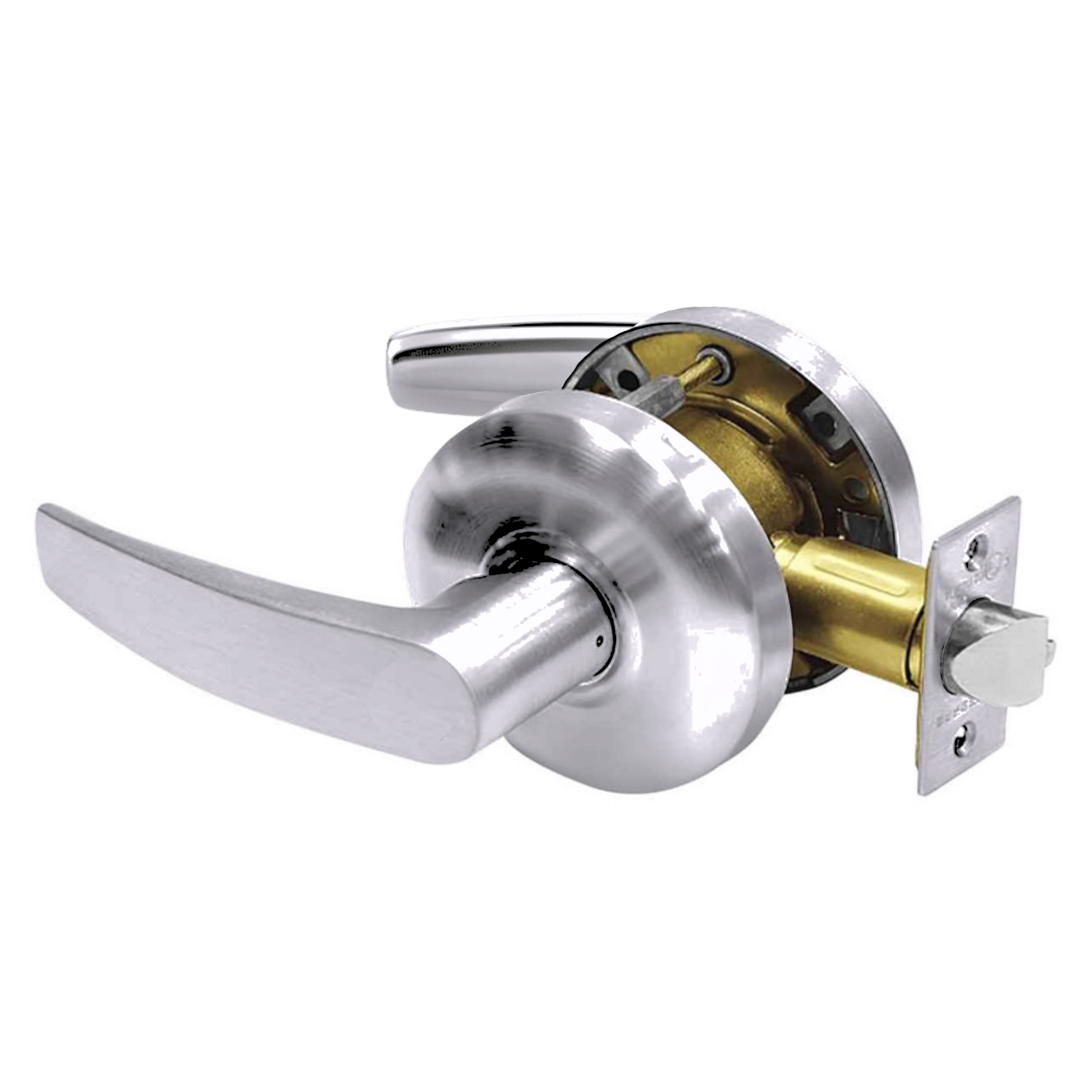

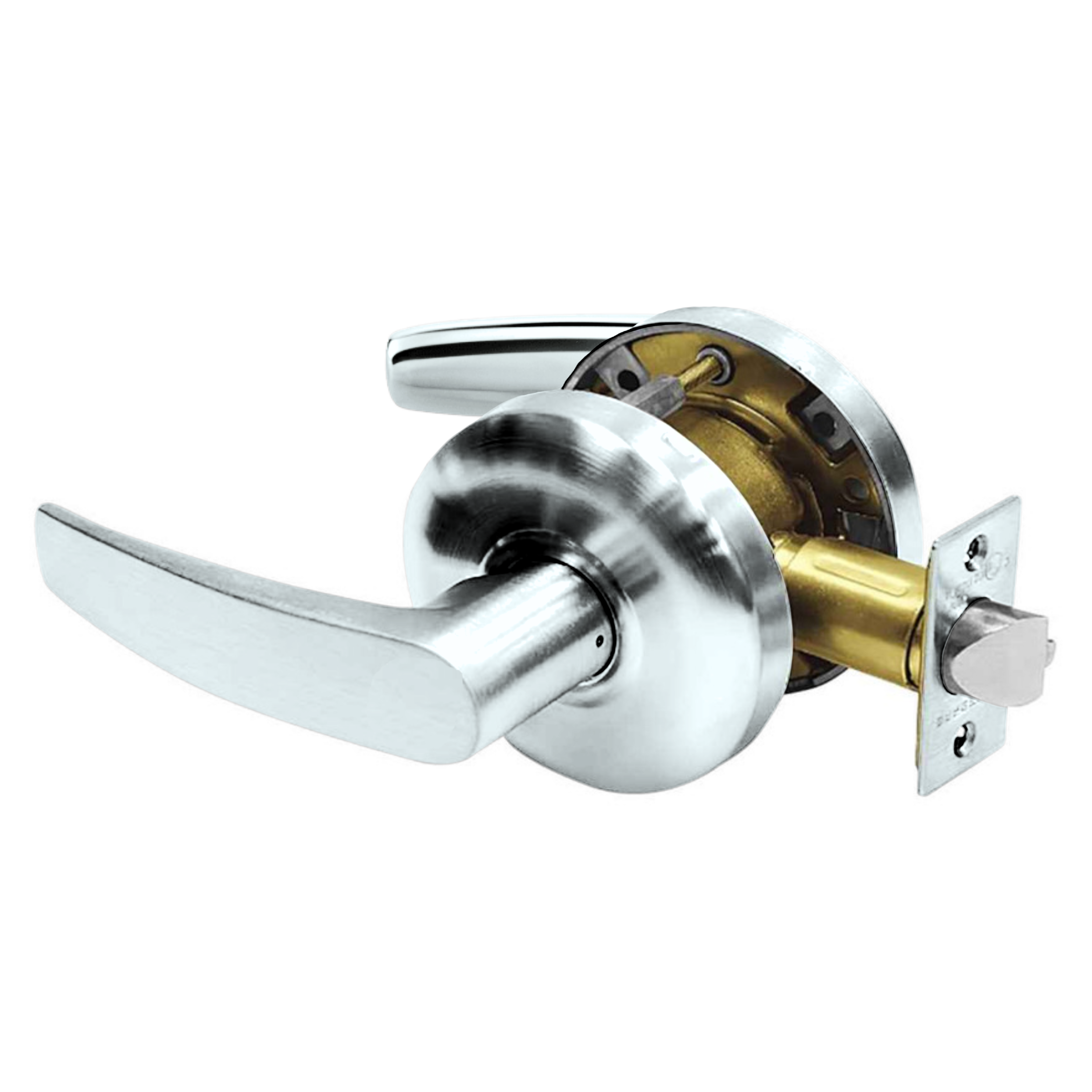

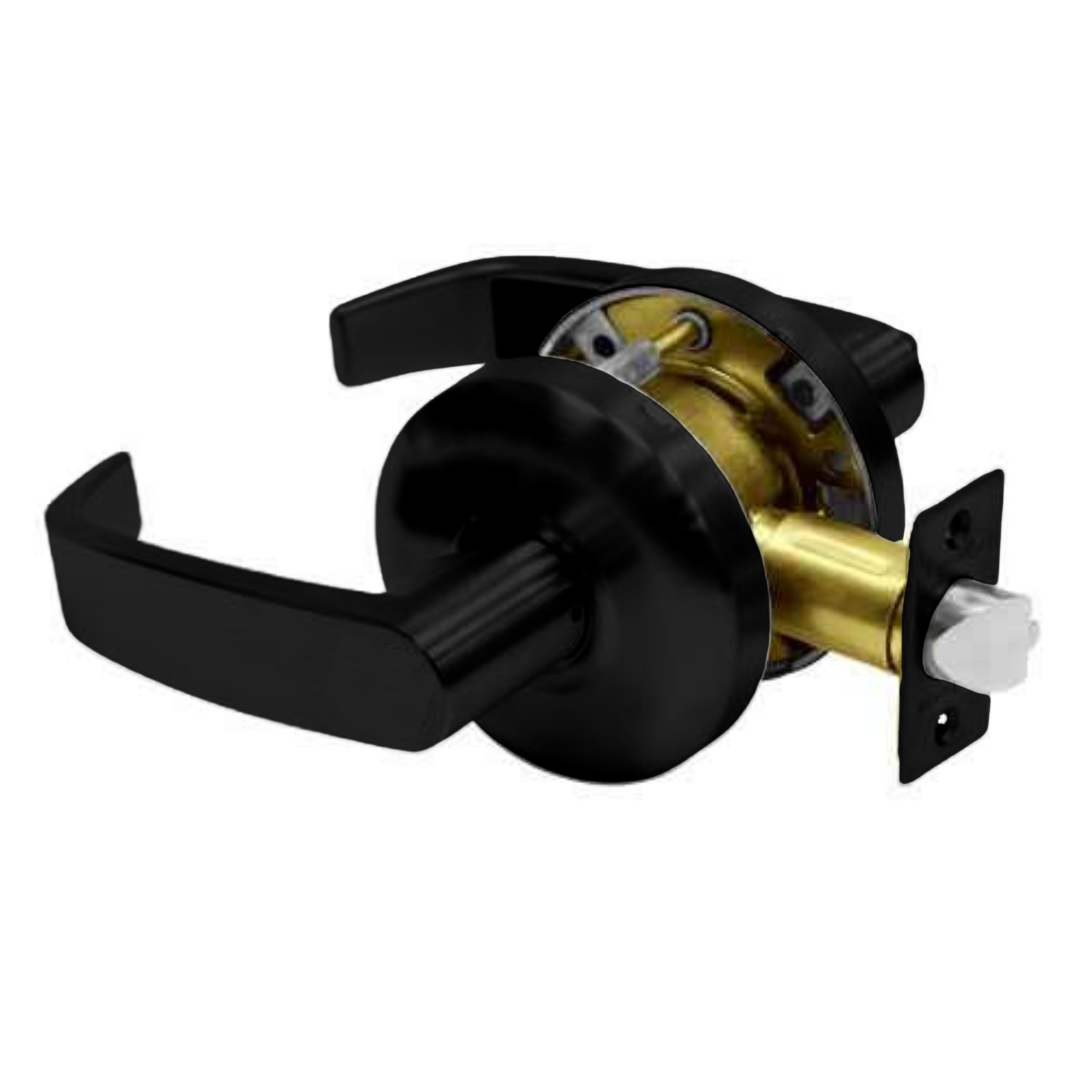

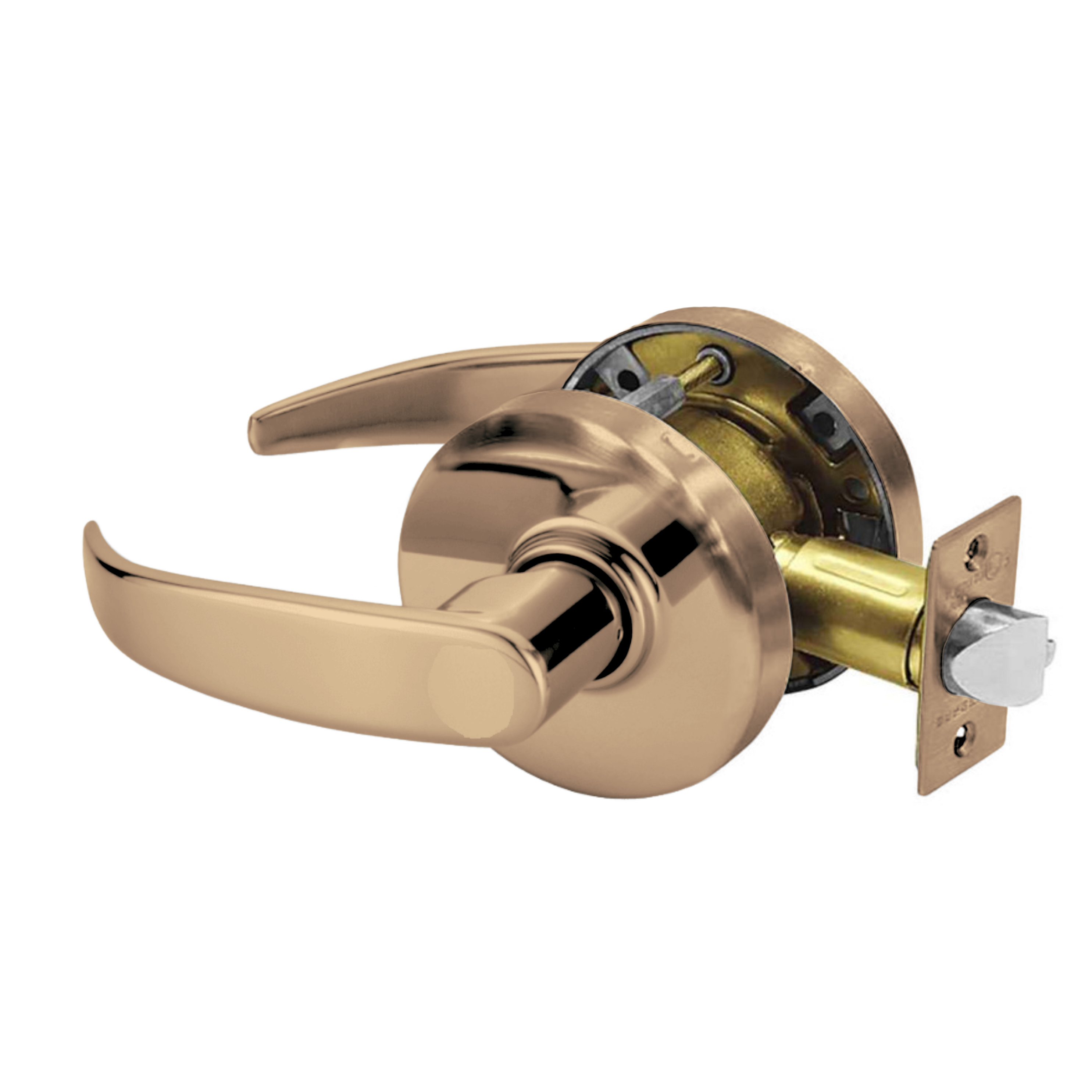

 Finishes: US26D, US10B, US03, US10, US26

Specifications

  • For Doors: 1-3/8" (35mm) to 1-3/4" (44mm) only
  • Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional (20- Prefix)
  • Cylindrical Housing: Steel zinc dichromate finish
  • Front: Wrought brass and stainless steel;
    2-1/4" (57mm) x 1-1/8"(29mm)
  • Strike:
    600 Curved Lip, Brass or Stainless Steel Standard
    808 ANSI Curved Lip available (28- prefix)
    505 Full Lip strike available (14- prefix)
  • Hand: Universal, not handed
  • Latch: Brass 1/2" (13mm) throw
  • Keys: Two, nickel silver
  • Cylinder: Brass, 6 pin, LA keyway standard
  • Finishes : 3, 4, 10, 10B, 26, 26D
    (No Split Finish)
  • Door Prep: ANSI A115.2 (161) Modified
  • Minimum Stile: 4-1/2" (114mm)

Certification Compliance

  • Meets ANSI A156.2 Series 4000 – Grade 2
  • UL listed to U.S.A. and Canadian safety standards. Listed for 3 Hour Doors   Note:Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
  • Meets UL 10C and UBC 7-2 (1997)
  • All levers conform to ADA requirement for barrier-free accessibility
  • Levers conform to California Administrative Code Title 19 and 24
