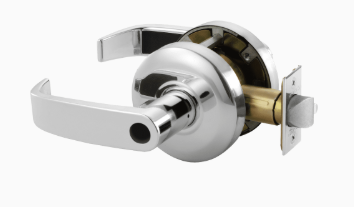

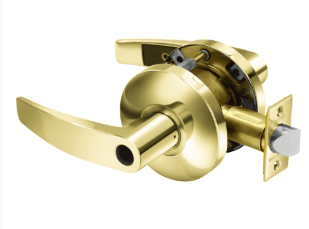

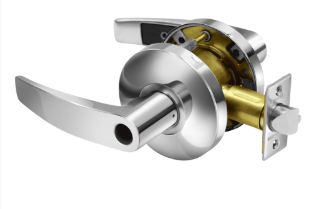

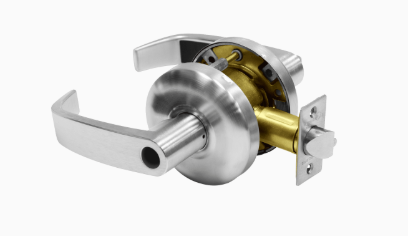

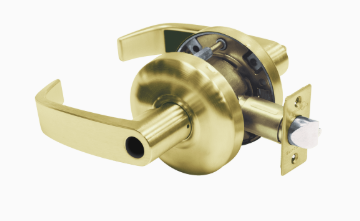

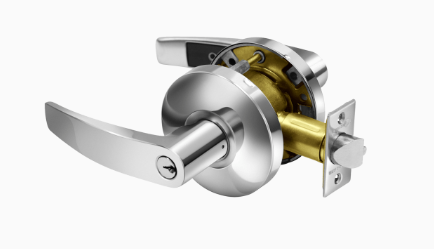

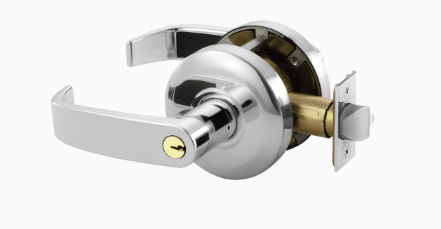

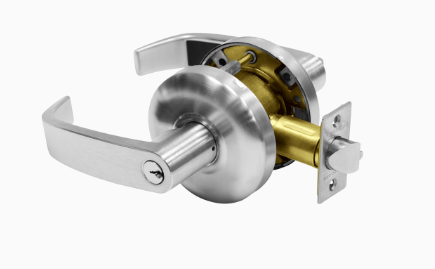

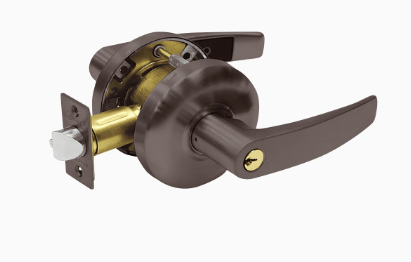

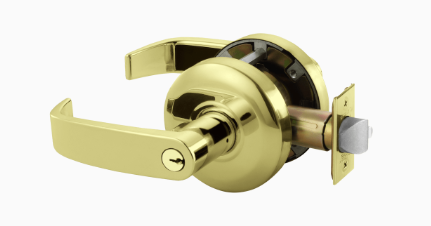

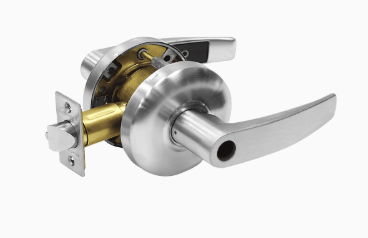

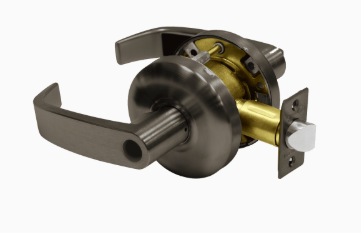

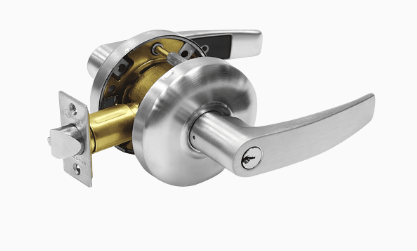

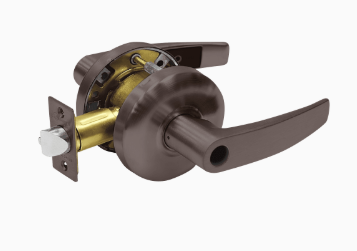

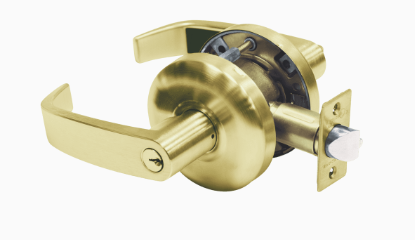

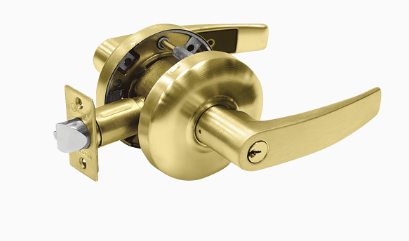

The 6500 Series is a standard lever duty lock designed for increased usability. Created to exceed ANSI/BHMA Grade 2 standards, this lock is non-handed, installs easily, and is available in eight functions and seven different finishes to match existing facility aesthetics.
Features
- Available in 8 functions and 6 finishes
- Non-handed
- Available with most SARGENT key systems (Degree, Signature, and XC)
Benefits
- Rugged design: Passes tests to comply with hurricane codes and Florida Building Code requirements, keeping occupants safe
- Easy Installation: Fits modified 161 door preps
- Flexible: Ideal for many applications with multiple functions
Specifications
- ANSI/BHMA Code: A156.2
- ANSI/BHMA Series: Series 4000
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Large Format, Small Format, Conventional
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4"
- Grade: Grade 2
- Handing: Non-handed
- Latchbolt Throw: 1/2"
- Maximum Backset: 2 3/4"
- Minimum Backset: 2 3/8"
- Maximum Door Thickness: 1 3/4"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type (Standard): T-Strike Curved Lip
- UL Listed: Yes
- ULC Listed: Yes
- Warranty: 1-year limited warranty
Certifications
- ANSI/SDI 250.13 Certified
- ASTM E330 Certified
- Florida Building Code Approved FL# 2998
- Americans with Disabilities Act (ADA) Compliant
- UL-cUL Fire-Rated Up to 3 Hours
- ASTM E1996 Certified
- ASTM E1886 Certified
- NFPA 80 Compliant
- TAS 201 Certified
- TAS 202 Certified
- TAS 203 Certified
- ICC A117.1 Compliant
- ANSI/BHMA A156.2, Series 4000, Grade 2
- ANSI/BHMA A156.41
Functions
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push/turn button in inside lever
- Push button released by key outside or lever inside
- Turn button must be released manually
- Key retracts latch when outside lever is locked
