422 Series

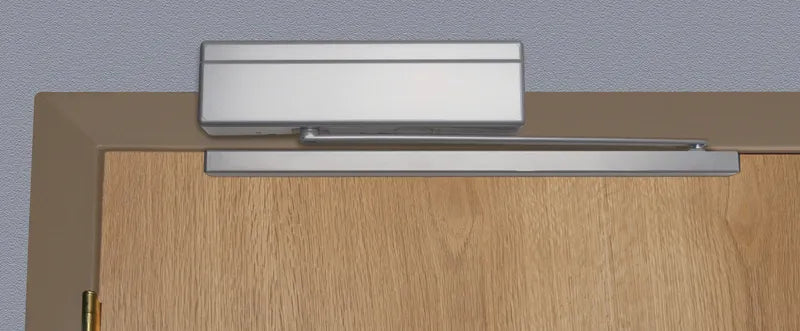

The 422 cam action door closer is designed to make doors easy to open while maintaining enough force to close doors securely. The 422 is one closer and track assembly that can support up to four installation positions and has a unique arm to simplify installation. Ideal for applications where both security and accessibility are a priority.
Overview
Features
-
Cast aluminum body
-
Adjustable spring size 1 through 6
-
Door weight: 250 lbs.
-
Non-handed
-
Unique spline arm
-

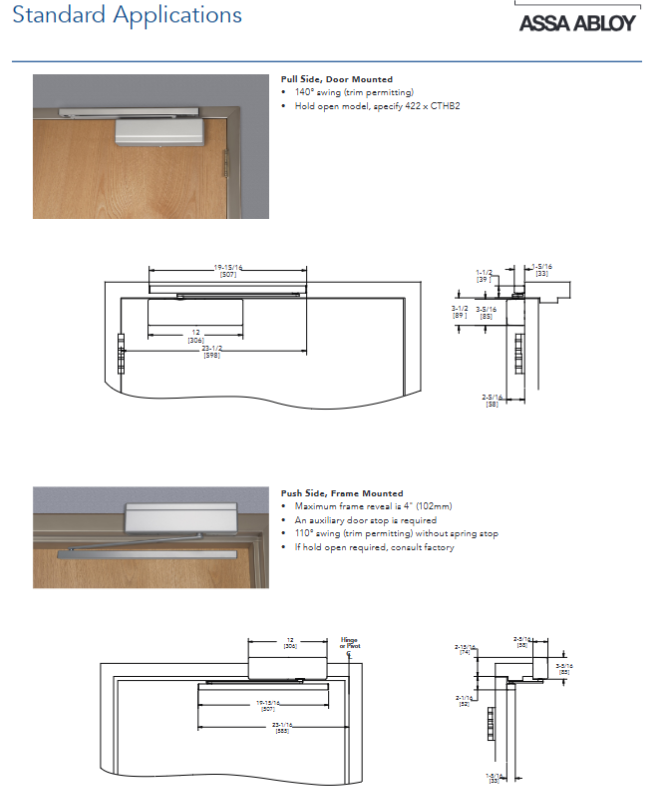

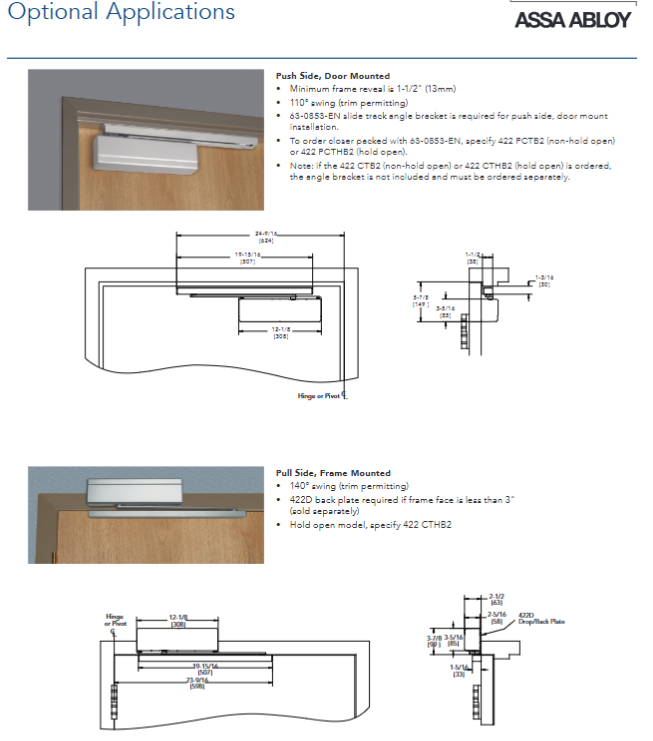

Push and pull side installation, door or frame mounted
-
Adjustable closing force
-
Adjustable closing and latching speed
-
Backcheck standard
-
Suitable for exterior and interior doors
-
Recommended maximum interior door width 54" (137)
-
Standard opening range: pull side = 140°, push side = 110°
-
30-year limited warranty
Benefits
-
One model - four mounting options
-
Easy to open
-
Reliable closing
-
Forward facing valves
-
High efficiency
-
Spline arm offers multiple indexing options to accommodate standard and special applications
-
1/2" vertical adjustment
Specifications
-
Arm Material: Forged steel
-
Body Material: Aluminum alloy
-
Closer Type: Cam Action
-
Warranty: 30-year limited warranty
Certifications
-
ANSI/BHMA A156.4, Grade 1
-
Americans with Disabilities Act (ADA) Compliant
-
UL 10C Positive Pressure up to 3 hours
-
UL-cUL Listed
