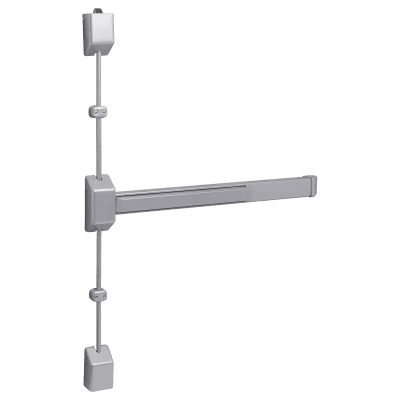

Sargent 3727 Surface Vertical Rod Exit Device With 12-Fire Option EN

by Sargent
$ 594.00

Sargent 3727 Surface Vertical Rod Exit Device With 12-Fire Option.

The 3727 is a rugged exit device in surface vertical rod and rim designs.

US Lock Supply Stocks The Sargent 3727.

EN-Sprayed Aluminum

Specifications

  • For Doors: 1-3/4" (44mm) thick standard. 3-3/4" (95mm) minimum stile width required for single door applications. 3-1/2" (89mm) minimum stile width required for double door application
  • Mounting: Furnished standard with wood and machine screws; Available with through bolts and mortise nuts
  • Cover: steel
  • Chassis: Nonferrous alloy
  • Rail Assembly: Roll formed steel
  • Hand: Reversible. Device is packed standard LHRB
  • Latchbolt: Brass
  • Strikes: 646 Top Strike (Panic & fire), 655 Bottom Strike (fire), 624 Bottom Strike (Panic)
  • Dogging Feature: Allen-type key furnished standard (Non Fire Rated Devices only)
  • Chassis mounted unit construction assures easy installation and maintenance
  • Tapered push rail and angled covers
  • Steel endcaps and covers
  • Available in six functions
  • UL Listed
  • UL Listed to Canadian safety standards

Bar Sizes:

E-32" Bar(Call For Availability)

Standard F-36" Bar

G-48" Bar

Model:

3727 Standard

12-3727 Fire Rated
