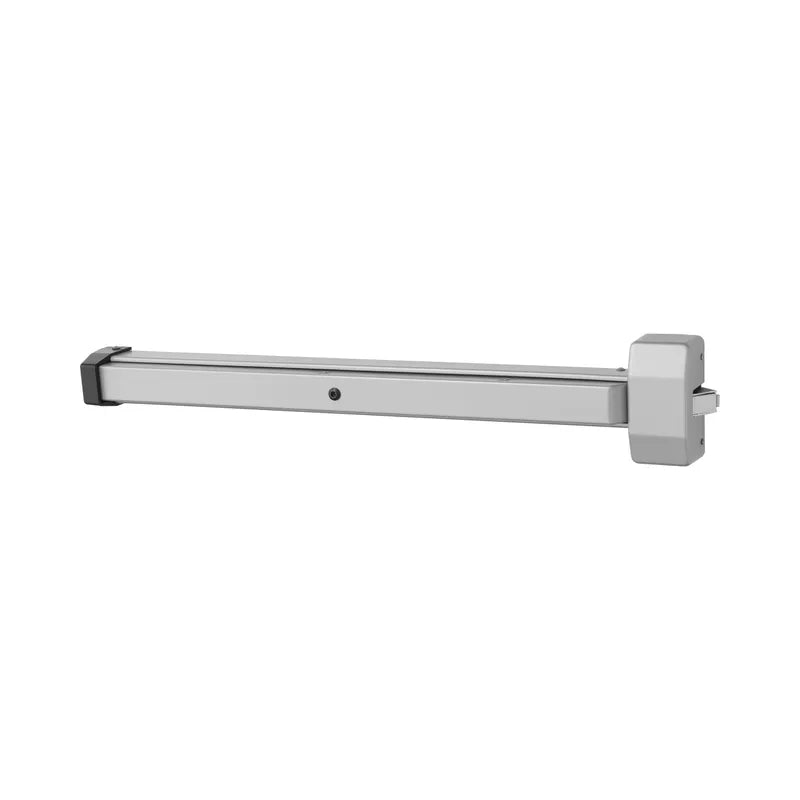

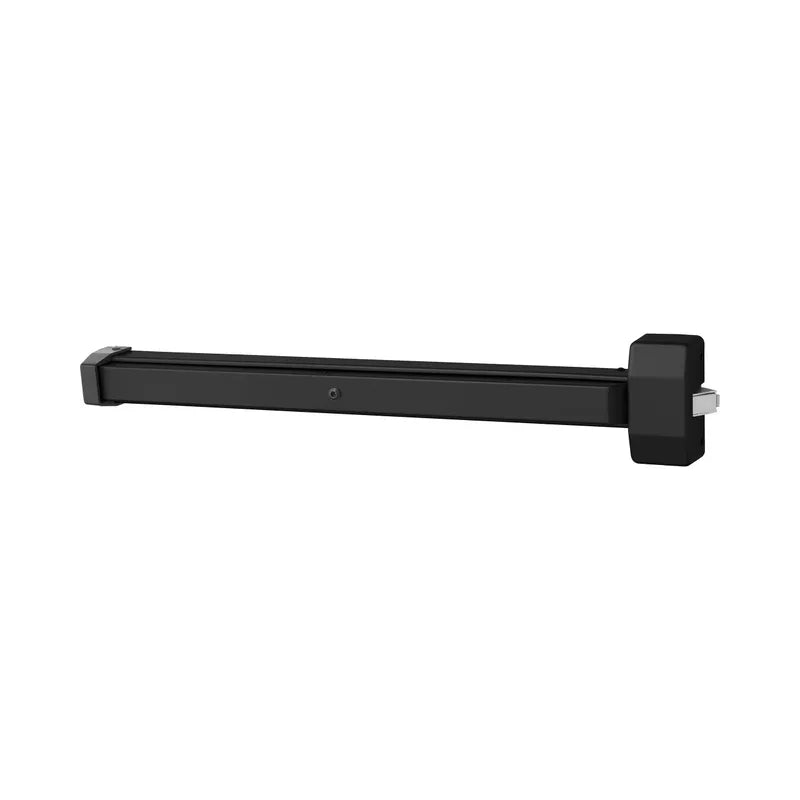

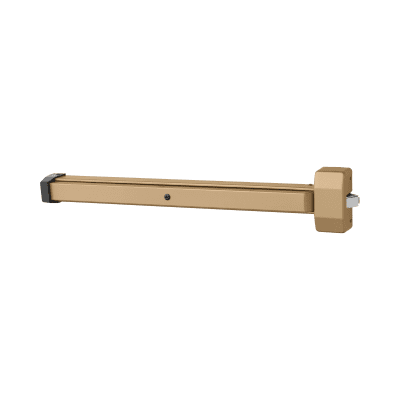

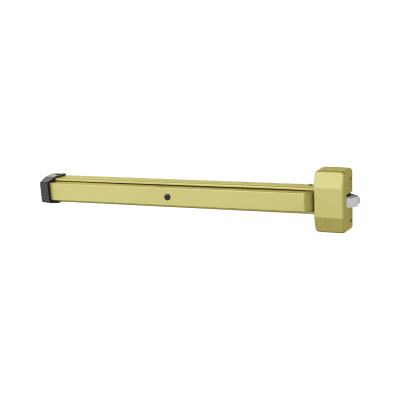

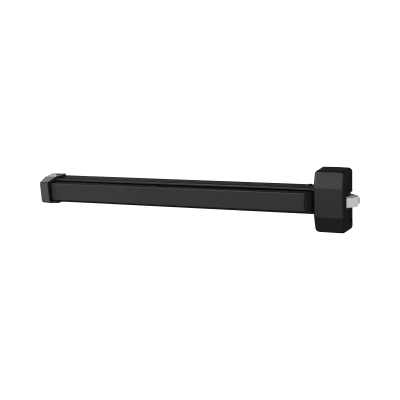

2828 Available in a variety of functions, the 20 Series features a rugged design of angled covers and a tapered push-rail that fully extends across the door.
Overview
Features
-
Rugged pushpad exit device available in rim and surface vertical rod designs
-
Pushpad extends the full length of the device
-
Available in five functions with a variety of trim and finish options
-
Suitable for single or double door applications
Benefits
-
Strong and Reliable: Rugged design with steel endcaps and covers to withstand abuse
-
Aesthetics: Attractive design featuring a tapered push rail and angled covers
Specifications
-
Handing: Field Reversible
-
ANSI/BHMA Grade: Grade 1
-
Door Height: 96"
-
Minimum Door Width: 48"
-
Warranty: 3-year limited warranty
Certifications
-
ANSI/BHMA A156.3, Grade 1
-
NFPA 101 Compliant
-
UL 305 - Standard for Panic Hardware
-
Americans with Disabilities Act (ADA) Compliant
-
ANSI/BHMA A156.41
-
UL-cUL Fire-Rated Up to 3 Hours
-
NFPA 80 Compliant
-
ICC A117.1 Compliant
12-2828 - Fire Rated
