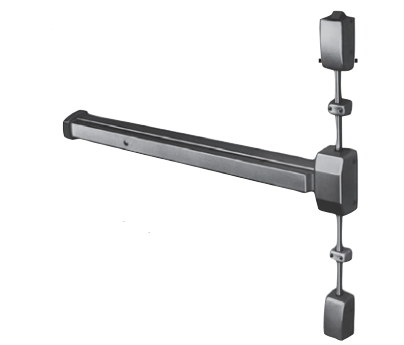

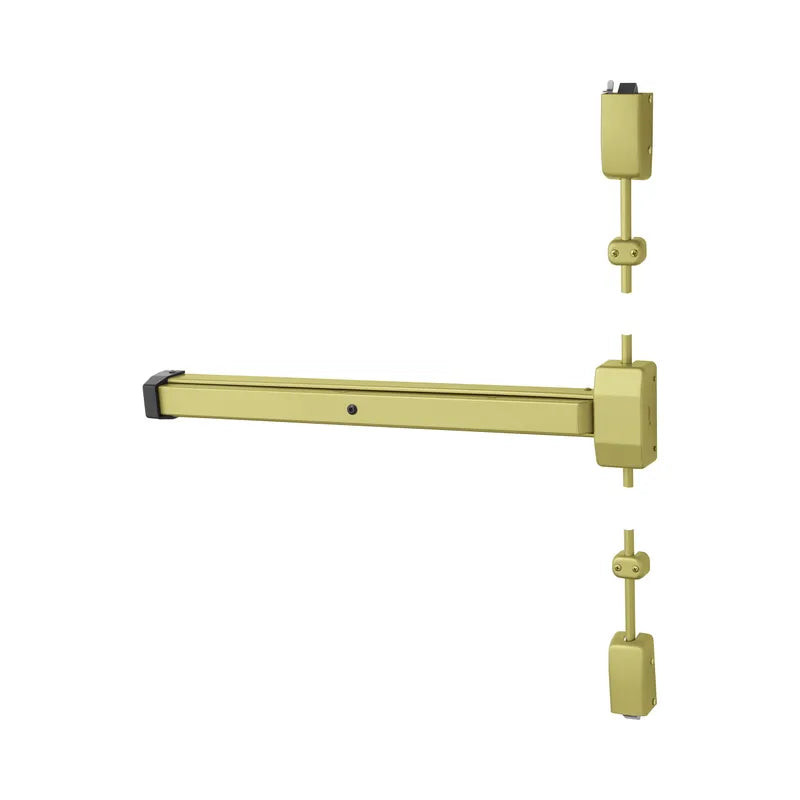

Sargent 2727 Surface Vertical Rod Exit Device With 12-Fire Option

by Sargent
$ 745.00

Sargent 2727 Surface Vertical Rod Exit Device With 12-Fire Option

The 2727 series is a rugged exit device with surface vertical rod and rim designs.

US Lock Supply Stocks The 2727 Series Vertical Rod Exit Device

Ideal For:

  • Warehouses
  • Fire exits from stairwells in office building.

Specifications

  • For Doors: 1-3/4" (44mm) thick standard. 3-3/4" (95mm) minimum stile width required for single door application. 3-1/2" (89mm) minimum stile width required for double door application

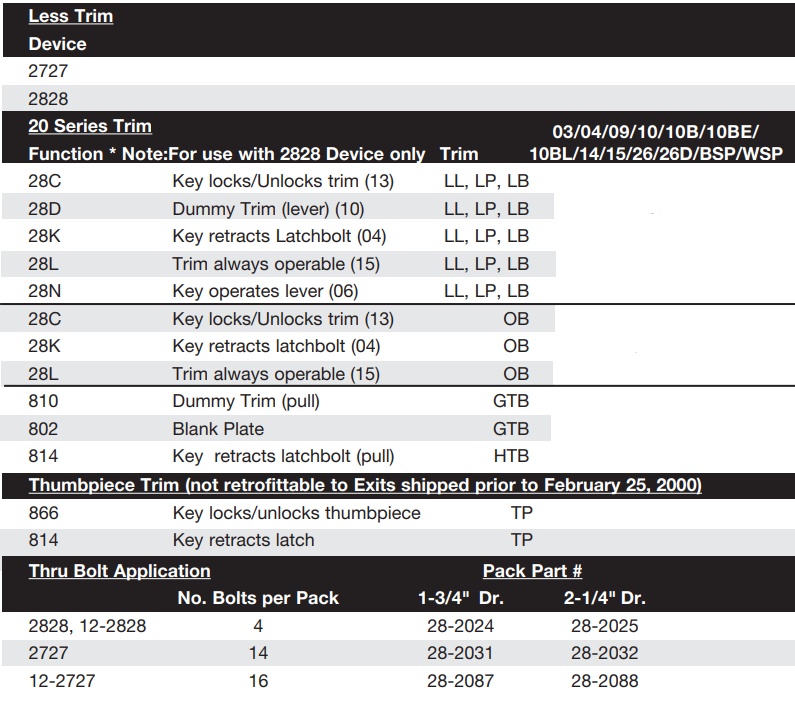

  • Outside trim: 28 series lever &rose trims, GTB Pulls & Plates, OB knob trims & Thumb Piece trims



  • Mounting: Furnished standard with wood and machine screws. Available with thru bolts and mortise nuts
  • Cover : steel
  • Chassis : Nonferrous alloy
  • Rail Assembly : Roll formed steel
  • End Cap: steel
  • Hand: Reversible. Device is packed standard LHRB
  • Latchbolt : Brass
  • Strikes: 646 Top Strike (Panic &Fire), 655 Bottom Strike (fire), 624 Bottom Strike (panic)
  • Dogging Feature: Allen-type key furnished standard (non fire rated devices only)

Bar Sizes:

E-32" Bar

Standard F-36" Bar

G-48" Bar

Finishes:

EN-Sprayed Aluminum

EAB-Sprayed Brass(Call For Availability)

ED-Sprayed Black(Call For Availability)

EB-Sprayed Dark Bronze(Call For Availability)

  • Available as Fire Exit Hardware (12-)
  • Chassis mounted unit construction assures easy installation and maintenance
  • Tapered push rail and angled covers
  • Steel end caps and covers
  • Meet ANSI/BHMA Standard 156.3, Grade 1
  • UL Listed
  • UL Listed to Canadian safety standards
