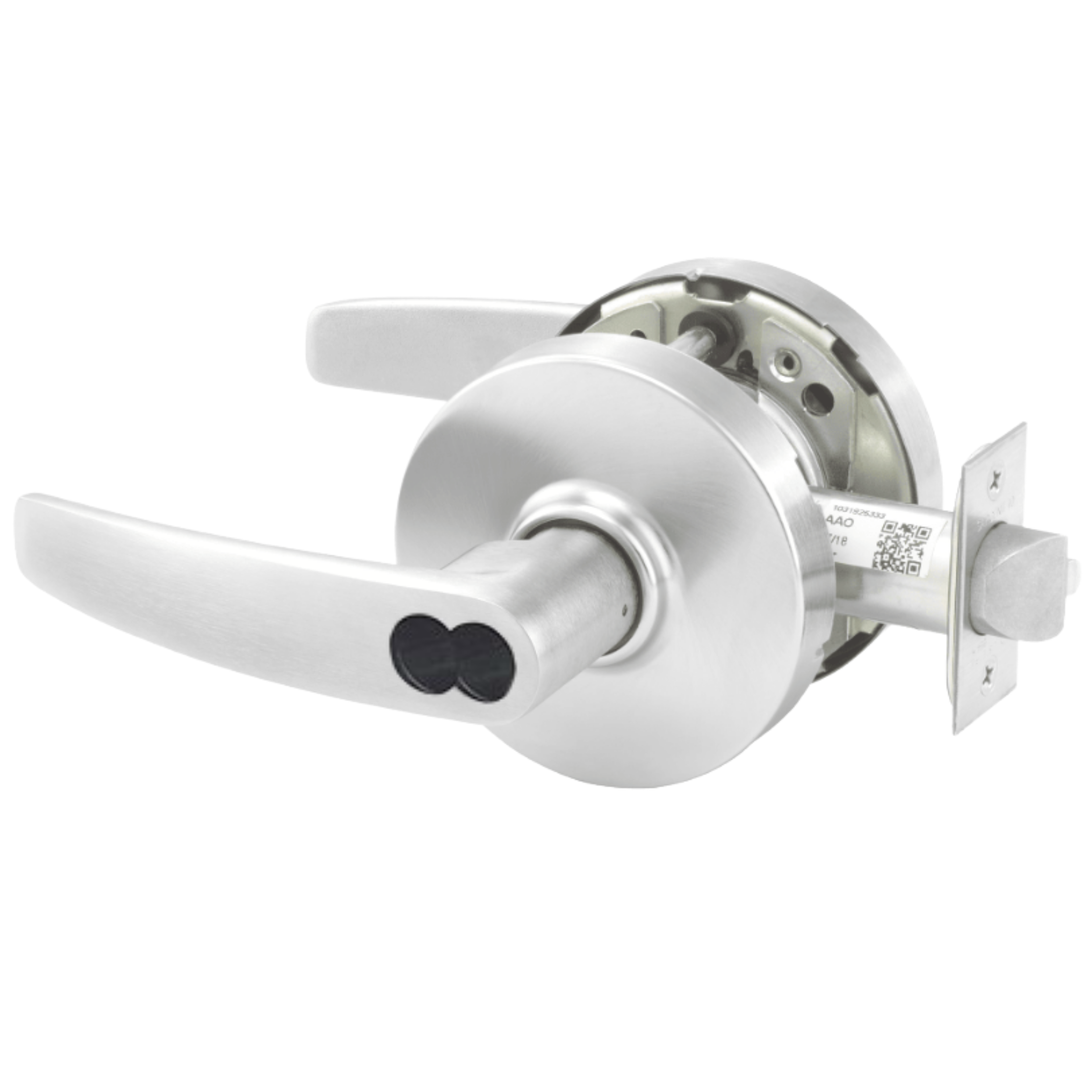

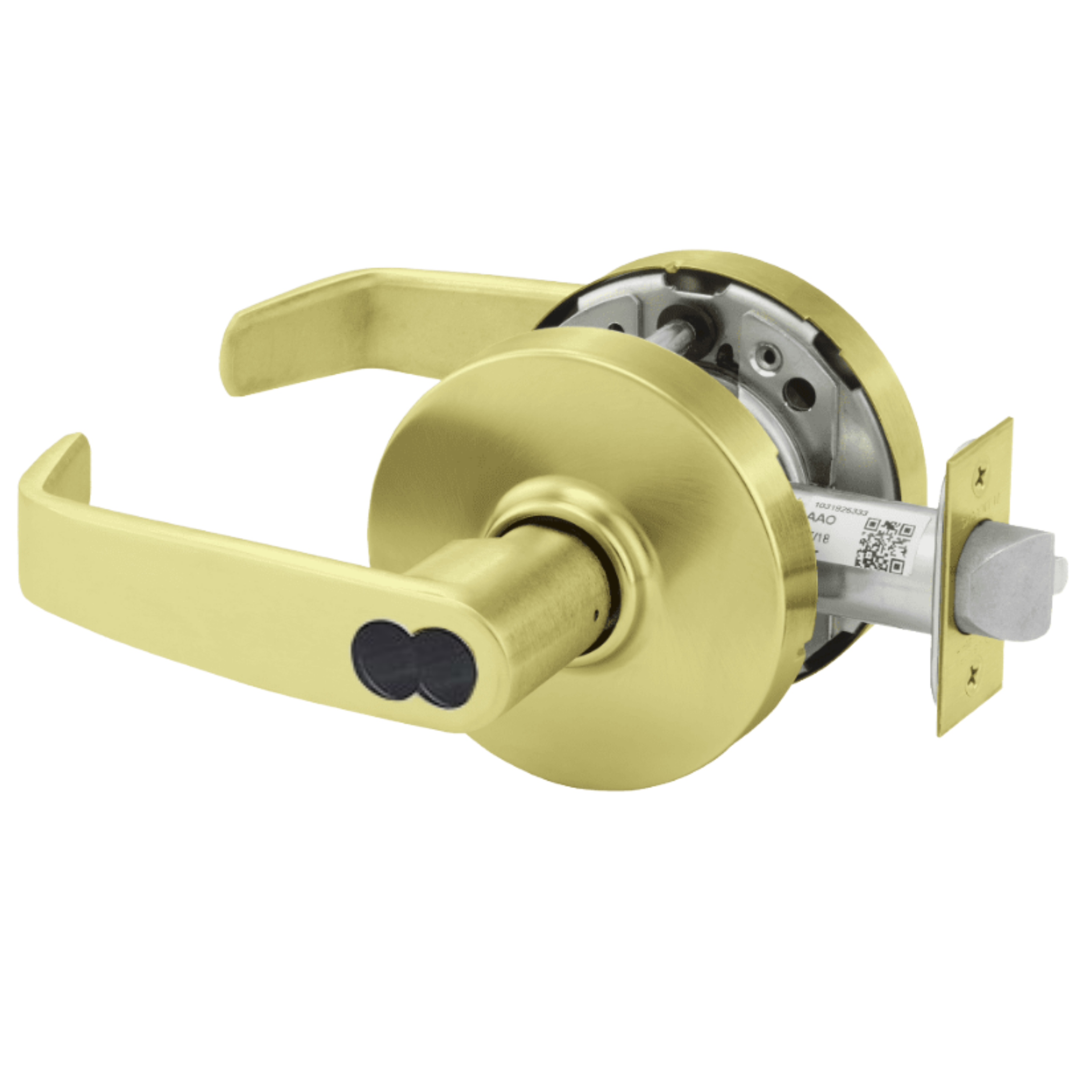

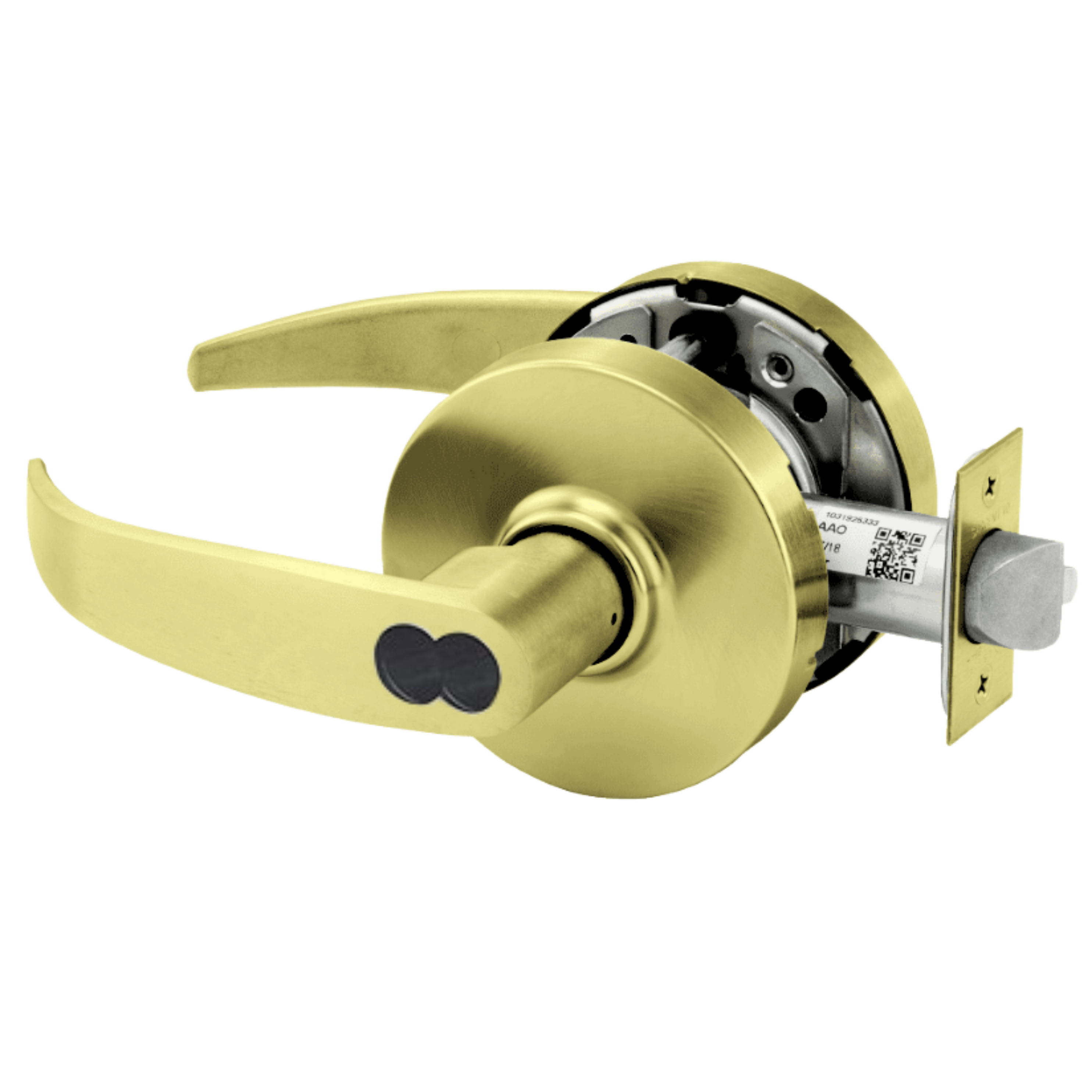

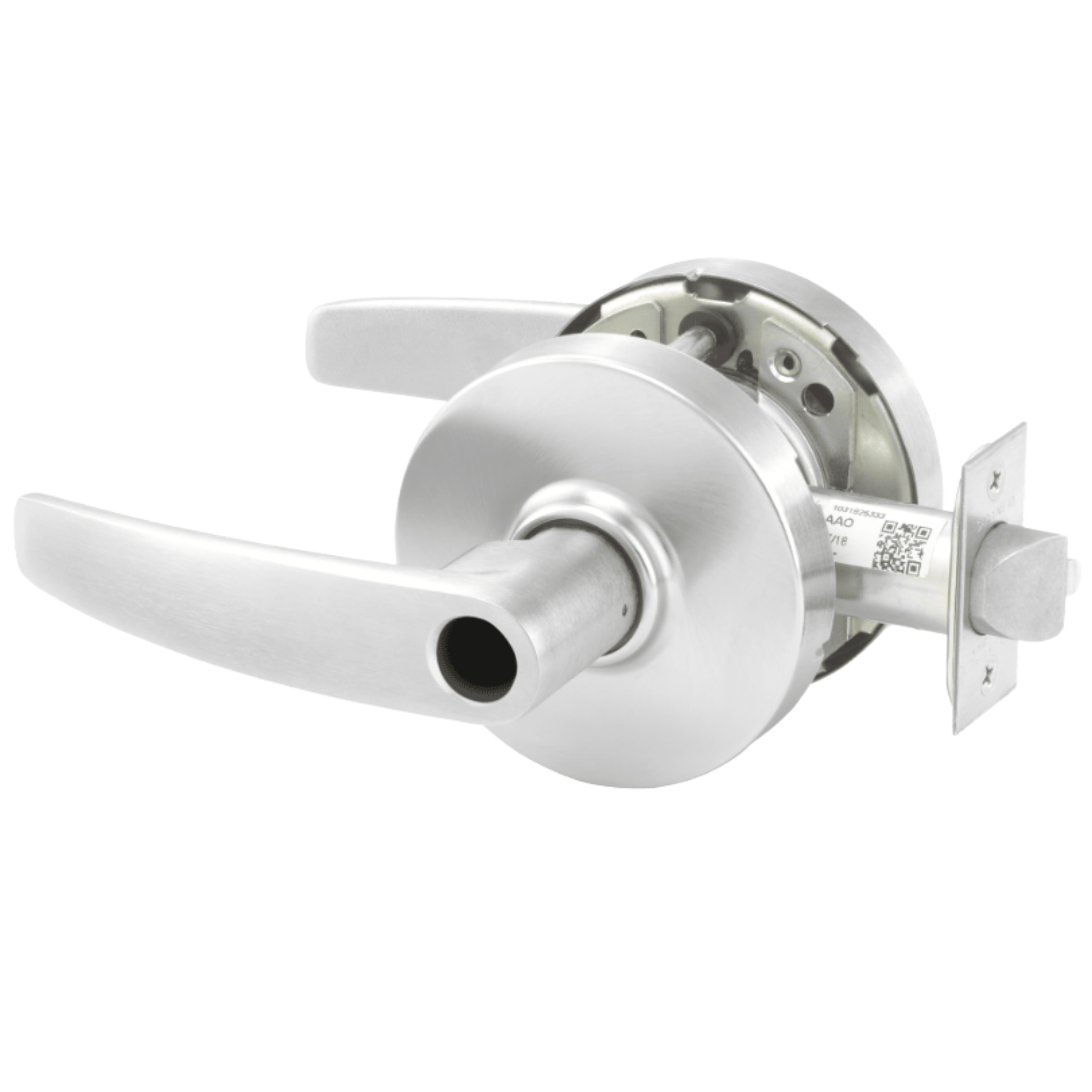

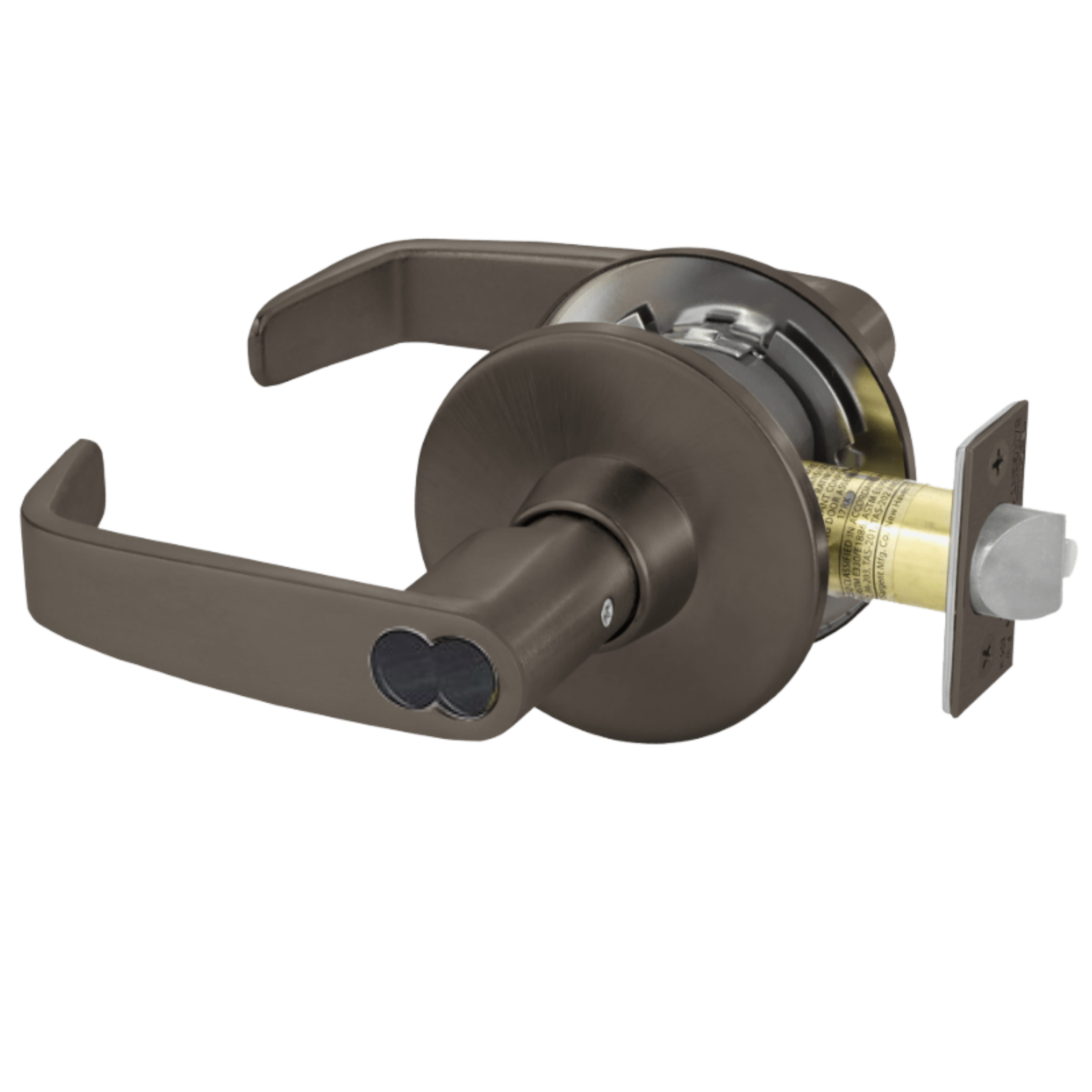

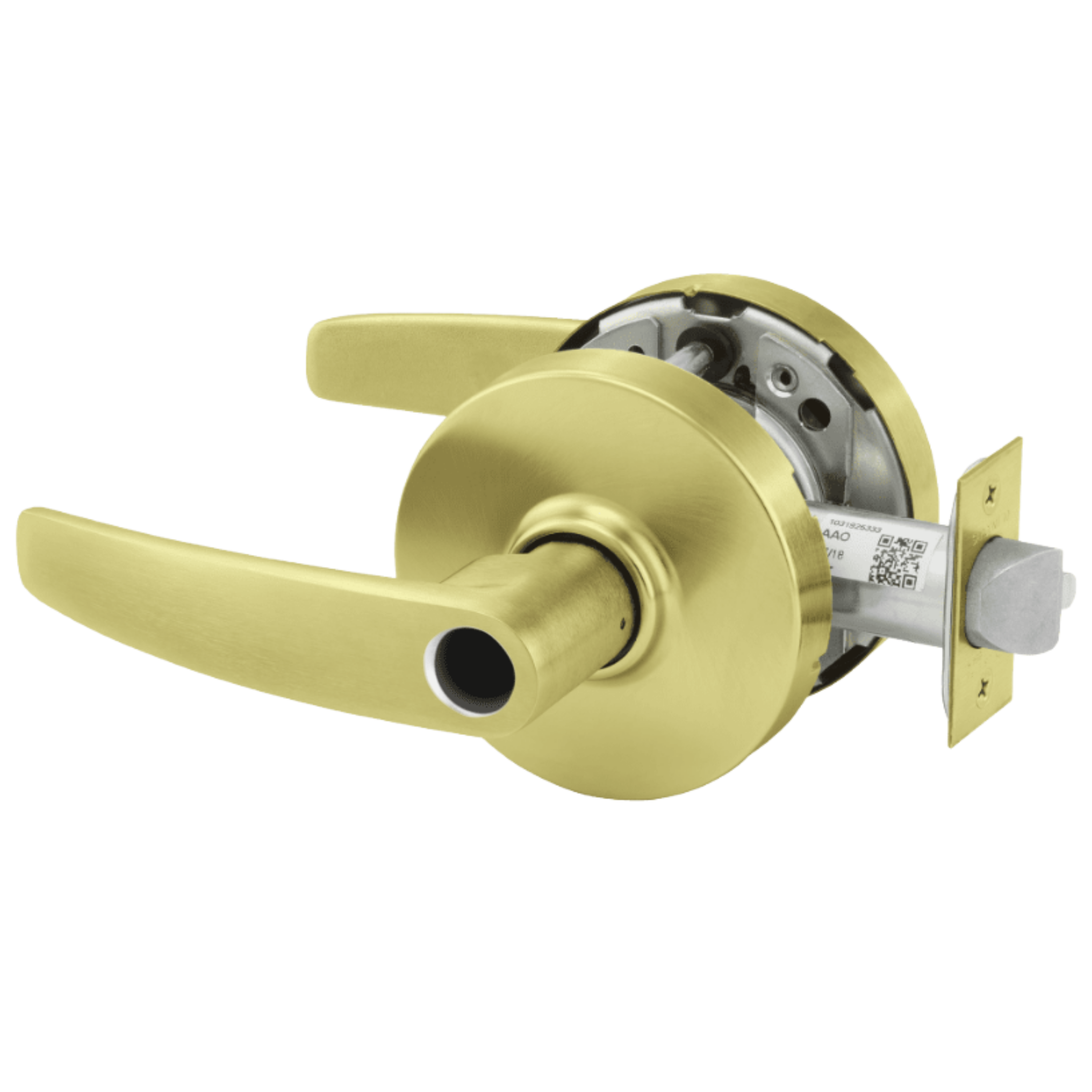

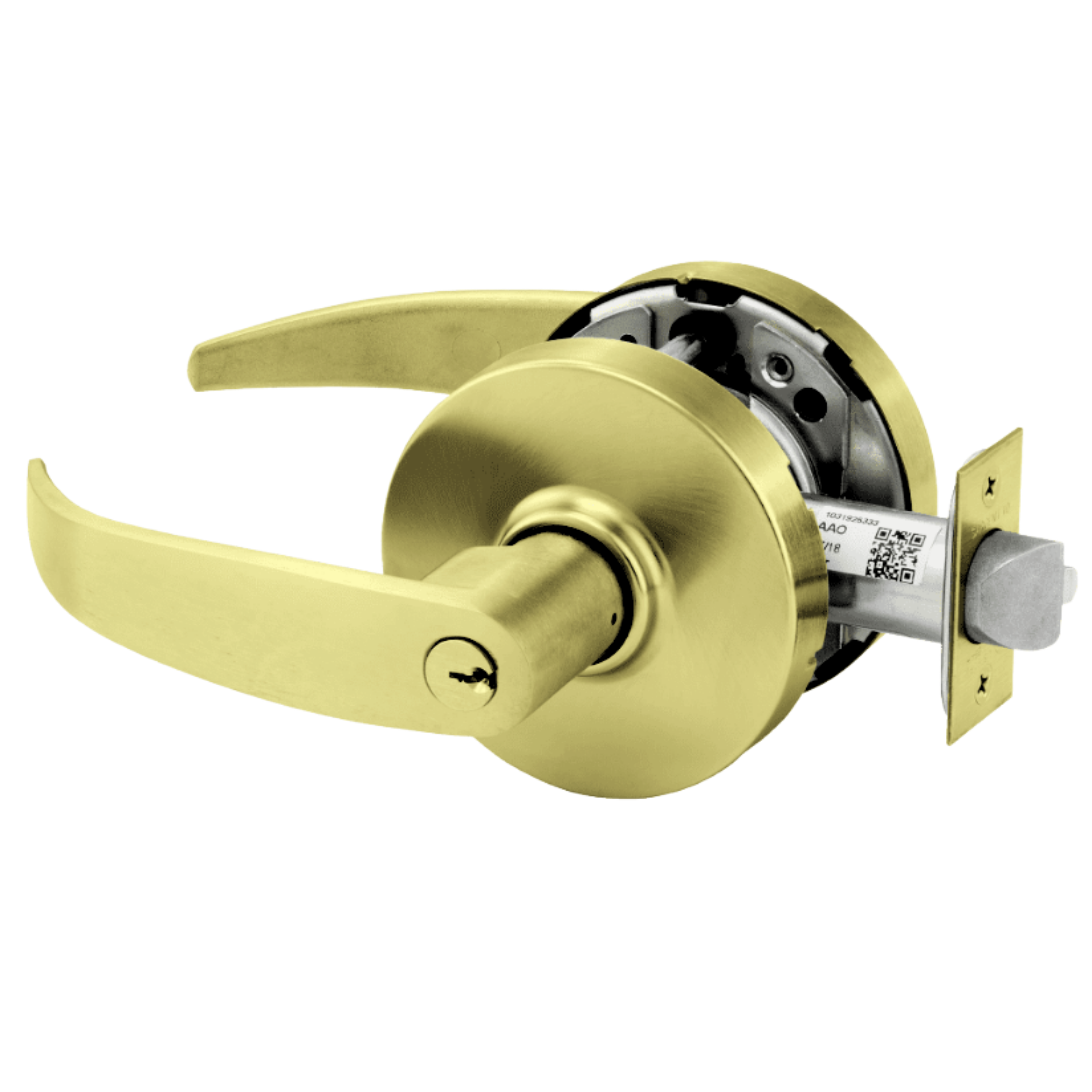

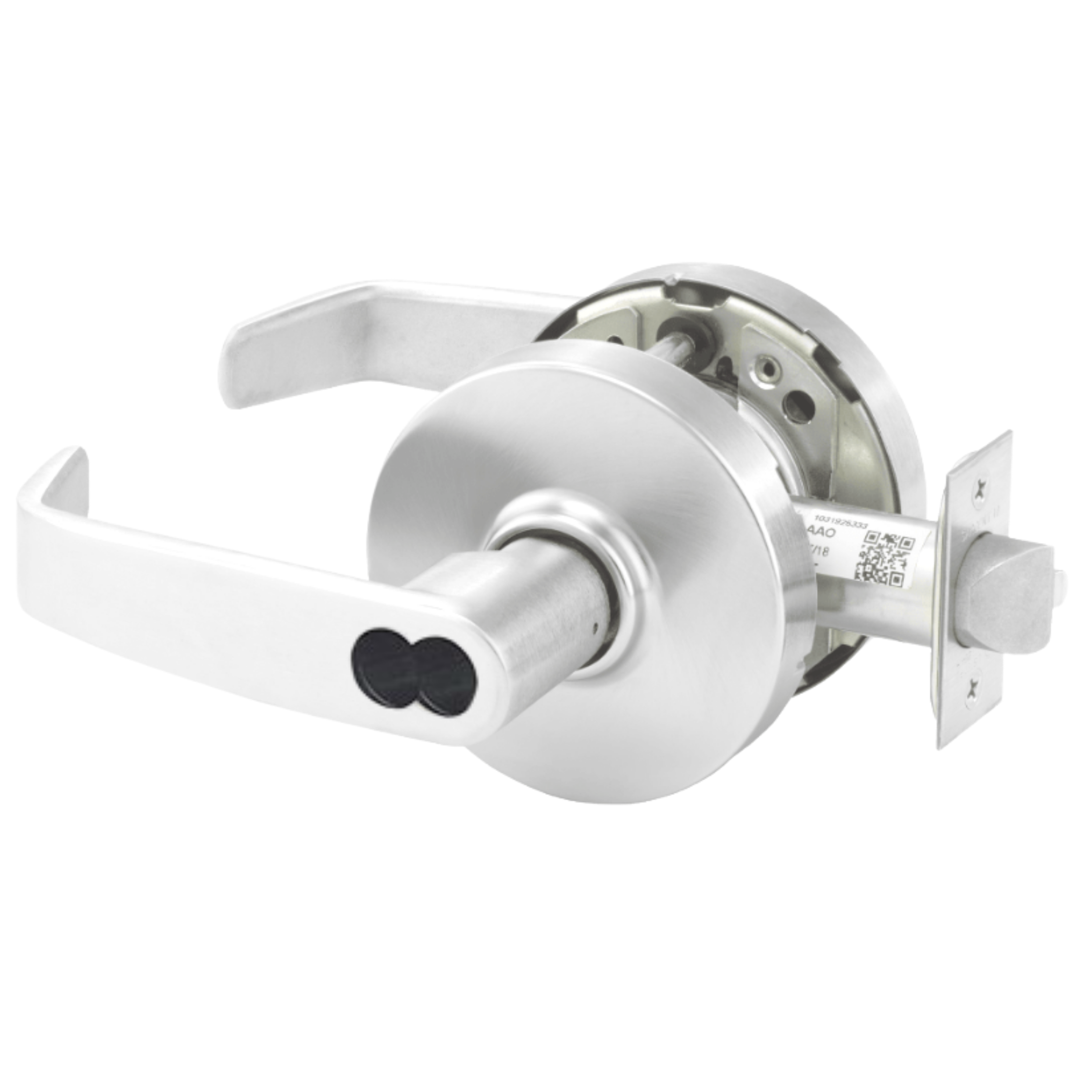

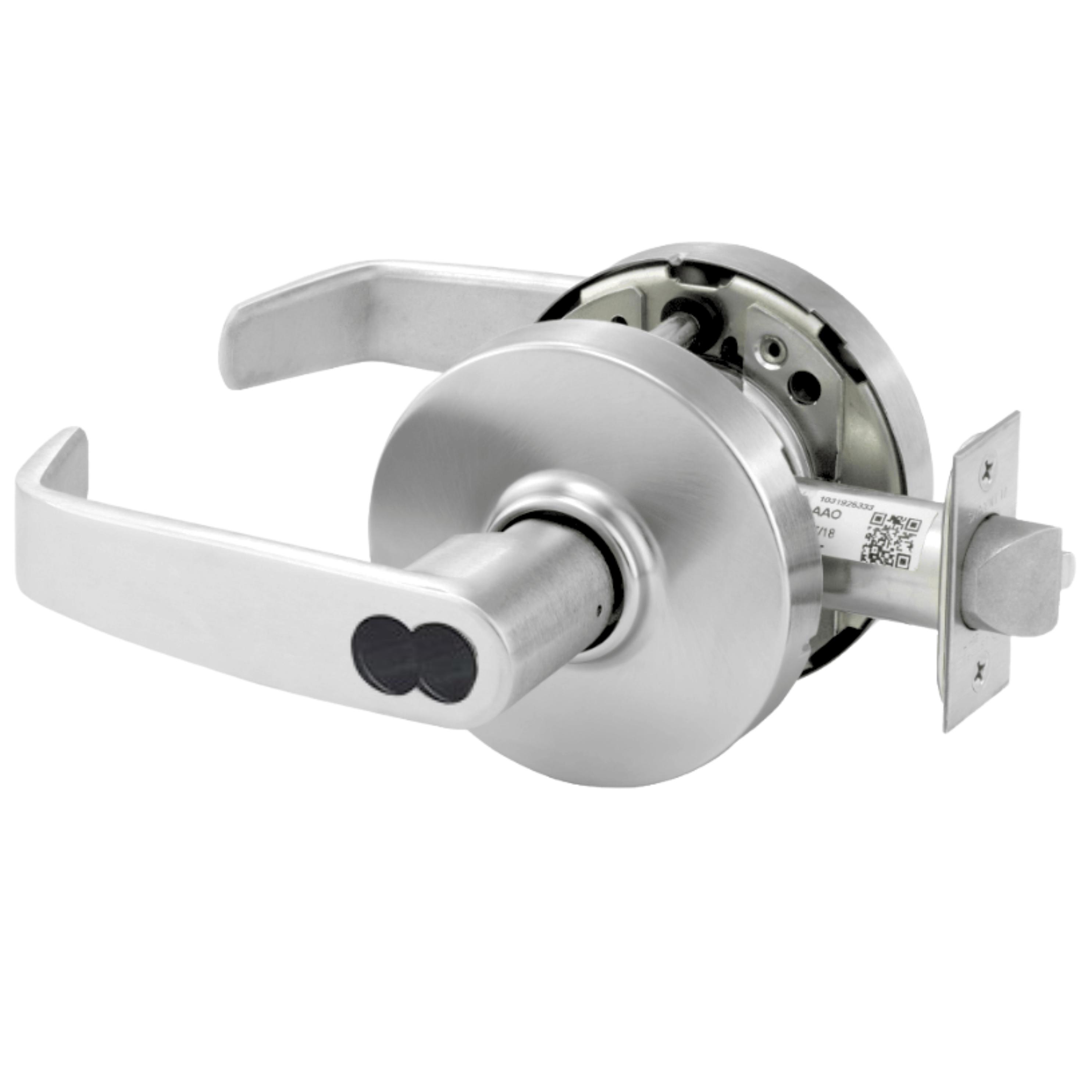

The SARGENT 10X Line isn't just built to last, it's built to thrive. Engineered for high-traffic, high-abuse environments, it exceeds ANSI/BHMA Grade 1 standards by up to 20 times, ensuring reliable performance throughout its entire lifecycle.
Featuring EcoFlex® technology, the electrified 10X Line bored lock is a game-changer for sustainability, boasting a remarkable 92% energy savings in electromechanical applications like Wave to Open, Request to Exit, or Door Position Switches.
New: Status Indicators for Enhanced Privacy and Security
Elevating privacy and security, the 10X Line now includes status indicators that provide immediate visual confirmation of a room's occupancy or locked/unlocked status. Ideal for sensitive spaces like restrooms and classrooms, these indicators enhance both user comfort and peace of mind.
Features
- NEW Visual Status Indicators: Provide at-a-glance confirmation of a door's locked or unlocked status.
- Exceeds 3,100 in-lb abusive locked lever torque with no entry while maintaining egress (2.6 times ANSI/BHMA A156.2 requirements)
- Exceeds 1,600 lbs offset lever pull with no entry for protection against attacks (8 times ANSI/BHMA A156.2 requirements)
- No access with minimum 100 vertical impacts for protection against vandalism attempts (20 times ANSI/BHMA A156.2 requirements)
- High Security and security key systems available (Access 3, Pyramid)
- Latch retraction with 100 lb preload (2 times ANSI/BHMA A156.2) while maintaining ANSI/BHMA requirements for operation in warped doors or doors with latch bind.
- Independent return springs allow lock to exceed ANSI/BHMA A156.2 Grade 1 cycle requirements without lever sag
- UL Cycle above and beyond test completed at 20 Million Cycles. Verification ID: V875753
- Innovative push/turn button design to withstand excessive abuse against door stops or walls.
- Lockbody design supports all cylinder formats allowing flexibility for from fixed core to interchangeable core cylinders.
- Patented and/or patent pending adjustable push/turn button for easy door thickness adjustment.
- Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 92% energy savings
- Lever Release freewheeling levers standard for vandal resistance; rigid lever optional.
- Available with 27 mechanical and 2 electromechanical functions
- 14 finishes and MicroShield options
Benefits
- Enhanced Security: New visual status indicators provide at-a-glance confirmation of a door's locked or unlocked status.
- Superior Protection: Provides maximum resistance to vandalism, forced entry, and other malicious attacks.
- Proven Durability: Certified to withstand high-volume traffic and extreme conditions.
- Aesthetically Pleasing: Complements any design style with a variety of finishes and levers.
- Streamlined Inventory: Minimizes stocking requirements with versatile cylinder formats.
- Easy Installation: Simplifies both new and retrofit applications with standard door preps.
- Key System Integration: Seamlessly integrates with existing or new facility key systems.
Specifications
- ANSI/BHMA Code: A156.2
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Large Format, Small Format, Conventional
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4"
- Grade: Grade 1
- Handing: Non-handed
- Latchbolt Throw: 1/2"
- Maximum Backset: 5"
- Minimum Backset: 2 3/8"
- Maximum Door Thickness: 2"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type (Standard): ANSI Curved Lip
- UL Listed: Yes
- ULC Listed: Yes
- Warranty: 10-year limited warranty; 2-year for electrical components
Certifications
- ANSI/SDI 250.13 Certified
- ASTM E330 Certified
- Florida Building Code Approved FL# 2998
- Americans with Disabilities Act (ADA) Compliant
- UL-cUL Fire-Rated Up to 3 Hours
- ASTM E1996 Certified
- ASTM E1886 Certified
- NFPA 80 Compliant
- TAS 201 Certified
- TAS 202 Certified
- TAS 203 Certified
- ICC A117.1 Compliant
- UL 437 listed when using Degree high-security UL 437 cylinders
- ANSI/BHMA A156.2, Series 4000, Grade 1
- ANSI/BHMA A156.41
Functions:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by key
- Key in outside lever locks or unlocks outside lever and retracts latch
- Inside lever always operative
