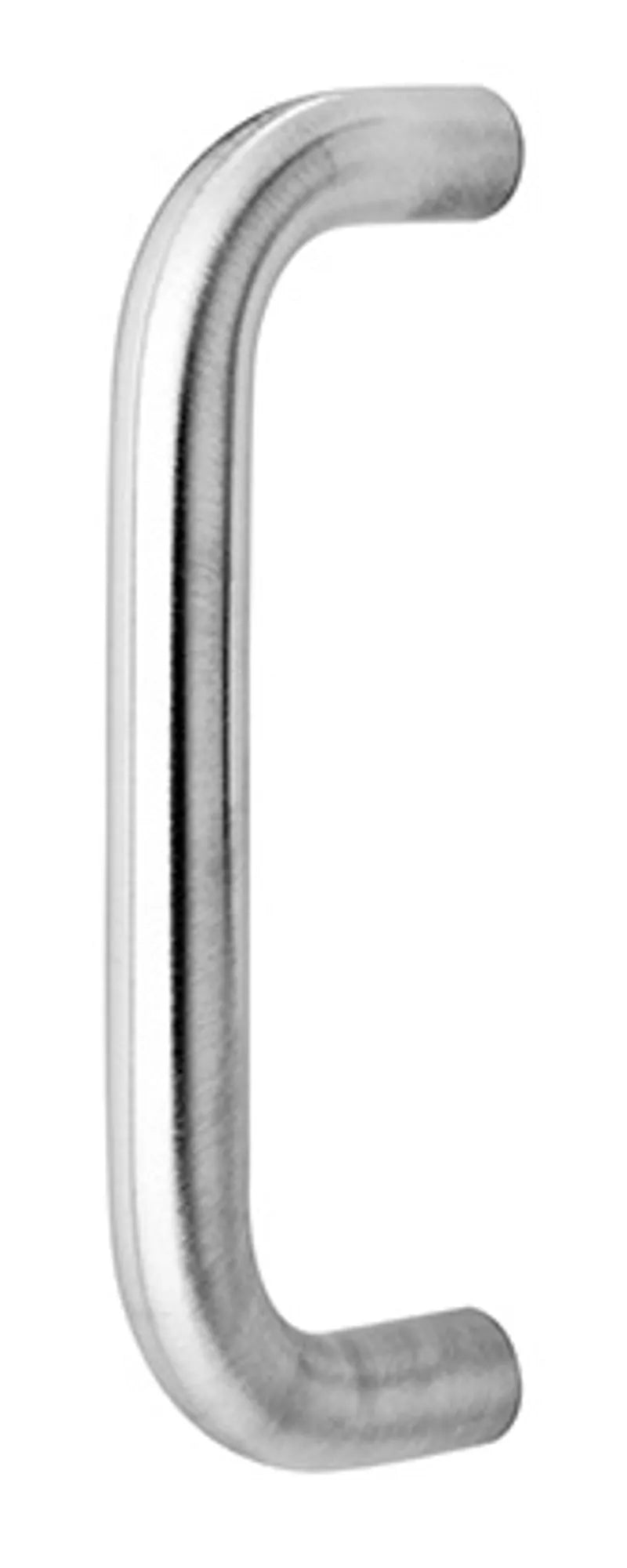

The T110, T111, T111A, T112, and T118 Straight Tubular Door Pulls have a 1" diameter and come in a variety of base materials and finishes.
Product Overview
Features
- Back to back mounting in pairs — use BTB suffix and mounting type number
- Concealed mounting single pulls — use C suffix and mounting type number
- 2-1⁄2" Barrier Free clearance — use BF prefix
Specifications
- End Shape: Bent
- Grip Shape: Round
- Base Material: Brass, Bronze, Stainless steel
- Fastener: 1/4 - 20 x 2-1/4" Thru Bolt & Finish Washer (standard 1-3/4" door)
- Pull Type: Straight
- Advise if door thickness is other than 1-3⁄4"
- Clearance is 2-1/2" for stainless steel and 2" for aluminum, brass and bronze.
- Pull Projection is 3-1/2" for stainless steel and 3" for aluminum, brass and bronze.
| Part Number | Material Size | Center-To-Center | Base Size | Clearance | Weight |
|---|---|---|---|---|---|
|
T110 |
1" dia |
8" |
1" dia |
1 lbs |
|
|
T111 |
1" dia |
10" |
1" dia |
1.1 lbs |
|
|
T111A |
1" dia |
9" |
1" dia |
1.1 lbs |
|
|
T112 |
1" dia |
12" |
1" dia |
1.2 lbs |
|
|
T118 |
1" dia |
18" |
1" dia |
1.7 lbs |
Options
- Back to back mounting in pairs — use BTB suffix and mounting type number
- 2-1⁄2" Barrier Free clearance — use BF prefix
- Concealed mounting single pulls — use C suffix and mounting type number
