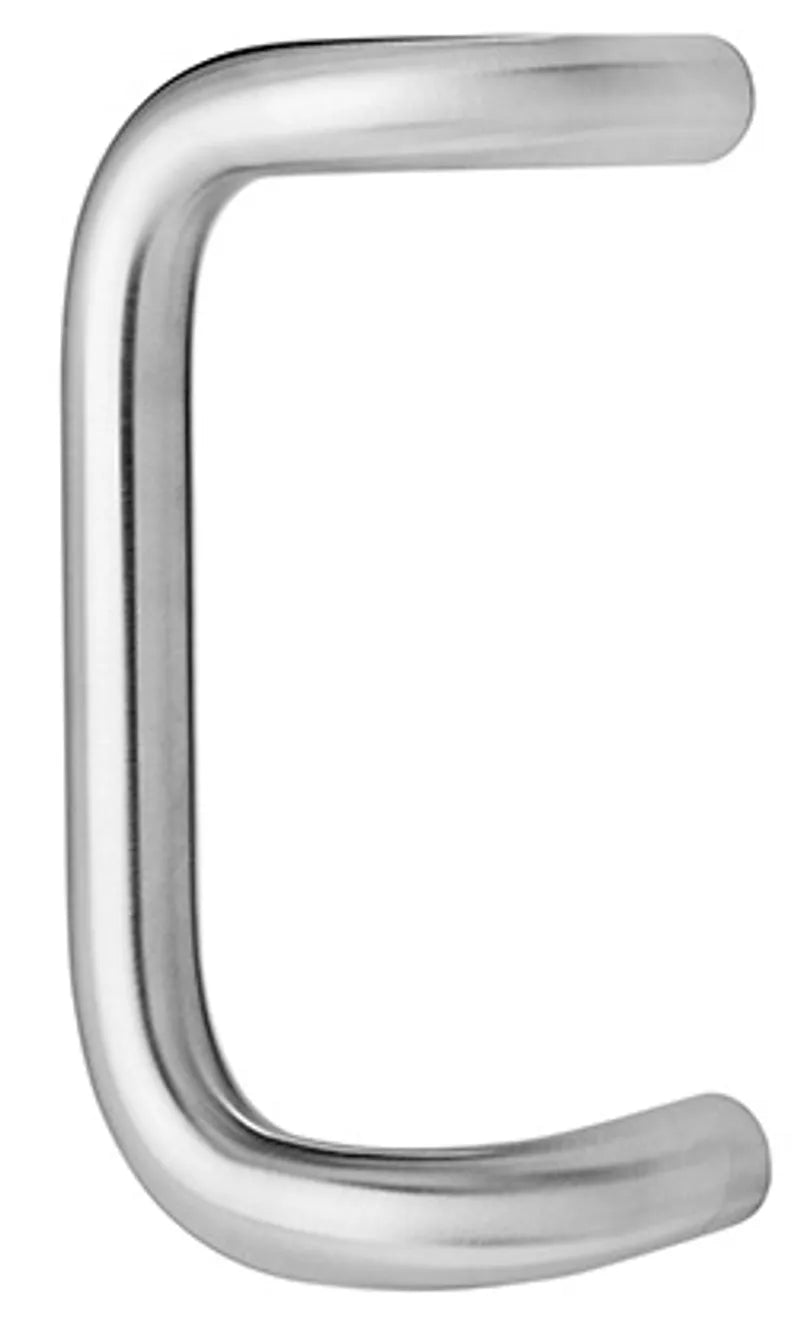

The TBF157 (10" CTC, 11" overall) 90° Offset Tubular Door Pulls are recommended for ADA openings.
Product Overview
Features
- 90˚ Offset Tubular Door Pull
- Recommended for ADA openings
Specifications
- End Shape: Bent
- Grip Shape: Round
- Base Material: Brass, Bronze, Stainless steel
- Fastener: 1/4 - 20 x 2-1/4" thru bolt & finish washer
- Projection: 3 1/2"
- Offset: 4"
- Advise if door thickness is other than 1-3⁄4"
- Back to back mounting in pairs — use BTB suffix and mounting type number
- Concealed mounting single pulls — use C suffix and mounting type number
- Mounting selections for standard duty 1/4-20 can be viewed under Mounting Details on this site
| Part Number | Material Size | Center-To-Center | Clearance | Max Overall Size | Weight |
|---|---|---|---|---|---|
|
TBF156 |
1" dia |
8" |
2 1/2" |
9" h |
1.3 lbs |
|
TBF157 |
1" dia |
10" |
2 1/2" |
11" h |
1.4 lbs |
|
TBF157A |
1" dia |
9" |
2 1/2" |
10" h |
1.4 lbs |
|
TBF158 |
1" dia |
12" |
2 1/2" |
13" h |
1.5 lbs |
|
TBF159 |
1" dia |
18" |
2 1/2" |
19" h |
1.5 lbs |
Mounting Types
Our mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back to back or concealed mountings for wood, metal and glass doors.
Note: Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Note: Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
Download Mounting Chart File: Mounting Chart.pdf
| Type | Description | |
|---|---|---|
|
Type 1 |
Thru Bolt Wood or Metal Door |
|
|
Type 12 |
Decorative Thru Bolt – Wood or Metal Door |
|
|
Type 15 |
Decorative Thru Bolt Glass Door |
|
|
Type 16 |
Back-to-Back Wood or Metal Door |
|
|
Type 17 |
Surface Concealed Metal Door |
|
|
Type 18 |
Back-to-Back Glass Door |
