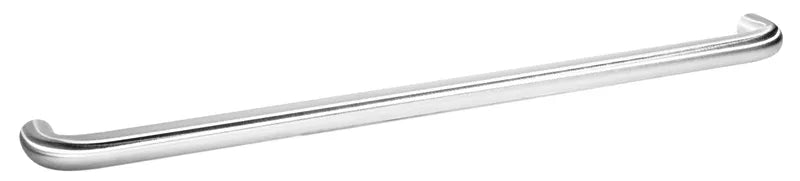

The T47 (one bar) T Series Tubular Push Bars are made from sturdy .065" thick wall tubing, with solid brass or stainless steel inserts that are brazed into the ends to provide a solid area for our guaranteed mounting systems. These cost-effective tubular pulls weigh 25% less than their solid counterparts; this 75% weight reduction greatly reduces the environmental impact of harvesting material for their manufacture. The lighter weight also minimizes the risk of damage in shipping and handling.
Product Overview
Features
- Engraving "PUSH" or "PULL"
Specifications
- End Shape: Bent
- Grip Shape: Round
- Base Material: Brass, Bronze, Stainless steel
Fastener: Metal & Wood Door: Type 1, 1/4 - 20 x 2-1/4" Thru Bolt & Finish Washer (standard 1-3/4" door); Metal Door: Type 6, Concealed, 1/4 - 20 CH MS - Advise if door thickness is other than 1-3/4"
- Ordering: Specify handing, specify CTC, door type, mounting, and finish
- Engraving "PUSH" or "PULL"
| Part Number | Material Size | Base Size | Projection | Clearance | Weight |
|---|---|---|---|---|---|
|
T47 |
1" dia |
1" dia |
2 3/4" |
1 3/4" |
2.9 lbs |
|
T47-2 |
1" dia |
1" dia |
2 3/4" |
1 3/4" |
5.8 lbs |
|
T47-3 |
1" dia |
1" dia |
2 3/4" |
1 3/4" |
8.7 lbs |
Mounting Types
Our mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back to back or concealed mountings for wood, metal and glass doors.
Note: Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Note: Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
Download Mounting Chart File: Mounting Chart.pdf
| Type | Description | |
|---|---|---|
|
Type 1 |
Thru Bolt Wood or Metal Door |
|
|
Type 6 |
Surface Concealed Metal Door |
