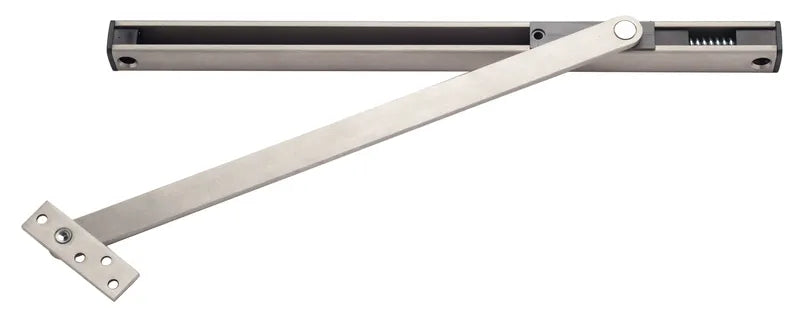

The heavy duty, stainless steel OH900 Series Surface Mounted Overhead Stop & Holder is specifically designed for single-acting doors and is highly recommended for installations with high traffic and the potential for heavy abuse. This durable solution is engineered to withstand rigorous use, making it an excellent choice for demanding applications.
Product Overview
Features
- Doors are single-acting
- Slide track design
- Recommended for high traffic, heavy abuse installations
- Heavy shock absorber spring provides 5-7° compression before deadstop
- On/off knob on hold open models
- Durable slider cam and shock block
- Stop function UL listed for fire door assemblies
- 110° maximum opening
- 1-3/4" minimum door thickness
- 1-3/16" square channel
Specifications
- Base Material: Stainless steel
- Fastener: Jamb: 1/4 -20 x 3/4" FH MS or #14 x 1-1/2" FH WS Door: 5/16-18 x 2" FH MS and 1/2" dia. sex bolt
- Weight: 4.5lbs.
- Handing: Non-handed
- Grade: Grade 1
- For pull side mounting or flush mounting on push side or for rabbeted push side, use the angle jamb bracket adapter AJB900LH or AJB900RH
- Complete screw packet with thru-bolts for door, wood, and machine screws for frame
- Torx® screws are optional for security applications
| Part Number | Door Holder | Max DWh (Offset) | Min DW(Offset) | Max DW (Center Hung) | Min DW (Center Hung) |
|---|---|---|---|---|---|
|
OH901S |
Stop |
28" |
24" |
||
|
OH902S |
Stop |
33" |
28 1/16" |
36" |
30" |
|
OH903S |
Stop |
38" |
33 1/16" |
41" |
36 1/16" |
|
OH904S |
Stop |
43" |
38 1/16" |
46" |
41 1/16" |
|
OH905S |
Stop |
48" |
43 1/16" |
50" |
46 1/16" |
|
OH901H |
Hold Open |
28" |
24" |
||
|
OH902H |
Hold Open |
33" |
28 1/16" |
36" |
30" |
|
OH903H |
Hold Open |
38" |
33 1/16" |
41" |
36 1/16" |
|
OH904H |
Hold Open |
43" |
38 1/16" |
46" |
41 1/16" |
|
OH905H |
Hold Open |
48" |
43 1/16" |
50" |
46 1/16" |
