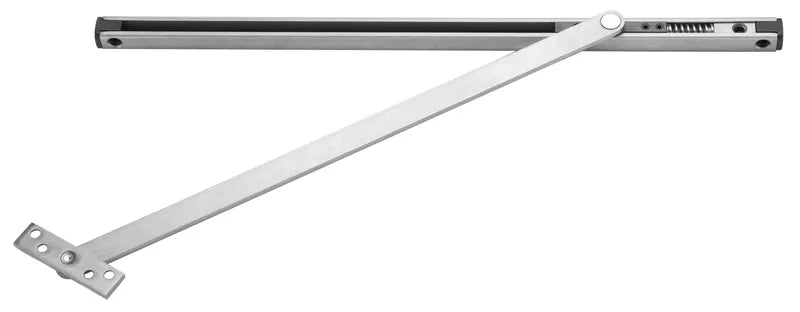

The standard duty, stainless steel OH1000 Series Surface Mounted Overhead Stop & Holder is designed specifically for single-acting doors and is an ideal choice for situations with medium traffic and medium-weight doors. This product features a heavy shock absorber spring that offers compression before the deadstop, and its stop function is UL listed for use in fire door assemblies for a reliable and safety-conscious option in various applications.
Product Overview
Features
- For single acting doors
- Slide track design
- Recommended for medium traffic, medium weight doors
- Degree of opening fully adjustable and can be adapted to changing needs
- Heavy shock absorber spring provides compression before deadstop
- Durable slider cam and shock block
- Stop function UL listed for fire door assemblies
- 110° maximum opening
- 3/4" square channel
- Multi-function unit is shipped as a stop
Specifications
- Base Material: Stainless steel
- Fastener: Jamb: #12 x 1-1/2" FH WS or #12-24 x 1/2" FH MS Door: #12-24 x 1-1/2" FH MS and 5/16" dia. sex bolt
- Weight: 3.5lbs.
- Handing: Non-handed
- For pull side mounting, or flush and rabbeted mounting on push side, use angle jamb bracket adapter JB1000
- Torx® screws optional for security applications, but heavy-duty units should be considered for high-security applications
- Complete screw packet with thru-bolts for door, wood and machine screws for frame
| Part Number | Door Holder | Max DWh (Offset) | Min DW(Offset) | Max DW (Center Hung) | Min DW (Center Hung) |
|---|---|---|---|---|---|
|
OH1001M |
Multi-function |
24" |
18" |
26 1/2" |
21" |
|
OH1002M |
Multi-function |
30" |
24 1/16" |
32" |
26 9/16" |
|
OH1003M |
Multi-function |
36" |
30 1/16" |
38" |
32 1/16" |
|
OH1004M |
Multi-function |
42" |
36 1/16" |
45" |
38 1/16" |
|
OH1005M |
Multi-function |
48" |
42 1/16" |
48" |
45 1/16" |
