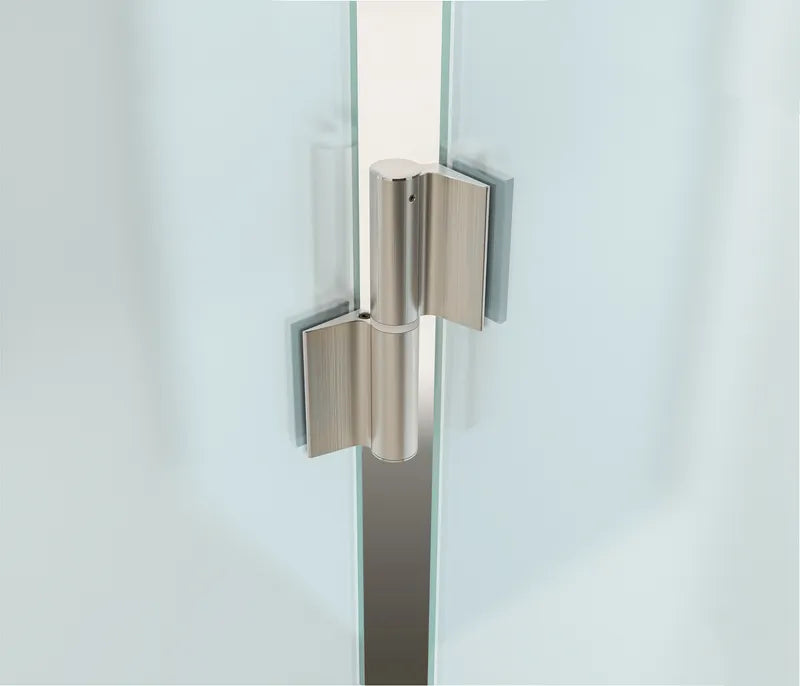

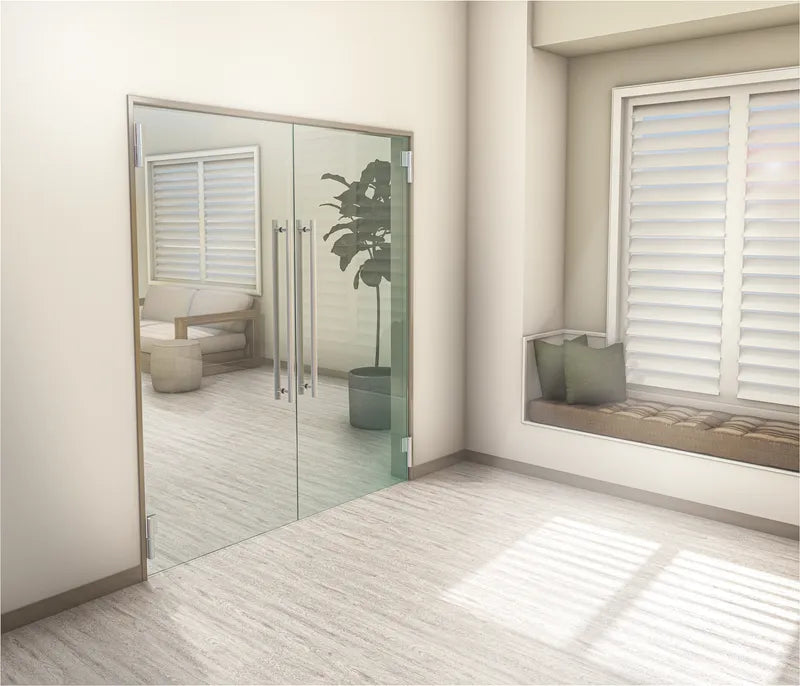

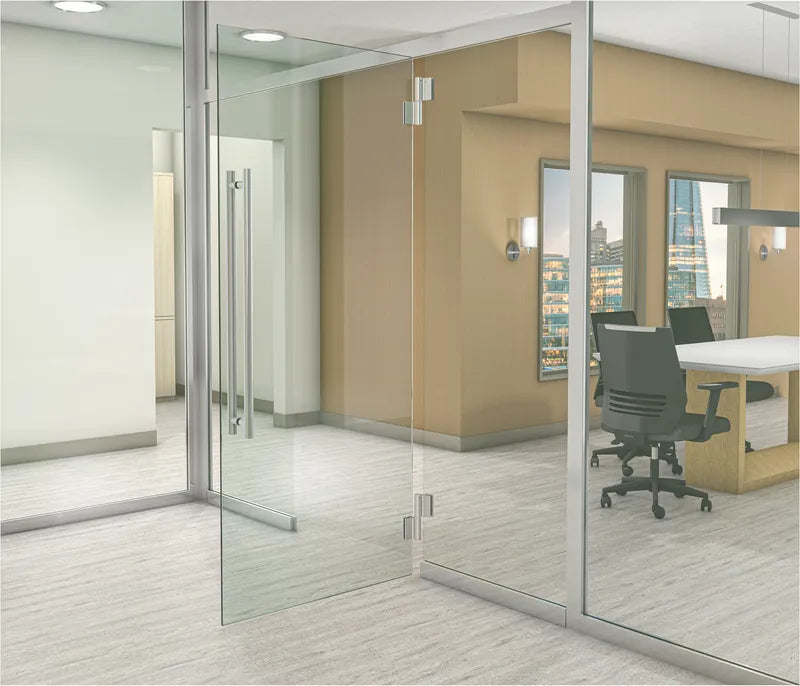

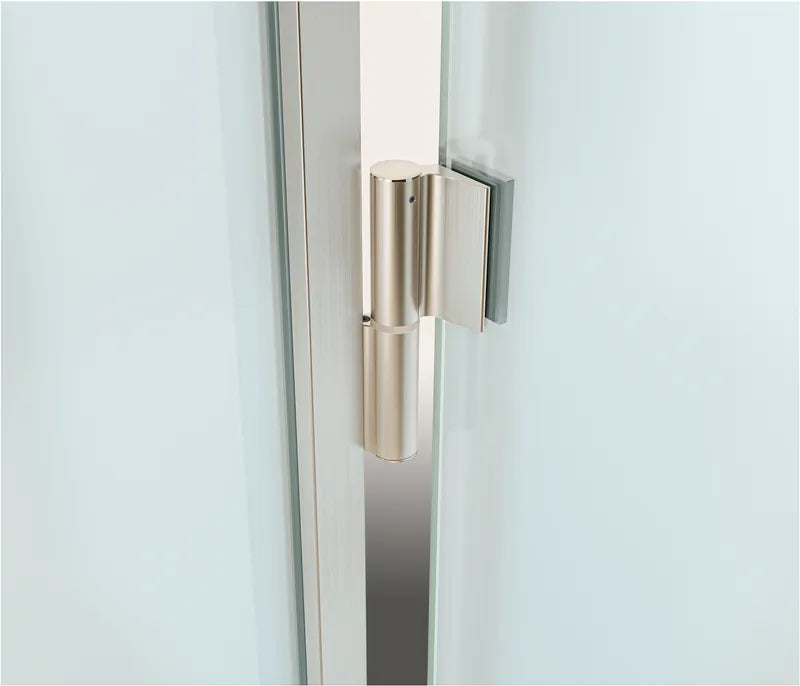

Hydraulic Glass Door Hinges softly close the door, providing an additional option when floor and overhead concealed closers are not required. Their simple design creates an appealing glass door opening.

Product Overview

Features

• Sold in sets. Supplied with DS-3000 or DS-6000 Stop

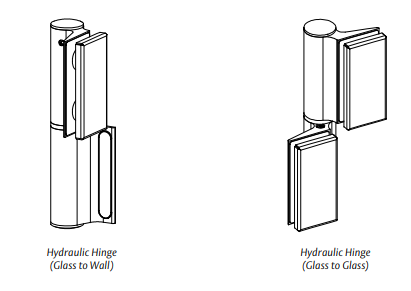

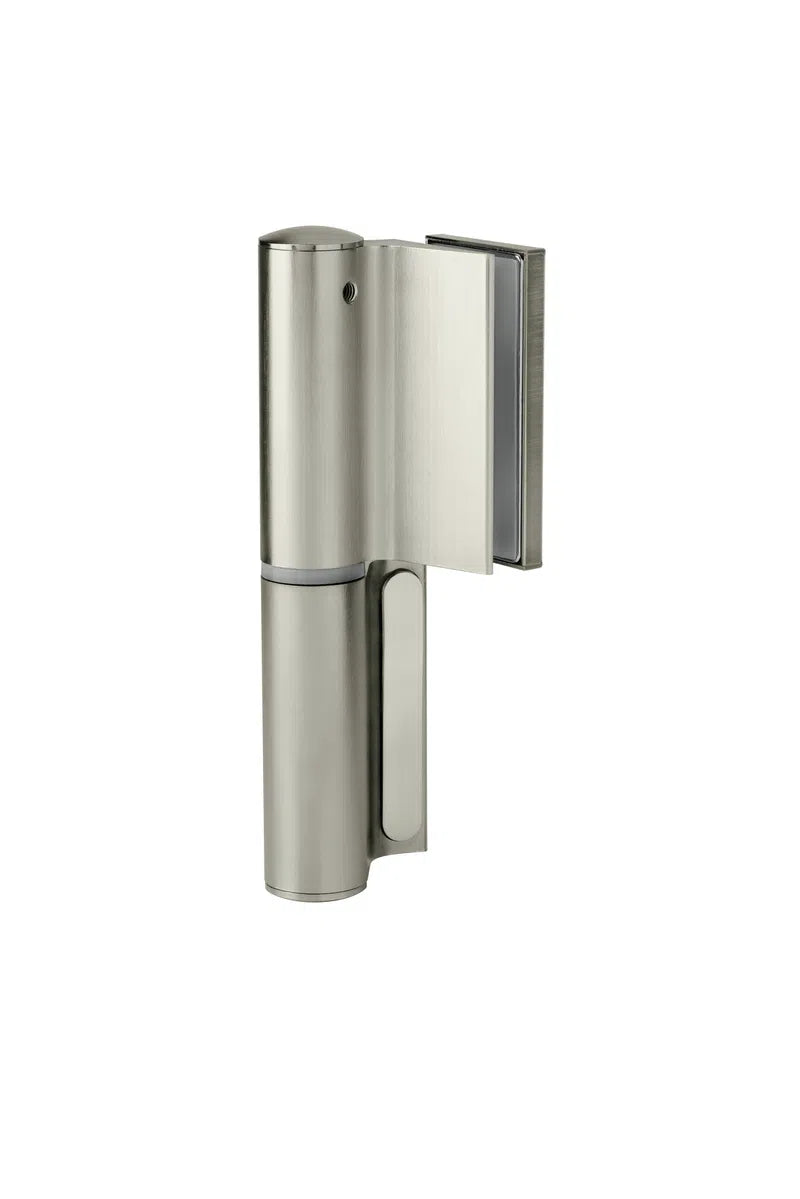

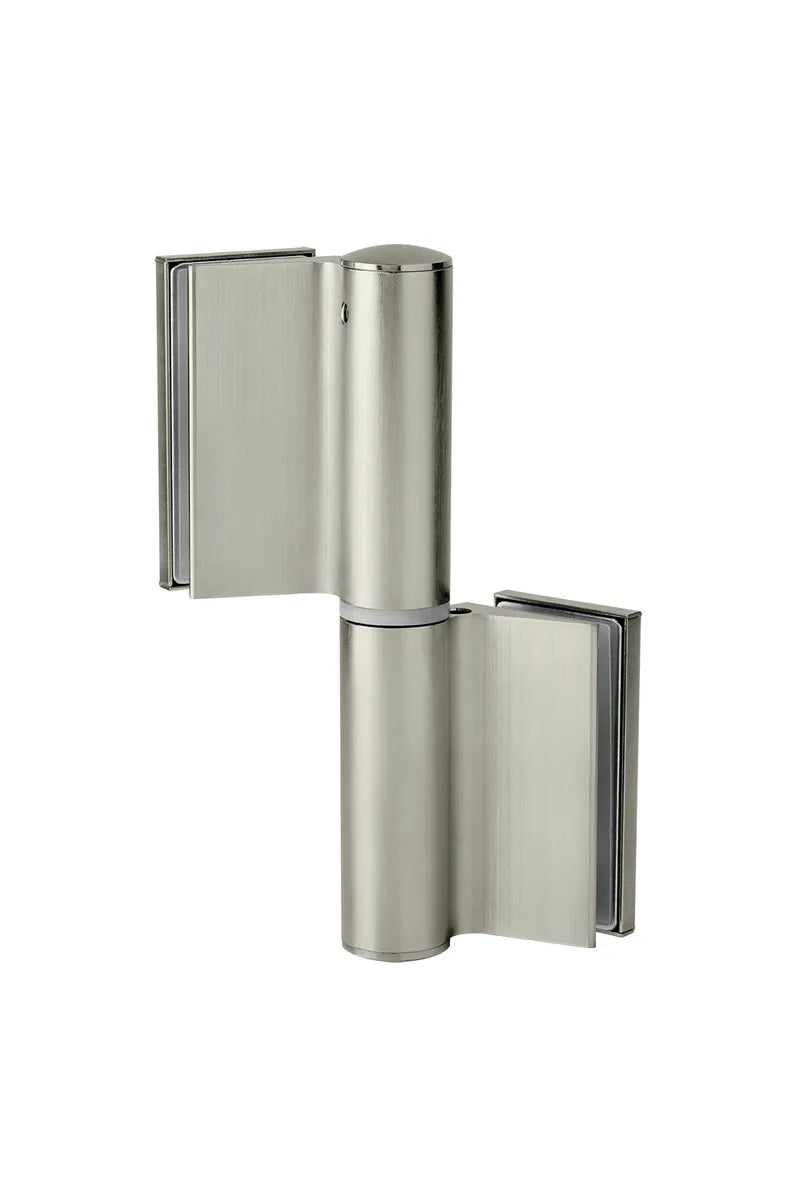

• Mounting options: Glass to Glass or Glass to Wall

• Hold-open between 90 and 180 degrees

• Adjustable closing speed and constant braking control

• ADA option available (HYD-HINGE-ADA)

• Handed (RH or LH)

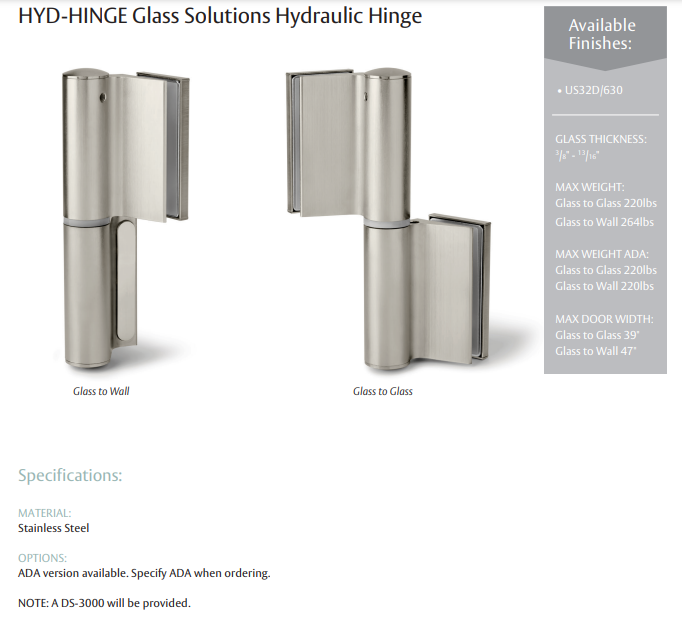

Specifications

• Glass Thickness: 3/8", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16"

• Material: Stainless Steel
