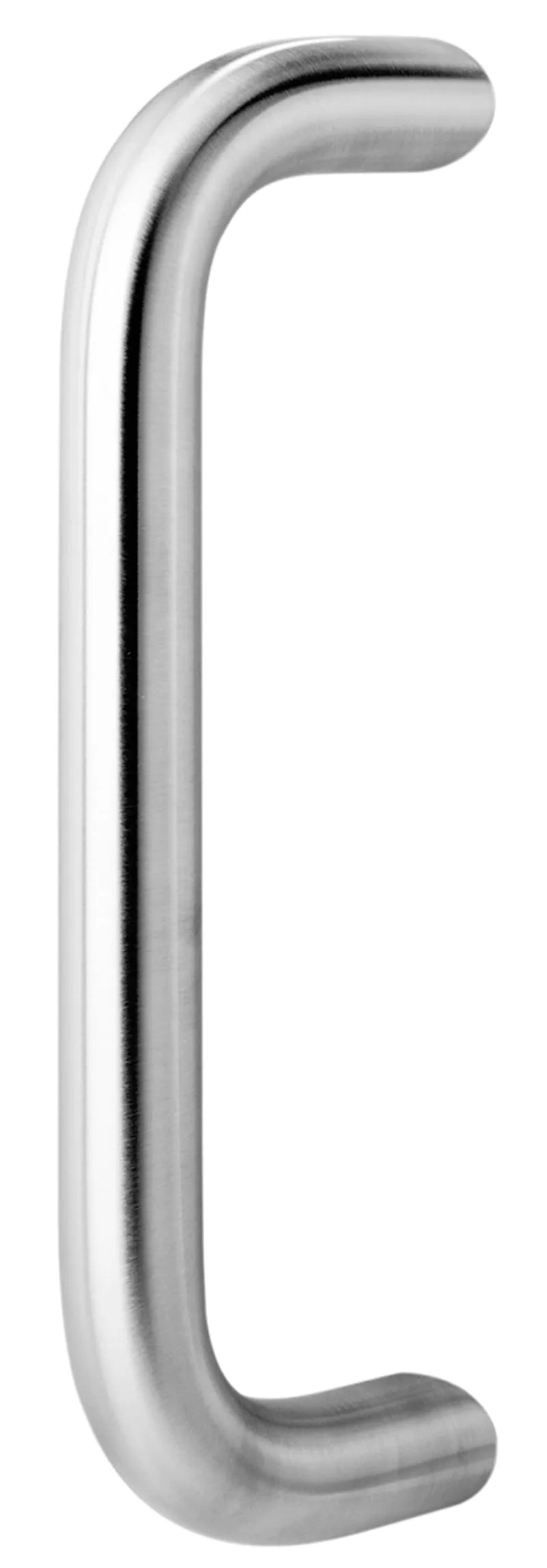

The BF257, BF258, BF259, BF260 Heavy Duty Offset Door Pulls are ideal for use in rough service areas, while their large footprint on the door provides stable mounting.
Product Overview
Features
- Heavy Duty Offset Door Pulls
- Heavy duty pull and mounting for rough service areas
- Large footprint on door provides stable mounting
- US32316, US32D316 finishes offer superior corrosion resistance for withstanding harsh environments
Benefits
- US32316, US32D316 finishes ideal for use in coastal, high salt level, urban, and industrial areas, and environments exposed to alkalis and acids
Specifications
- End Shape: Bent
- Grip Shape: Round
- Base Material: Aluminum, Brass, Bronze, Stainless steel
- Fastener: 3/8 - 16 x 2-1/2" thru bolt & finish washer
- Projection: 3 3/4"
- Offset: 2 15/16"
- Mounting selections for standard duty 1/4-20 can be viewed under Mounting Details on this site
- Advise if door thickness is other than 1-3⁄4"
| Part Number | Material Size | Center-To-Center | Clearance | Max Overall Size | Weight |
|---|---|---|---|---|---|
|
BF257 |
1 1/4" dia |
10" |
2 1/2" |
11 1/4" h |
8.3 lbs |
|
BF258 |
1 1/4" dia |
12" |
2 1/2" |
13 1/4" h |
9 lbs |
|
BF259 |
1 1/4" dia |
18" |
2 1/2" |
19 1/4" h |
11.1 lbs |
|
BF260 |
1 1/4" dia |
24" |
2 1/2" |
25 1/4" h |
13.3 lbs |
Mounting Types
Our mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back to back or concealed mountings for wood, metal and glass doors.
Note: Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Note: Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
Download Mounting Chart File: Mounting Chart.pdf
| Type | Description | |
|---|---|---|
|
Type 1XHD |
Thru Bolt Extra Heavy Duty - Wood or Metal Door |
|
|
Type 5HD |
Back-to-Back Heavy Duty - Wood or Metal Door |
|
|
Type 6HD |
Surface Concealed Heavy Duty - Metal Door |
|
|
Type 12XHD |
Decorative Thru Bolt Extra Heavy Duty - Wood or Metal Door |
|
|
Type 13HD |
Back-to-Back Heavy Duty - Glass Door |
