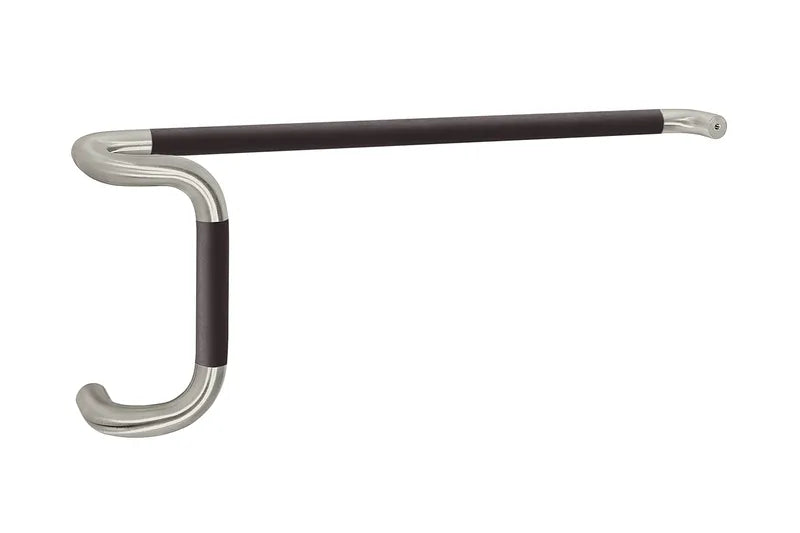

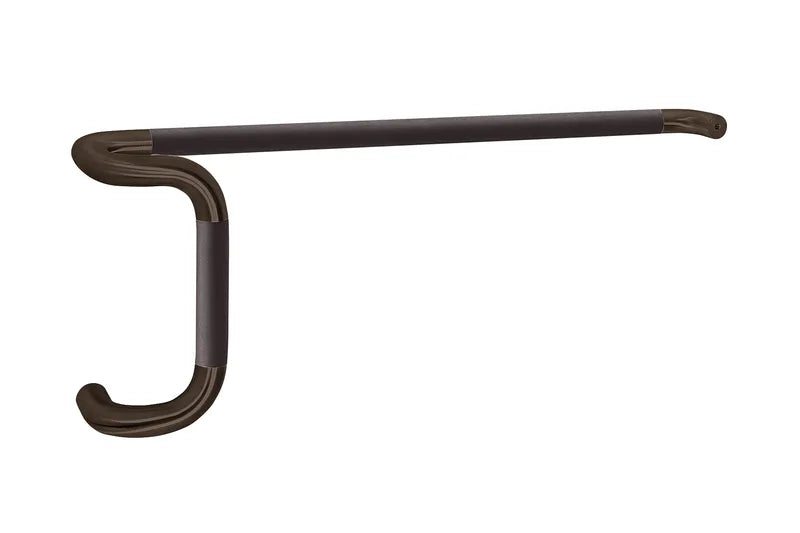

The aluminum BF195149 Offset Single Bar Set features a durable, weather-resistant Santoprene grip.
Product Overview
Features
- Santoprene™ durable weather resistant grip
- Black, red or brown Santoprene available
- Custom Santoprene colors available upon request
- Soft, comfortable gripping surface
- Santoprene made in-house by Lorient US
Specifications
- Grip Shape: Round
- Base Material: Aluminum
- Door Material: Metal, Wood
- Grip Type: Santoprene
- Diameter: 1"
- Weight: 15.2lbs.
- Push Clearance: 1 3/4"
- Projection: 3 1/2"
- Push CTC: 36"
- Ordering: Specify product number, mounting, door type, push bar CTC, and finish (i.e., BF19549 T3,wood door, 33" CTC, US28)
Mountings:
- Metal and Wood: T3 Back to Back and Thru Bolt; Pull Free End = 1, Push Free End = 1, Common End = 5
- Metal and Wood: T4 Back to Back and Concealed; Pull Free End = 6, Push Free End = 6, Common End = 5
- Wood: T5 Back to Back and Concealed; Pull Free End = 8, Push Free End = 8, Common End = 5
- Metal & Wood: T1 Back to Back and Decorative Bolt; Pull Free End = 12, Push Free End = 12, Common End = 5
- Glass: T2 Back to Back and Thru Bolt; Pull Free End = 15, Push Free End = 15; Common End = 13
- T3 is the standard mounting method for Metal and Wood Doors. (See our mounting selections on this site)
| Part Number | Material Size | Pull CTC | Pull Clearance | Push Projection | Weight |
|---|---|---|---|---|---|
|
BF19549 |
1" dia |
18" |
2 1/2" |
2 3/4" |
15.2 lbs |
Options
-
Y - Base Plate
Mounting Types
Our mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back to back or concealed mountings for wood, metal and glass doors.
Note: Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Note: Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
Download Mounting Chart File: Mounting Chart.pdf
| Type | Description | |
|---|---|---|
|
T1 |
Back-to-Back and Decorative Thru Bolt on Free End for Wood/Metal Door |
|
|
T2 |
Back-to-Back and Decorative Thru Bolt on Free End for Glass Door |
|
|
T3 |
Back-to-Back and Thru Bolt on Free End for Wood/Metal Door |
|
|
T4 |
Back-to-Back and Concealed Mounting on Free End for Metal Door |
|
|
T5 |
Back-to-Back and Concealed Mounting on Free End for Wood Door |
