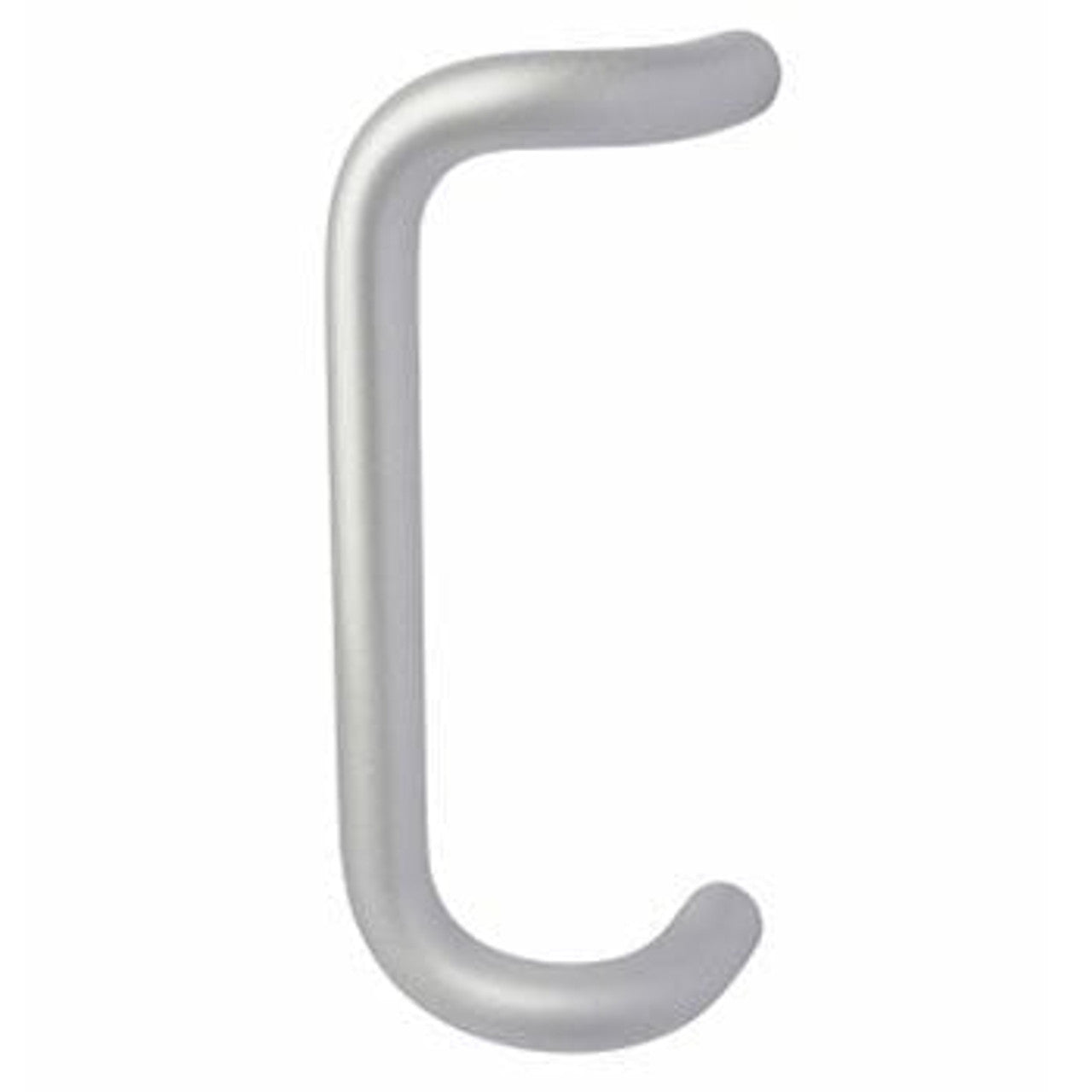

The BF158 90° Offset Door Pulls are recommended for ADA openings and feature back-to-back and concealed mounting options.
Product Overview
Features
- Recommended for ADA openings
- US32316, US32D316 finishes offer superior corrosion resistance for withstanding harsh environments
Benefits
- Barrier-free
- US32316, US32D316 finishes are ideal for use in coastal, high salt level, urban, and industrial areas, and environments exposed to alkalis and acids
Specifications
- End Shape: Bent
- Grip Shape: Round
- Base Material: Aluminum, Brass, Bronze, Stainless steel
- Fastener: 1/4 - 20 x 2-1/4" thru bolt & finish washer
- Projection: 3 1/2"
- Offset: 4"

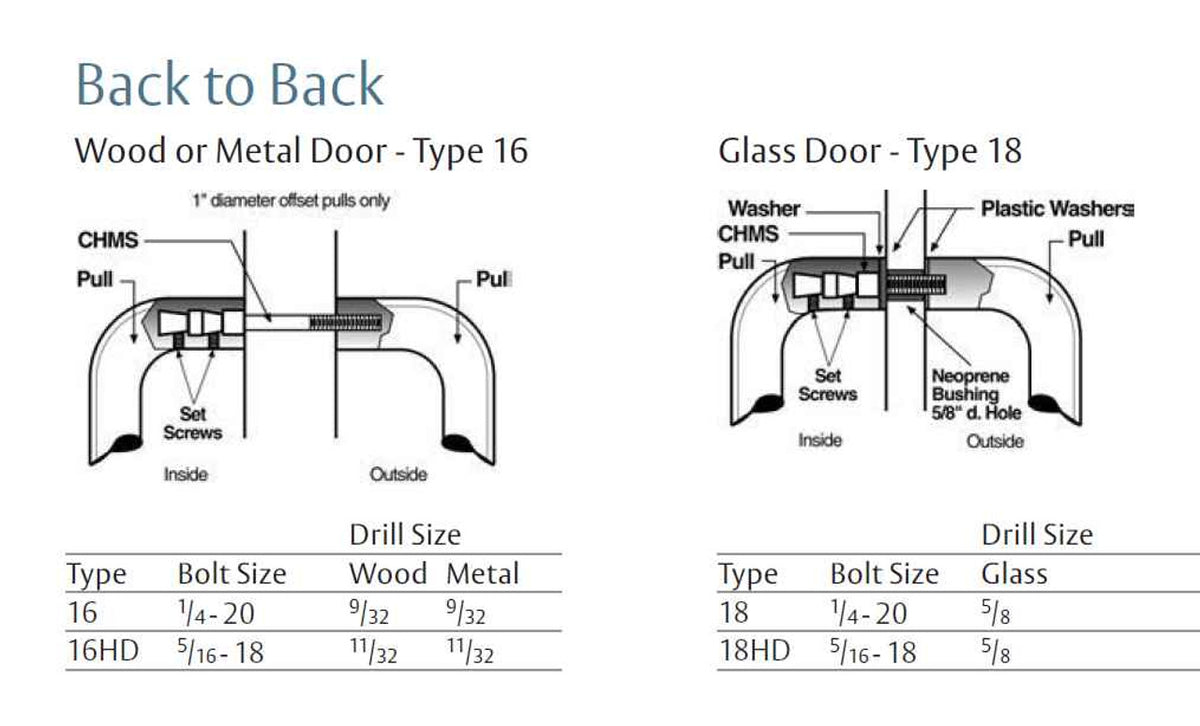

- Back to back mounting in pairs — use BTB suffix and mounting type number
- Heavy duty versions of most fastening types available — use suffix HD to fastening type number
- Advise if door thickness is other than 1-3⁄4"

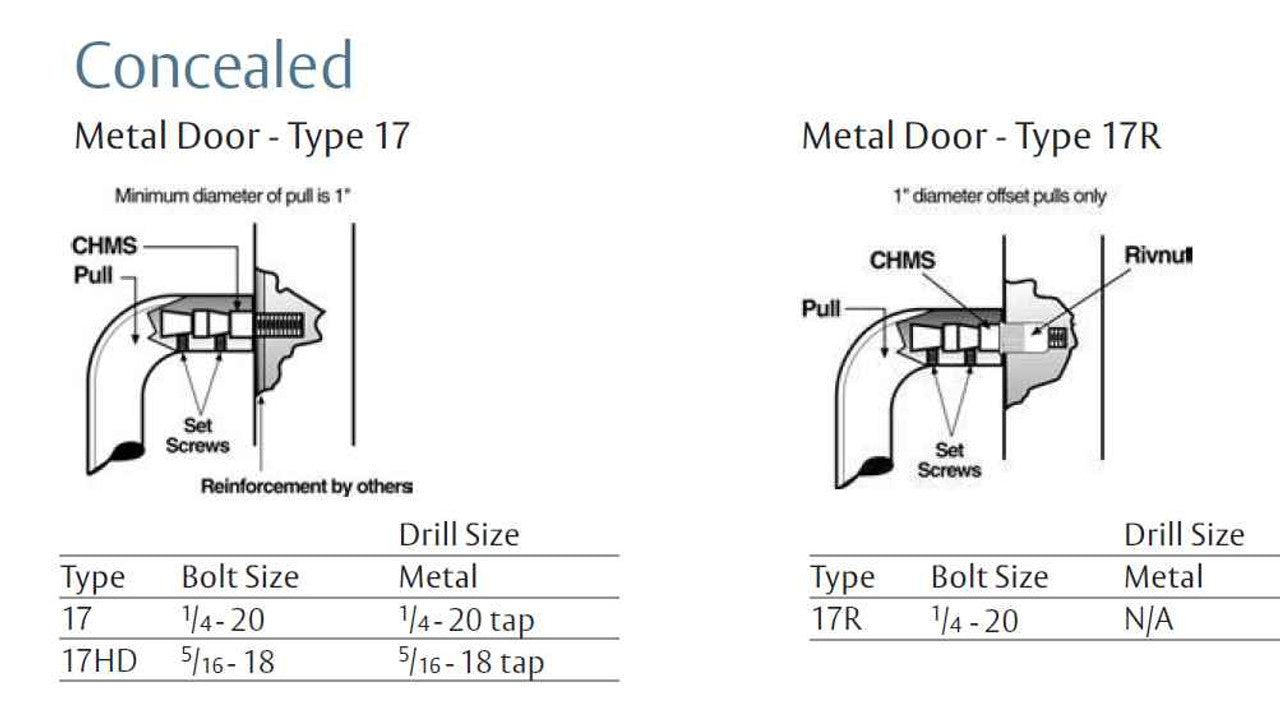

- Concealed mounting single pulls — use C suffix and mounting type number
- Mounting selections for standard duty 1/4-20 can be viewed under Mounting Details on this site

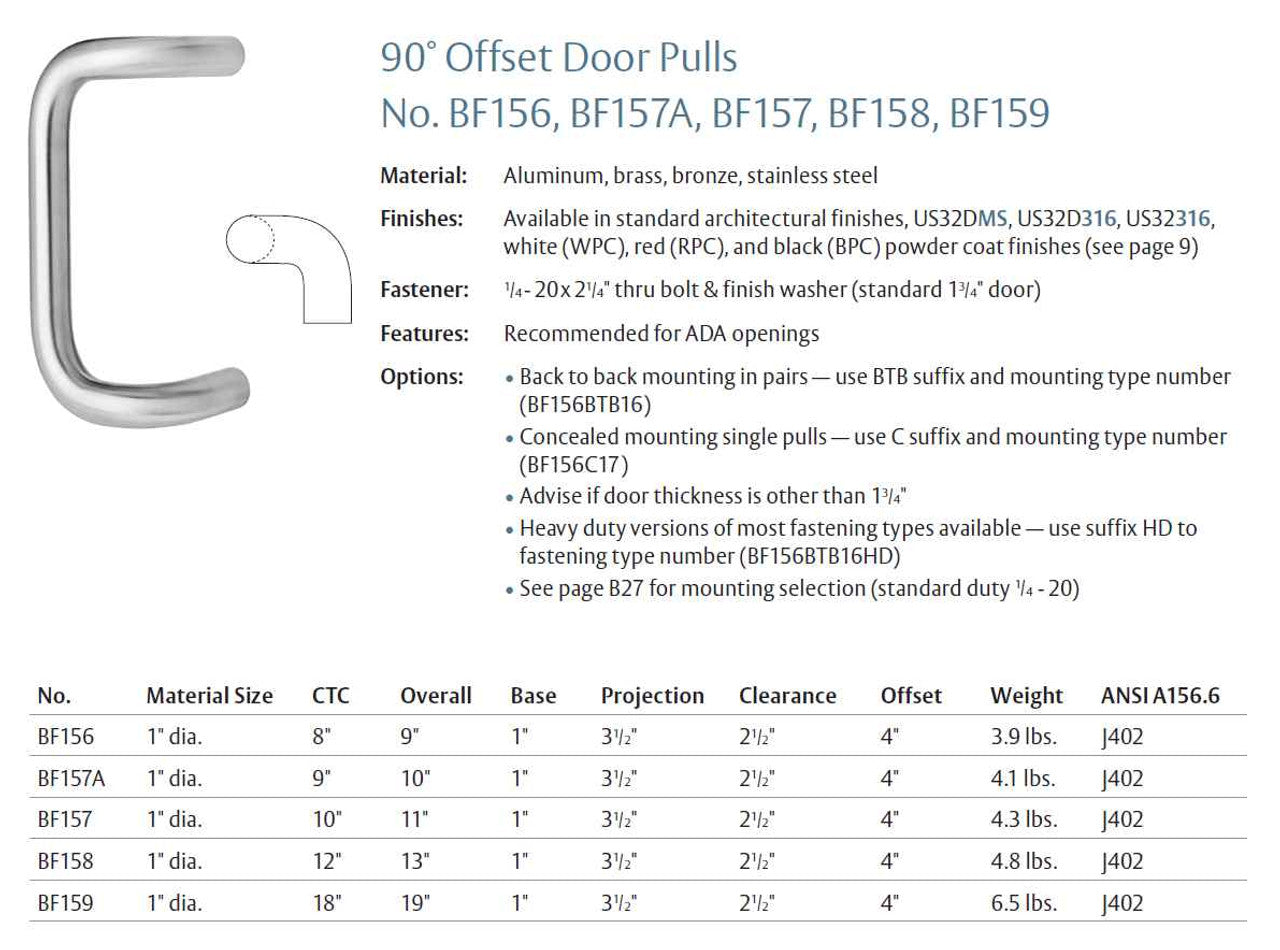

| Part Number | Material Size | Center-To-Center | Clearance | Max Overall Size | Weight |
|---|---|---|---|---|---|
|
BF156 |
1" dia |
8" |
2 1/2" |
9" h |
3.9 lbs |
|
BF157 |
1" dia |
10" |
2 1/2" |
11" h |
4.1 lbs |
|
BF157A |
1" dia |
9" |
2 1/2" |
10" h |
4.3 lbs |
|
BF158 |
1" dia |
12" |
2 1/2" |
13" h |
4.8 lbs |
|
BF159 |
1" dia |
18" |
2 1/2" |
19" h |
6.5 lbs |
