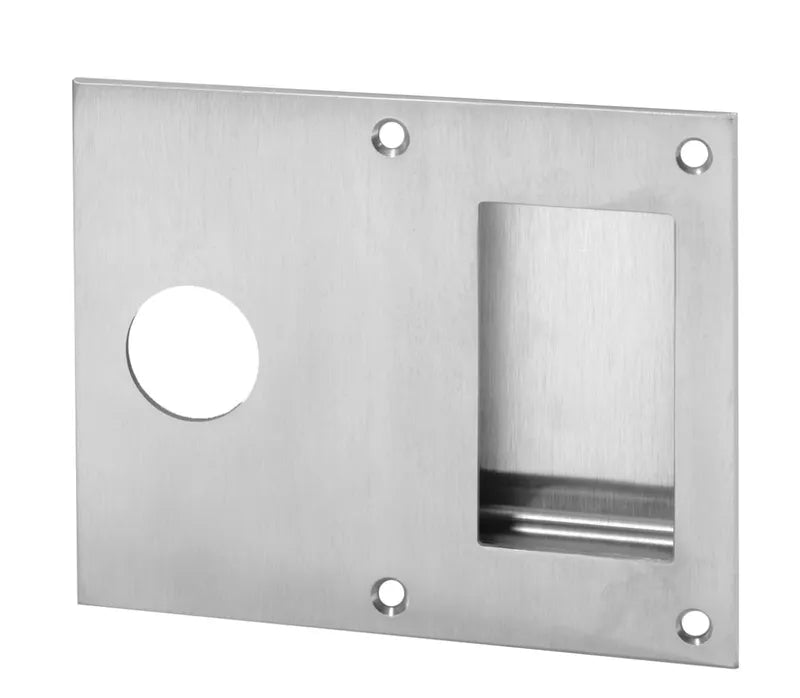

The vandal resistant 94DLS Dead Lock Flush Door Pulls are used with dead bolt locks where projecting trim is an operational problem or an aesthetic objection. Vandal resistant. These pulls are ideal for use on “exit only” doors where occasional entrance is required (warehouse exits), night latch function exit device openings (classroom exit only doors), and mechanical closet doors.
Product Overview
Features
- Vandal resistant
- Use where projecting trim is an operational problem or an esthetic objection
- Used with dead bolt lock. 1-1/4" cylinder hole is standard.
- Ideal for use on "exit only" doors where occasional entrance is required (warehouse exits), night latch function exit device openings (classroom exit only doors), mechanical closet doors and anywhere dead locking is approved
- US32316, US32D316 finishes offer superior corrosion resistance for withstanding harsh environments
Specifications
- Base Material: Brass, Bronze, Stainless steel
- Pull Type: Flush
- Cups are painted black on all finishes except stainless steel
| Part Number | Size | Grip Size | Weight | Fastener |
|---|---|---|---|---|
|
94DLL |
8" w x 6 1/8" h x 7/8" d |
1 3/4" w x 6 1/8" l |
1 lbs |
#8 x 3/4" OH SMS |
|
94DLS |
5" w x 6 1/8" h x 7/8" d |
1 3/4" w x 3 1/8" l |
0.8 lbs |
#8 x 3/4" OH SMS |
Options
- TORX - Security Torx Screws
- CFC - Cut for Cylinder
