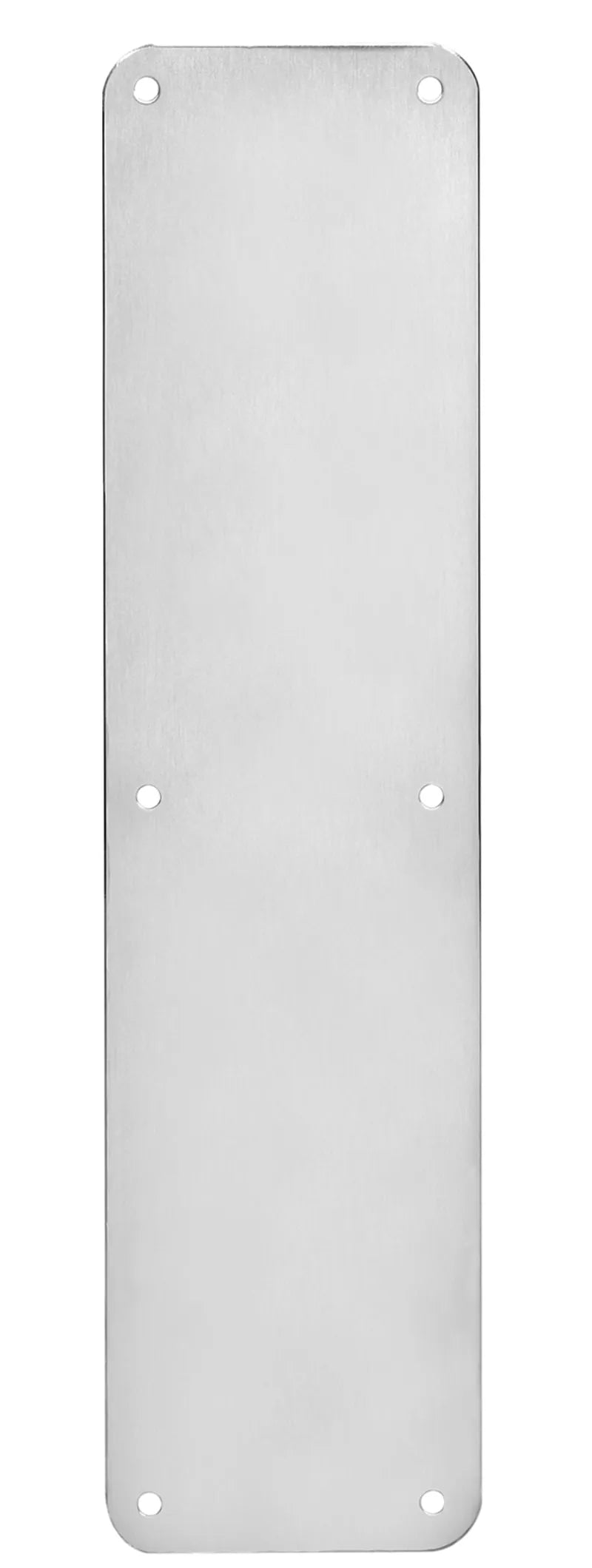

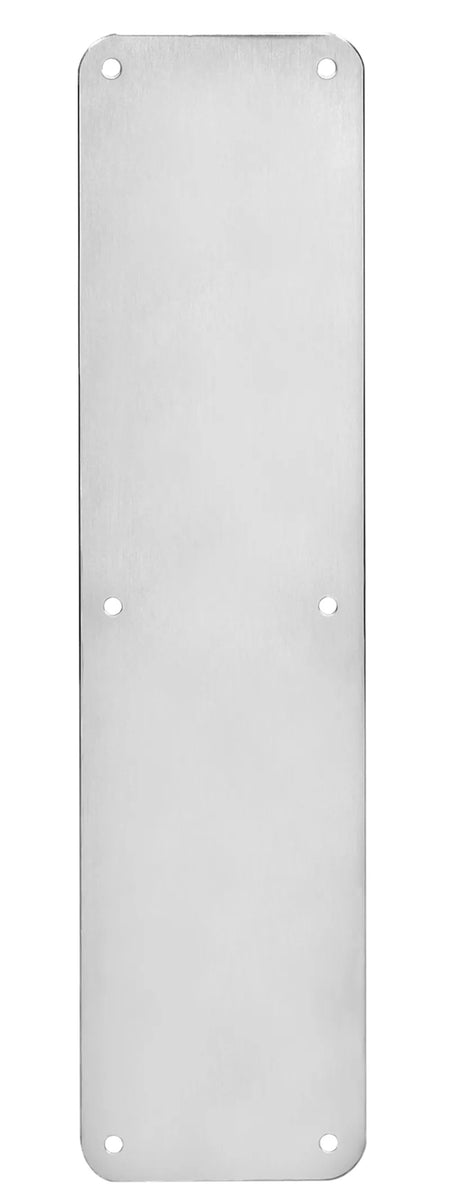

The .050" thick 70RC Push Plates feature round corners with beveled edges, and is used to protect a door when being opened.
Product Overview
Features
- Four beveled edges
- Custom sizes available upon request
- US32316, US32D316 finishes offer superior corrosion resistance for withstanding harsh environments
- SA - self-adhesive mounting: 1⁄16" double face foam tape (no screw holes on plate)
- Engraving on plates 4" wide or wider. Specify copy.
- Cylinder Cutouts (CFC) and Turn Knob Cutouts (CFTT)
Benefits
- US32316, US32D316 finishes ideal for use in coastal, high salt level, urban, and industrial areas, and environments exposed to alkalis and acids
Specifications
- Grip Shape: Flat
- Base Material: Aluminum, Brass, Bronze, Stainless steel
- Fastener: #6 x 5/8" OH SMS
- Ordering: Specify plate number followed by size designation and finish.
| Part Number | Size | Weight |
|---|---|---|
|
70RCA |
3" w x 12" h |
0.7 lbs |
|
70RCB |
3 1/2" w x 15" h |
0.9 lbs |
|
70RCC |
4" w x 16" h |
1 lbs |
|
70RCE |
6" w x 16" h |
1.5 lbs |
|
70RCF |
8" w x 16" h |
2 lbs |
|
70RCG |
4" w x 20" h |
1.3 lbs |
Options
- TEK - Self-Drilling Screws
- TORX - Security Torx Screws
- CFC - Cut for Cylinder
- CFTT - Cut for Turn Knob
- ENG - Engraving
- SA - Self-Adhesive Mounting
