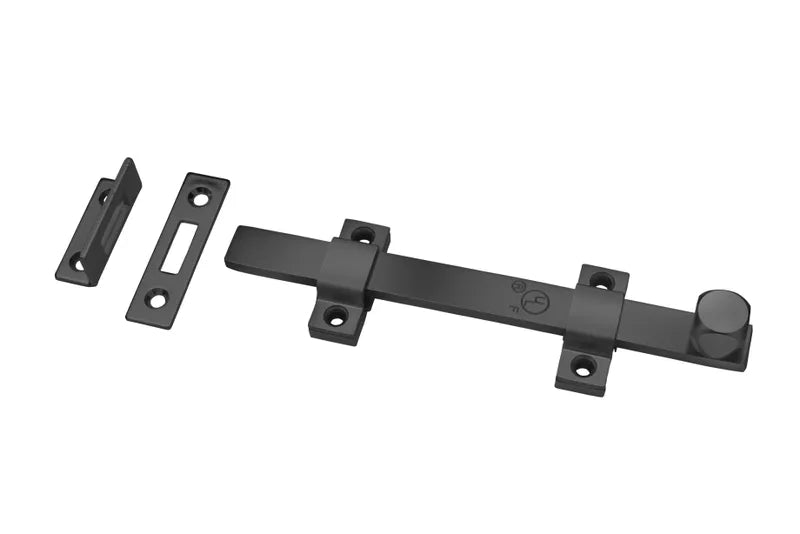

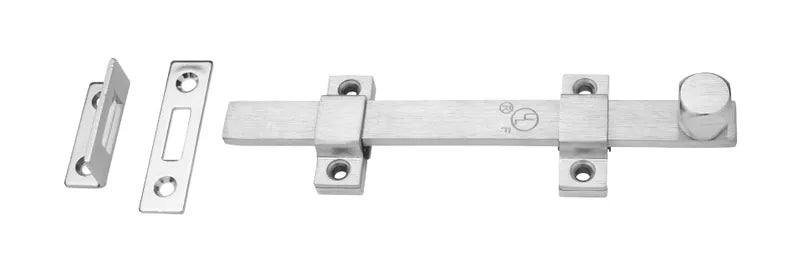

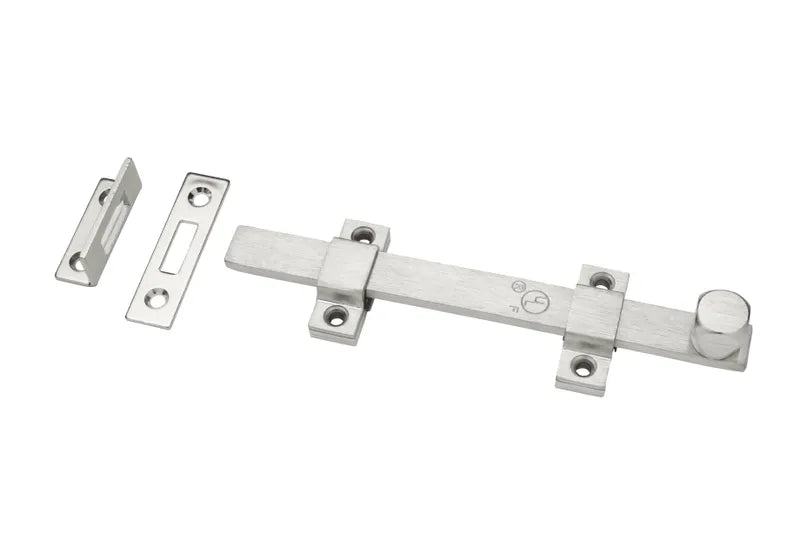

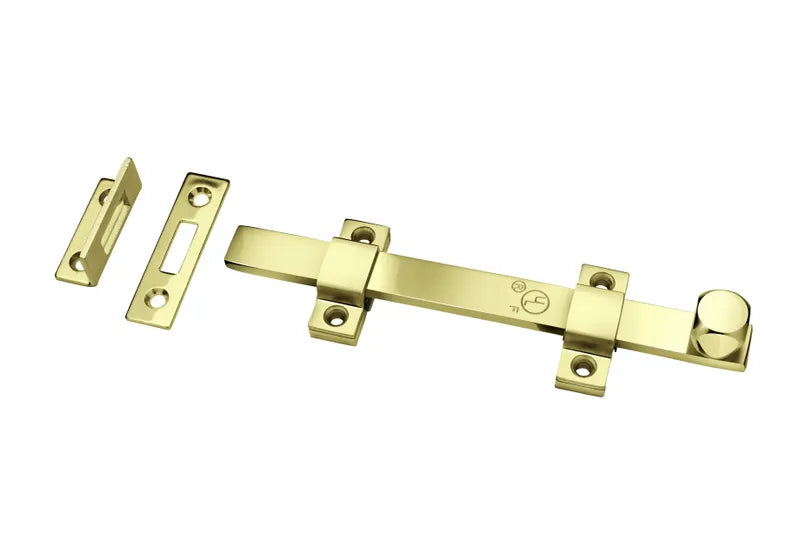

The 580 (steel, stainless steel) Series Surface Bolts both include a universal top strike and a mortise bottom strike. The 580 features bolts that are UL listed for use on inactive leaf of a pair of 3-hour labeled fire doors, while the 582 has bracket for padlock (not included).
Product Overview
Features
- Includes a universal top strike and a mortise bottom strike
- 580 Series UL listed for use on inactive leaf of a pair of 3-hour labeled fire doors
- Sex bolts available for extra secure mounting
Benefits
- Durable, ideal for applications where long-lasting reliability required
- Various finishes available to match other door hardware
- Enhances overall security of opening
- Sex bolts further prevent tampering
- 580 is suitable for applications where fire code compliance is necessary
- Commonly used on warehouse, closet doors
Specifications
| Part Number | Bolt Size | Weight |
|---|---|---|
|
580-12 |
12" l |
1.4 lbs |
|
580-18 |
18" l |
1.7 lbs |
|
580-24 |
24" l |
2 lbs |
|
580-8 |
8" l |
1.1 lbs |
|
582-12 |
12" l |
1.6 lbs |
|
582-8 |
8" l |
1.3 lbs |
