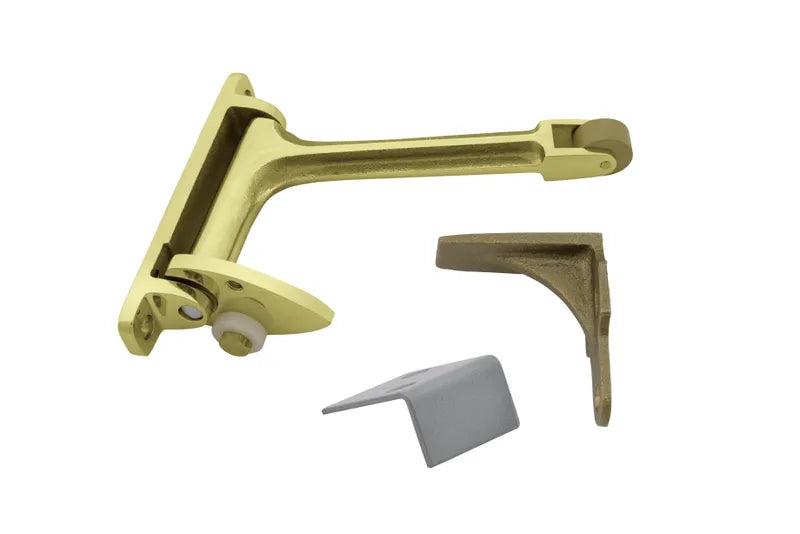

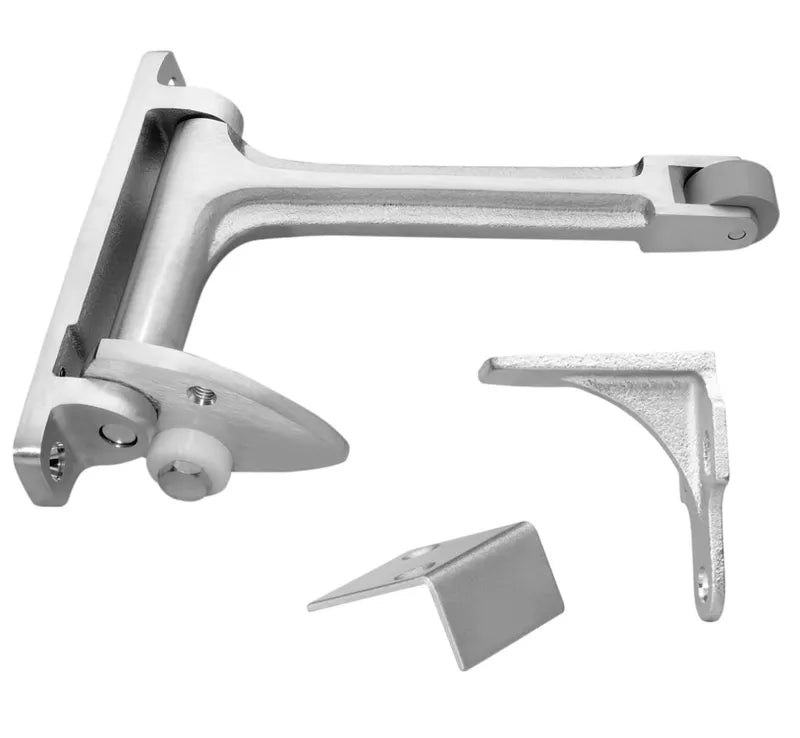

Rockwood 576 Gravity Door Coordinators

The non-handed, reversible 576 Gravity Door Coordinator prevents the active door from closing until the inactive door is closed.

Product Overview

Features

• For use on door sizes: With Astragal on active door - 18" to 48" With Astragal on inactive door - 18" to 34" With Astragal on both doors - 18" to 30" *The overlap of the astragal is maximum 7/8" with door hung on standard hinges - sustomer must contact the factory for all other astragal situations
• Non-handed reversible
• Prevents the active door from closing until the inactive door is closed
• Not recommended for schools

Specifications

• Base Material: Cast brass
• Overall Width: 1"
• Fastener: Body: 2 ea. #10 x 1" FH SMS, 2 ea. #10 - 24 x 1" FH MS Strike: 5 ea. #8 x 1" FH SMS
• Projection: 7
