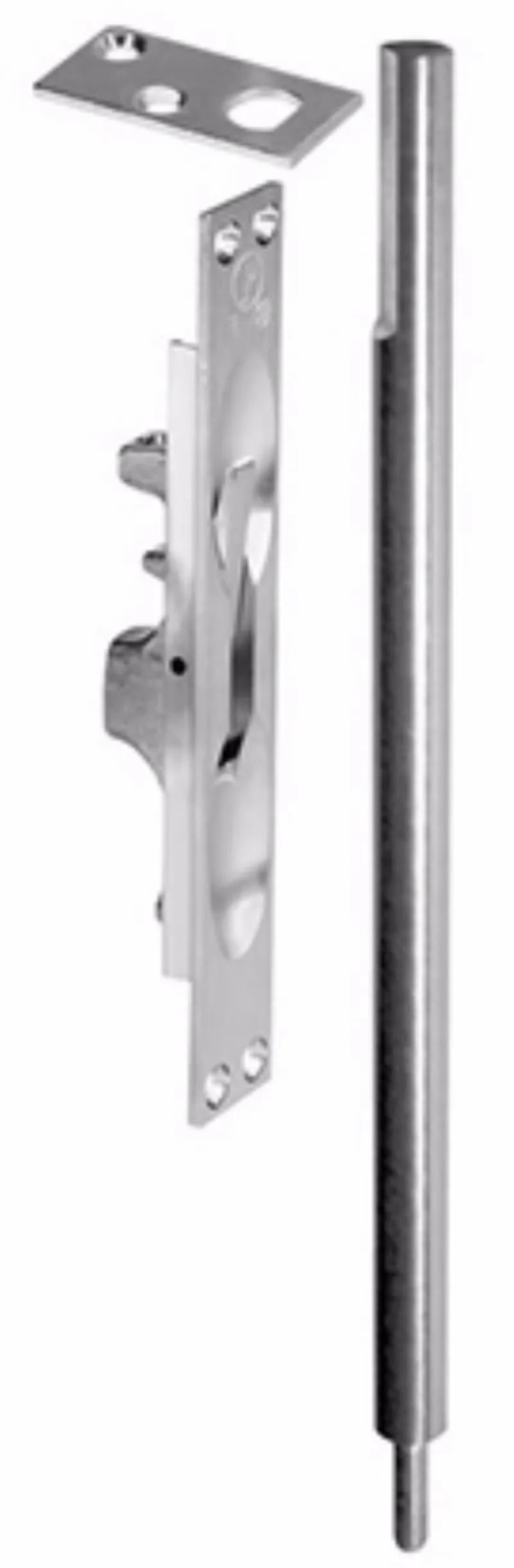

The 556WS Windstorm Lever Extension Flush Bolt is part of a UL certified assembly that is listed for use on both in-swing or out-swing paired applications. The full assembly, which includes doors and latching hardware from other ASSA ABLOY brands, is approved for use in the state of Florida including the High Velocity Hurricane Zone (HVHZ).
Product Overview
- ¾" rod backset
- 12" Stainless Steel Rod Length (Center of Face to Bolt End- Retracted)
Specifications
- Base Material: Brass, Stainless steel
- Fastener: 8 ea. #8 - 32 x 1/4" FH MS
- Weight: 1.25lbs.
- Body Depth: 1"
- Body Height: 5 1/4"
- Body Width: 1 3/8"
- Bolt Throw: 3/4"
- Rod Length: 12"
| Part Number | Faceplate Sizing | Guide Sizing | Strike Sizing |
|---|---|---|---|
|
556WS |
1" w x 6 3/4" l x 1/8" d |
1" w x 2" l |
2 1/4" h x 15/16" l |
