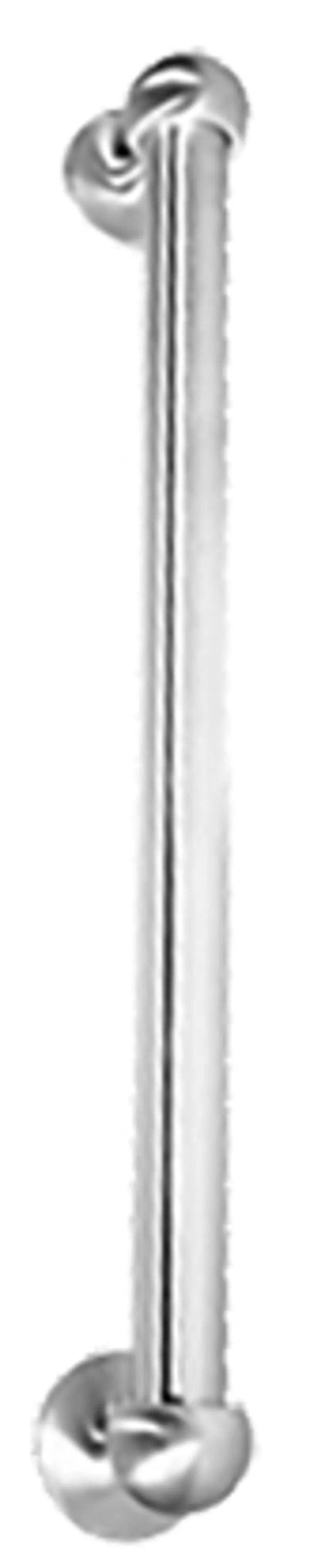

The 53-PB Door Pull features cast slip-on end brackets and can be mounted on wood or metal doors.
Product Overview
Features
- Cast slip-on end brackets
Specifications
- End Shape: Round
- Grip Shape: Round
- Base Material: Brass, Bronze
- Fastener: Metal & Wood Door: Type 1, Thru Bolt, 1/4 - 20 x 2-1/4" MS, Finish Washers (standard 1-3/4" door) Metal Door: Type 2, Surface, #8 - 32 x 3/4" OH MS Wood Door: Type 2, Surface, #8 x 3/4" OH SMS
- Center-To-Center: 12"
- Grip Diameter: 1"
- Options: Advise if door thickness is other than 1-3/4"
- Ordering: Specify door type, mounting, and finish
- Cast slip-on end brackets
| Part Number | Material Size | Base Size | Projection | Clearance | Weight |
|---|---|---|---|---|---|
|
53-PB |
1" dia |
2" dia |
2 3/8" |
1 1/4" |
1.5 lbs |
Mounting Types
Our mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back to back or concealed mountings for wood, metal and glass doors.
Note: Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Note: Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
Download Mounting Chart File: Mounting Chart.pdf
| Type | Description | |
|---|---|---|
|
Type 1 |
Thru Bolt Wood or Metal Door |
|
|
Type 2 |
Surface Applied Wood or Metal Door |
|
|
Type 4 |
Surface Screws and Thru Bolt Wood or Metal Door |
