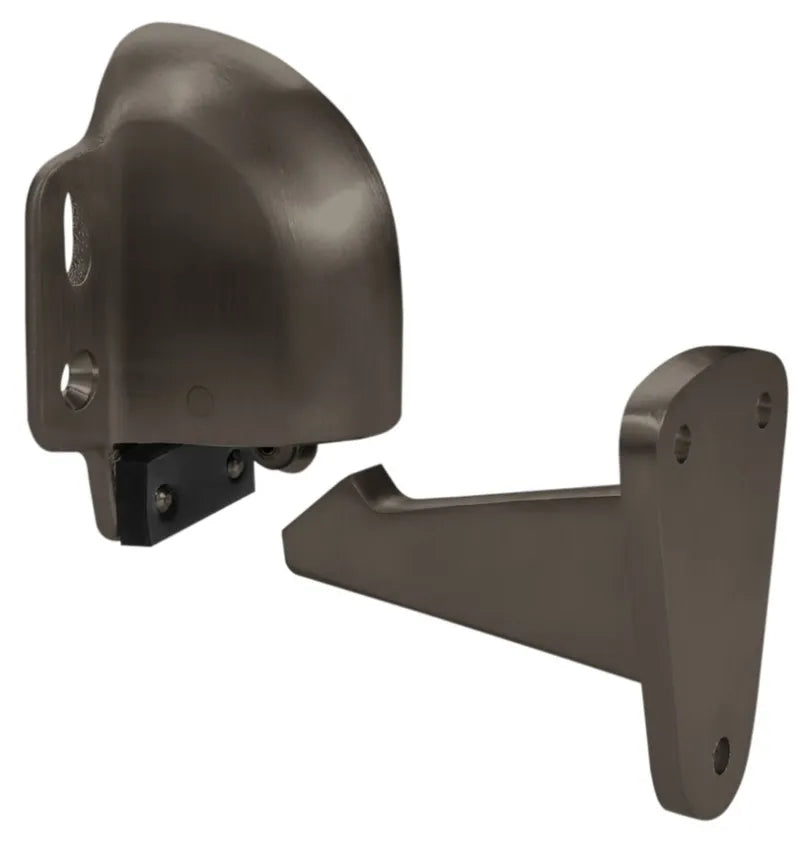

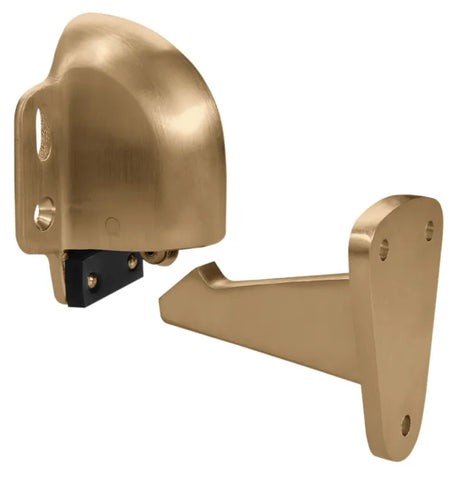

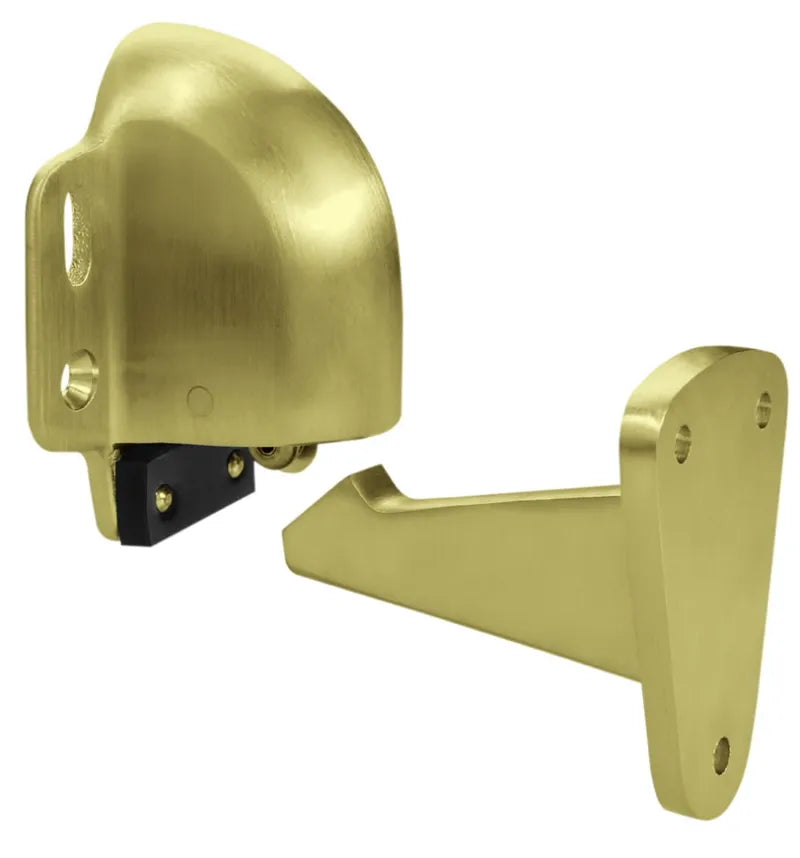

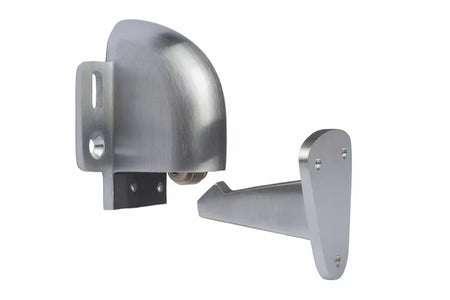

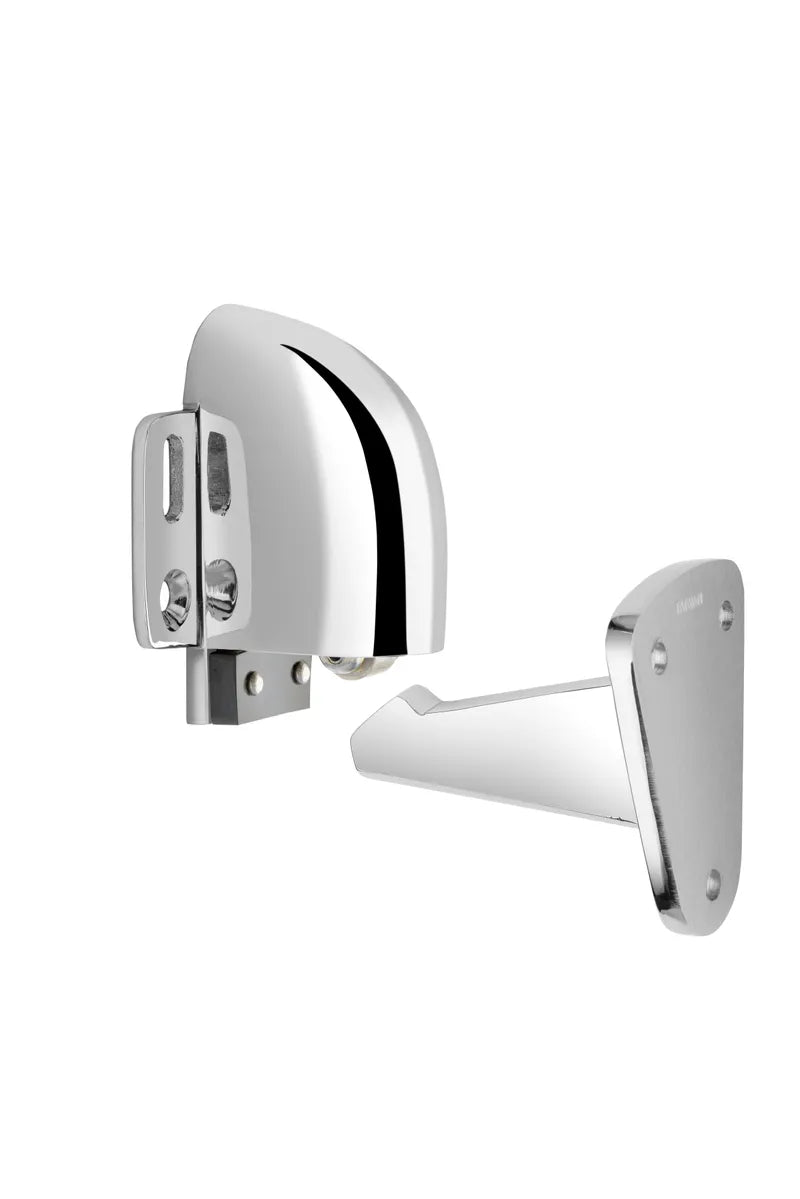

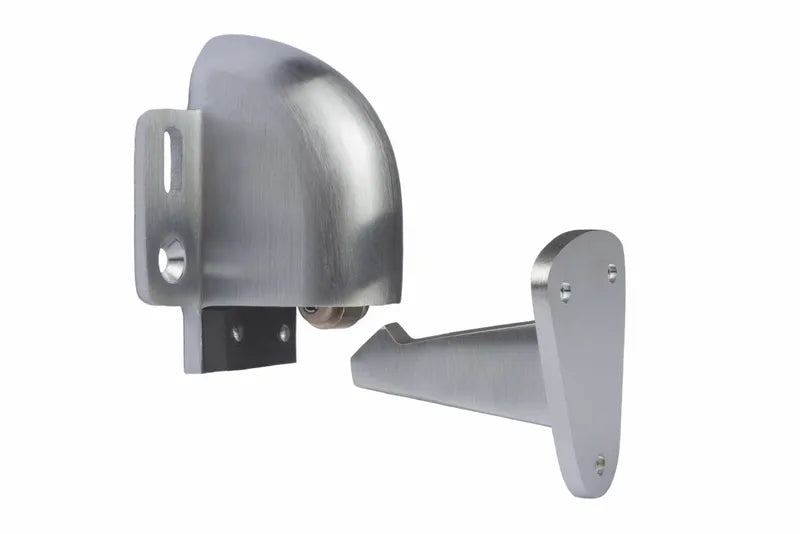

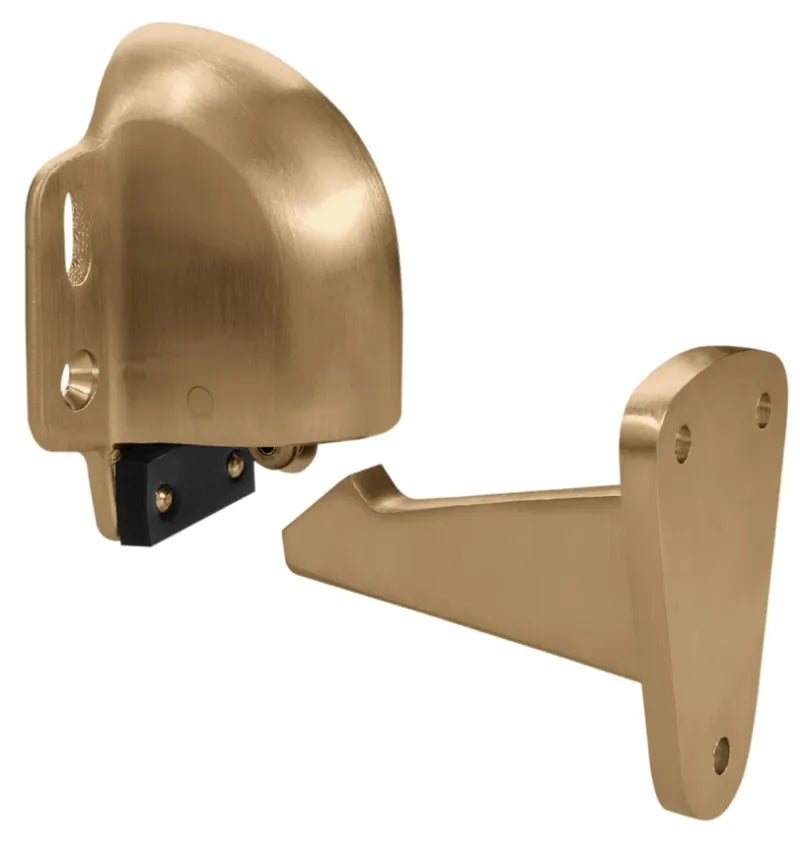

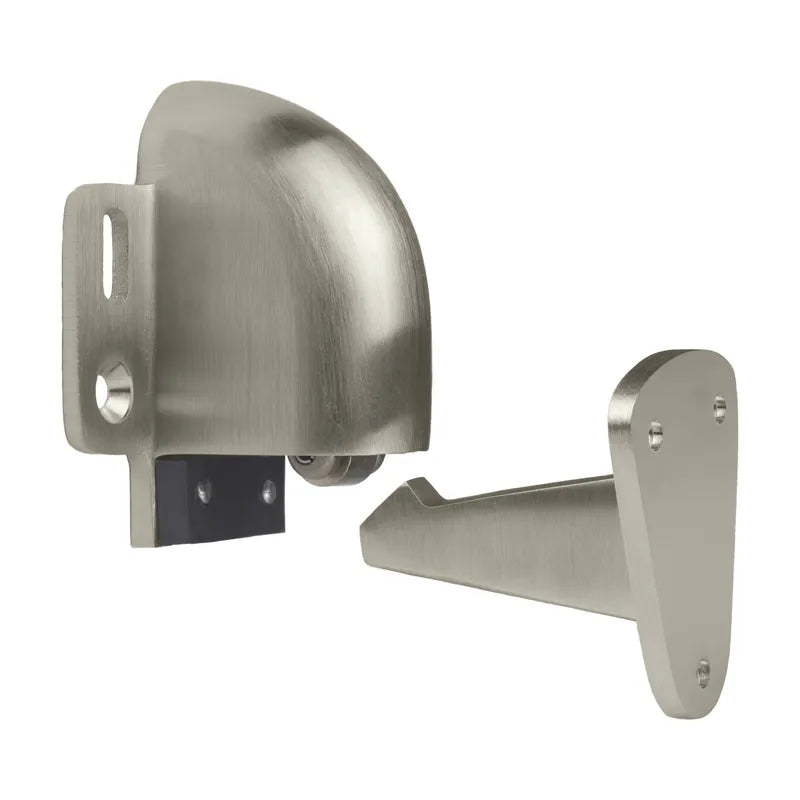

The cast brass 494-RKW, 494R, and 494S are Automatic Door Holders with Stops, ideal for applications that demand frequent door-hold-open functionality. They are particularly well-suited for situations where there is a clearance of 3-3/4" between the wall and the door. These holders feature a screw hole design that enables precise alignment and secure permanent attachment, ensuring dependable and hassle-free door management.
Product Overview
Features
- For applications requiring door hold-open on a frequent basis
- Screw hole design allows for precise alignment and then permanent attachment

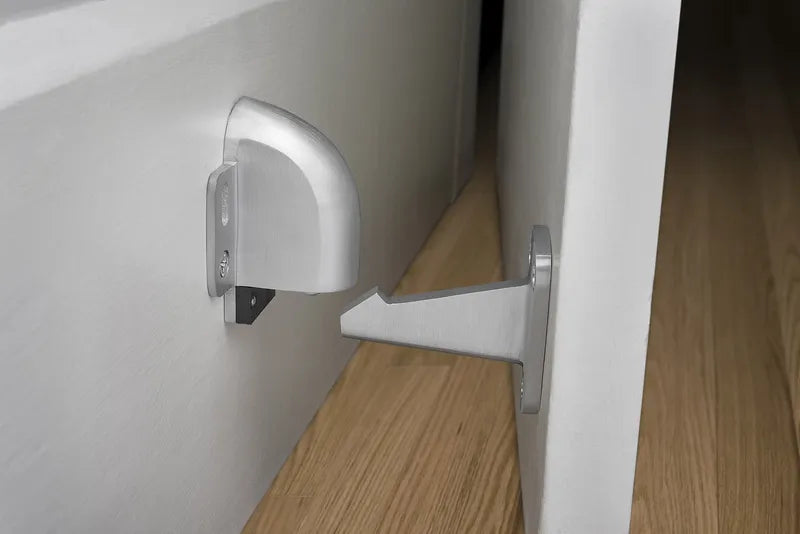

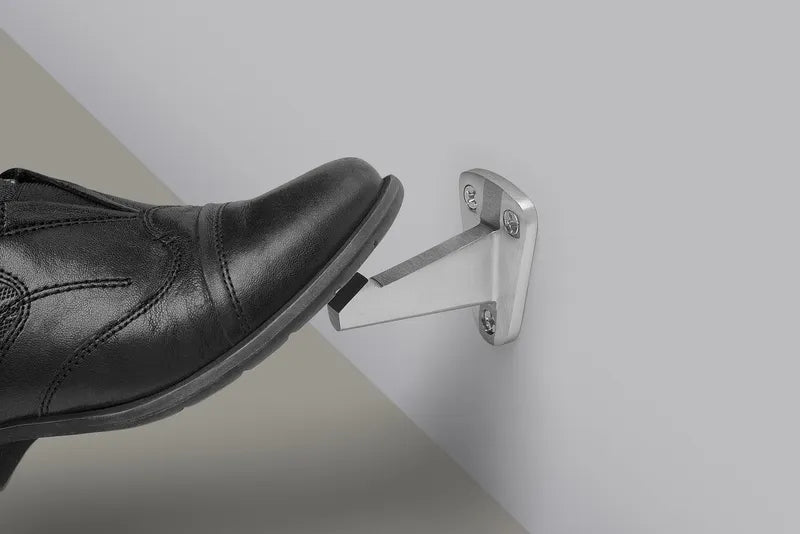

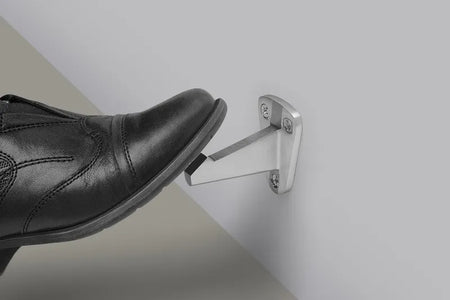

- Install strike on bottom of door to use as foot pull, mount holder to wall adjacent to strike to utilize as door holder
Specifications
- Base Material: Cast brass
- Holder Base Height: 3 3/8"
- Holder Base Width: 3"
- Holder Projection: 2 1/8"
- Strike Base Height: 3"
- Strike Base Width: 2"
- Strike Projection: 3 1/4"
- Weight: 1.7lbs.
| Part Number | Fastener |
|---|---|
|
494S |
Strike: 3 ea. #12 - 24 x 1" FH MS, 3 ea. anchors Body: 4 ea. #10 - 24 x 1" FH MS; 4 ea. #10 - 24 x 1-3/8" sex bolt |
|
494-RKW |
Strike: 3 ea. #12 x 1-1/4" FH WS, 3 ea. plastic anchors Body: 4 ea. #10 x 1-1/4" FH WS |
|
494R |
Strike: 3 ea. #12 - 24 x 1" FH MS, 3 ea. anchors Body: 4 ea. #10 x 1-1/4" FH WS |
