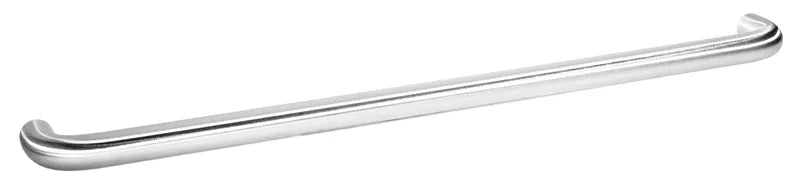

The 48-PB (one bar) Push Bars are ideal for wood or metal doors, and feature optional engraving and heavy-duty fastening types.
Product Overview
Features
- Engraving "PUSH" or "PULL"
- Heavy duty versions of most fastening types available — use suffix HD to fastening type number
- US32316, US32D316 finishes offer superior corrosion resistance for withstanding harsh environments
Benefits
- US32316, US32D316 finishes ideal for use in coastal, high salt level, urban, and industrial areas, and environments exposed to alkalis and acids
Specifications
- End Shape: Bent
- Grip Shape: Round
- Base Material: Aluminum, Brass, Bronze, Stainless steel
- Door Material: Metal, Wood
- Fastener: Metal and wood door: type 1, 1/4 - 20 x 2-1/4" thru bolt and finish washer; Metal door: type 6, concealed, 1/4 - 20 CH MS
- Push-clearance: 1 3/4"
- Mounting: Type 5HD: Back to Back Heavy Duty (Wood or Metal)
- Mounting: Type 13HD: Back to Back Heavy Duty ( Glass)
- Mounting: Type 15HD: Decorative Thru Bolt Heavy Duty ( Glass)
- Ordering: Specify CTC, door type, mounting, and finish
- Advise if door thickness is other than 1-3⁄4"
- Heavy duty versions of most fastening types available — use suffix HD to fastening type number
- Engraving "PUSH" or "PULL"
- US32316, US32D316 finishes offer superior corrosion resistance for withstanding harsh environments
| Part Number | Material Size | Base Size | Projection | Clearance | Weight |
|---|---|---|---|---|---|
|
47-PB |
1" dia |
1" dia |
2 3/4" |
1 3/4" |
8.5 lbs |
|
47-2-PB |
1" dia |
1" dia |
2 3/4" |
1 3/4" |
17 lbs |
|
47-3-PB |
1" dia |
1" dia |
2 3/4" |
1 3/4" |
25.5 lbs |
|
48-PB |
3/4" dia |
3/4" dia |
2 3/4" |
1 3/4" |
4.5 lbs |
Mounting Types
Our mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back to back or concealed mountings for wood, metal and glass doors.
Note: Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Note: Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
Download Mounting Chart File: Mounting Chart.pdf
| Type | Description | |
|---|---|---|
|
Type 1 |
Thru Bolt Wood or Metal Door |
|
|
Type 1HD |
Thru Bolt Heavy Duty - Wood or Metal Door |
|
|
Type 5 |
Back-to-Back Wood or Metal Door |
|
|
Type 5HD |
Back-to-Back Heavy Duty - Wood or Metal Door |
|
|
Type 6 |
Surface Concealed Metal Door |
|
|
Type 6HD |
Surface Concealed Heavy Duty - Metal Door |
|
|
Type 8 |
Surface Concealed Wood Door |
|
|
Type 8HD |
Surface Concealed Heavy Duty - Wood Door |
|
|
Type 13 |
Back-to-Back Glass Door |
|
|
Type 13HD |
Back-to-Back Heavy Duty - Glass Door |
|
|
Type 15 |
Decorative Thru Bolt Glass Door |
|
|
Type 15HD |
Decorative Thru Bolt Heavy Duty - Glass Door |
