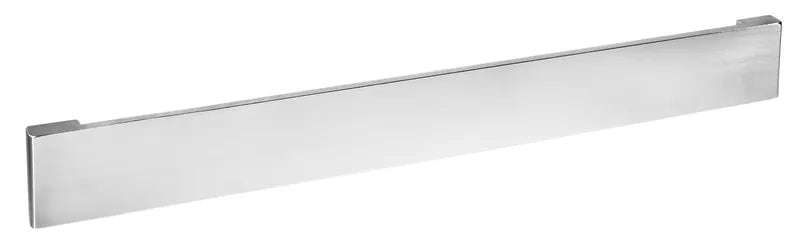

The 45-PB Push Bar, measuring 3/8" x 3" in material size, is designed for easy mounting on Type 1 Metal or Wood Doors, providing a convenient and secure means of egress.
Product Overview
Features
- Ideal for engraving or logos
Specifications
- End Shape: Flat
- Grip Shape: Flat
- Base Material: Aluminum, Brass, Bronze, Stainless steel
- Door Material: Metal, Wood
- Fastener: Metal and wood door: type 1, 1/4 - 20 x 2-1/4" thru bolt and finish washer.
- Ordering: Specify CTC, door type, mounting, and finish
- Advise if door thickness is other than 1-3/4"
- Ideal for engraving or logos
| Part Number | Material Size | Base Size | Projection | Clearance | Weight |
|---|---|---|---|---|---|
|
45-PB |
3/8" w x 3" h |
1 1/2" w x 3" h |
3/4" |
3/8" |
9.9 lbs |
Mounting Types
Our mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back to back or concealed mountings for wood, metal and glass doors.
Note: Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Note: Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
Download Mounting Chart File: Mounting Chart.pdf
| Type | Description | |
|---|---|---|
|
Type 1 |
Thru Bolt Wood or Metal Door |
|
|
Type 2 |
Surface Applied Wood or Metal Door |
|
|
Type 3 |
Back-to-Back Wood or Metal Door |
