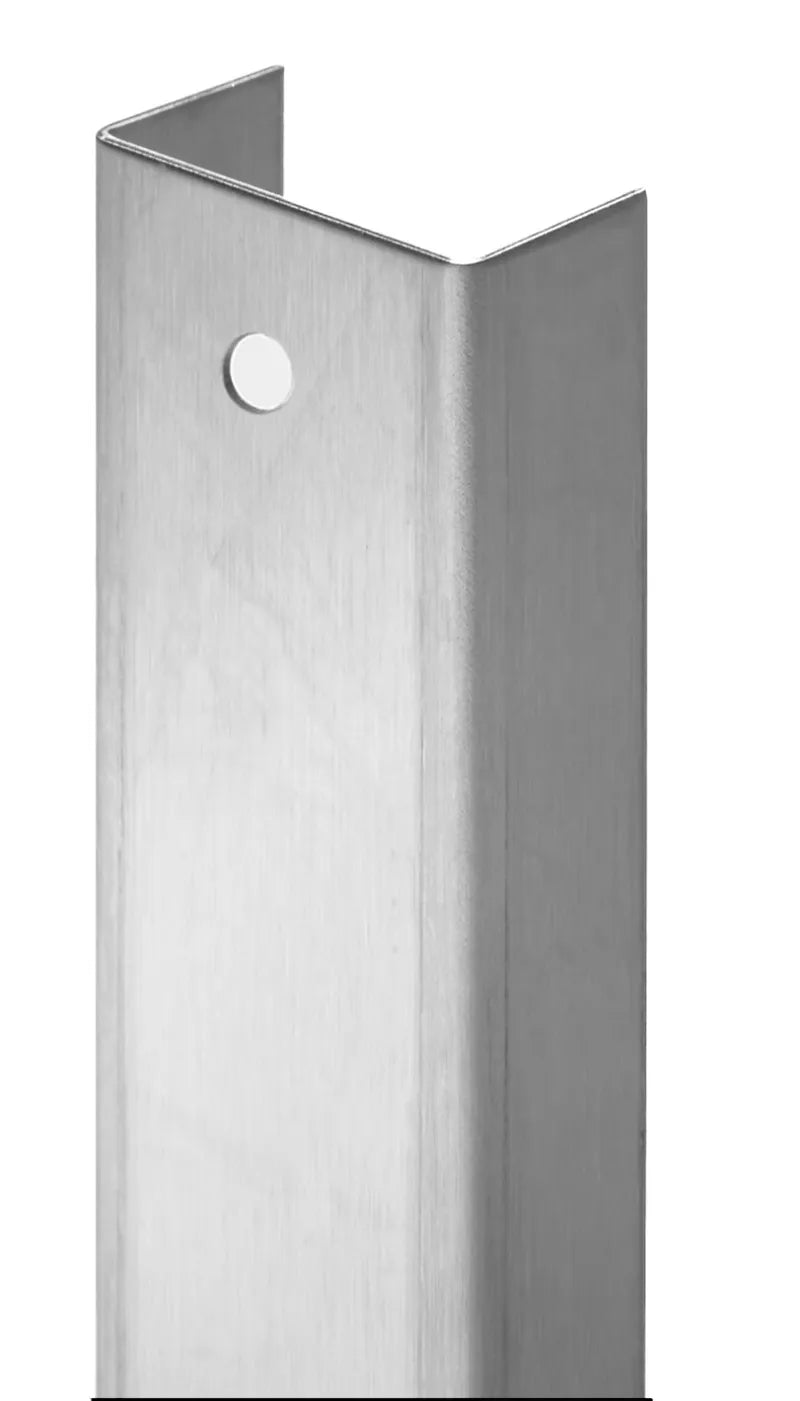

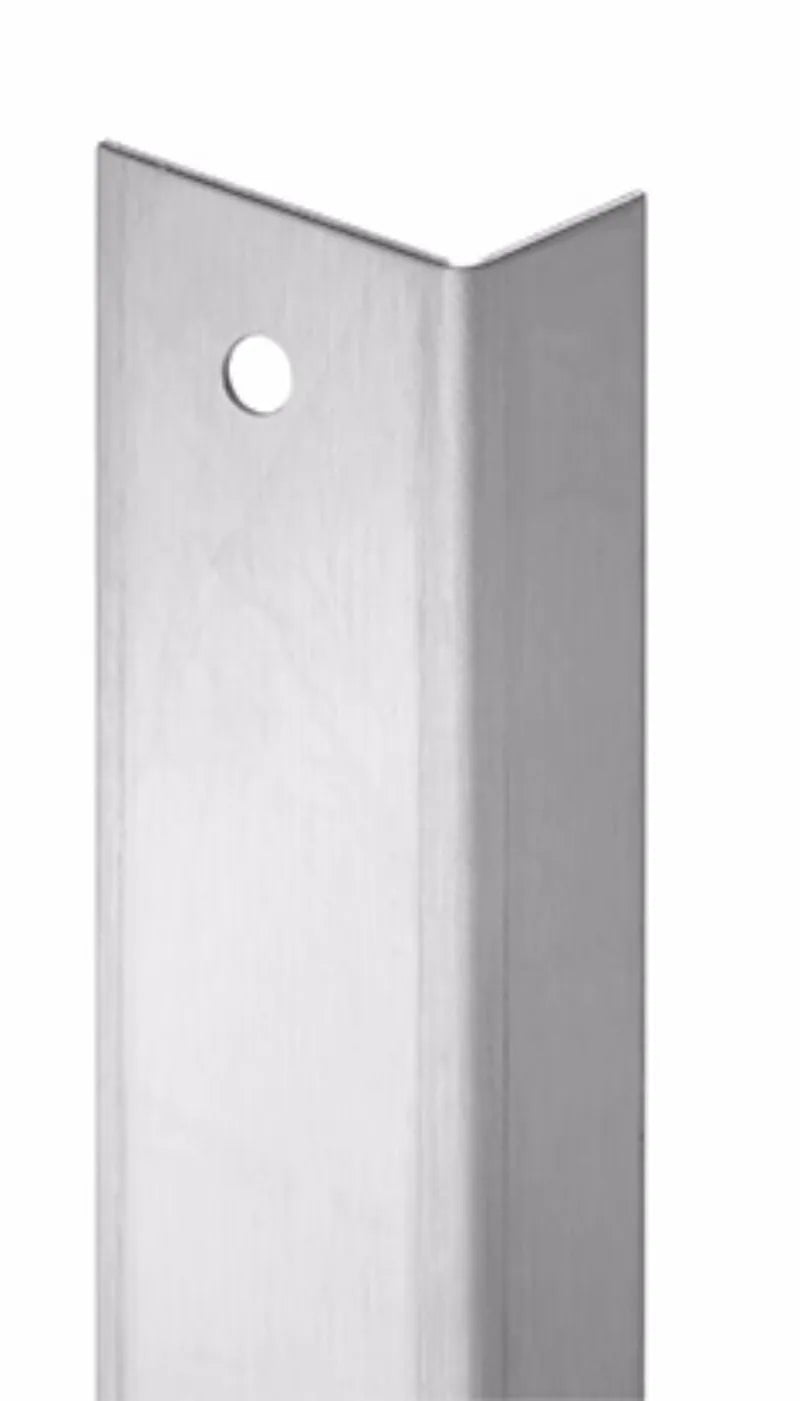

The 304 non-mortise door edges are sized for 1-3/4" thick wood or metal doors.
Product Overview
Features
- NOTE: Some wood doors that are nominally 1-3/4" vary significantly
- Sized for 1-3/4" thick wood or metal doors - advise if your door is another thickness
- 306-AST and 306B-AST include astragal for additional vandalism protection
- Option - UL fire rated listed for stainless steel, brass and bronze
- For use on wood or plastic faced fire doors rated up to and including 1-1/2 hours, or hollow metal, steel covered, composite type fire doors rated up to and including 3 hours
- .050" thick
- US32316, US32D316 finishes offer superior corrosion resistance for withstanding harsh environments
Specifications
- Base Material: Brass, Bronze, Stainless steel
- Fastener: #6 x 5/8" FH SMS
- Specify UL when ordering, for example (304-UL)
- 304, 305, 305, 306 Options: Cutouts for flush bolts, lock strikes, locks, and hinges
- Ordering: Specify any length up to 96" (standard lengths are 42", 84", 96") NOTE: 84" and 96" are made to match net door height - specify
| Part Number | Fastener | ANSI A156.6 | Description |
|---|---|---|---|
|
304 |
#6 x 5/8" FH SMS |
304 Non-Mortise Door Edge for 1-3/4" wood or metal doors |
|
|
305 |
#6 x 5/8" FH SMS |
305 Non-Mortise Door Edge for 1-3/4" wood or metal doors |
|
|
306-AST |
#6 x 5/8" FH SMS |

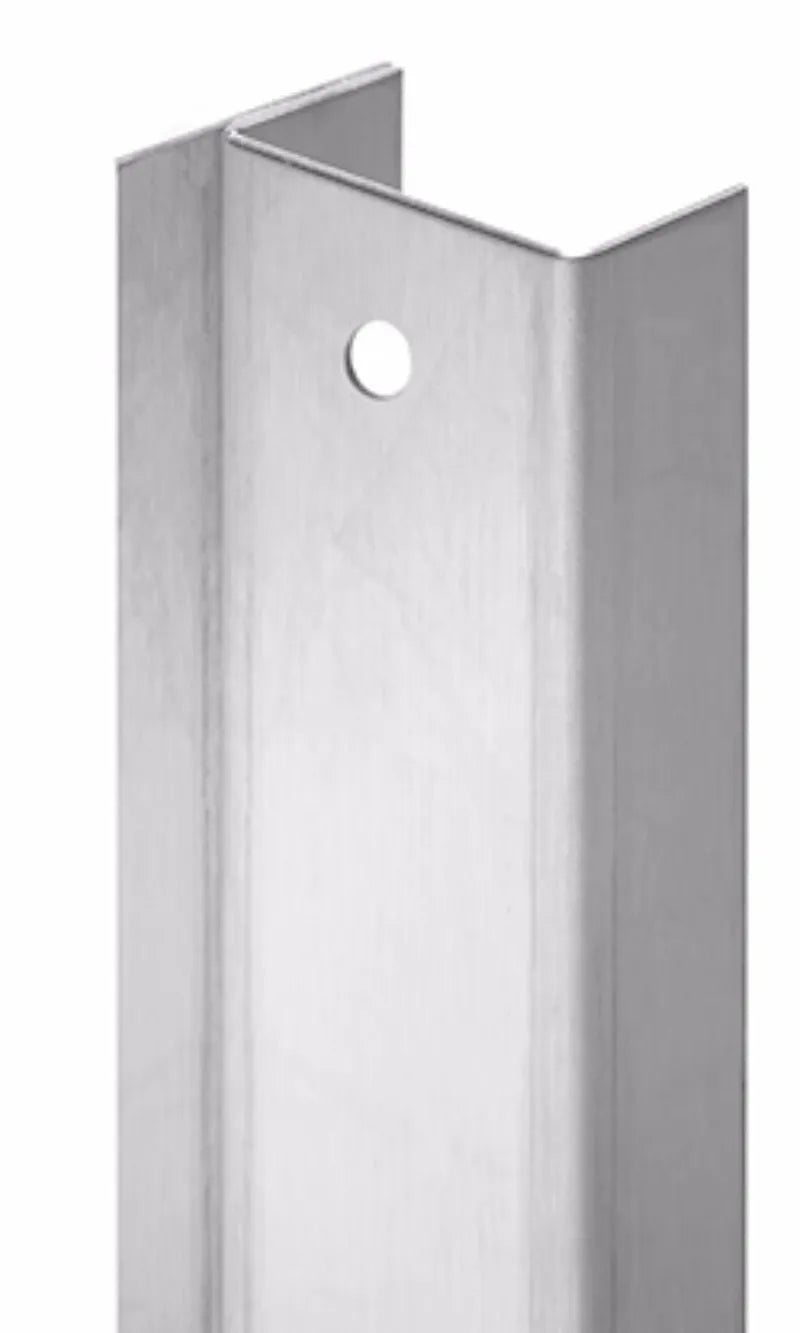

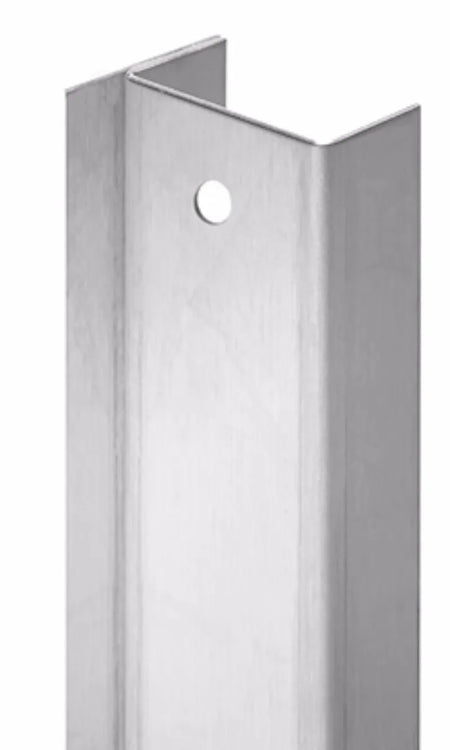

306-AST Non-Mortise Astragal Door Edge for 1-3/4" wood or metal doors |
|
|
306-RKW |
#6 x 5/8" FH SMS |
306-RKW Non-Mortise Door Edge for 1-3/4" wood or metal doors |
|
|
306B |
#6 x 5/8" FH SMS |
306B Non-Mortise Door Edge for 1-3/4" wood or metal doors |
|
|
306B-AST |
#6 x 5/8" FH SMS |
306B-AST Non-Mortise Astragal Door Edge for 1-3/4" wood or metal doors |
|
|
307 |
#6 x 5/8" FH SMS |
307 Non-Mortise Door Edge for 1-3/4" wood or metal doors |
