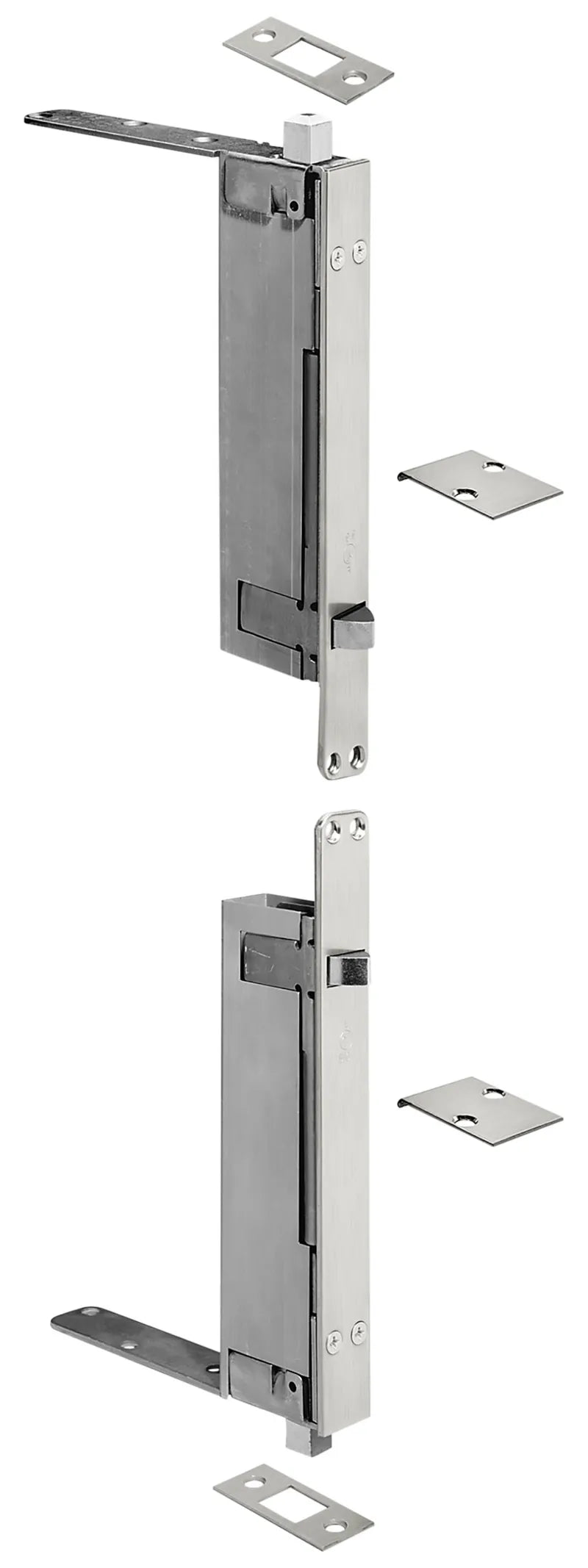

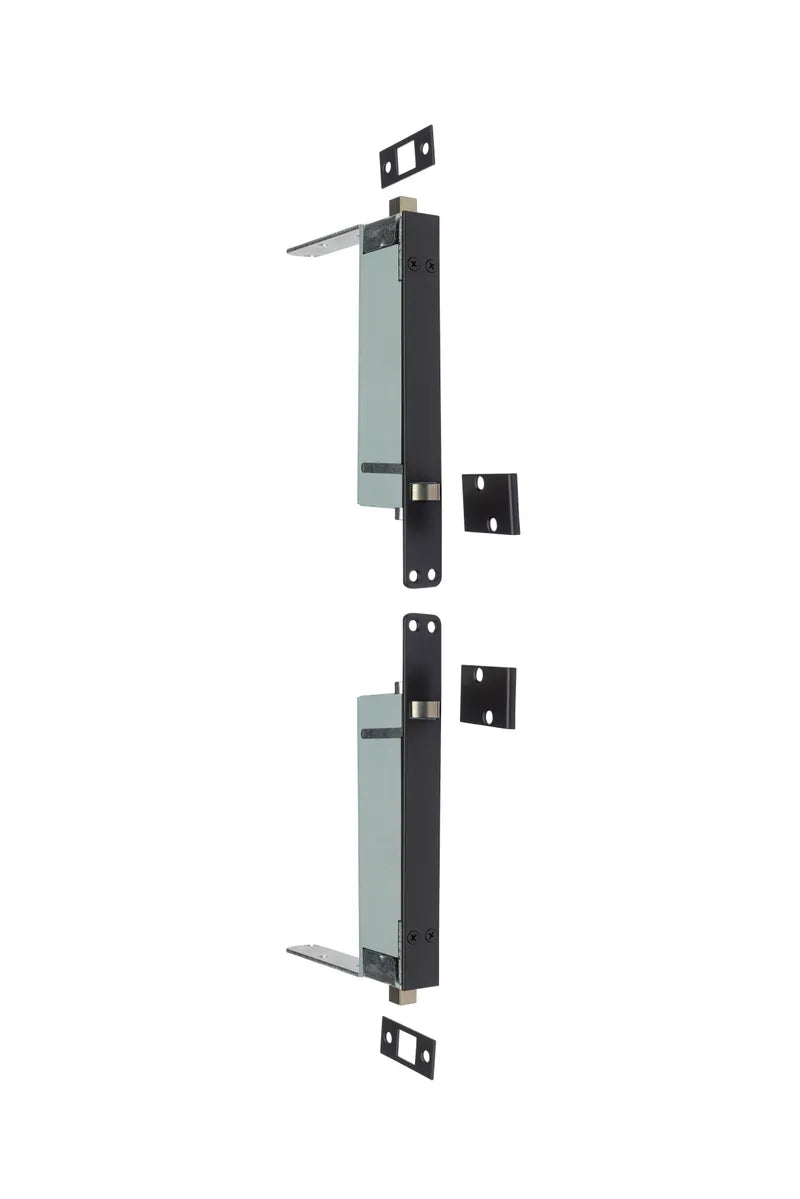

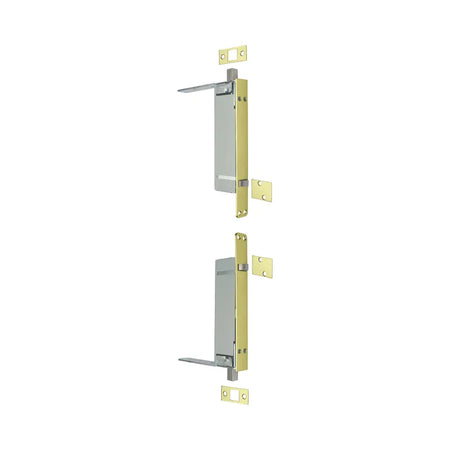

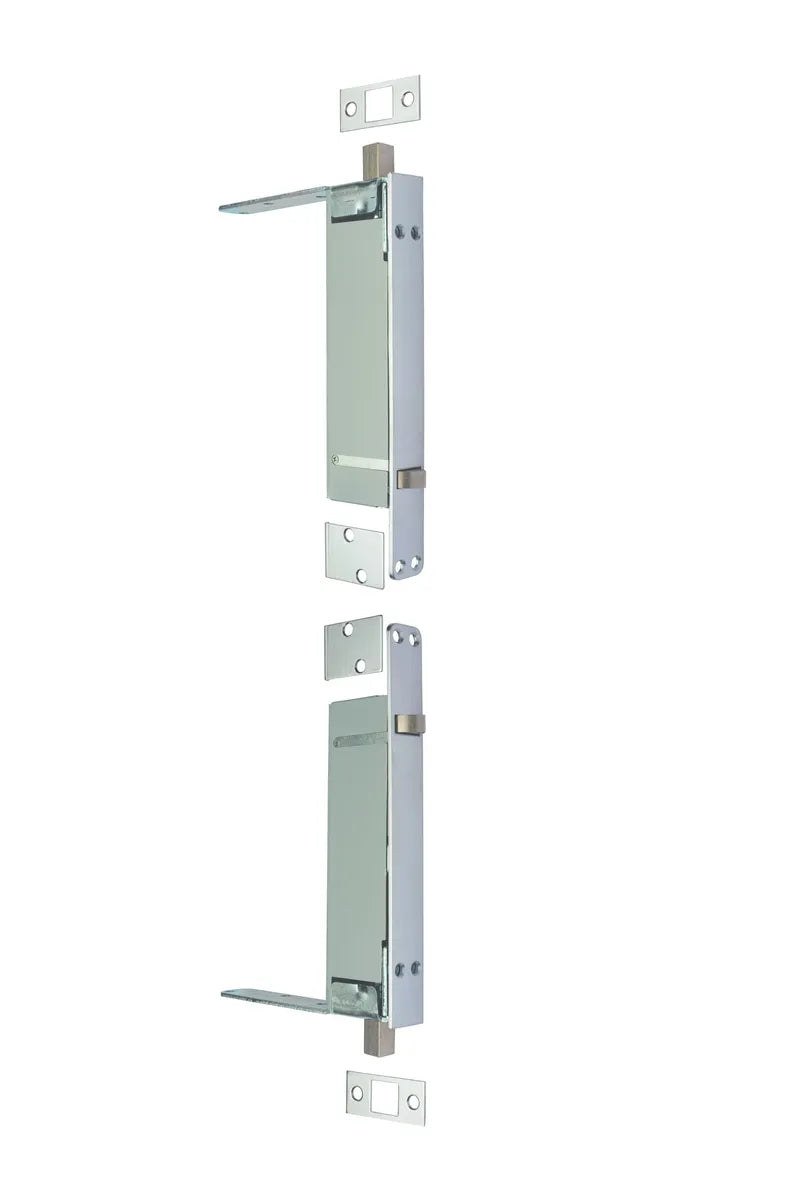

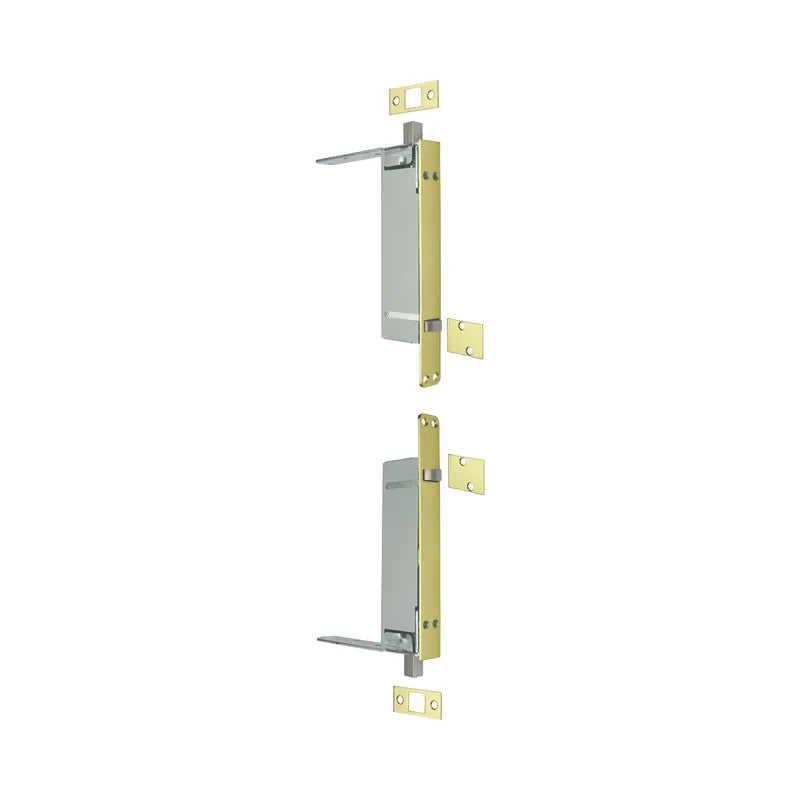

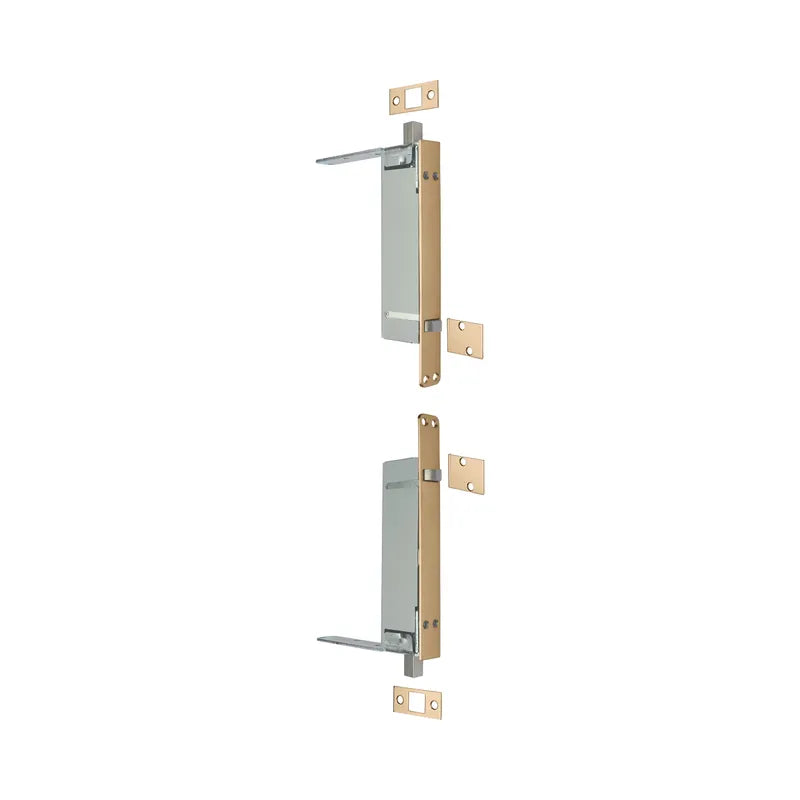

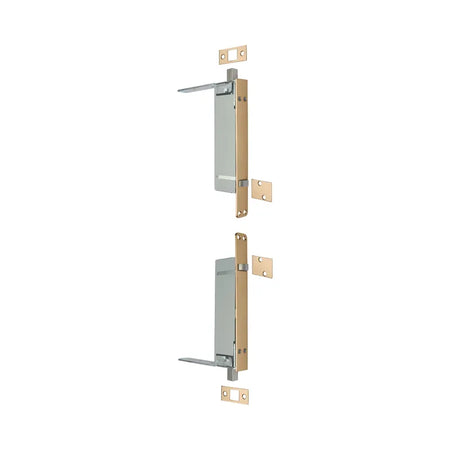

The non-handed, fully automatic 2942 Automatic Flush Bolt Set (top and bottom bolts) is for select wood door types and includes an override feature that prevents damage to doors or bolts if bolt heads are blocked from entering strikes, as well as a thermal lock that automatically locks the inactive door under high heat conditions due to fire.
Product Overview
Features
- For wood doors labeled B, C, D & E up to 4'w x 8''h
- Bolt head rods are adjustable up to 3/8"
- Fully automatic-opening active door retracts top and bottom bolts
- Low closing force
- Override feature prevents damage to doors or bolts if bolt heads are blocked from entering strikes
- Thermal lock automatically locks the inactive door under high heat conditions due to fire
- Can be used with the No. 570 Dust Proof Strike
- Wood door flush bolts can not be extended in size (extension rods are not available)
Benefits
- Can be used on doors that swing in either direction
- Low closing force reduces effort needed to shut door
- Adjustable bolt head rod allows for precise fit during installation
- Automatically secures inactive leaf of door pair
Specifications
- Base Material: Brass, Bronze, Stainless steel
- Fastener: 12 ea. #8 x 3/4" FH combo screws, 4 ea. #8 - 32 x 1/2" FH MS, 6 ea. #10 x 1" FH WS, 2 ea. #6 - 8 plastic anchors
- Handing: Non-handed
- Weight: 2.9lbs.
- Length: 8 1/2"
- Width: 1"
