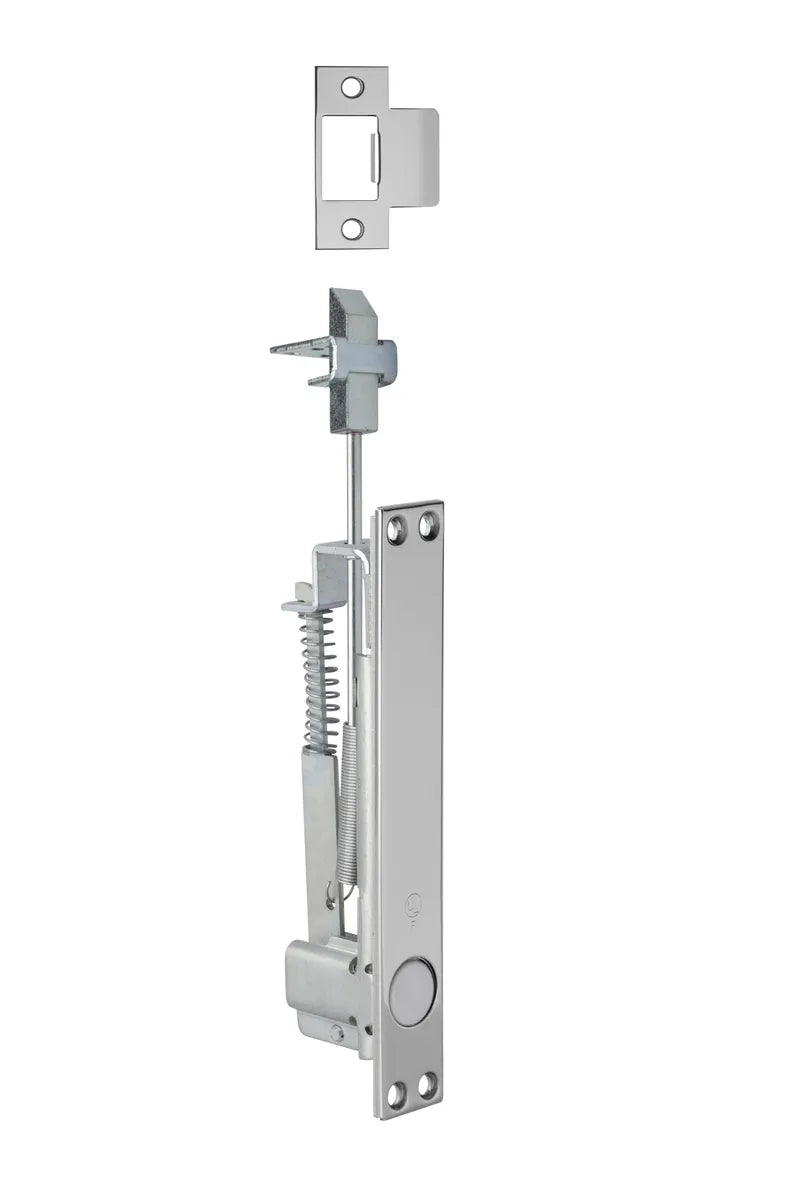

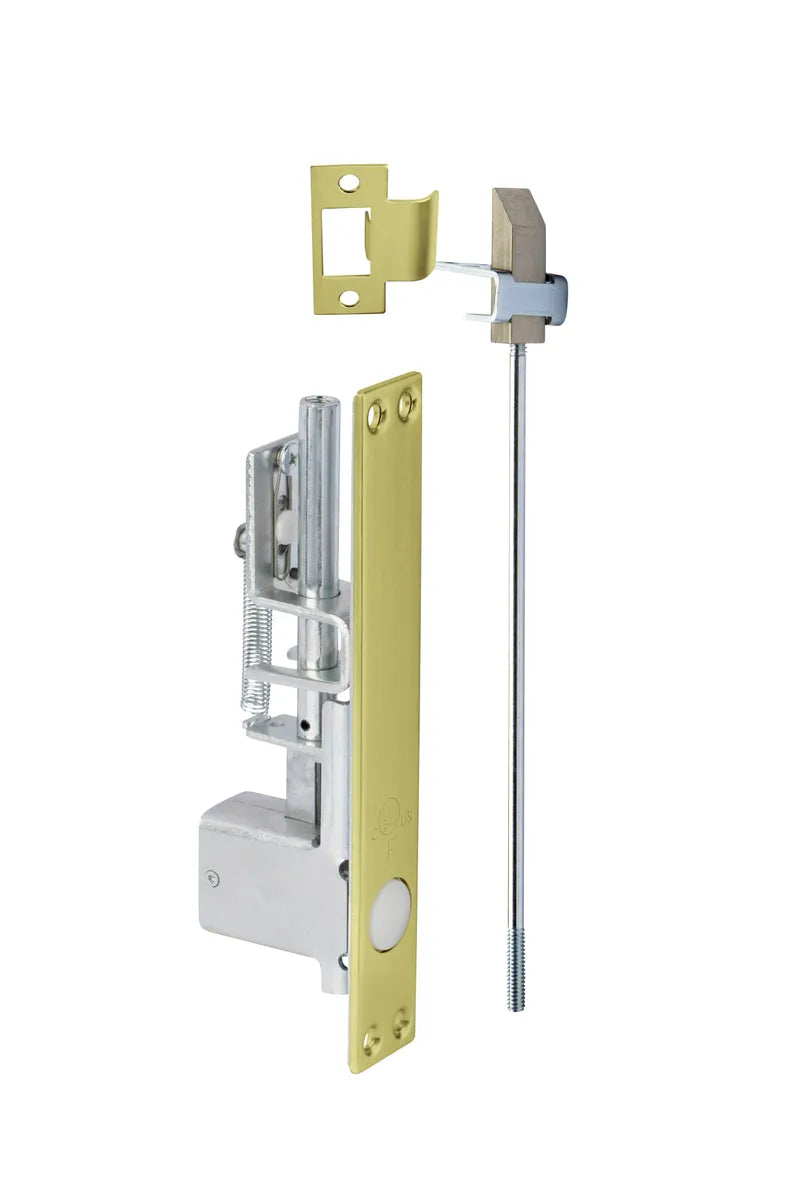

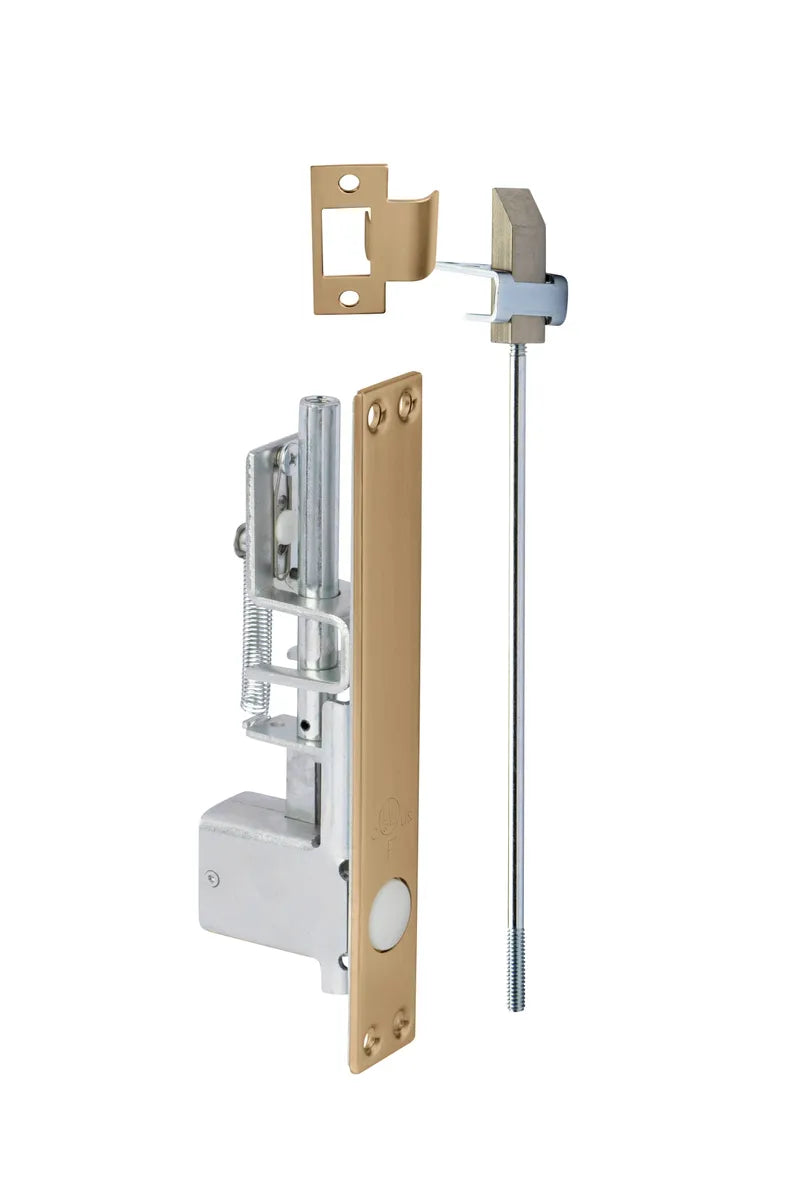

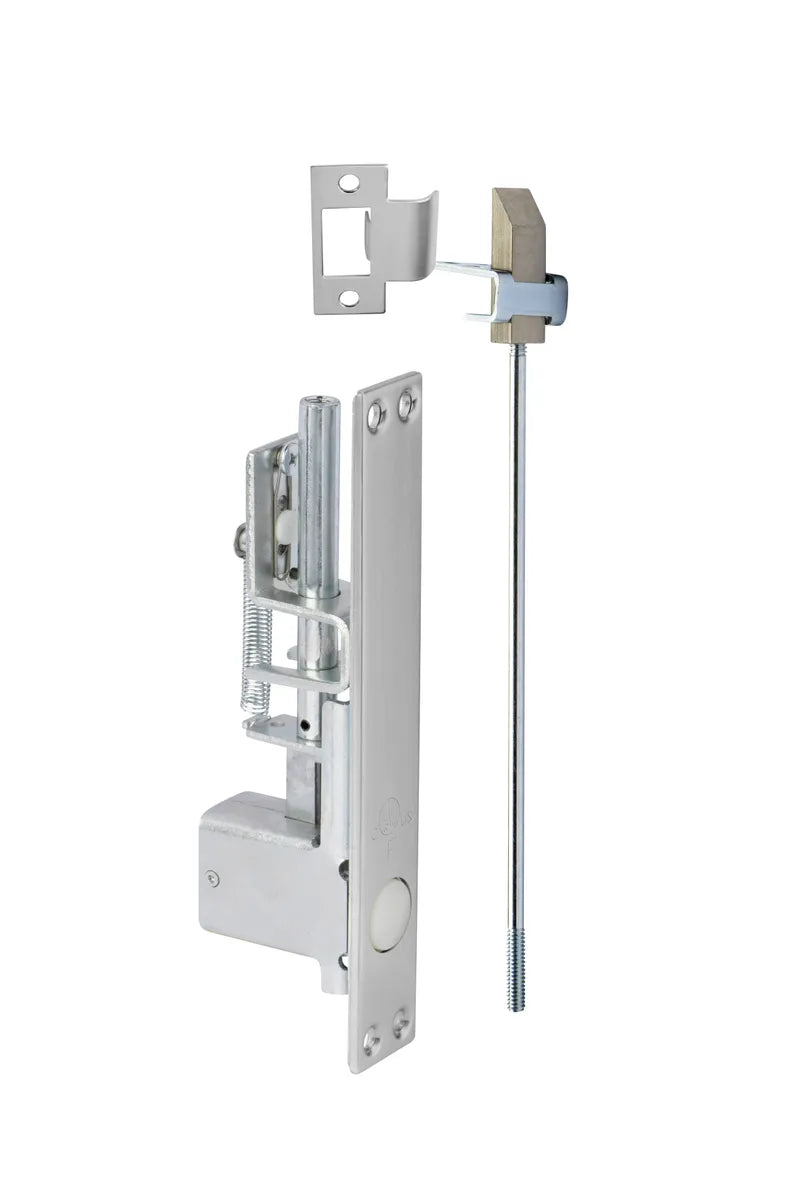

The 2805 Combination Flush Bolt (Self Latching Top Bolt Only) is for use on select fire rated metal doors. This product automatically engages when the inactive door closes, and when the active door is opened, the inactive door stays latched at the top until the top bolt is released by pressing the plunger button on the bolt face.
Product Overview
- Automatically engages when the inactive door closes
- For Fire Rated Metal Doors labeled A, B, C, D & E up to 4'w x 8'h
- No plastic anchor required
- Inactive door stays latched at top until bolt is released by pressing plunger button
Specifications
- Base Material: Brass, Stainless steel
- Fastener: 8 ea. #8 x 3/4" flat head combo screws. No plastic anchor required.
- Weight: 1.2lbs.
- Top Bolt Length: 6 3/4"
- Top Bolt Width: 1"
