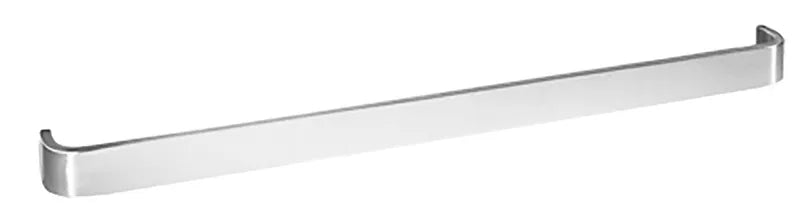

The 15-PB (no base plates) Push Bars are ideal for wood or metal doors.
Product Overview
Features
- 14-PB (base plate) and 15-PB (no base plate)
Specifications
- End Shape: Flat
- Grip Shape: Flat
- Base Material: Aluminum, Brass, Bronze, Stainless steel
- Door Material: Metal, Wood
- Fastener: Metal & Wood Door: Type 1, 1⁄4 -20 x 2-1⁄4" Thru Bolt & Finish Washer (standard 1-3⁄4" door)
- Ordering: Specify CTC, door type, mounting, and finish
- Options: Advise if door thickness is other than 1-3⁄4"
- 14-PB (base plate) and 15-PB (no base plate)
| Part Number | Material Size | Base Size | Projection | Clearance | Weight |
|---|---|---|---|---|---|
|
14-PB |
1 1/2" w x 3/8" d |
1 1/2" w x 2" h x 1/8" d |
2" |
1 5/8" |
6.3 lbs |
|
15-PB |
1 1/2" w x 3/8" d |
1 1/2" w x 3/8" d |
1 7/8" |
1 1/2" |
6.1 lbs |
Mounting Types
Our mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back to back or concealed mountings for wood, metal and glass doors.
Note: Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Note: Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
Download Mounting Chart File: Mounting Chart.pdf
| Type | Description | |
|---|---|---|
|
Type 1 |
Thru Bolt Wood or Metal Door |
